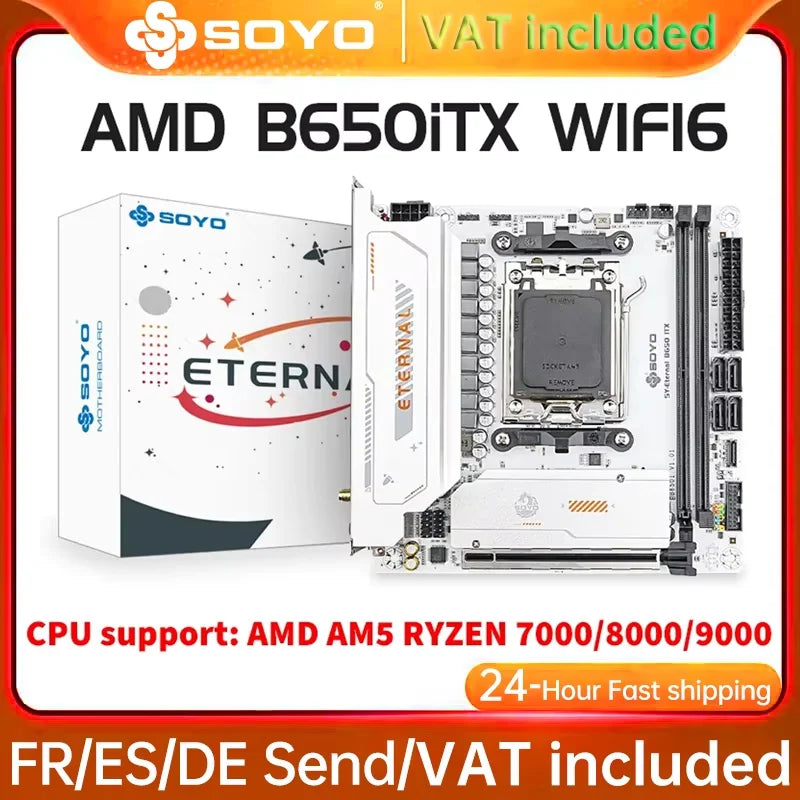

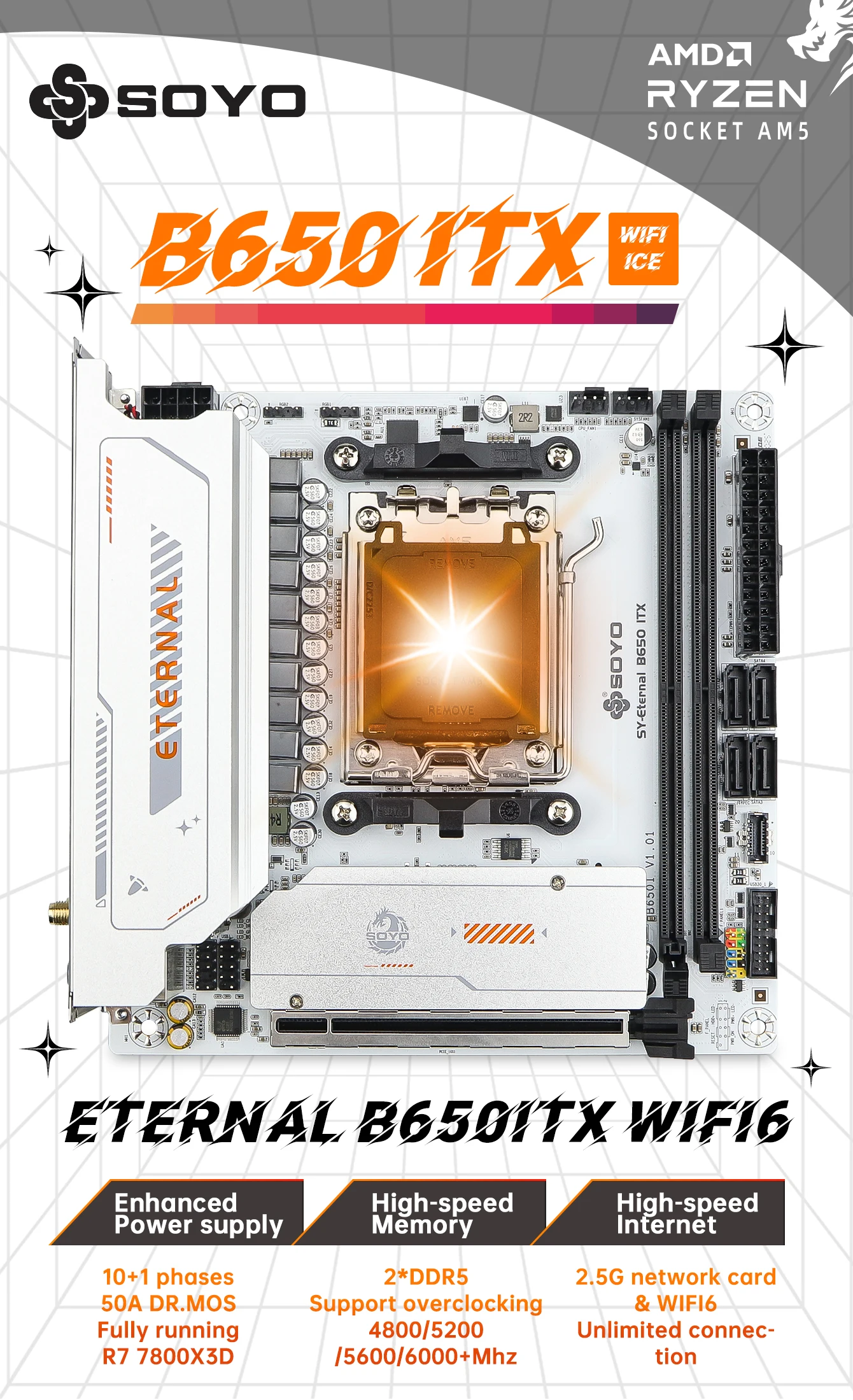

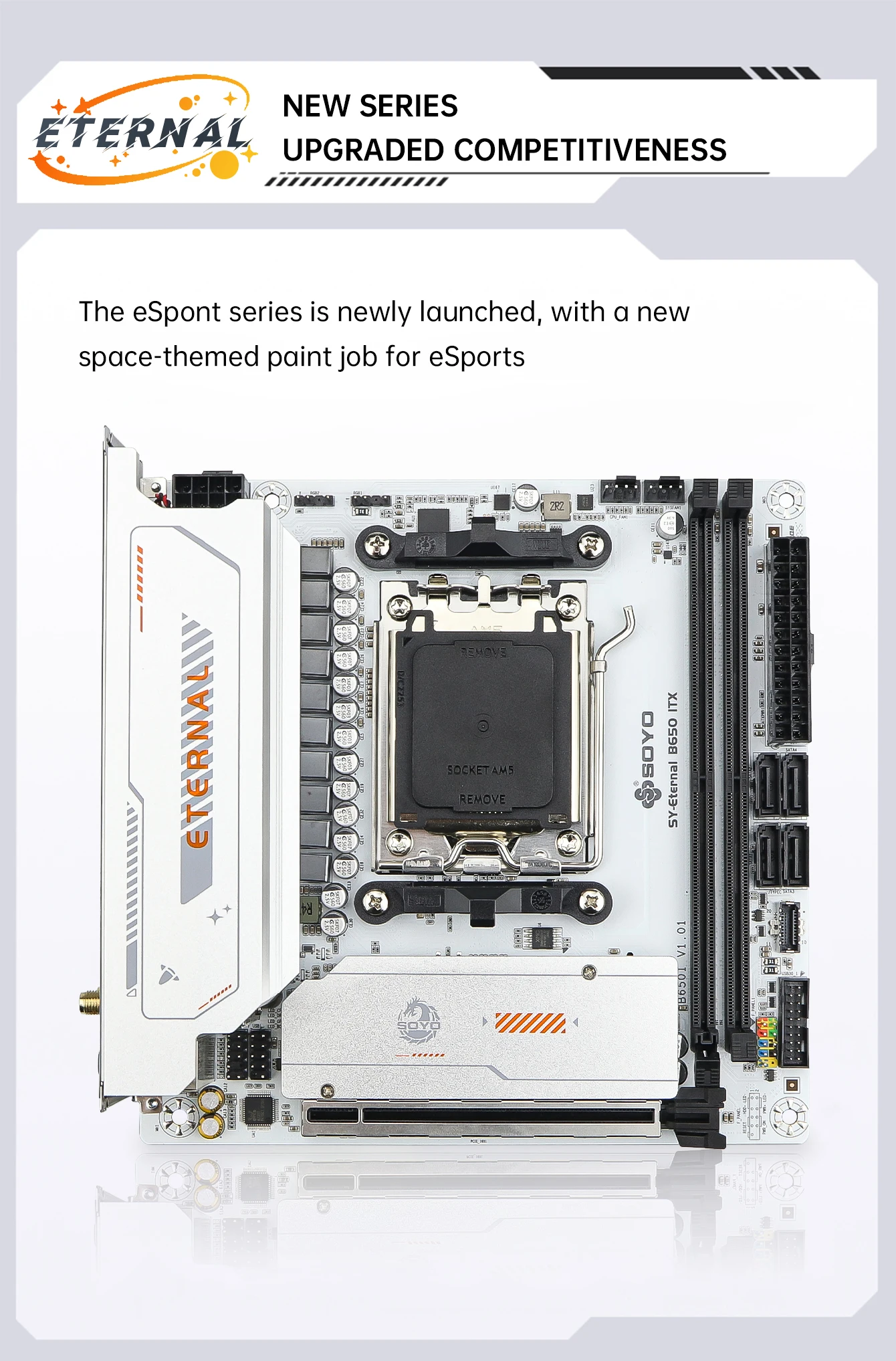

SOYO Motherboard AMD B650ITX Ryzen AM5 DDR5 Supports CPU 7000 8000 9000 Processors Pcie5.0x16 Pcie4.0x4 M.2 ARGB WIFI6
SOYO Motherboard AMD B650ITX Ryzen AM5 DDR5 Supports CPU 7000 8000 9000 Processors Pcie5.0x16 Pcie4.0x4 M.2 ARGB WIFI6
Det gick inte att ladda hämtningstillgänglighet

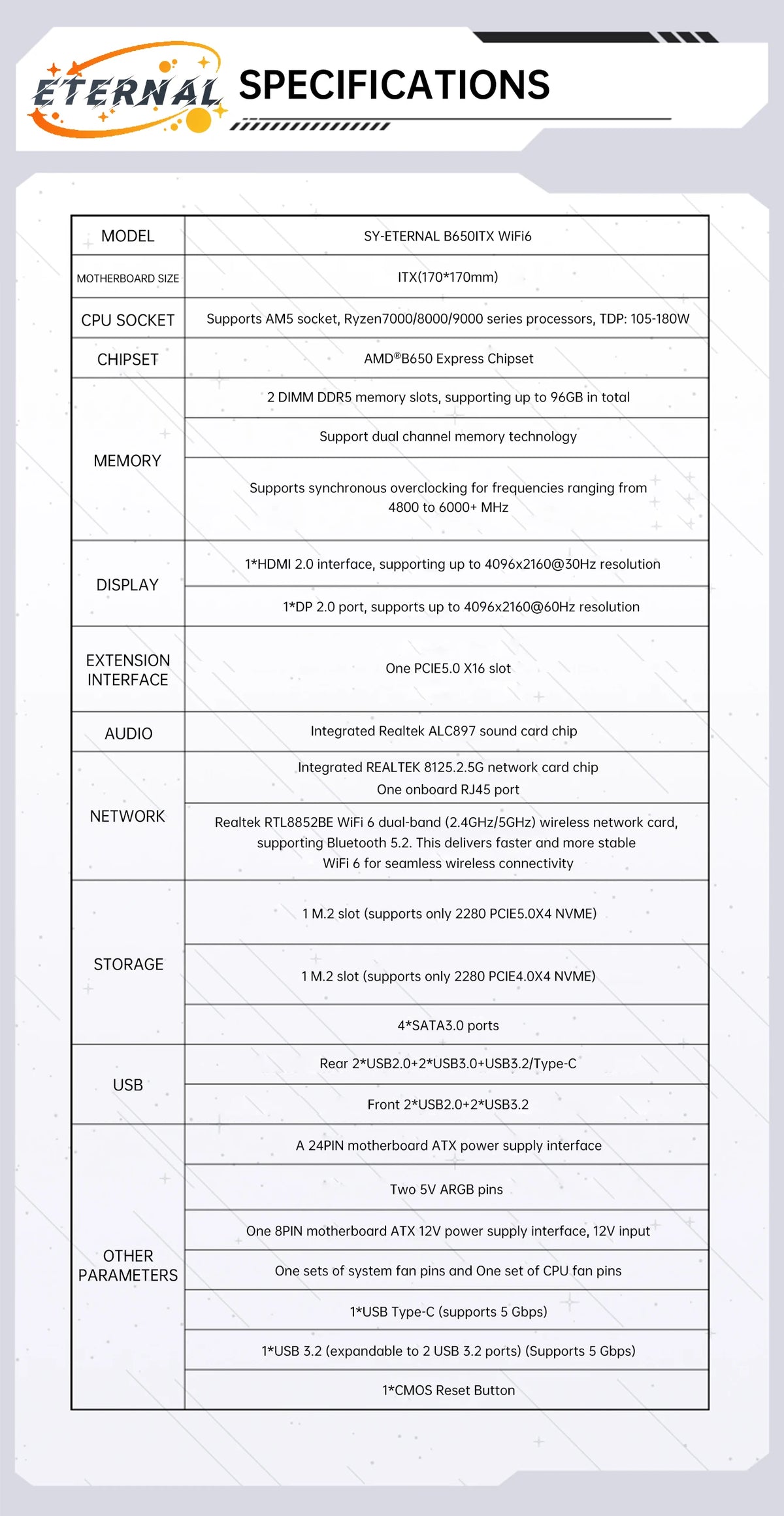

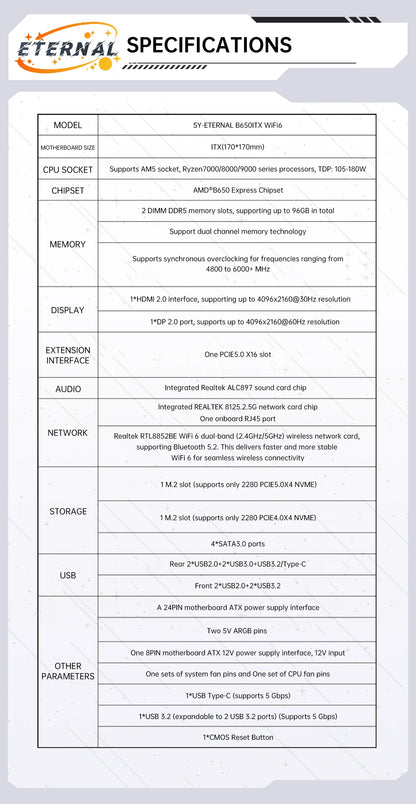

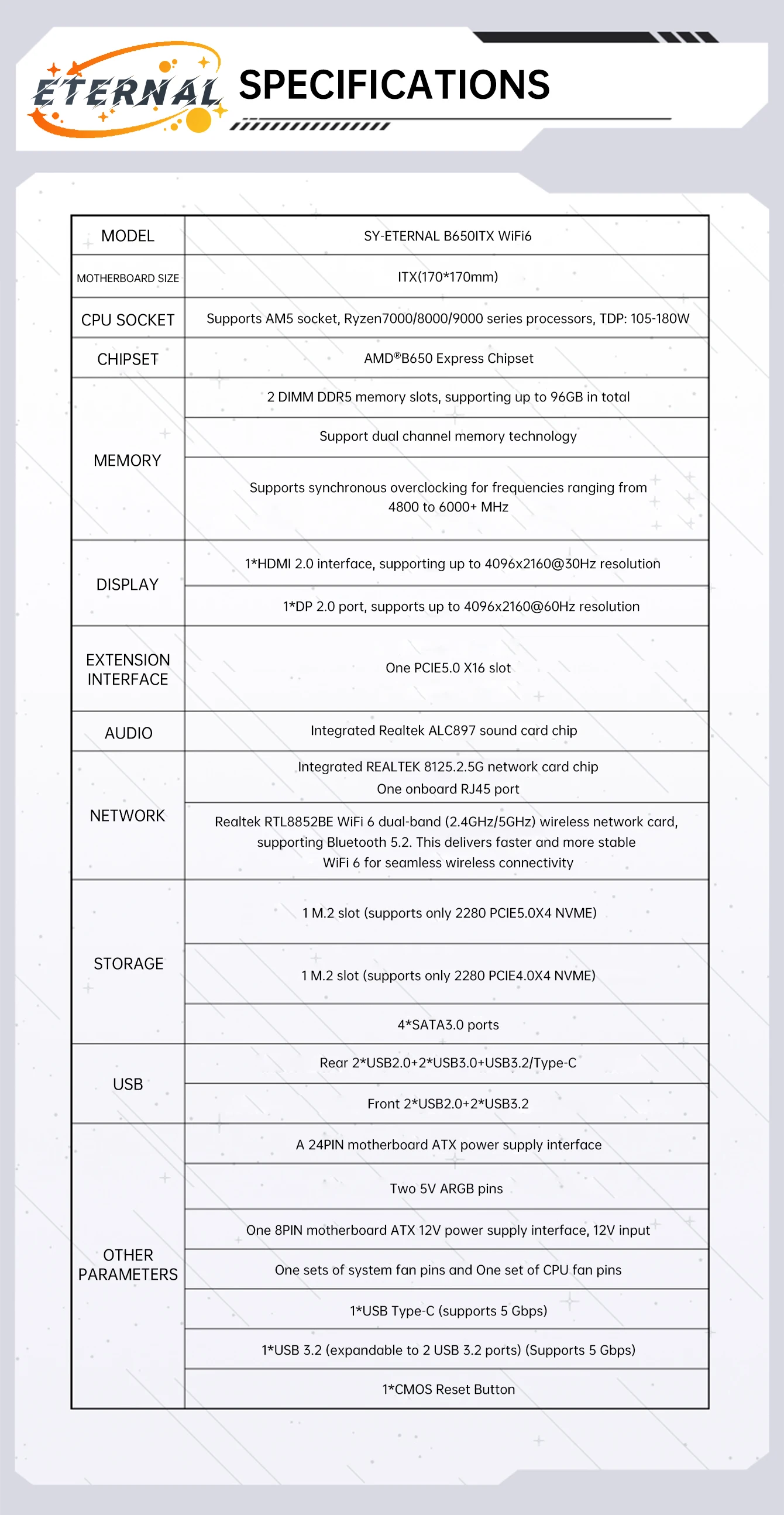

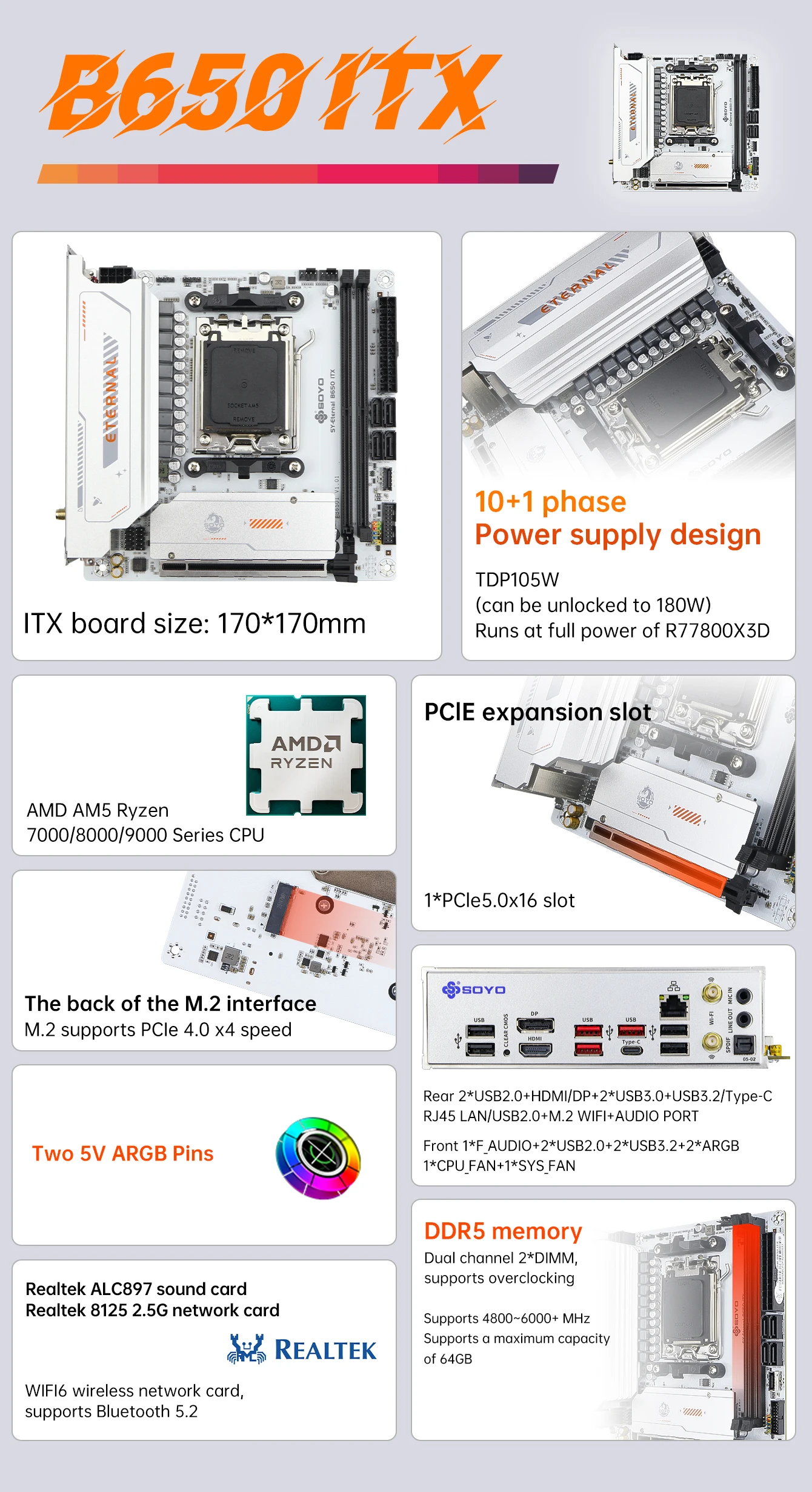

SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,WiFi,Displayport,HDMI 2.0
Battery Included: no
Brand Name: SOYO
Chipset: AMD B650
Chipset Manufacturer: AMD
Material: Metal
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 1
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)
Onboard LAN: 1x RJ45,WIFI 6 (AX),Bluetooth v5.1
Origin: Mainland China
PCI - E standards: PCI-E 5.0
Package: Yes
Ports: Ethernet
Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7,AMD Ryzen 7000 Series-R9
RAID Supported: Yes
Socket Type: Socket AM5
Special Features: Cooling Armor
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR5
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Video Rendering,MaxCompute
With CPU: No
> > CPU parameters:AMD AM5 Ruilong 7000/8000/9000 Series Desktop Processors

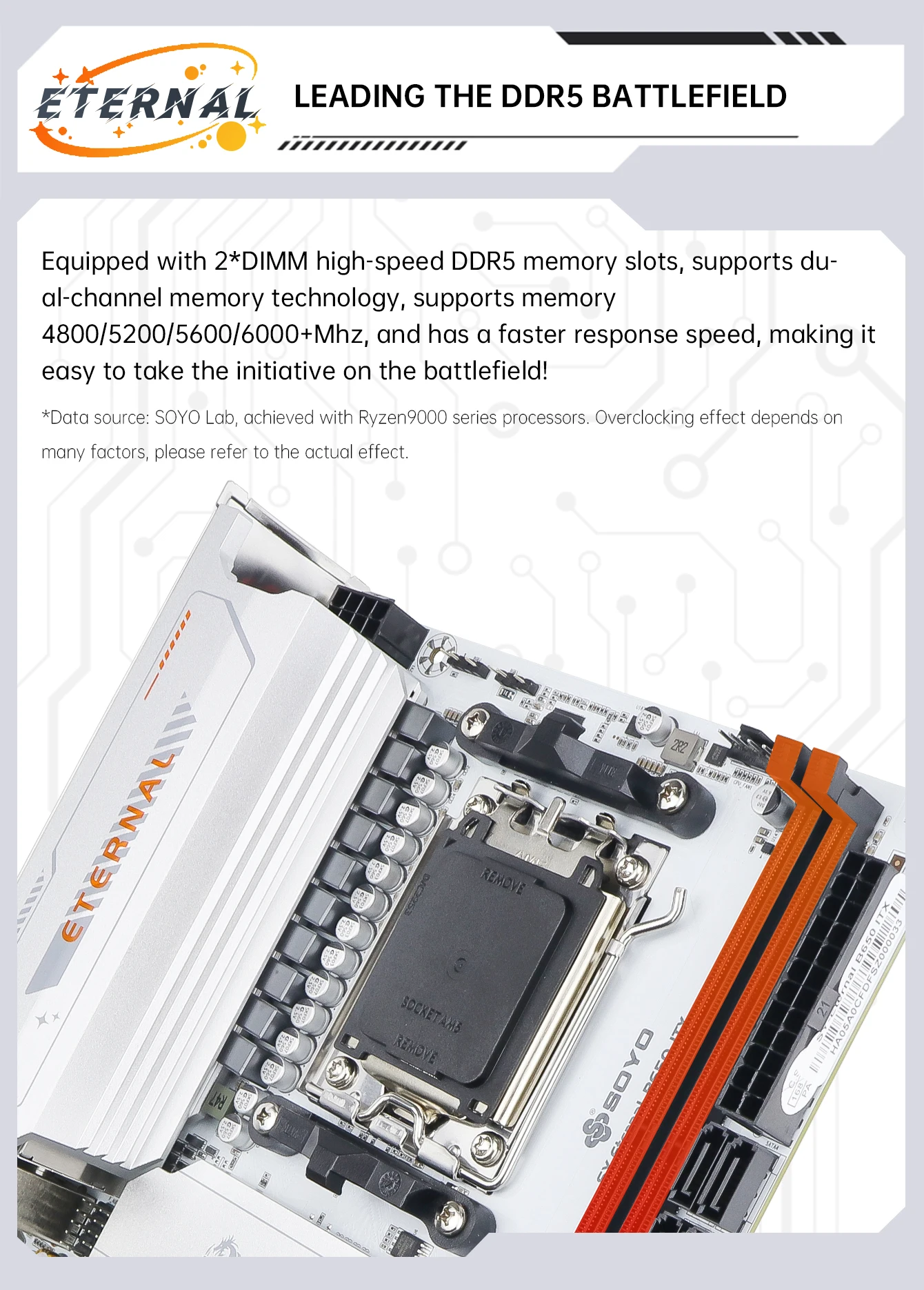

> > memory parameters:2*DDR5, supporting 4800~6000+MHz frequency (synchronous overclocking), with a maximum capacity of 64G.

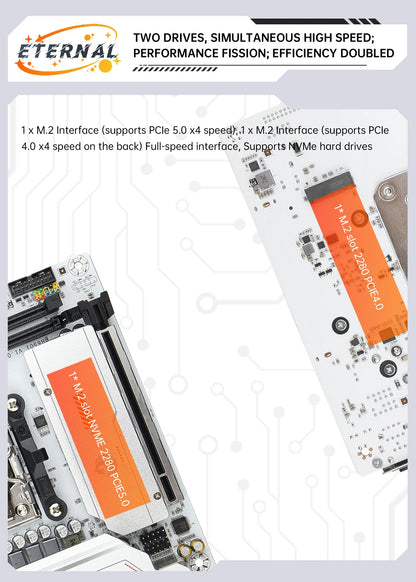

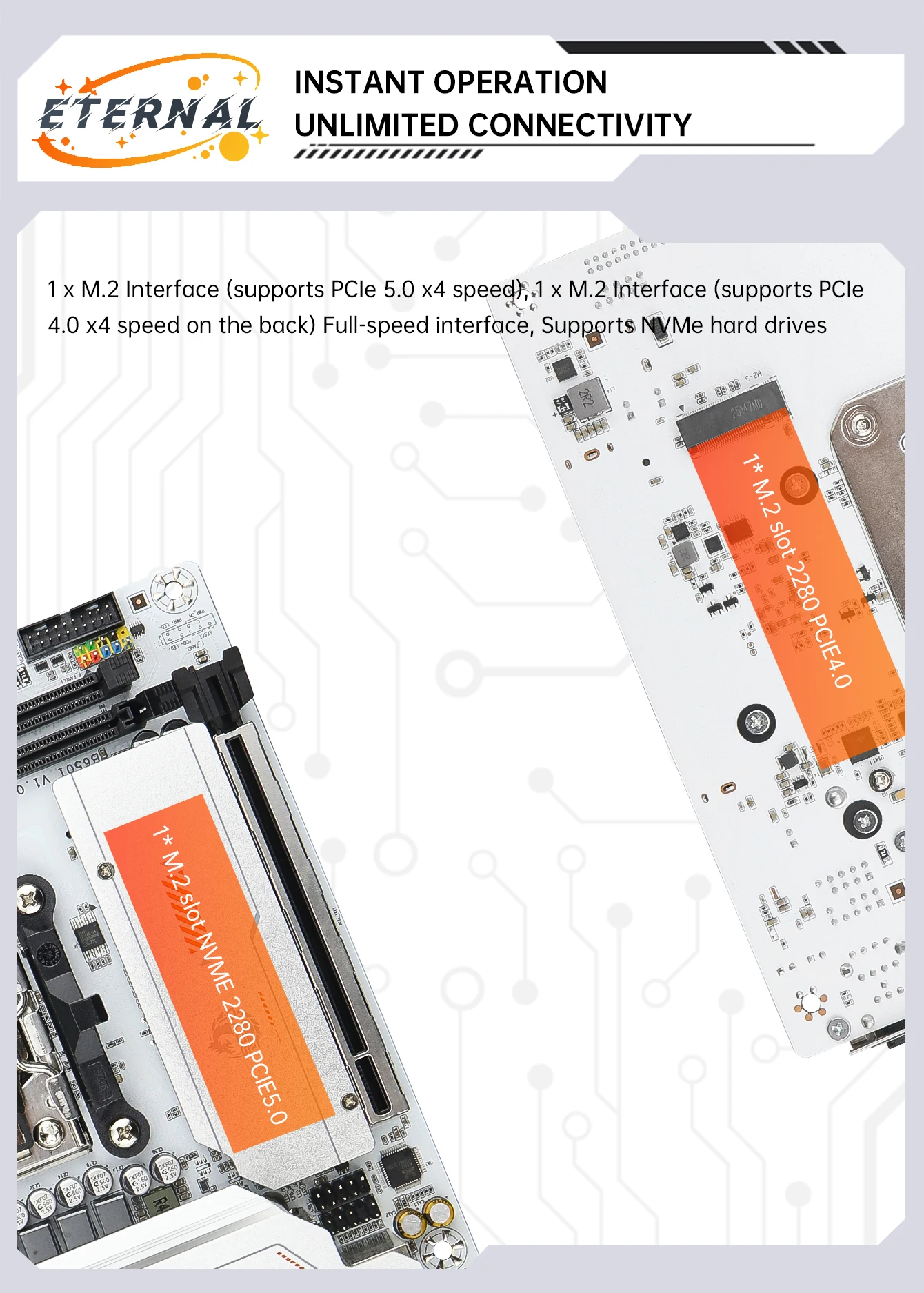

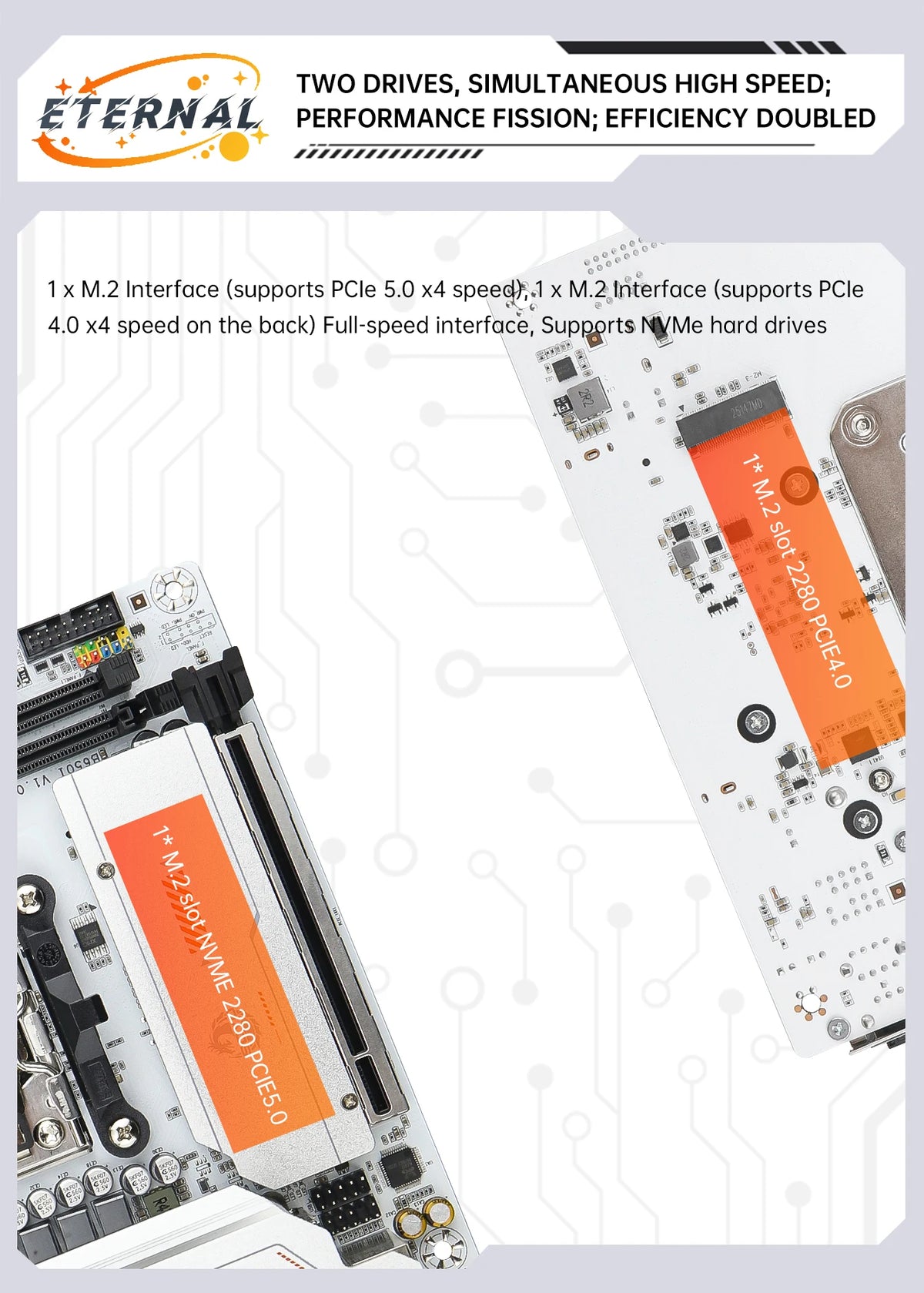

> > hard disk interface:1*M.2 interface (supporting PCIE5.0 x4 speed), 1*M.2 interface (supporting PCIE4.0 x4 speed on the back), 4*SATA3.0 interface.

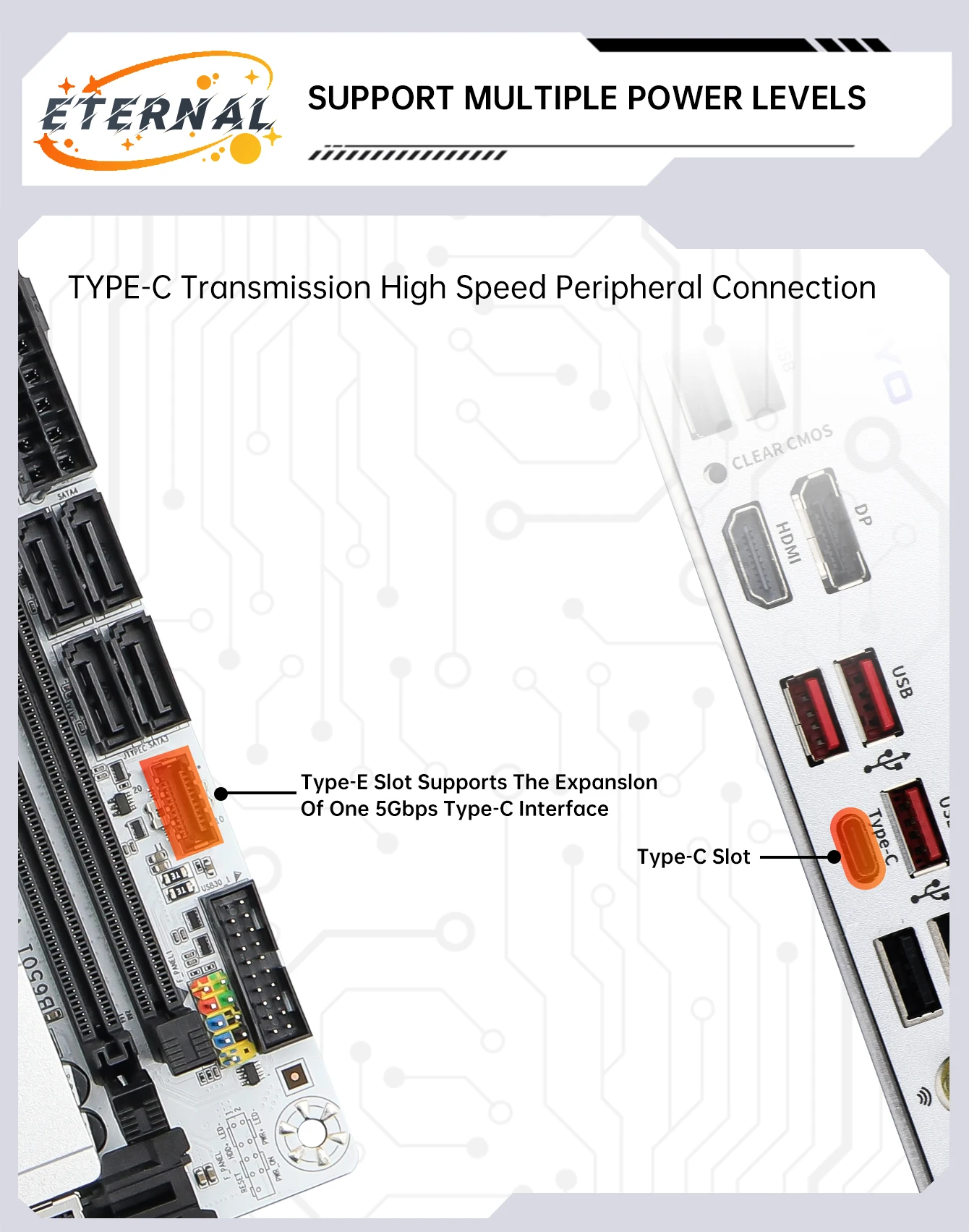

> > USB interface:It always supports 6*USB2.0 interface, 5*USB3.2 interface and 2*TYPC interface (up to 10gbps, transmission only).
> > display interface:1*HDMI (supporting 2.0), 1*DP (supporting 1.4)
> > expansion slot:1*PCIE-16X (supporting 5.0x16)
> > audio parameters:Realtek ALC897 series high definition audio independent sound card is adopted.

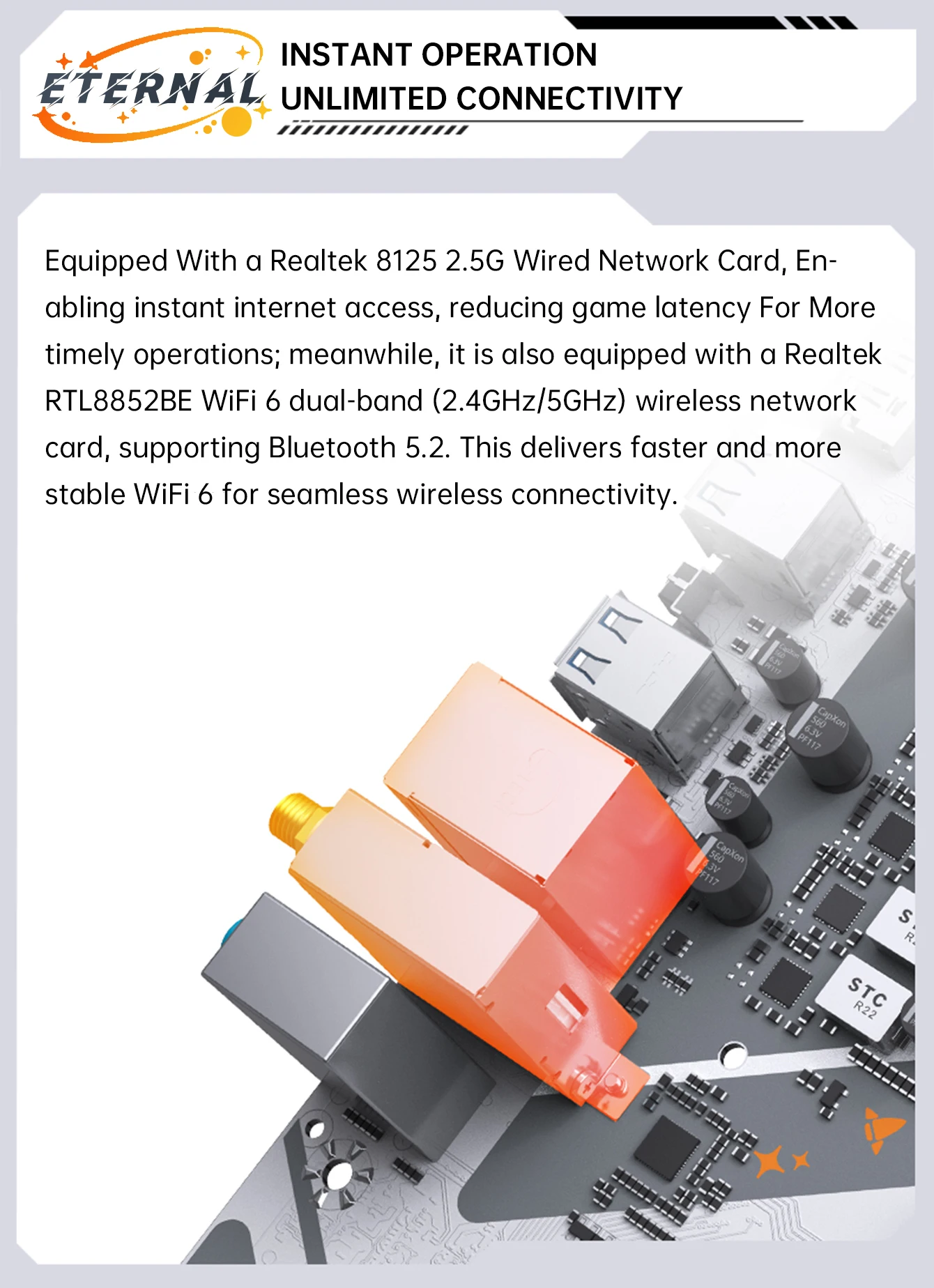

> > NIC interface:1*Realtek 8125 2.5G network card, 1*M.2 WIFI interface (pcie protocol).
> > power supply interface:1*24PIN ATXPWR 1*8PIN ATX12V
> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/
> >BIOS download URL:
https://drive.google.com/drive/folders/1_xvwV__z9j7a0jjo1as2UizRu0gHwiNX?usp=sharing
