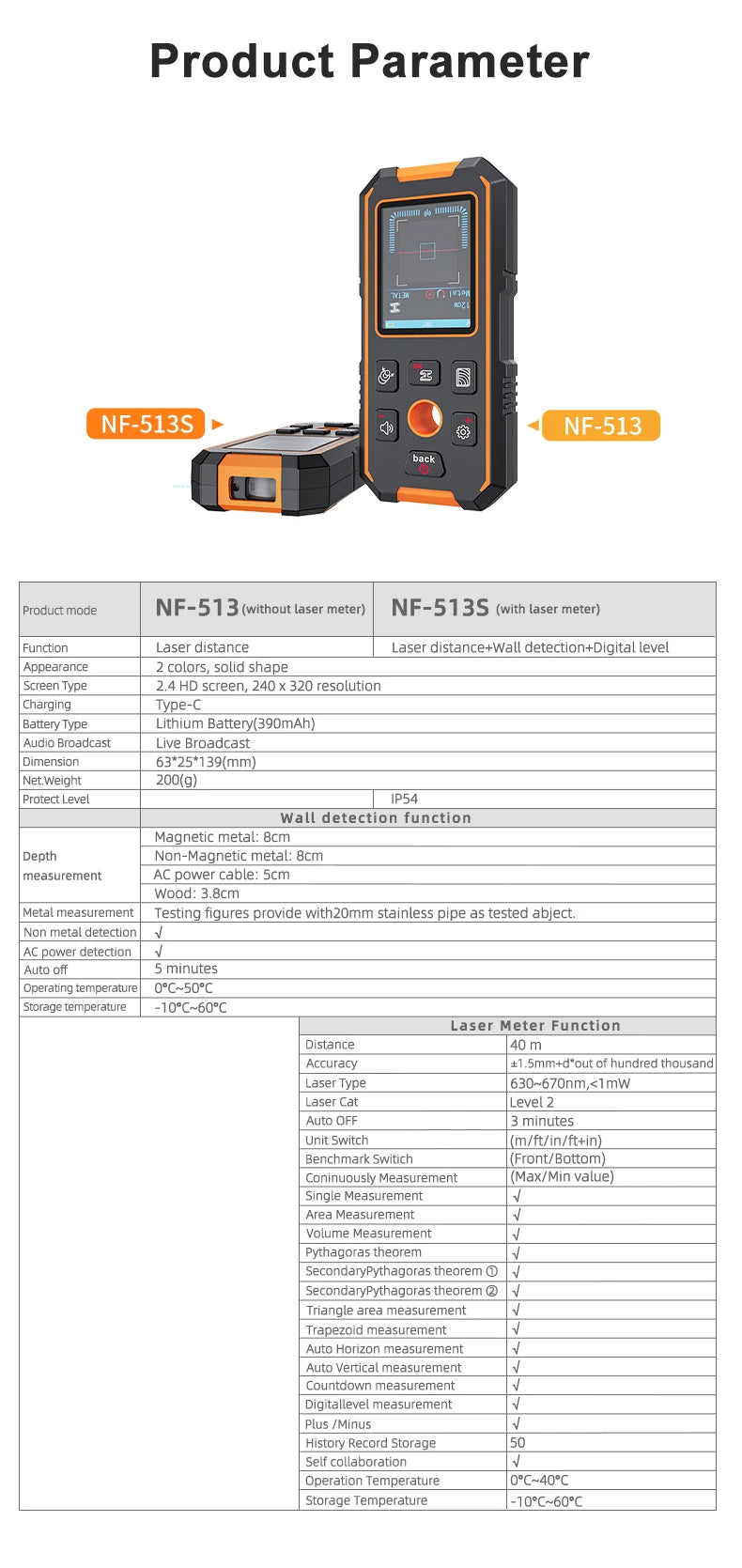

SPECIFICATIONS

Adjustable length: No

Battery Included: Yes

Brand Name: NOYAFA

Certification: CE

DIY Supplies: Electrical

High-concerned chemical: none

Model Number: NF-513S

NOYAFA Model: NF-513S

Origin: Mainland China

Power Source: Rechargeable

Power Type: Rechargeable

Semi-finishedproduct: No

With LCD Screen Or Not: Yes

Product number：NF-513S

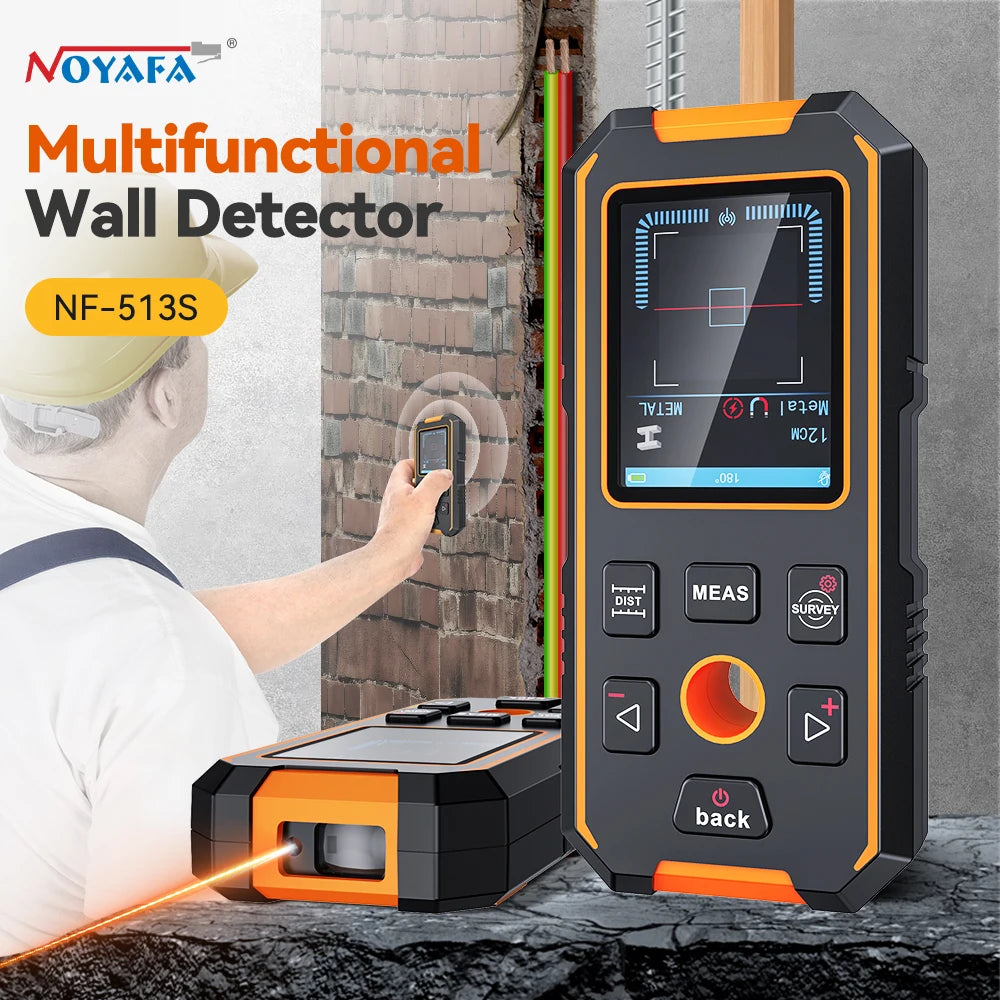

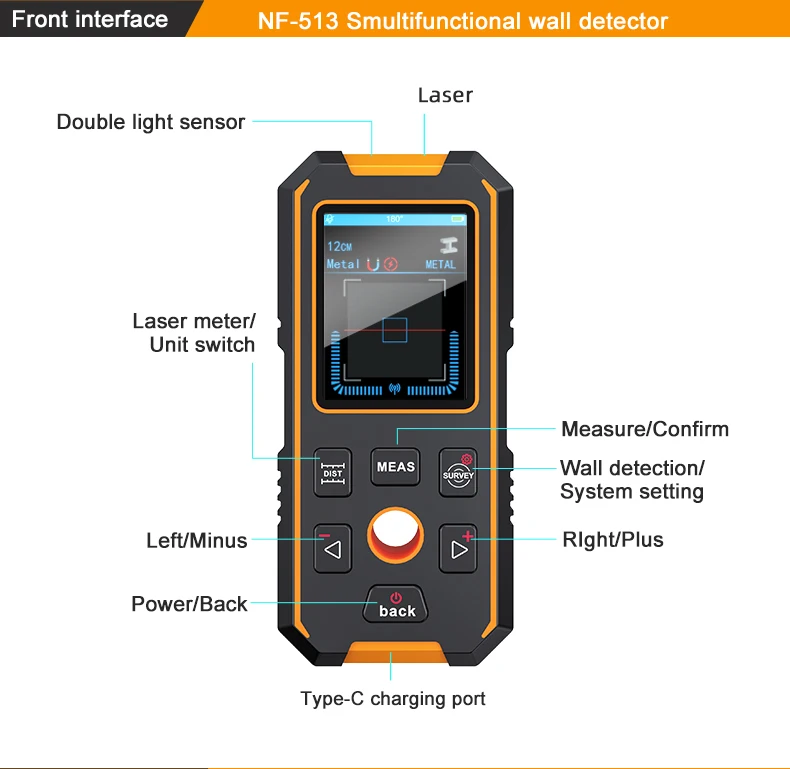

Applicability
：NF-513S wall detecting function can detect metal (magnetic or non-mag netic), wooden power cable etc behind wall, ceiling, floor etc.



Function：Laser distance+ Wall Detection+ Digital level

Appearance：2 colors, solid shape

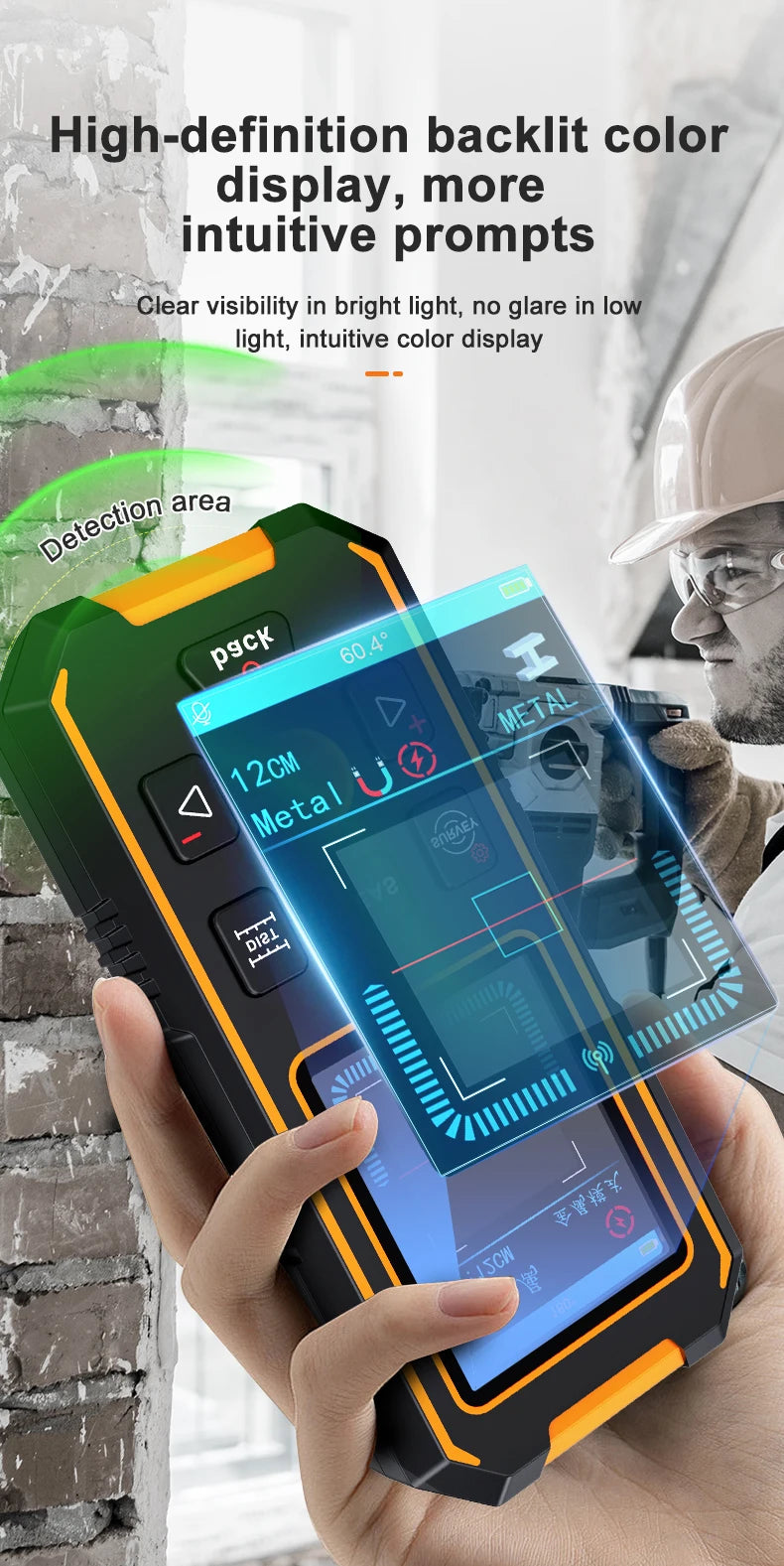

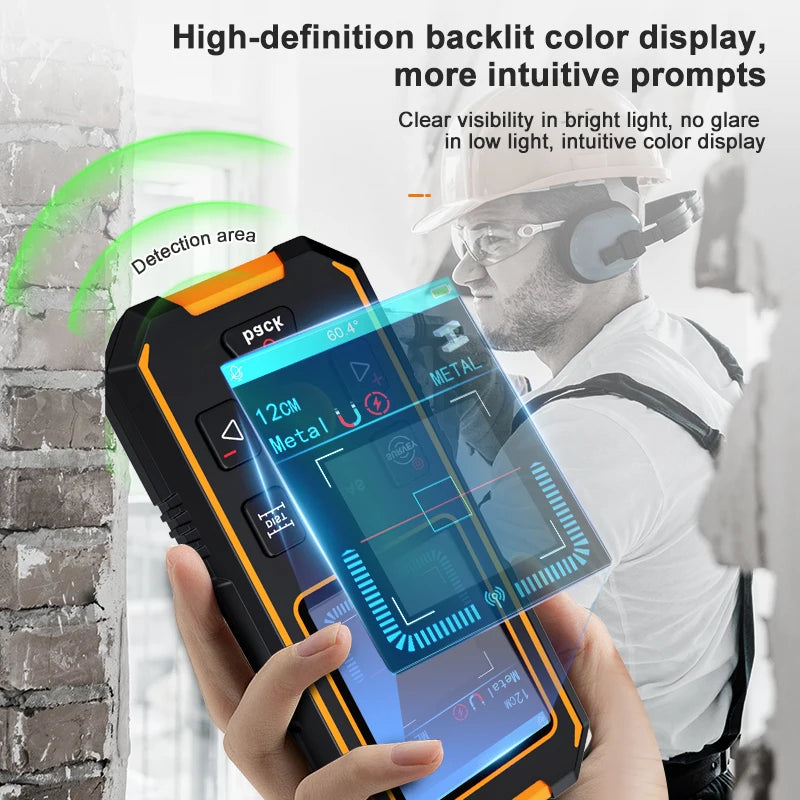

Screen Type：2.4 HD screen, 240*320 resolution

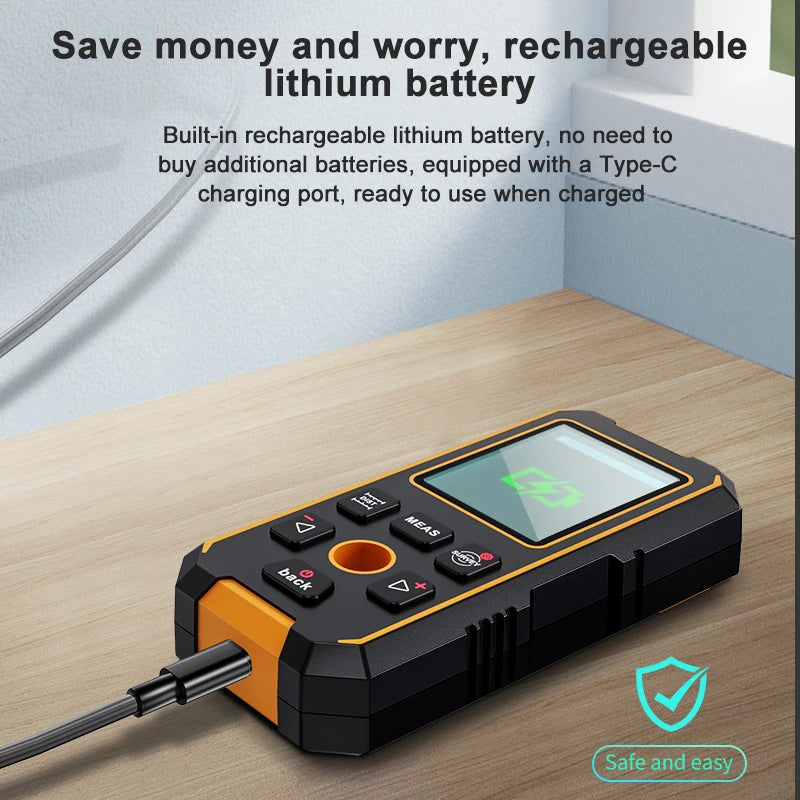

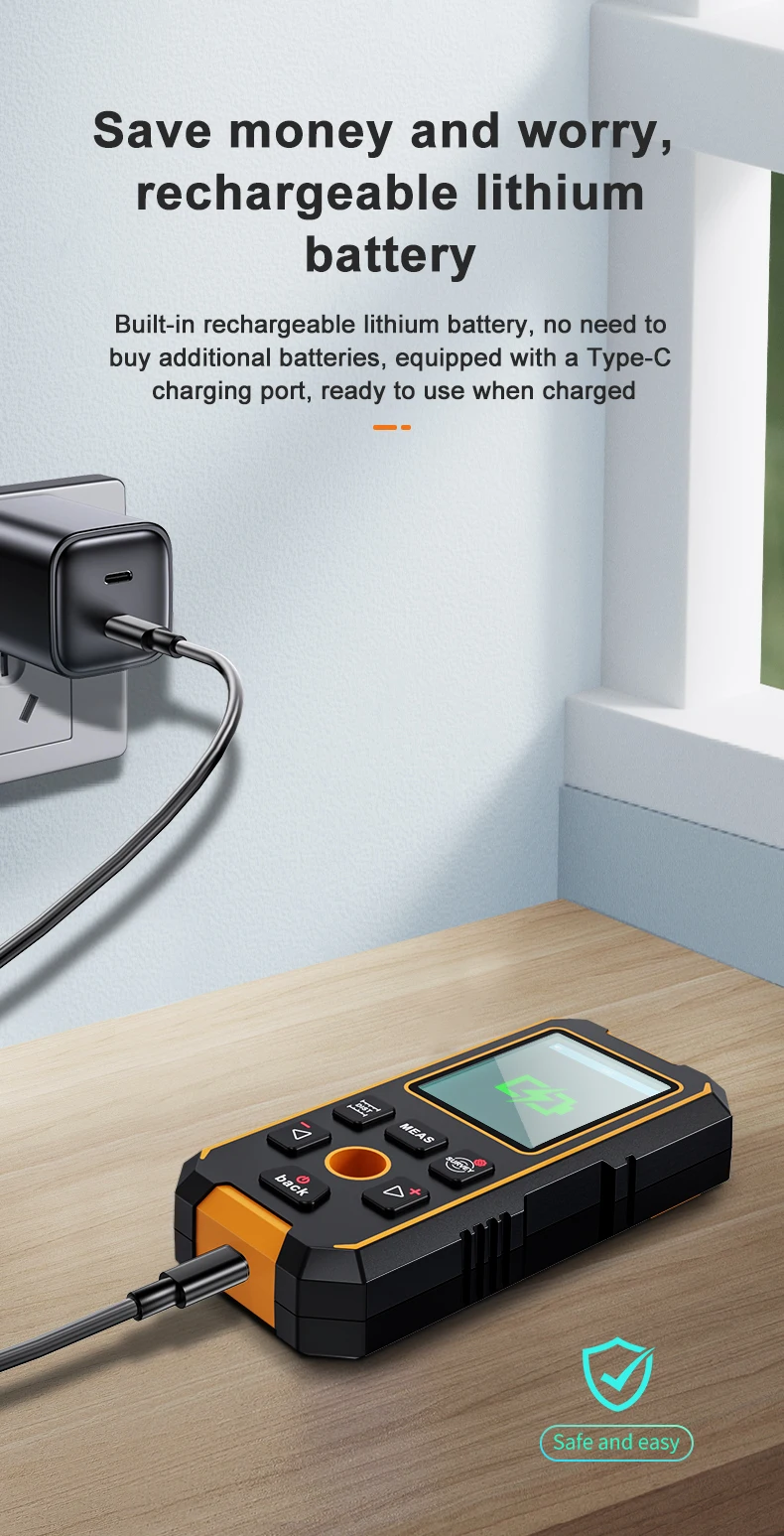

Charging：Type-C charging

Battery Type：Lithium Battery(390mAh)

Protect Lever：IP54

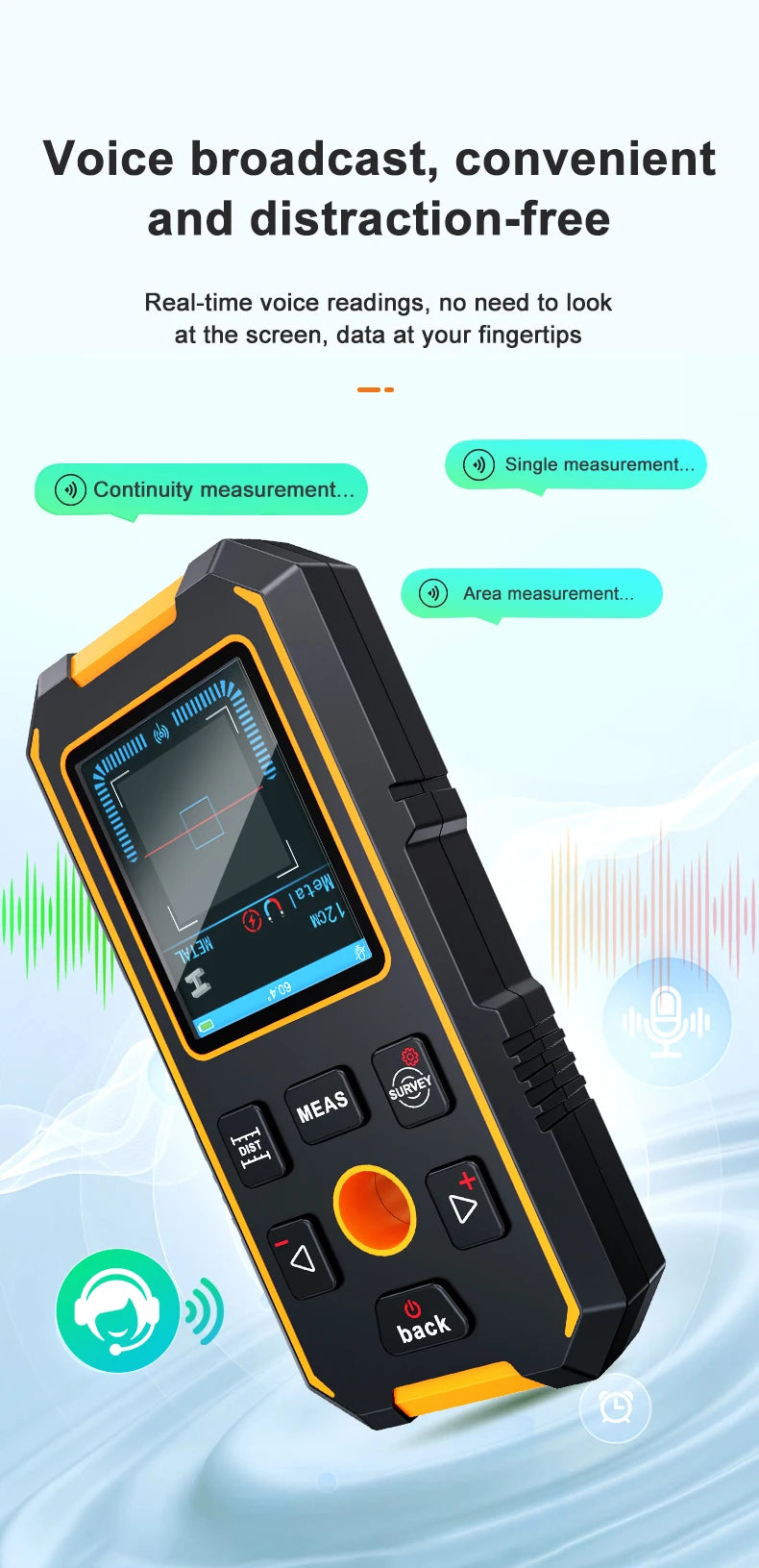

Audio Broadcast：Live Broadcast

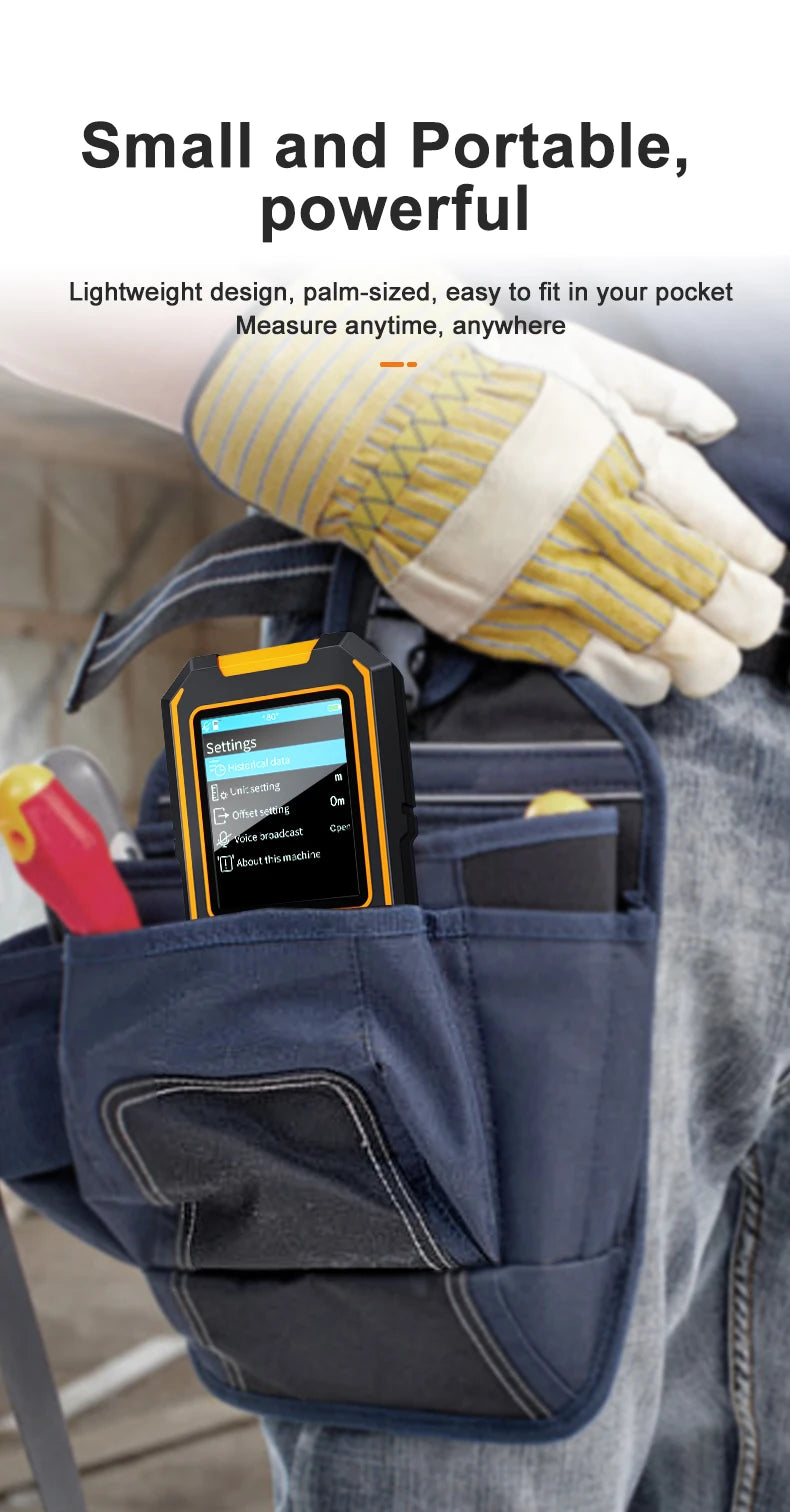

Dimension(mm)：63*25*139 (mm)

Net. Weight(g)：200 ( g )

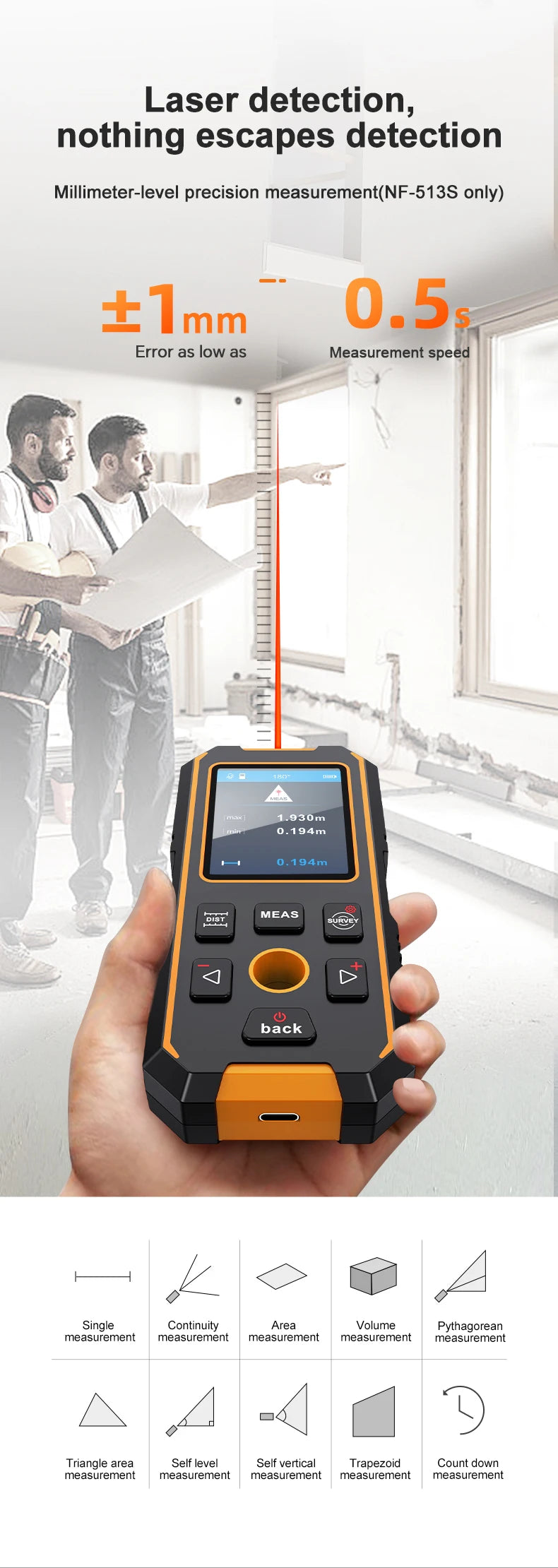

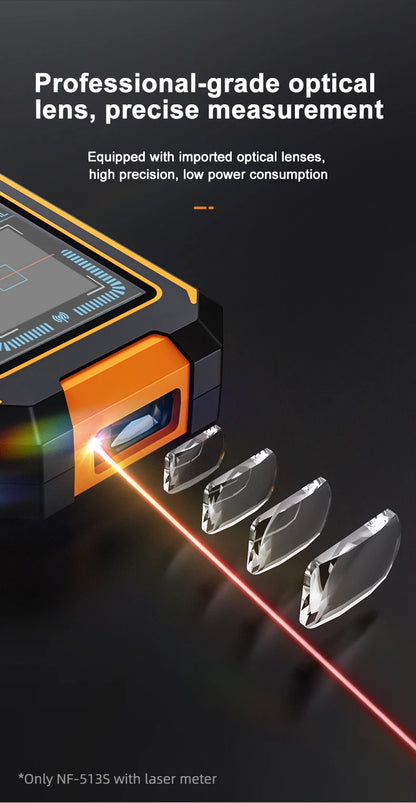

Laser Meter Function

1）Distance：40 m

2）Accuracy：1.5mm+ D*5 out ofhundred thousand

3）Laser Type：630-670nm,<1mW

4）Laser Cat：Level 2

5）Auto OFF：3minutes

6）Unit Switch：m/ft/in/ft+in

7）Benchmark Switch：Front/Bottom

8）Continuously Measurement：Max/ Min value

9）Single Measurement：√

10）Area Measurement：√

11）Volume Measurement：√

12）Pythagoras theorem：√

13）Secondary Pythagoras theorem 1：√

14）Secondary Pythagoras theorem 2：√

15）Triangle area measurement：√

16）Trapezoid measurement：√

17）Auto Horizon measurement：√

18）Auto Vertical measurement：√

19）Countdown measurement：√

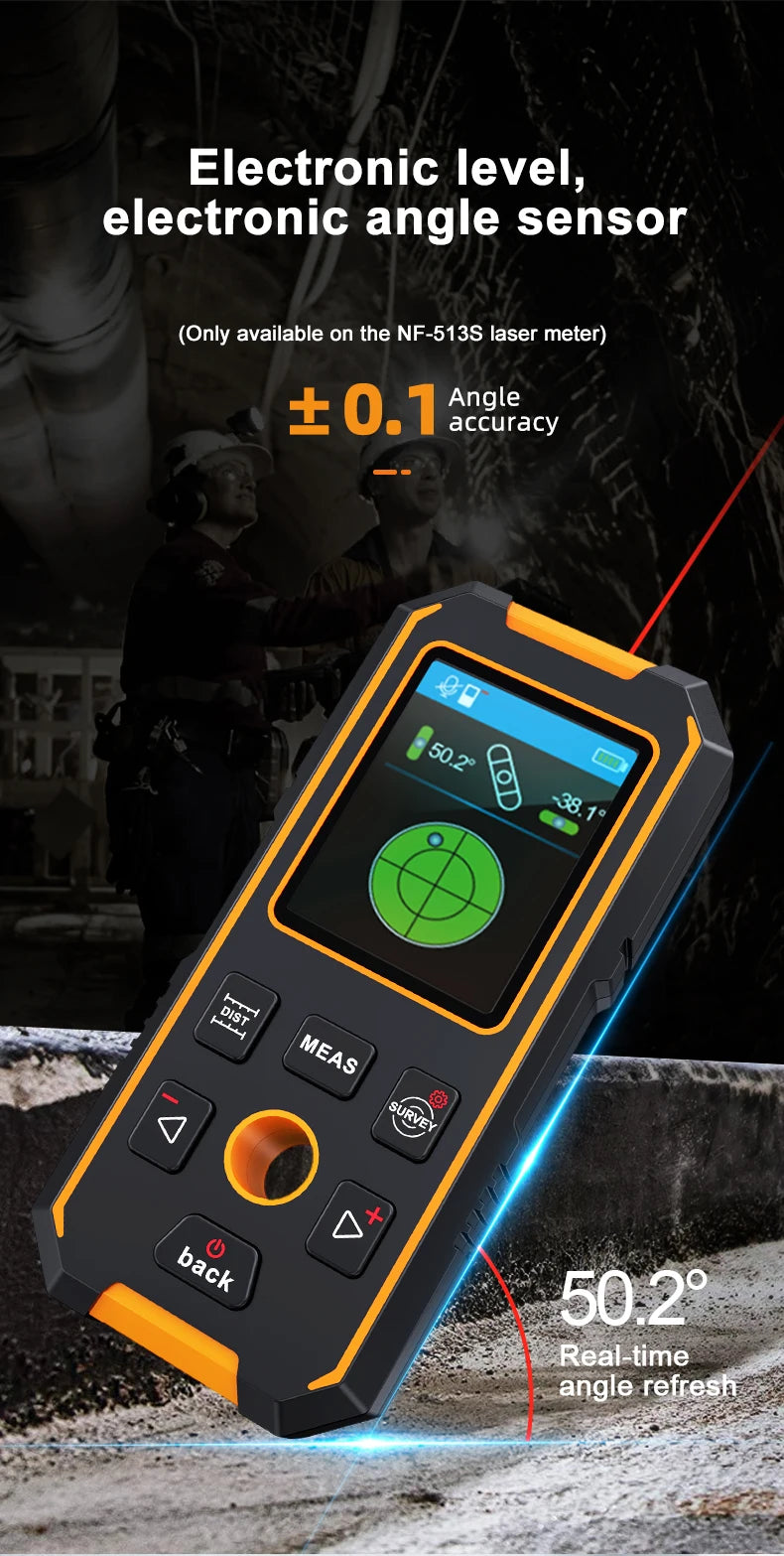

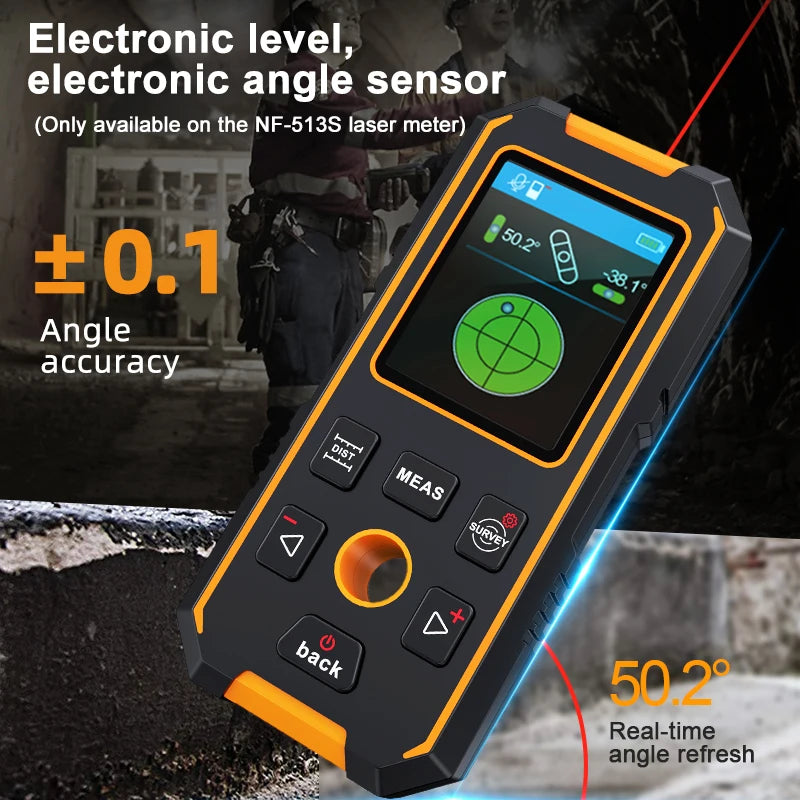

20）Digital level measurement：√

21）Plus/Minus：√

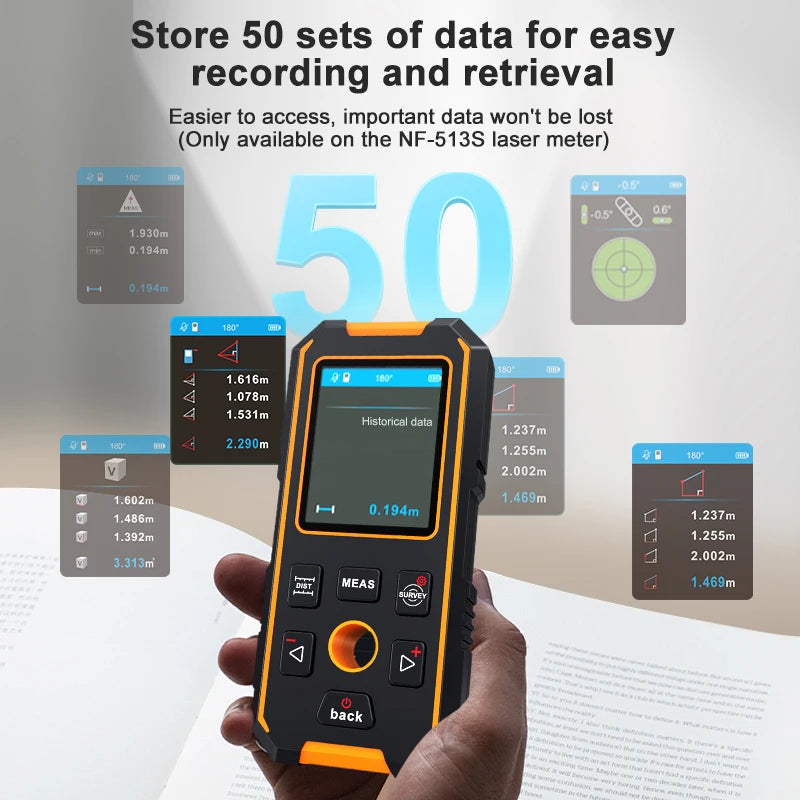

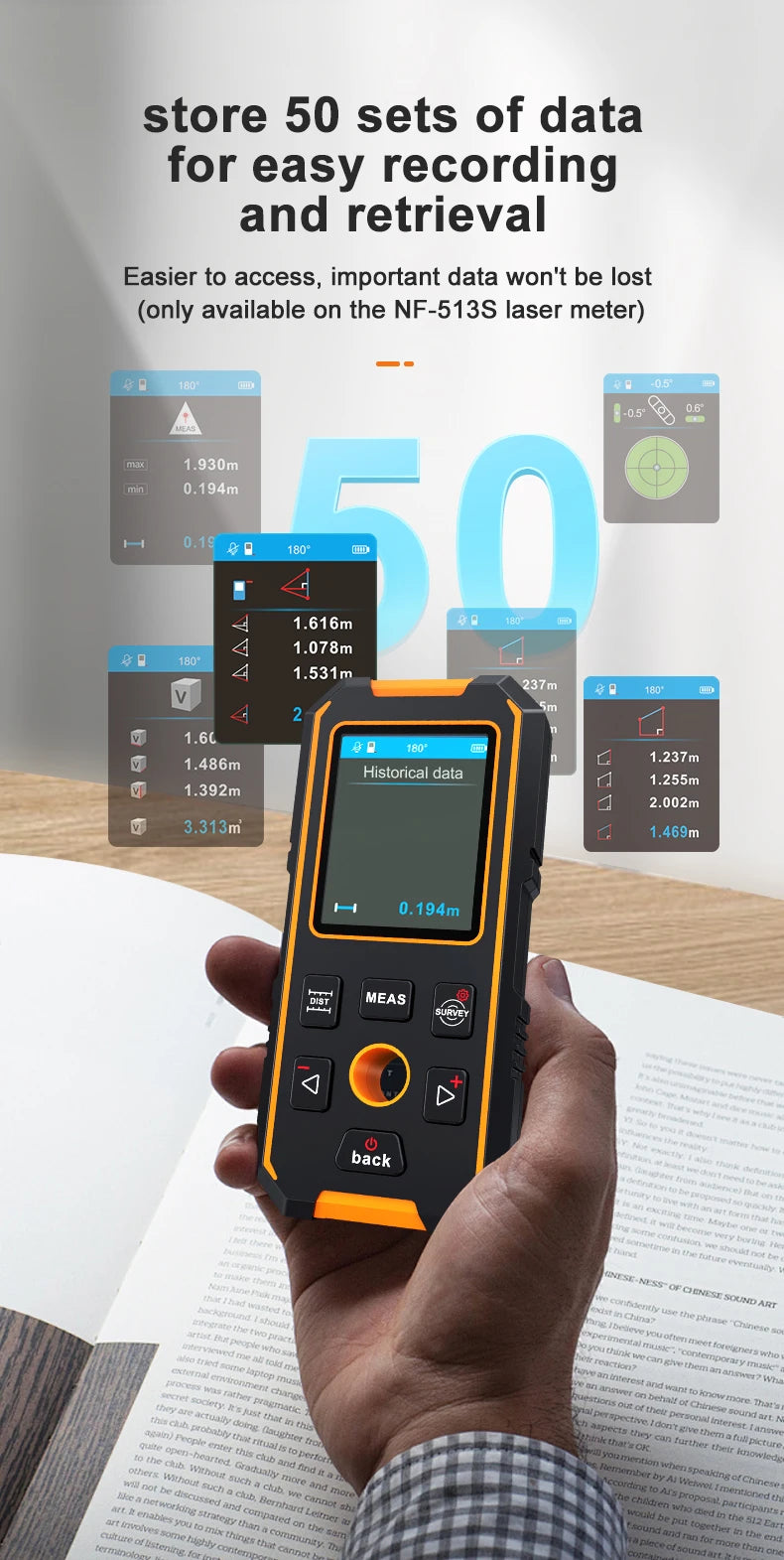

22）History Record Storage：50

23）Self collaboration：√

24）Operation Temperature：0-40°C

25）Storage Temperature：-10-60°C

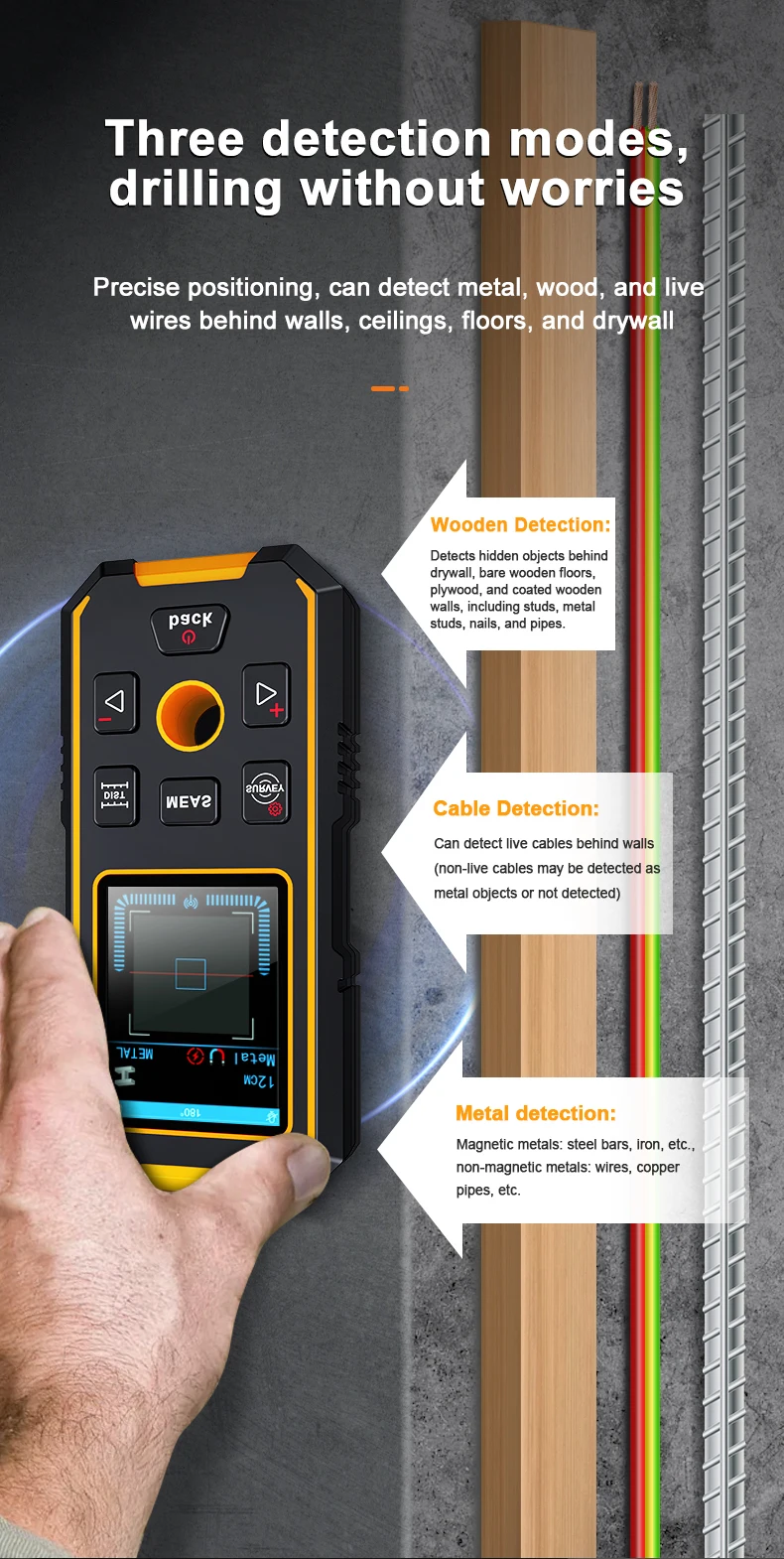

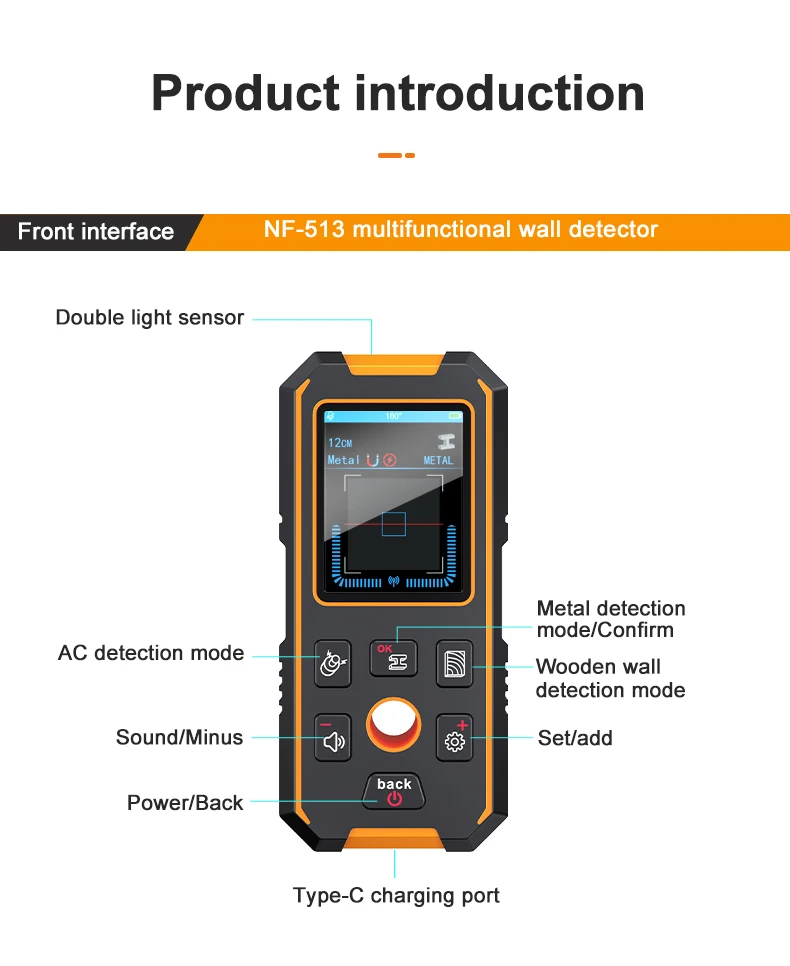

Wall detection function

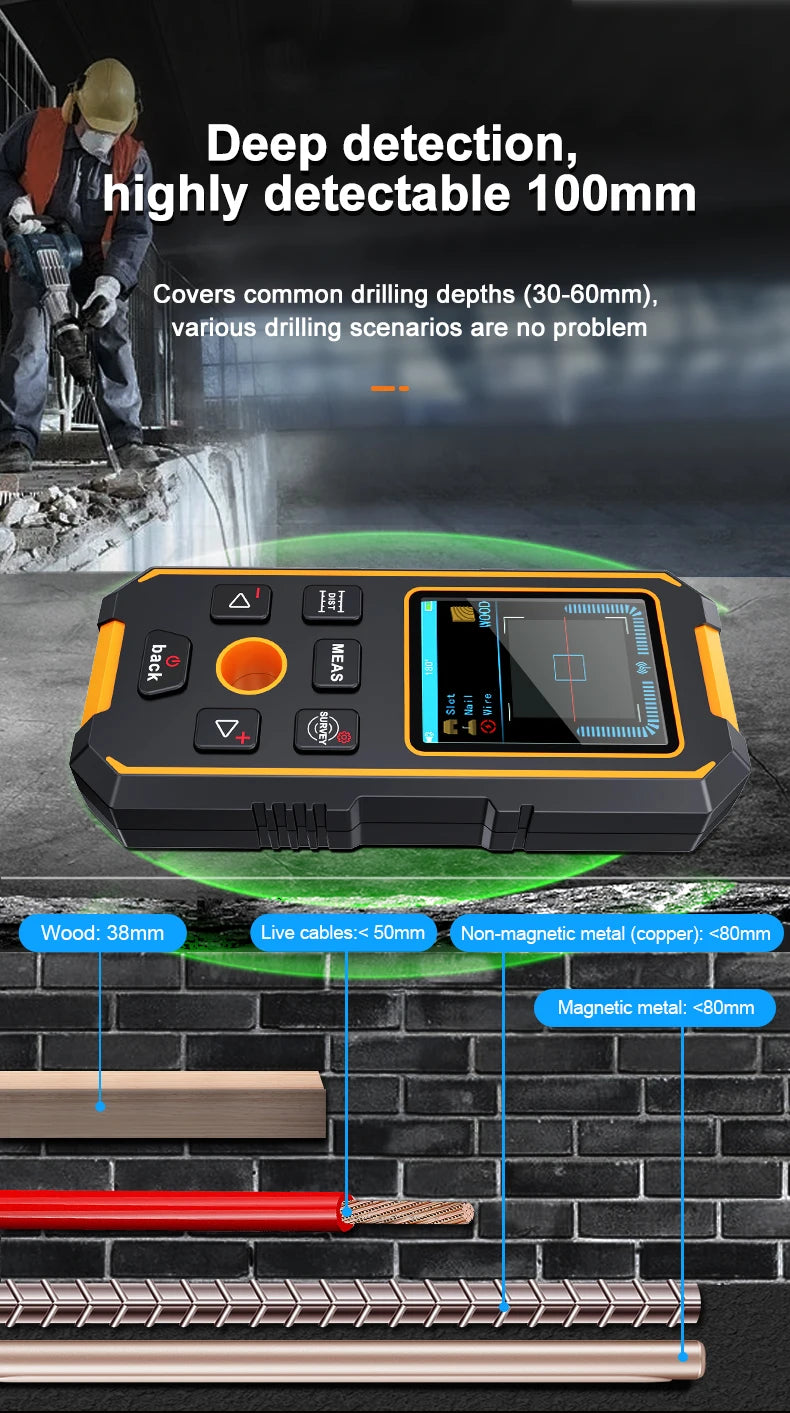

① Depth measurement

1.Magnetic metal: 8cm

2.Non-magnetic metal: 8cm

3.Live(AC)wire: 5cm

4.Wood: 3.8cm

② Metal detection：Depth value is based on the p20mm standard steel pipe. Only for reference(Note: The error of the depth indication is for reference only)

③ Non-metal detection：√

④ AC detection：√

⑤ Automatic shutdown：5 minutes

⑥ Operating temperature：0°C~50°C

⑦ Storage temperature：-10°C~60°C
