SPECIFICATIONS

Application: Desktop

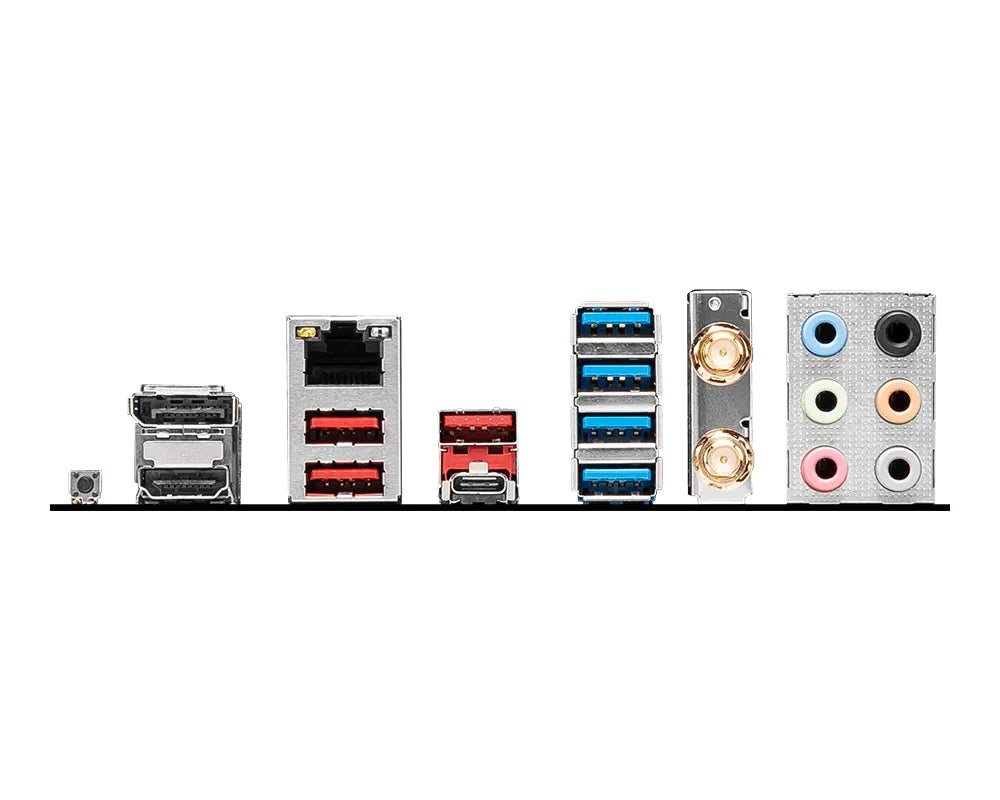

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: NONE

Chipset: AMD B650

Chipset Manufacturer: AMD

Form Factor: CeB,ATX

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number of PCI: 3

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5

RAID Supported: Yes

Socket Type: Socket AM5

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Household

With CPU: No

Chipset AMD B650

CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

Memory 4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO
