SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,HDMI 2.0,Displayport,4 x USB 2.0

Battery Included: no

Brand Name: MSI

Chipset: Intel B760

Chipset Manufacturer: Intel

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 256GB

Number of PCI: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 5.0

Package: No

Processor compatibility: 12th Intel Core i5,12th Intel Core i7,12th Intel Core i3,12th Intel Core i9,13th Intel Core i7,13th Intel Core i3,13th Intel Core i9,13th Intel Core i5

RAID Supported: no

Socket Type: LGA 1700

Special Features: Intel Optane Ready,Cooling Armor

Storage Interface Type: M.2 (NVMe),SATA 3

Support Memory Type: DDR5

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Motherboard Chipset

Main Chipset Intel B760

Chipset Description Uses Intel B760 chipset

Audio Chip Integrated Realtek ALC897 7.1 Channel Audio Chip

Network Chip Onboard Realtek RTL8125B 2.5GbE Network Card

Processor Specs

CPU Type 14th/13th/12th Gen Core/Pentium/Celeron

CPU Socket LGA 1700

Memory Specs

Memory Type 4×DDR5 DIMM

Max Memory 256GB

Memory Description Supports 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

Storage Expansion

PCI-E Standard PCI-E 5.0

PCI-E X16 Slot 1

Storage Interfaces 3×M.2 slots, 4×SATA III ports

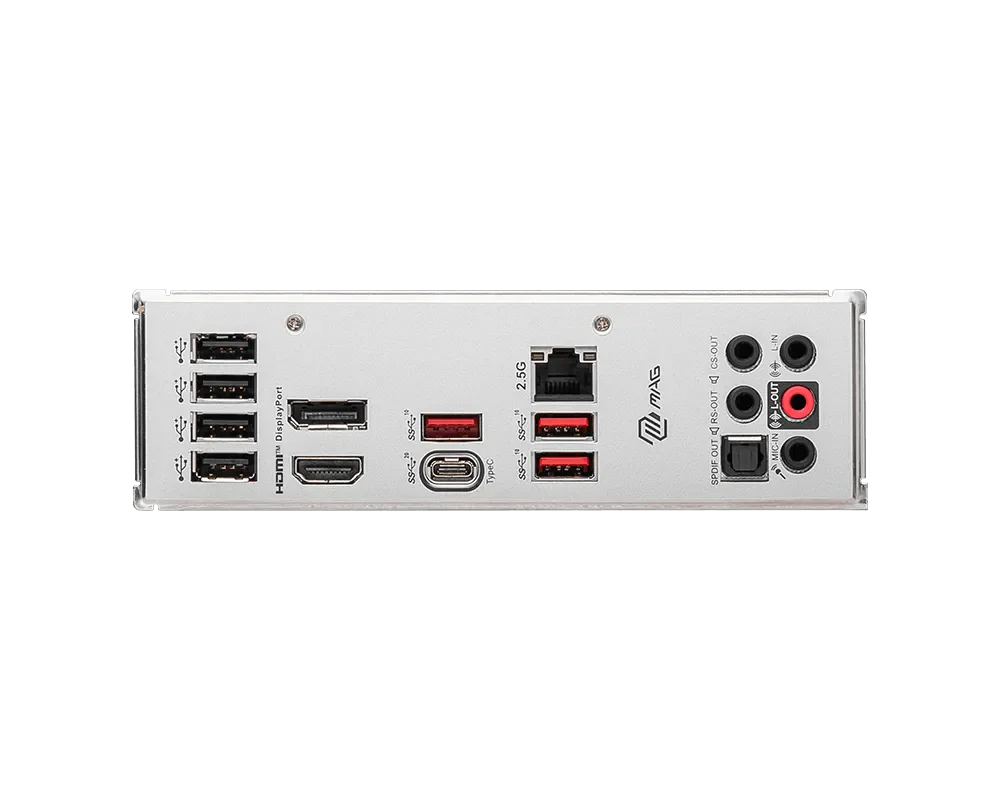

I/O Interfaces

USB (Back) 4×USB2.0 Type-A

3×USB3.2 Gen2 Type-A

1×USB3.2 Gen2x2 Type-C

USB (Internal) 4×USB2.0 Type-A

2×USB3.2 Gen1 Type-A

1×USB3.2 Gen2 Type-C

Video Interfaces 1×HDMI, 1×DisplayPort

Other Interfaces 1×RJ45, 1×Optical, 5×Audio

Form Factor

Motherboard Form Micro ATX

Dimensions 24.384×24.384 cm
