SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

Back I/O Ports: 1x RJ45,3 x Audio Jacks

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: Q87

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,ATX

High-concerned chemical: none

MACHINIST Model: X99 MR9A PRO MAX

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 3

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 4

Number of PCIe x 4: 1

Number of PCIe x 8: 0

Number of SATA Ports: 6

Onboard Connectors & Header: CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon Scalable,Intel Core

Quality Certification: ce,ROHS

RAID Supported: no

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA,SATA 2,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

TPM2.0: For msi lpc 14pin

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production

With CPU: No

> > The motherboard linked here supports TPM 2.0. There are older versions available on the market. Please check whether the details describe it as having TPM support before purchasing.



> > Due to version upgrade and update, there may be 1% of the old version in the new version. Purchase accepts the old version by default.

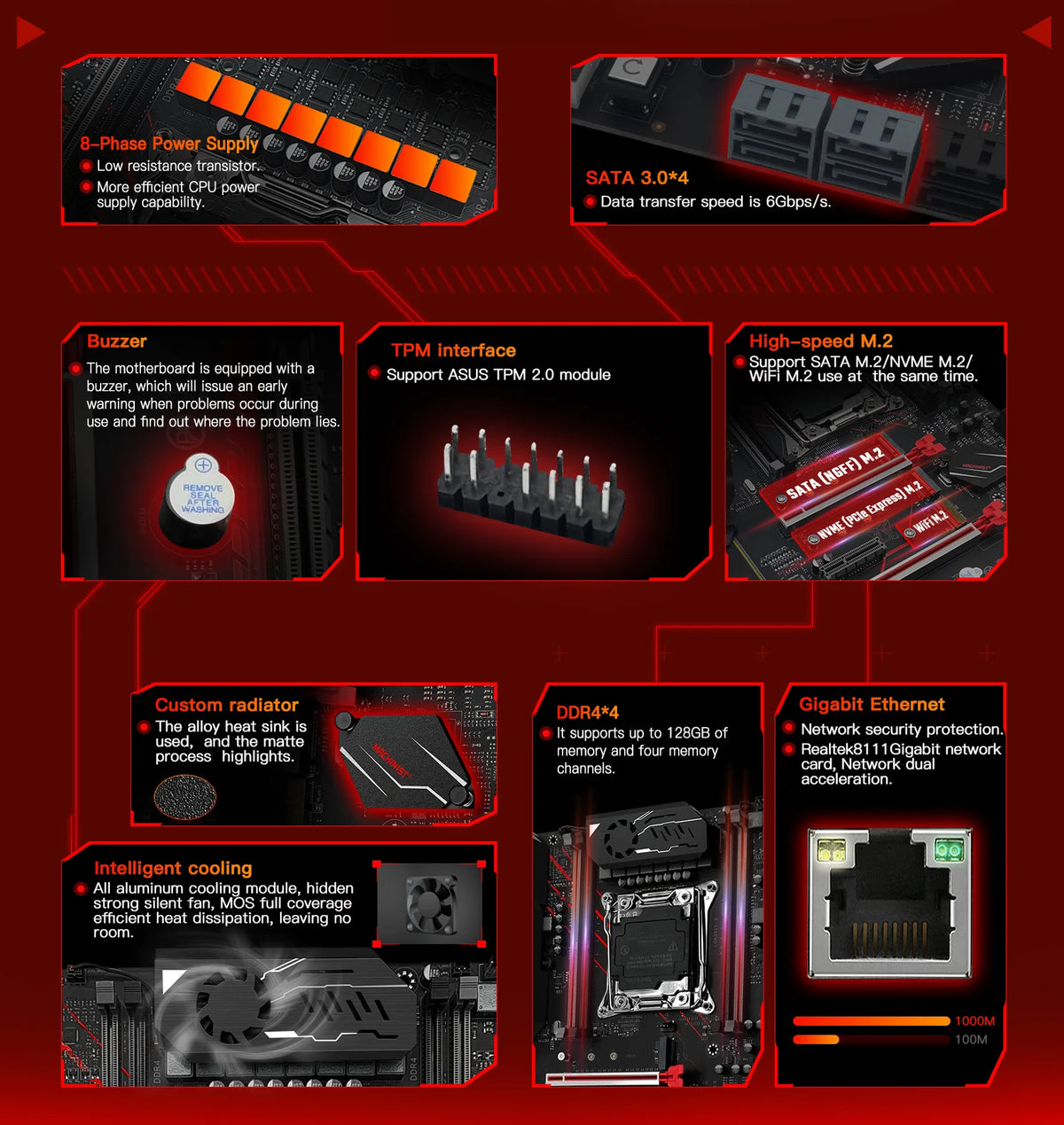

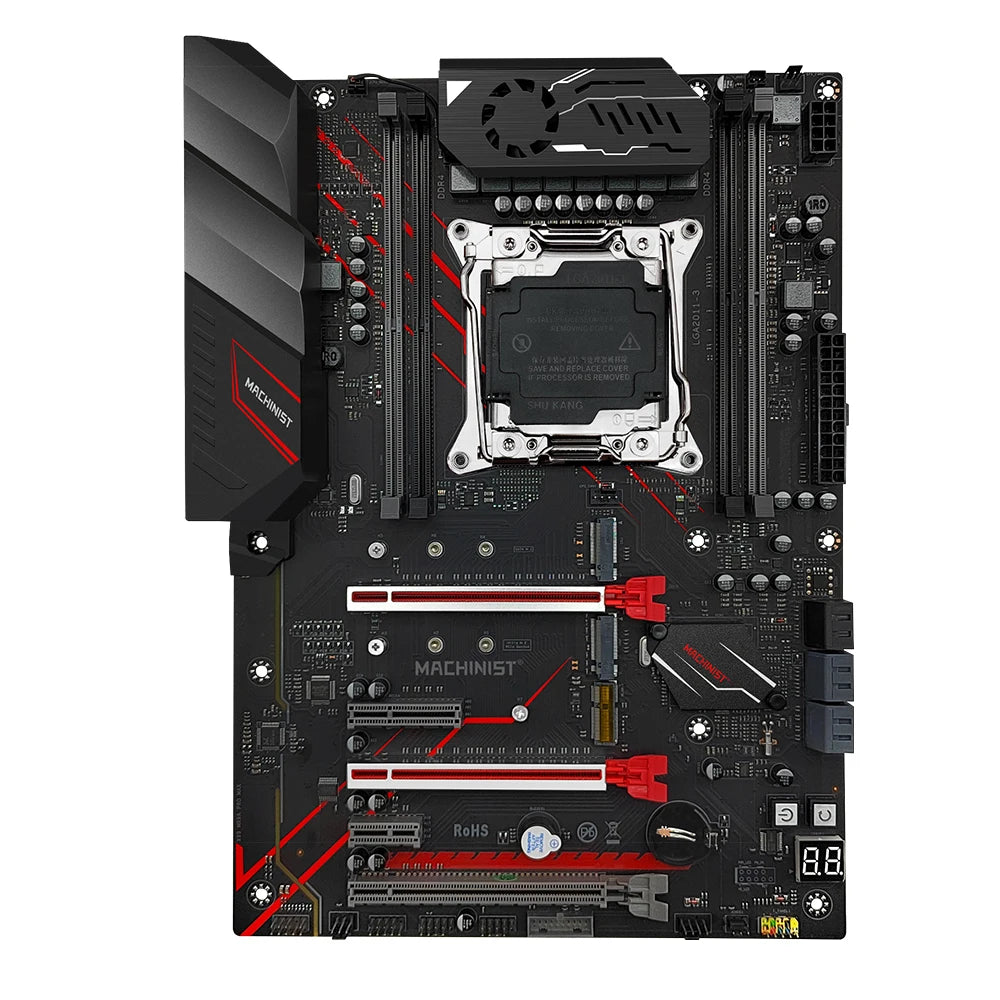

> > Motherboard information:

Brand :MACHINIST.

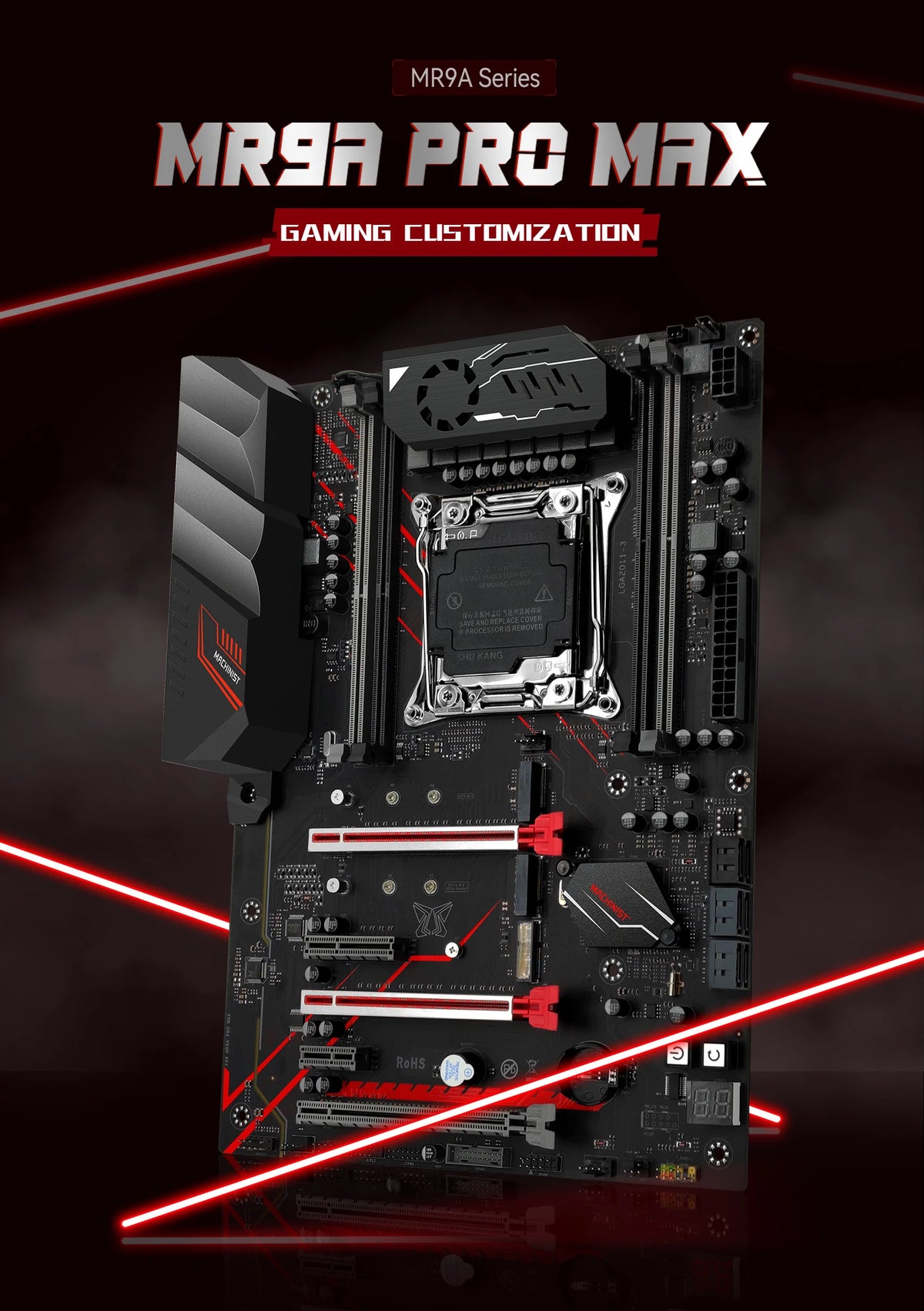

Motherboard model :X99 MR9A PRO MAX.

Processor: Supports Intel LGA2011-3-pin series processors.

Chipset :B85/C226/Q87Chipset.

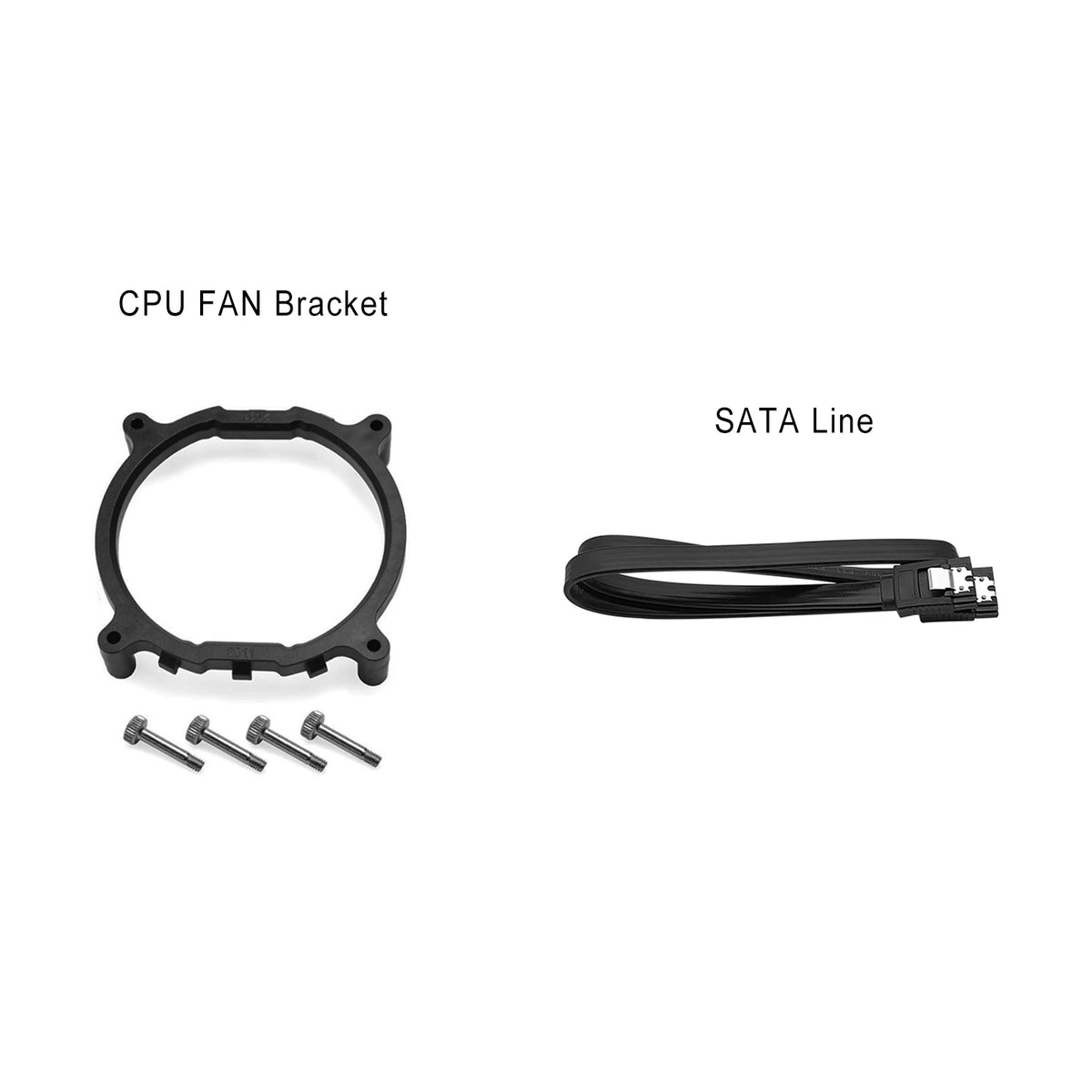

(All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)"



> > Memory:

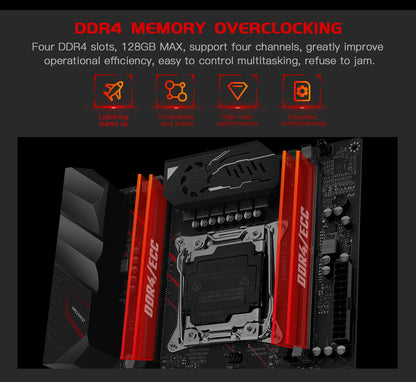

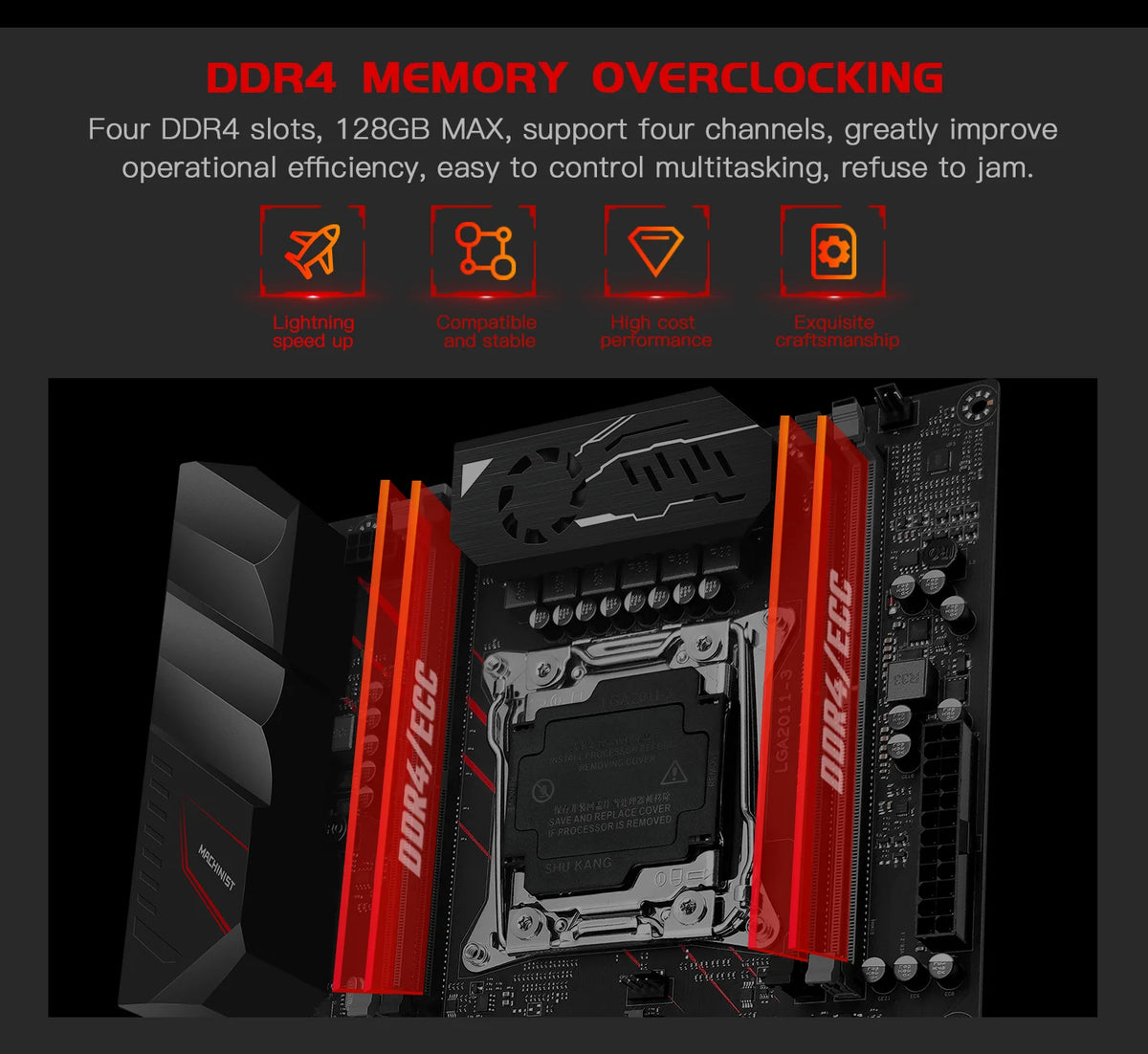

Technology: Four-channel DDR4. Supports 2133/2400/2666/3200MHZ.

The maximum capacity is 128GB (32G x 4).

Memory slot :4 * 288-pin DDR4.

Supported memory types: The memory type supports DDR4 desktop and server memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.

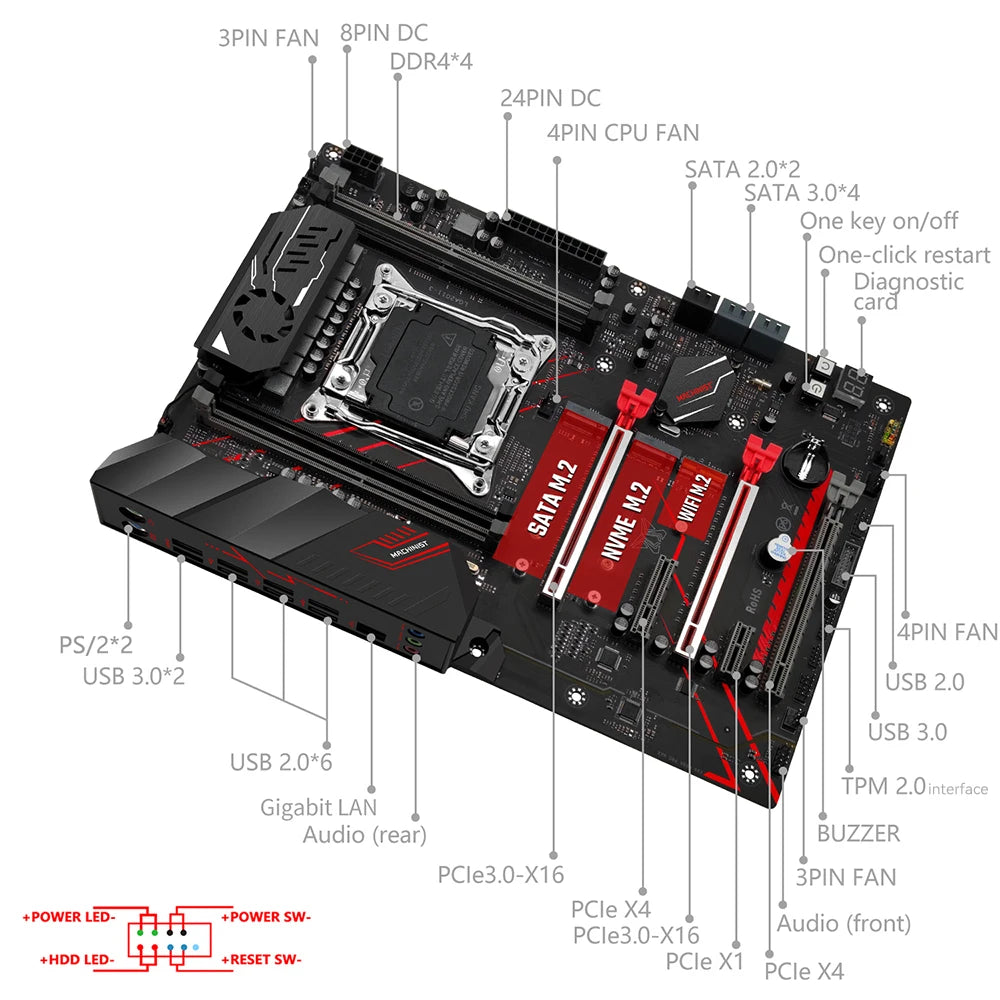

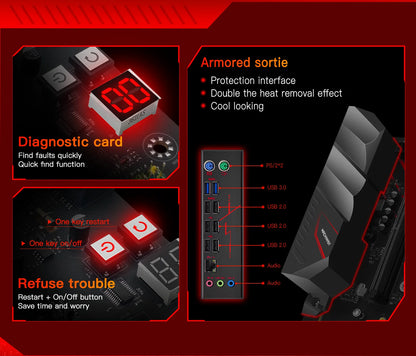

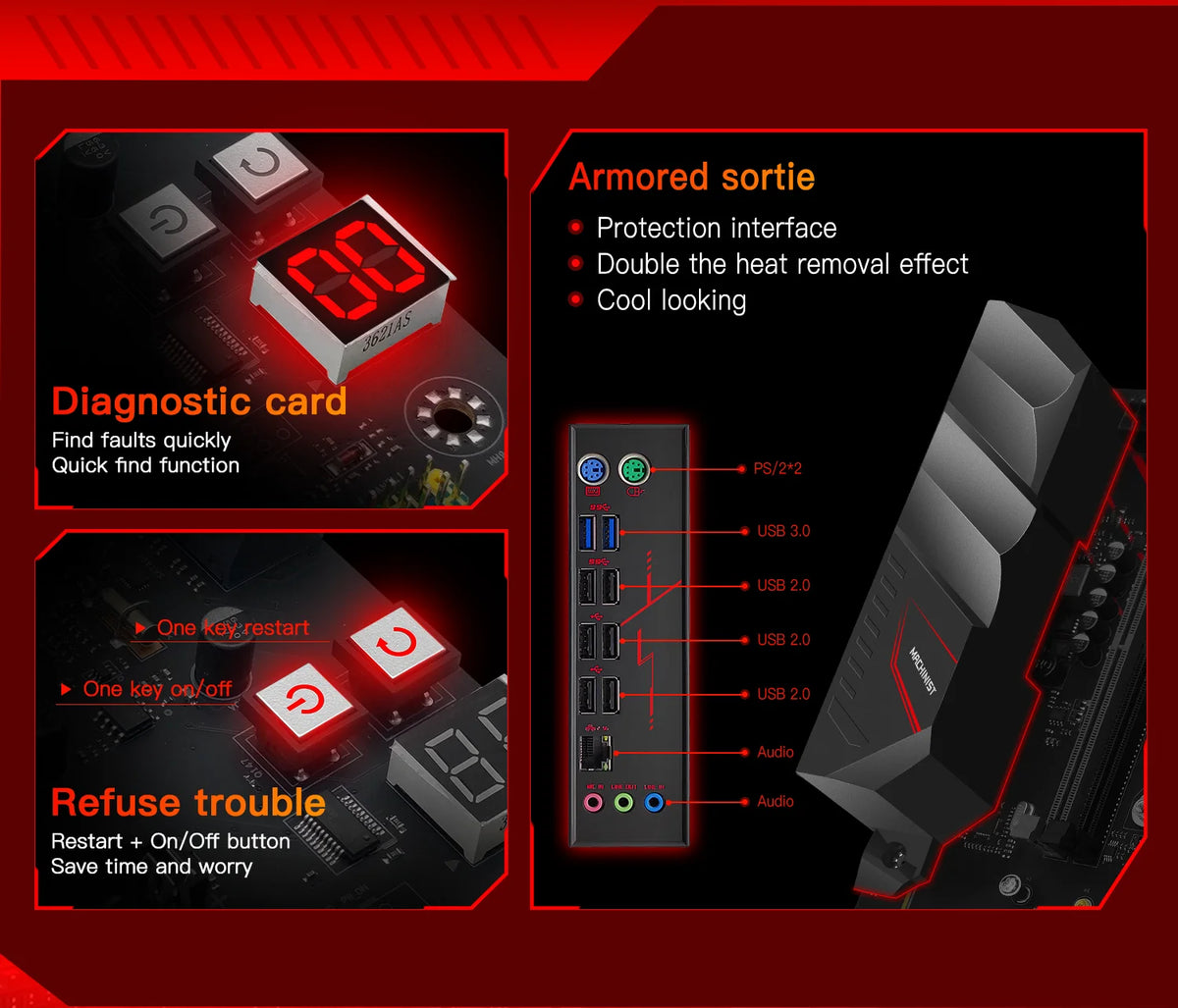

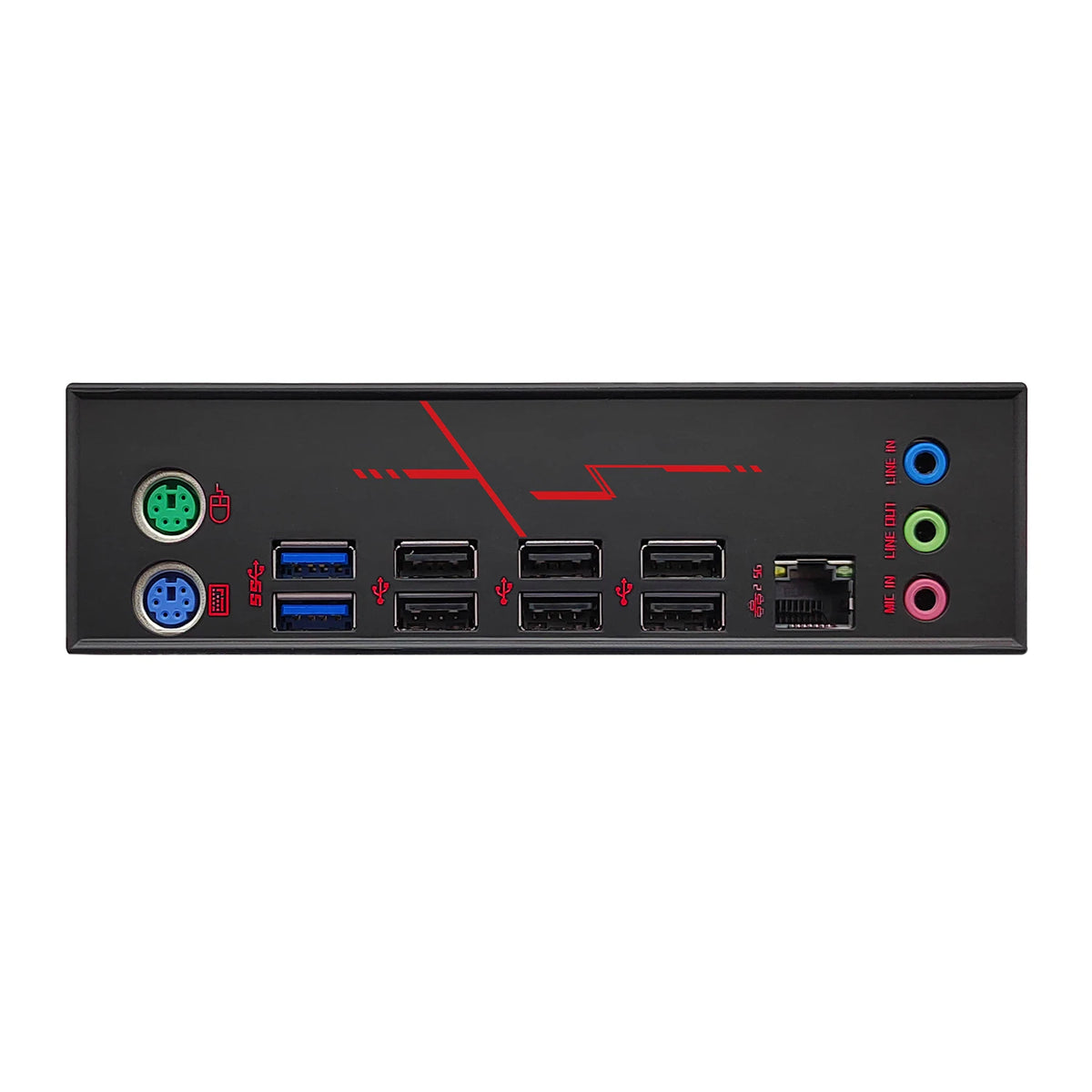

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interfaces :6 USB2.0 ports and 2 USB3.0 ports.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).



>> Others:

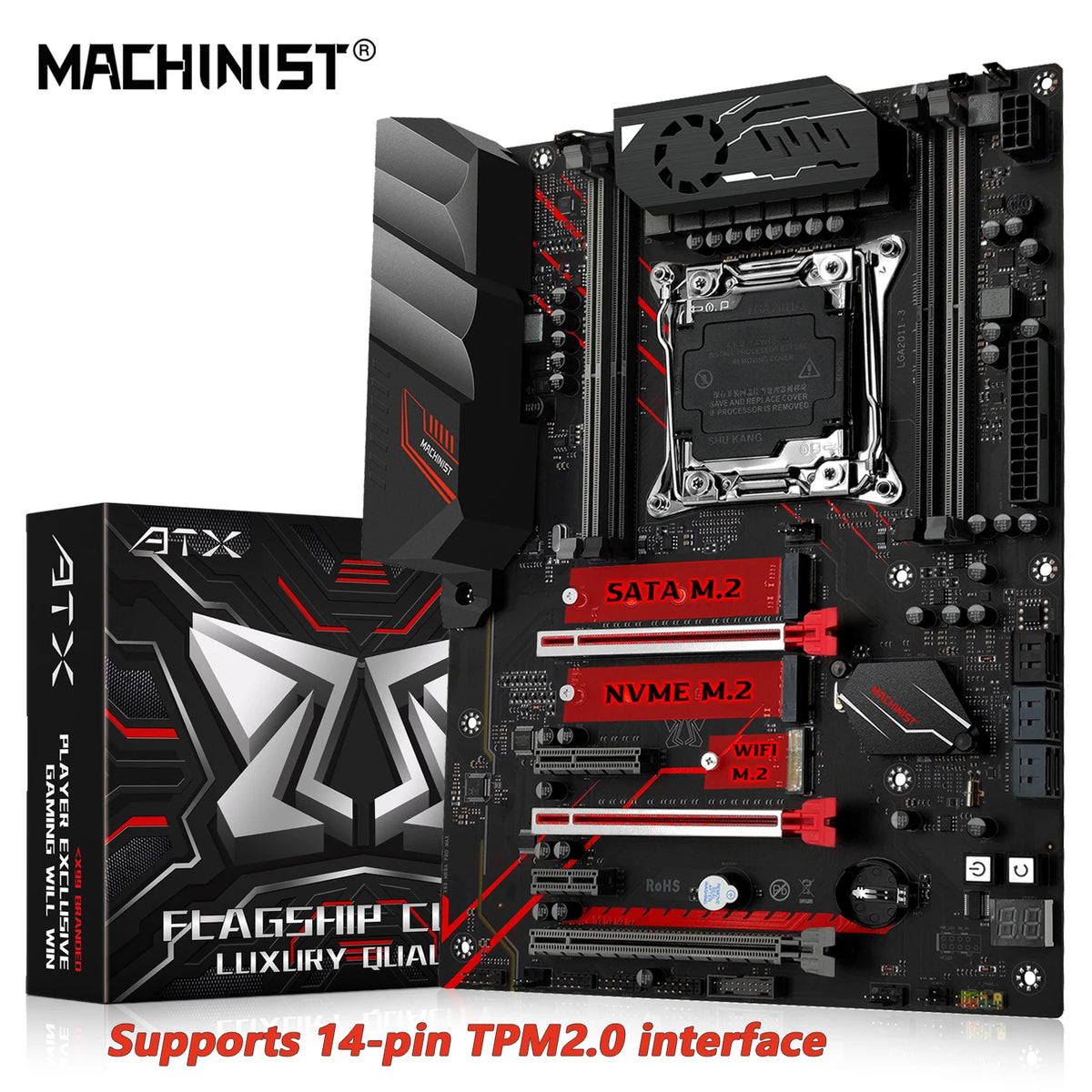

TPM: Applicable to the MSI 14-pin TPM 2.0 interface.

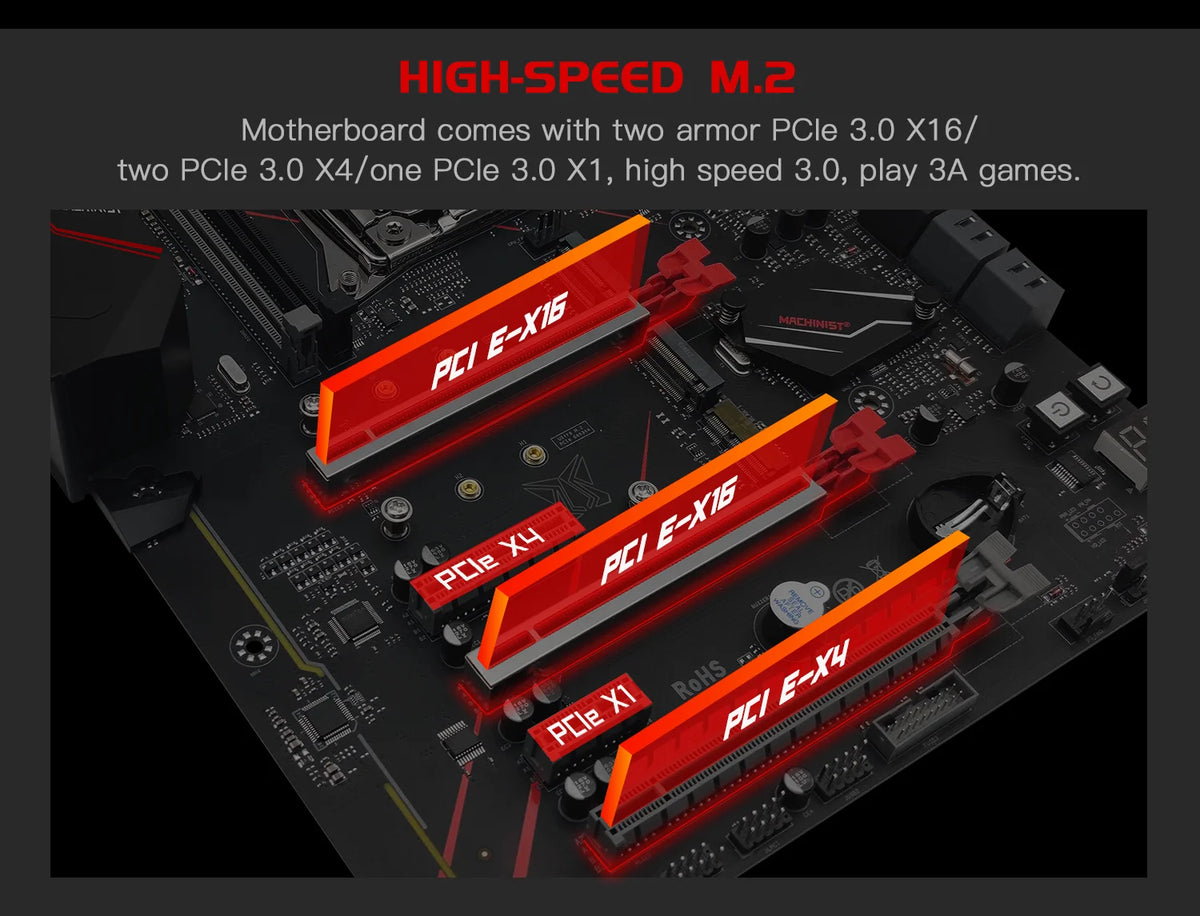

PCIe: 2 PCIe 16x, 1 PCIe 4x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

SATA ports: 6 (4 SATA2.0; 2 SATA3.0)

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

M.2 interface: 2 PCIE interfaces. One wifi SATA interface.

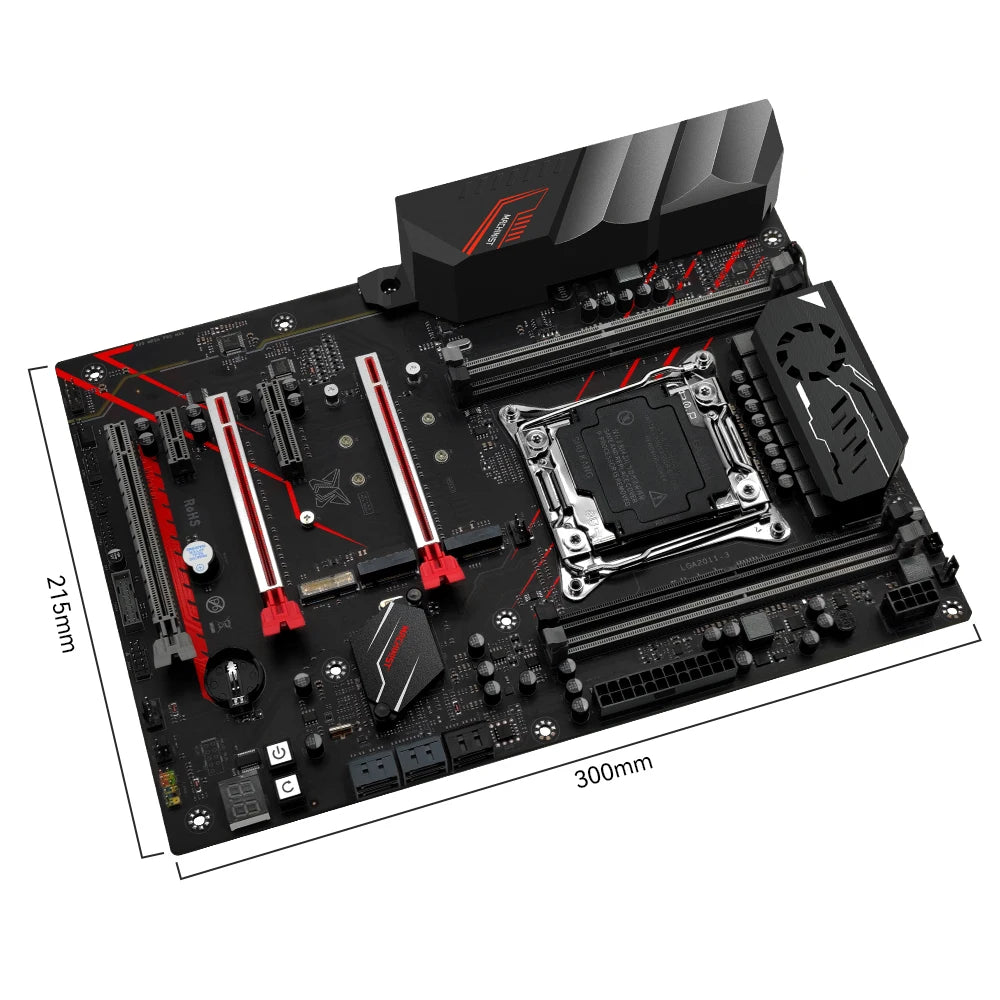

Overall dimensions :280mm * 215mm.

Motherboard weight (including packaging) : approximately 1.3 kilograms.
>> The packaging box and the new and old versions will be sent randomly. The parameters of the packaging content may vary. The actual parameters are subject to the details in the link.



>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.



>> Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
