SPECIFICATIONS

Average Life (hrs): 50000hrs

Brand Name: Auxmer

Certification: ce,EMC,LVD,ROHS,UL

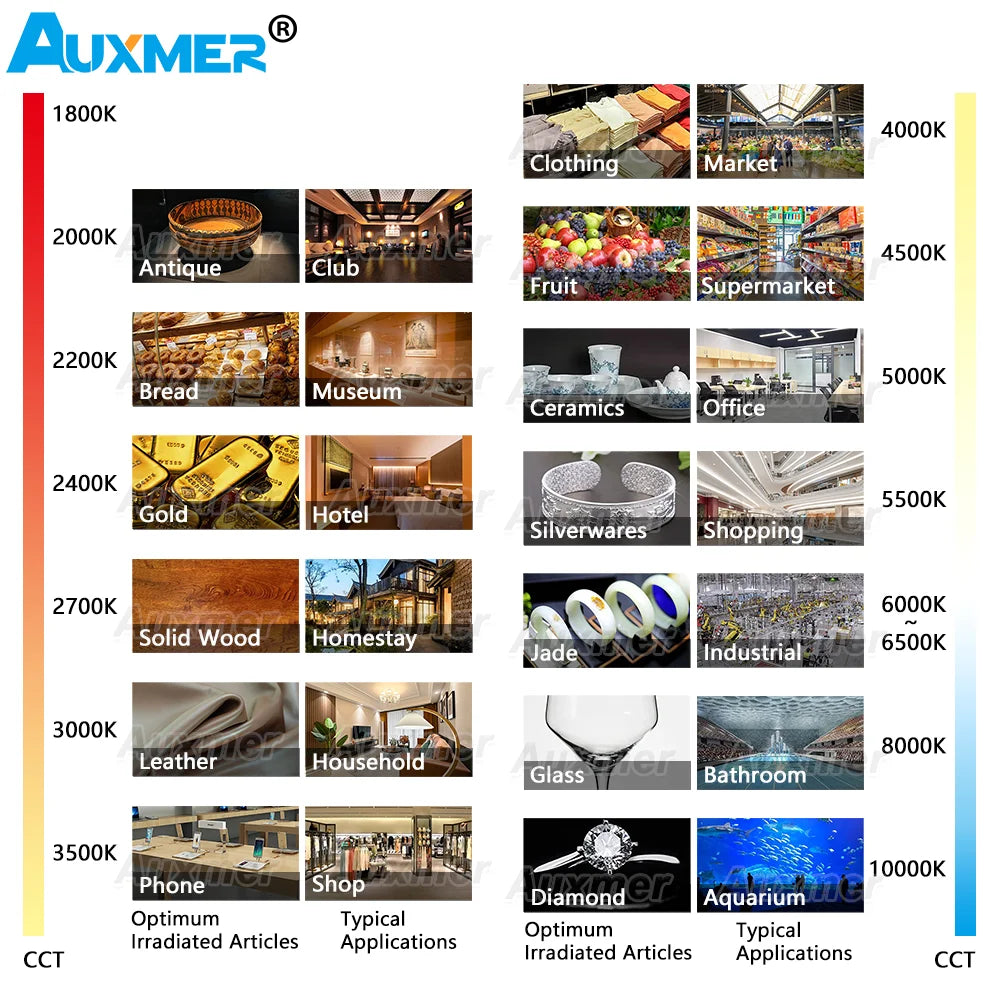

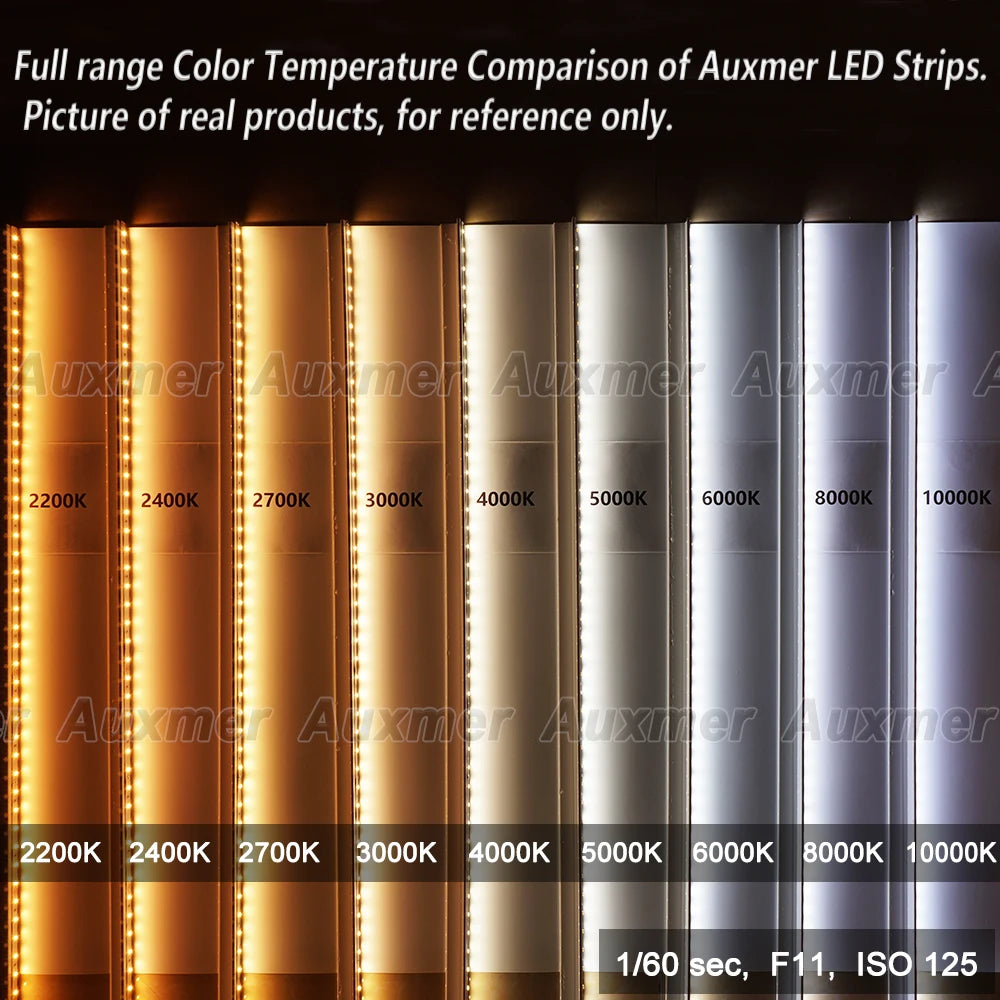

Color Temp(K): 2000K 2200K 2400K 2700K 3000K 3500K 4000K 5000K 5500K 6000K 8000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: SANAN

LED Chip Model: SMD2835

Luminous Flux: 249-2000

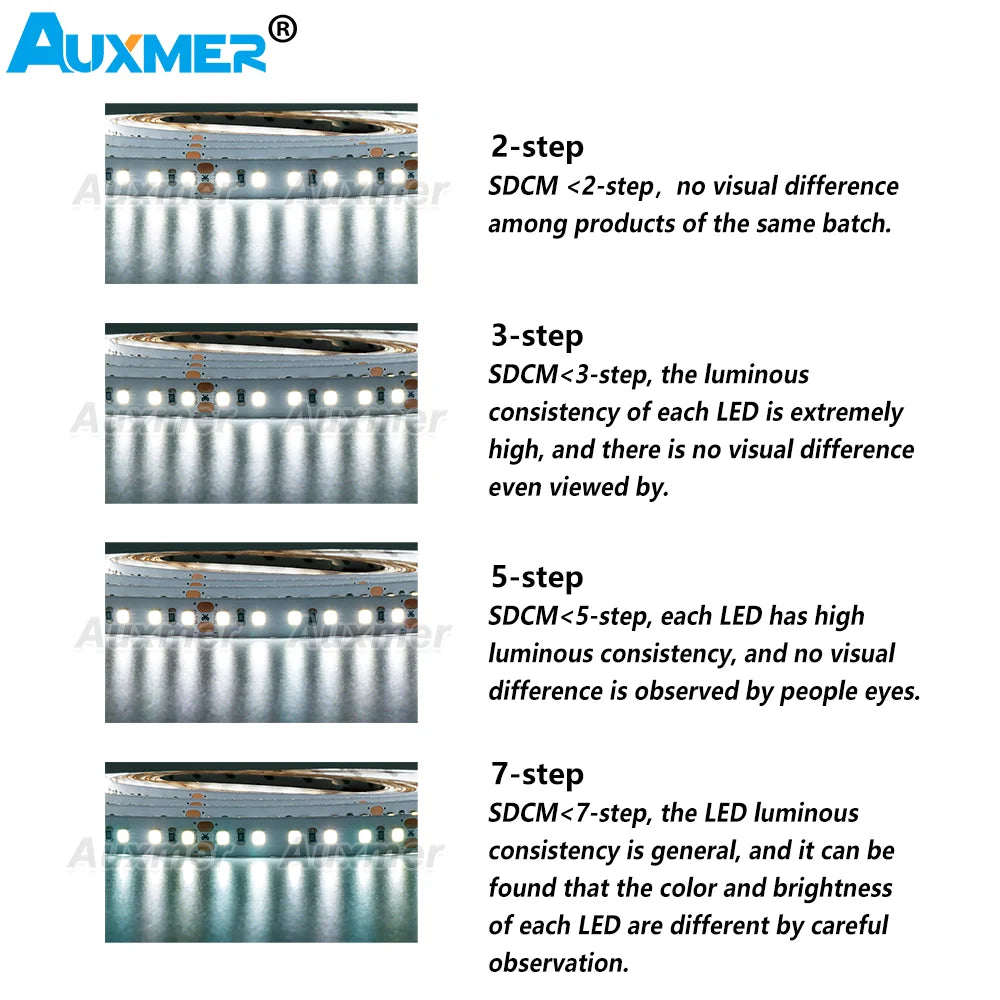

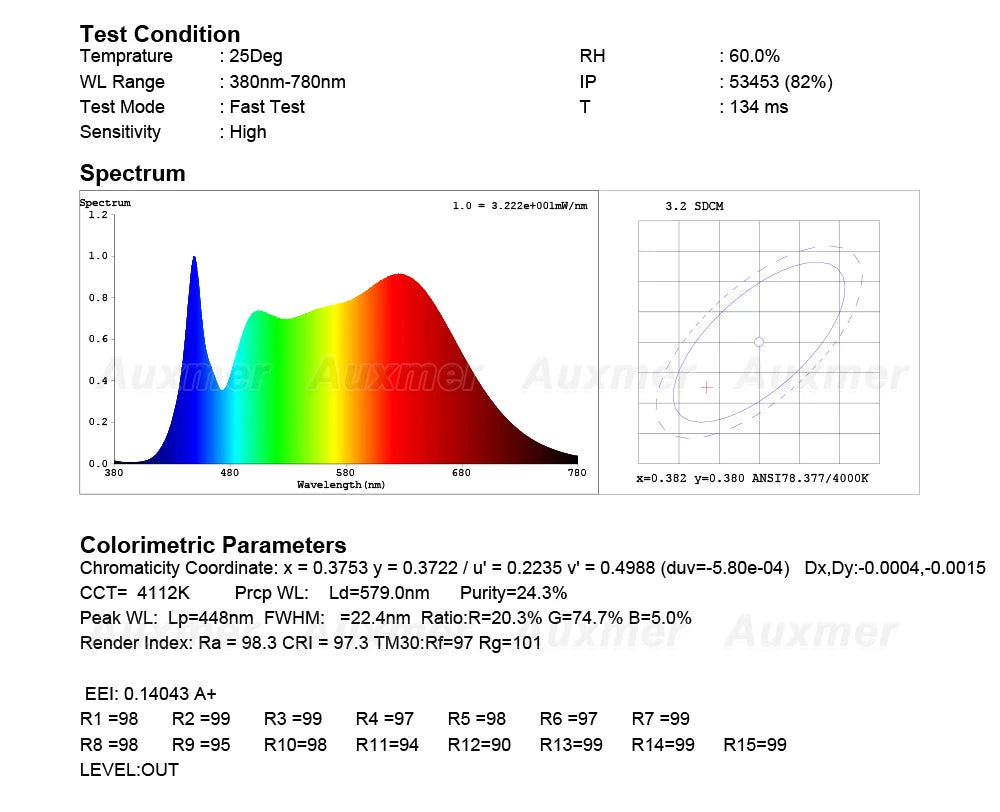

Mac Adam: 3 SDCM

Model Number: AXM-SL2835W240NP-W24S-H95

Nominal Voltage: 24V

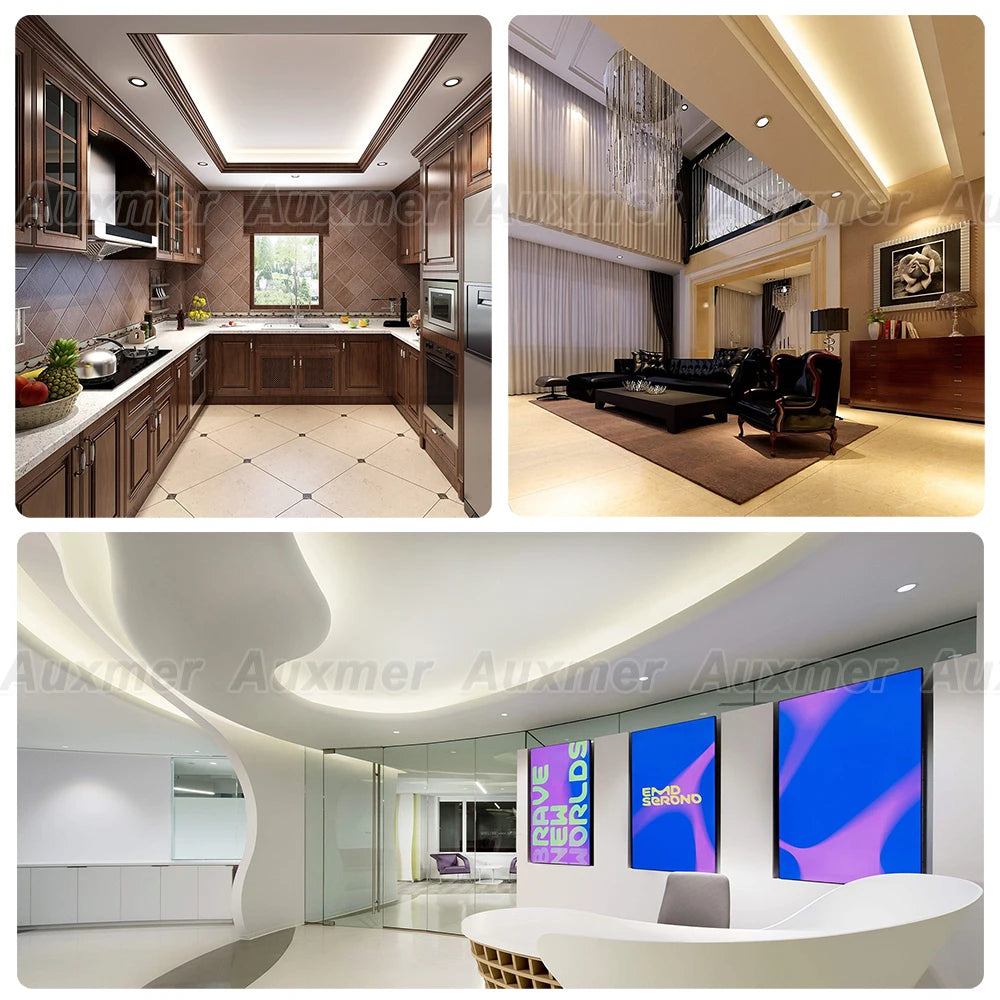

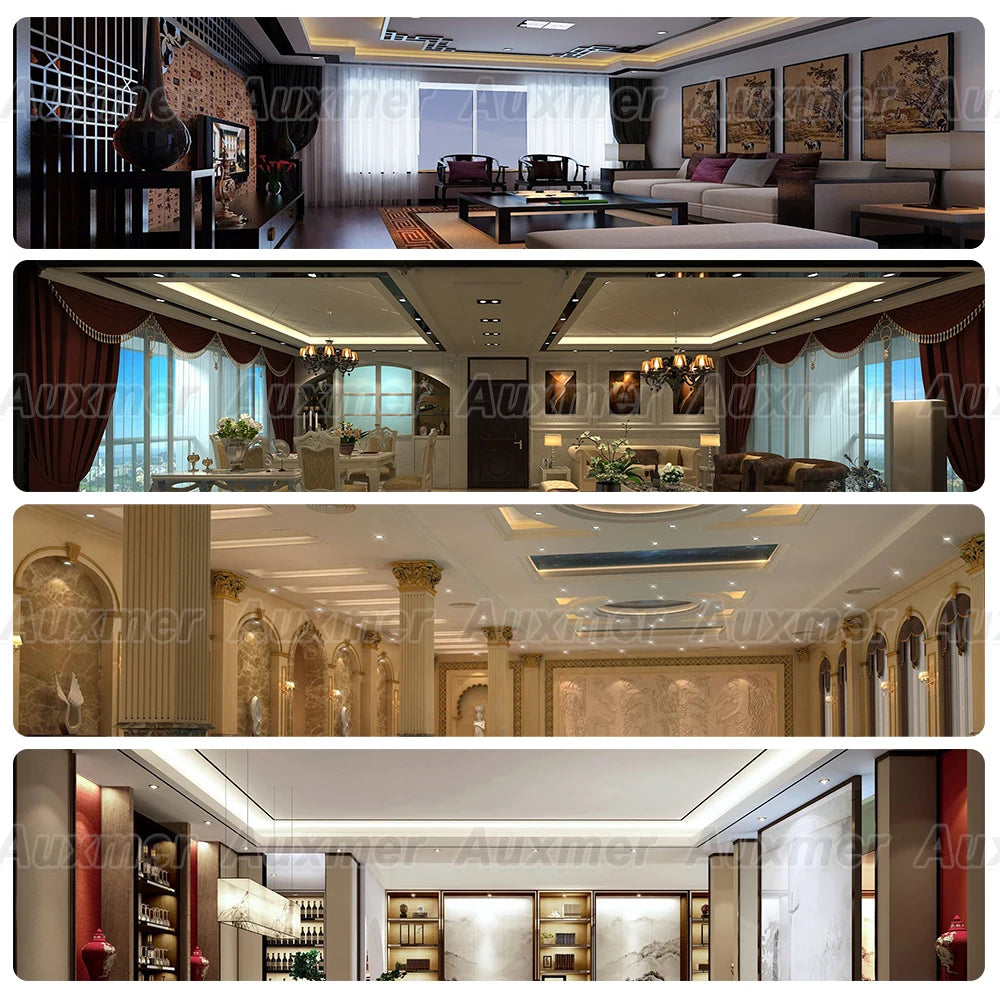

Occasion: Living room

Origin: Mainland China

Package Quantity: 5m/Reel

Power Generation: Switch

Power Source: DC

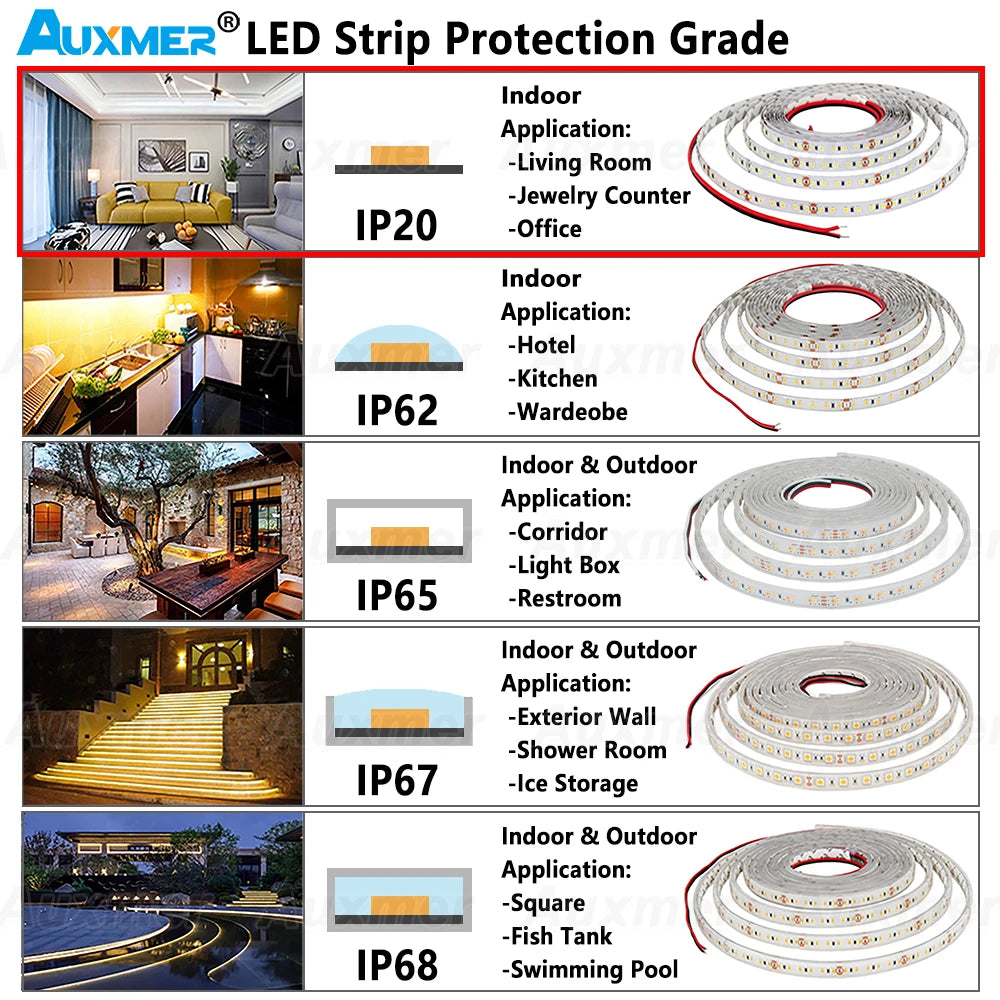

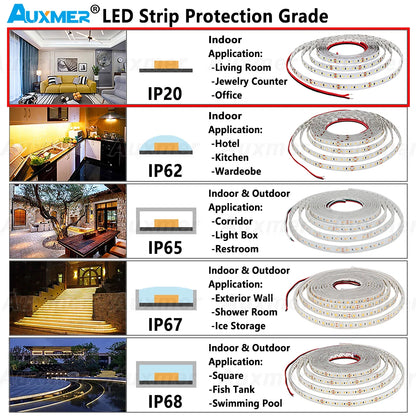

Protection Rate: IP20

Strip type: SMD

Voltage: DC12V/24V

Warranty: 5/7 years

Waterproof: No

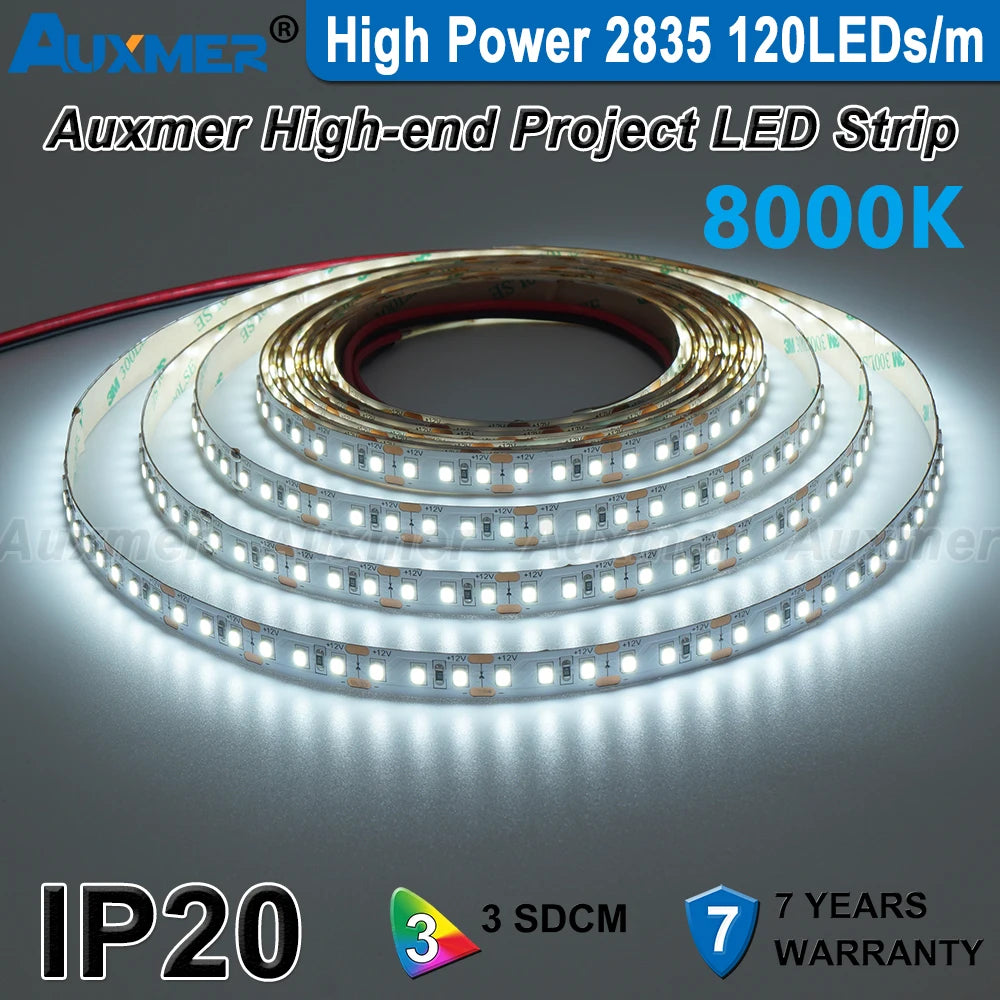

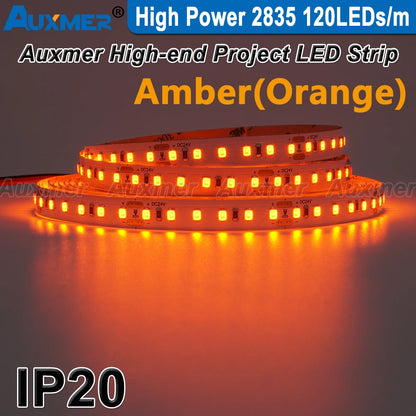

Auxmer High-end Project LED Strip, with more accurate color temperature classification and longer life, much higher color consistency and durability than common LED Strip.

Auxmer High-end Project LED Strip supports customized production and provides color matching service for different batch orders, which is especially suitable for lighting designers, LED engineers, and LED application specialists.

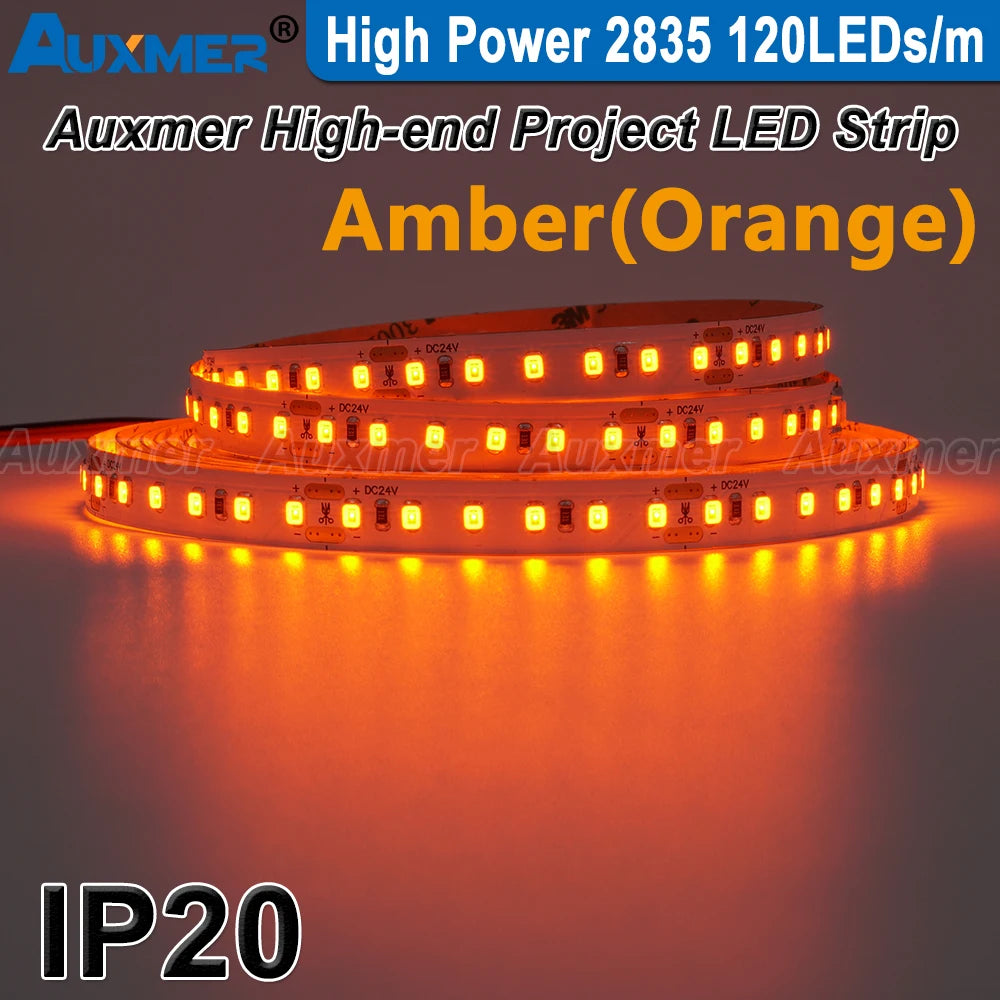

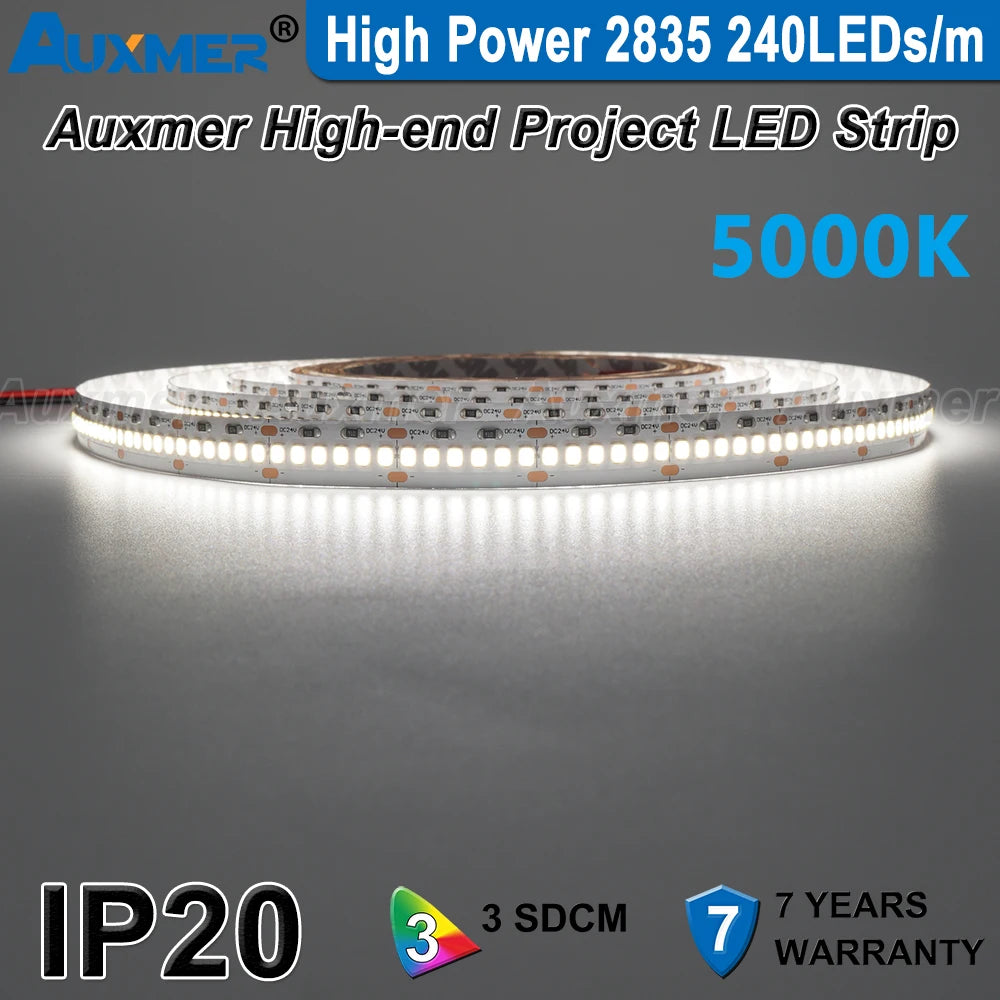

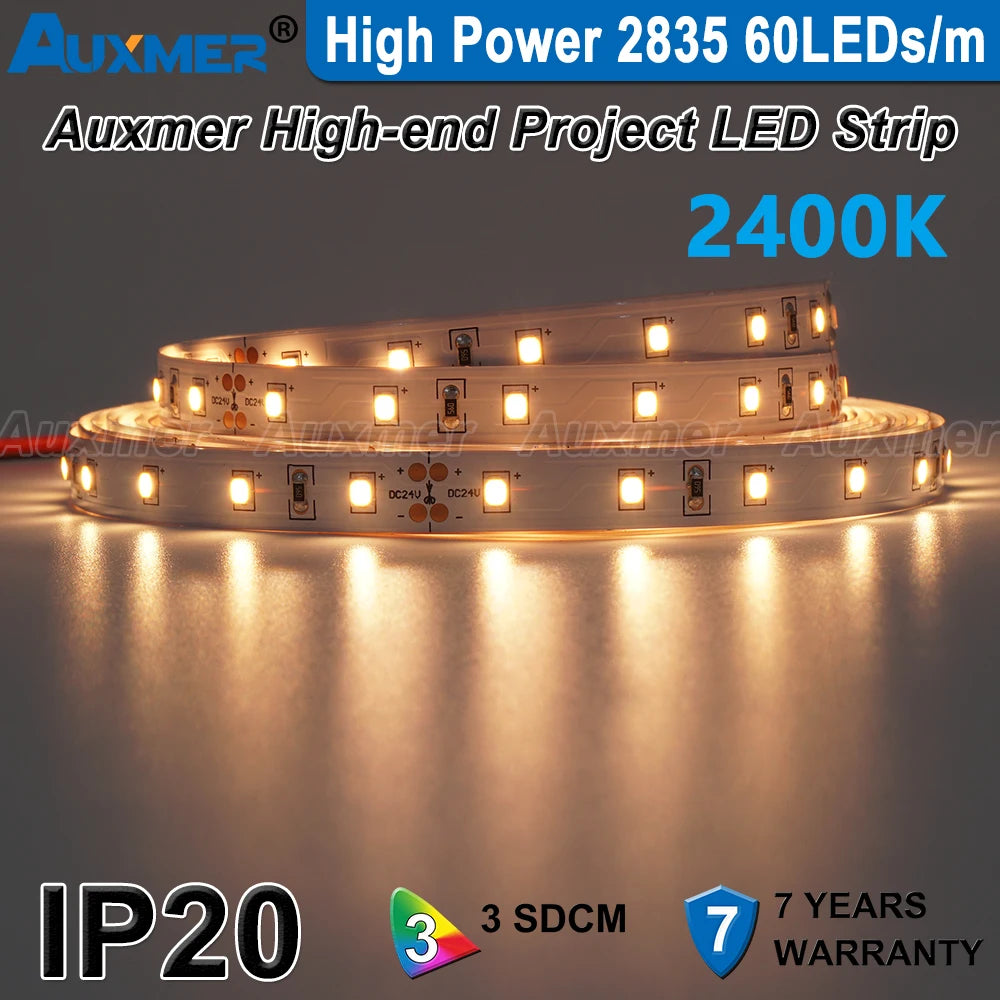

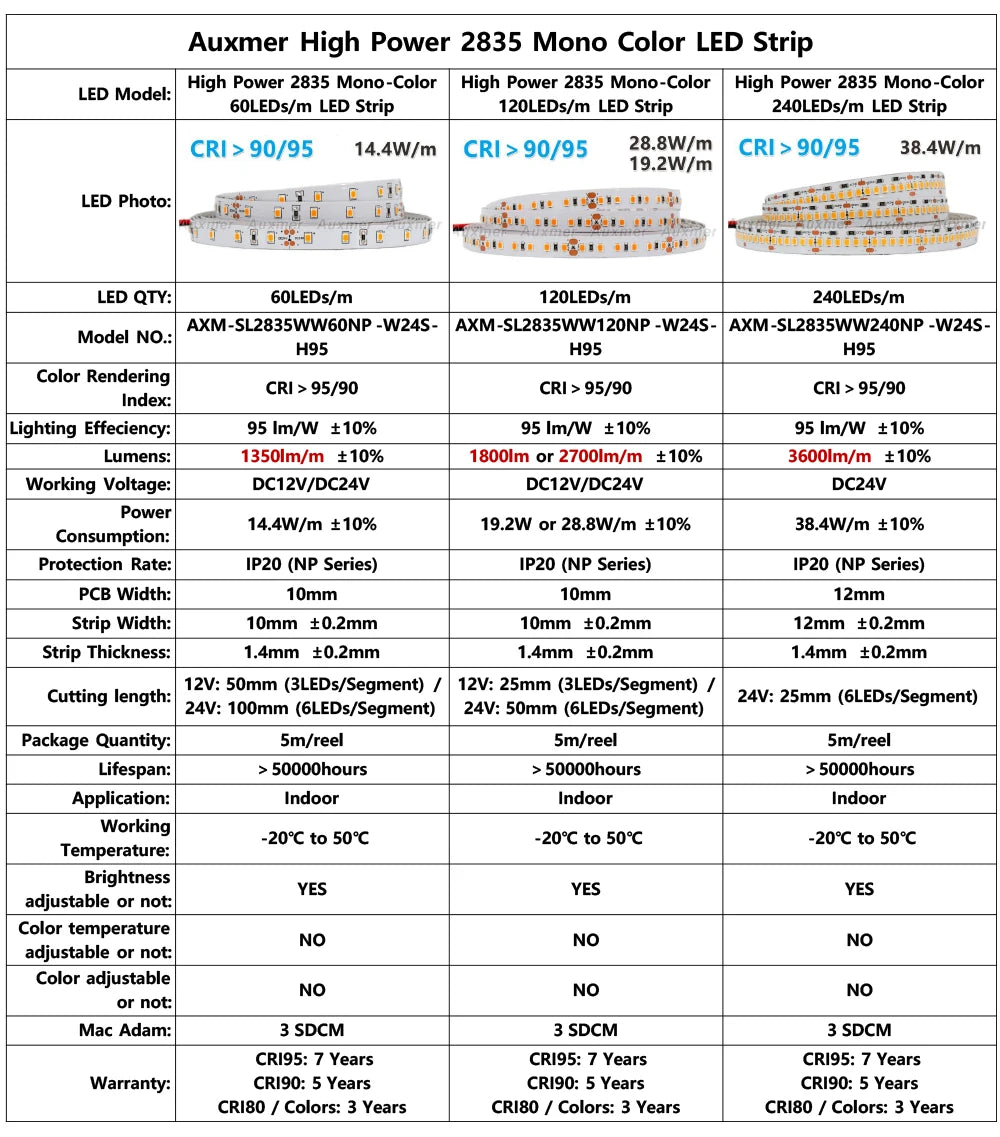

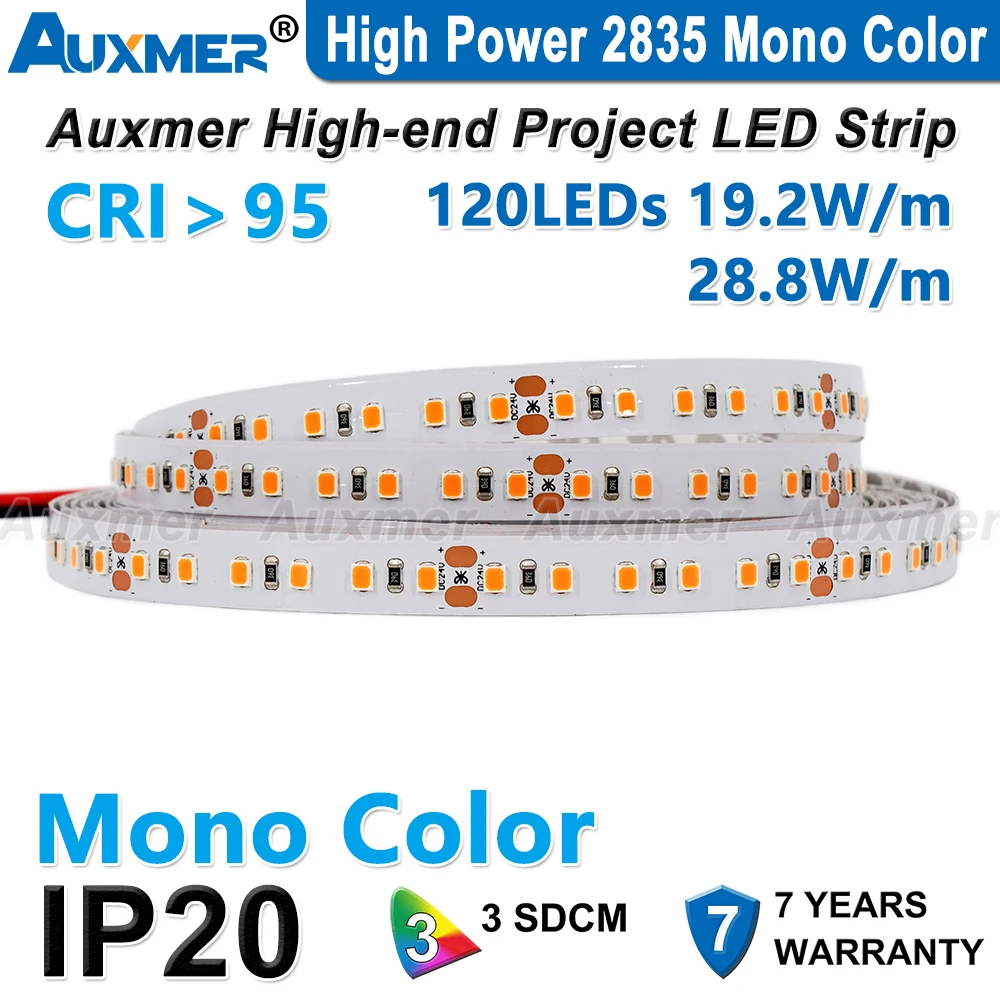

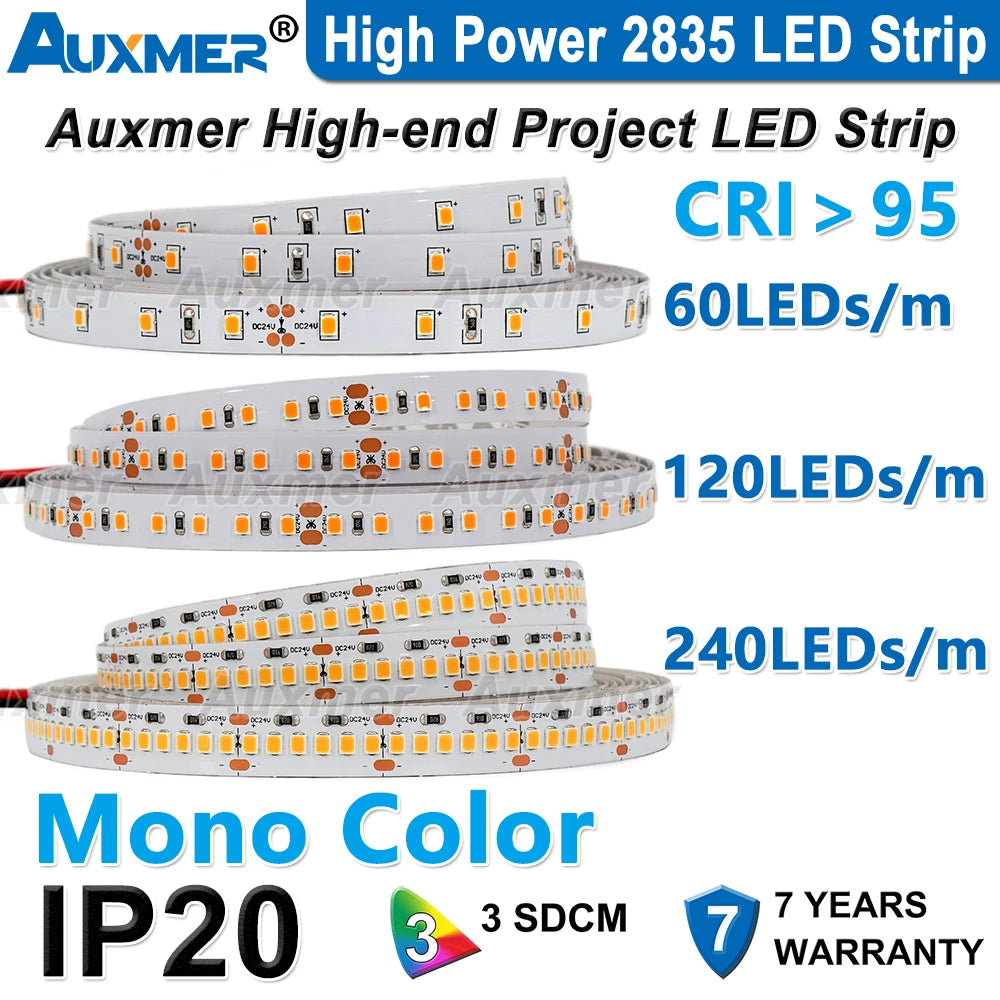

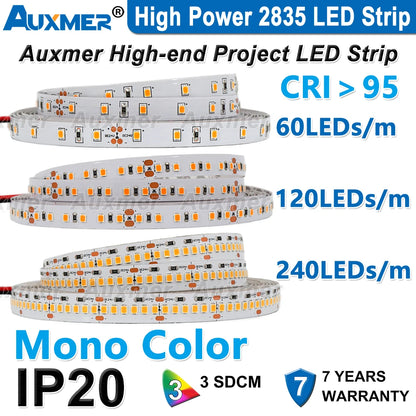

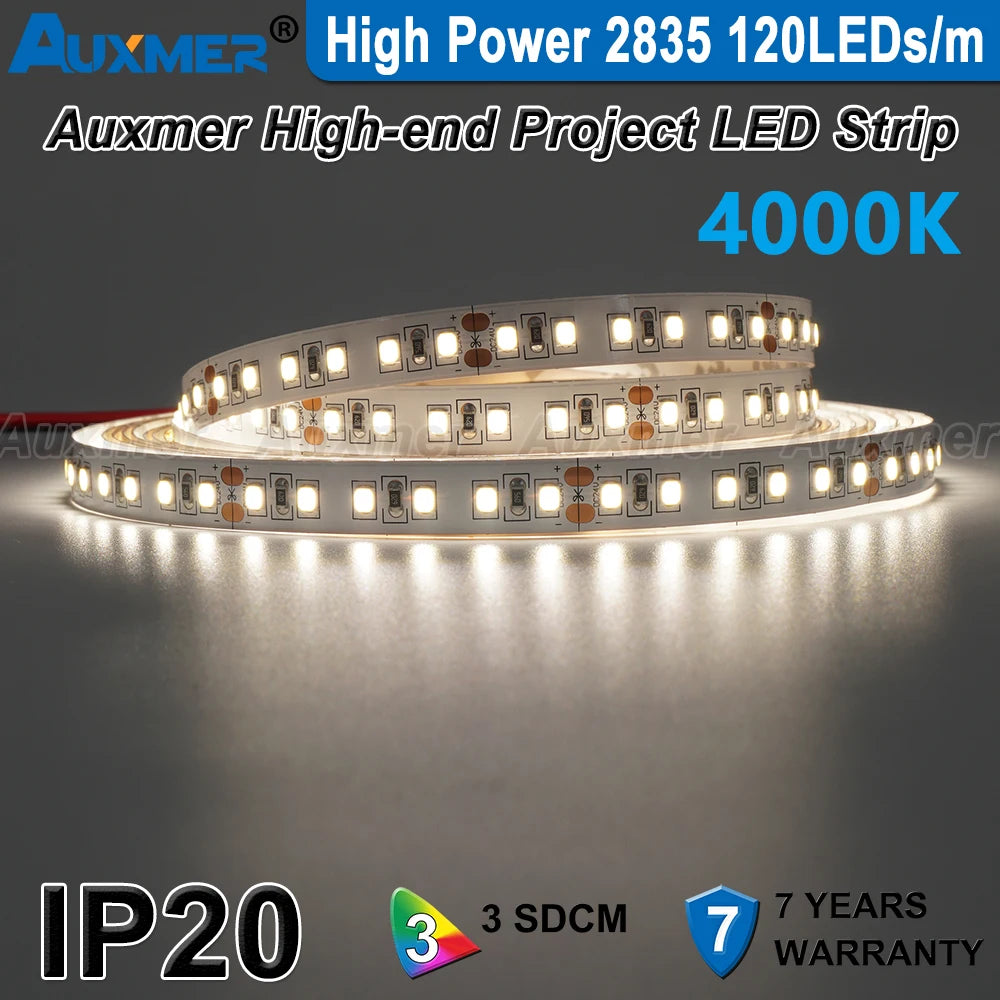

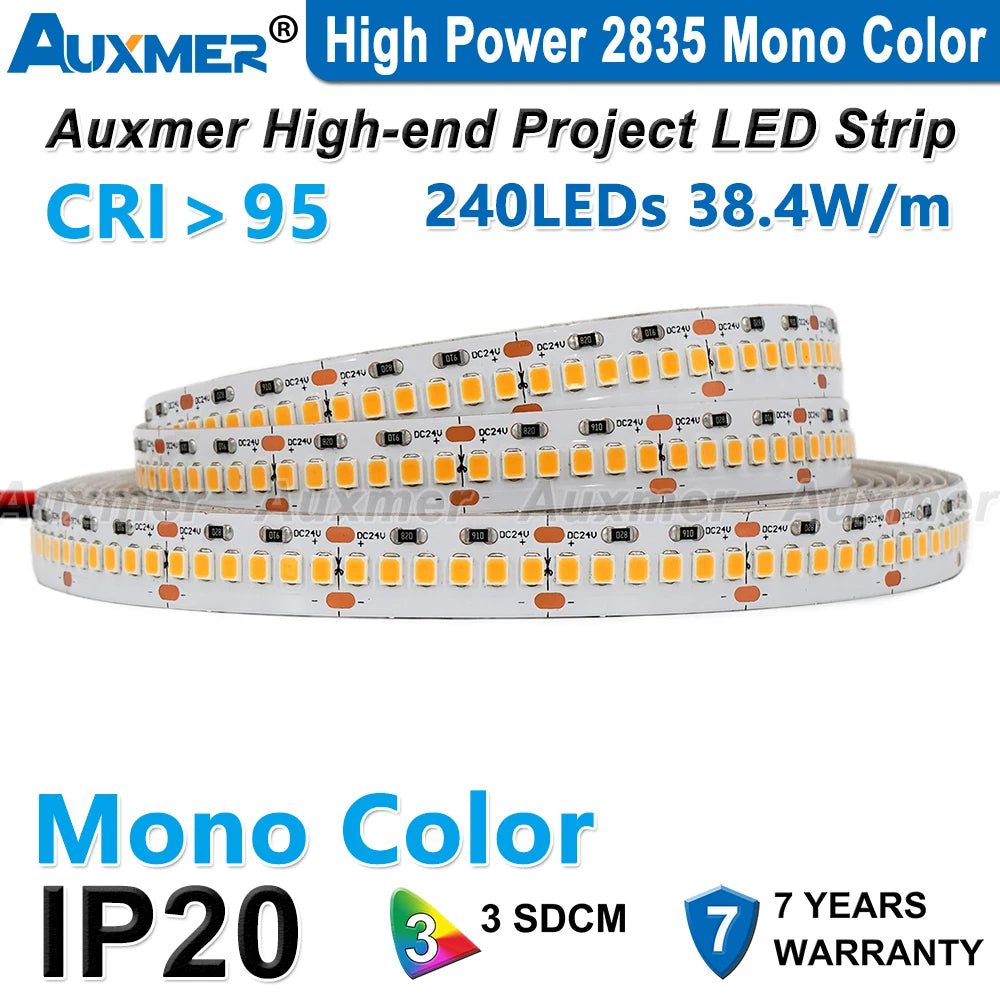

The SMD 2835 LEDs in the Auxmer High-end Project LED Strip are divided into the High Power 2835 and Low Power 2835, which have the same external dimensions, color temperature spectroscopy, and lifetime, but the High Power 2835 uses a larger chip package and is designed to operate at a higher current than the Low Power 2835, so the High Power 2835 is suitable for LED Strips with higher power requirements.

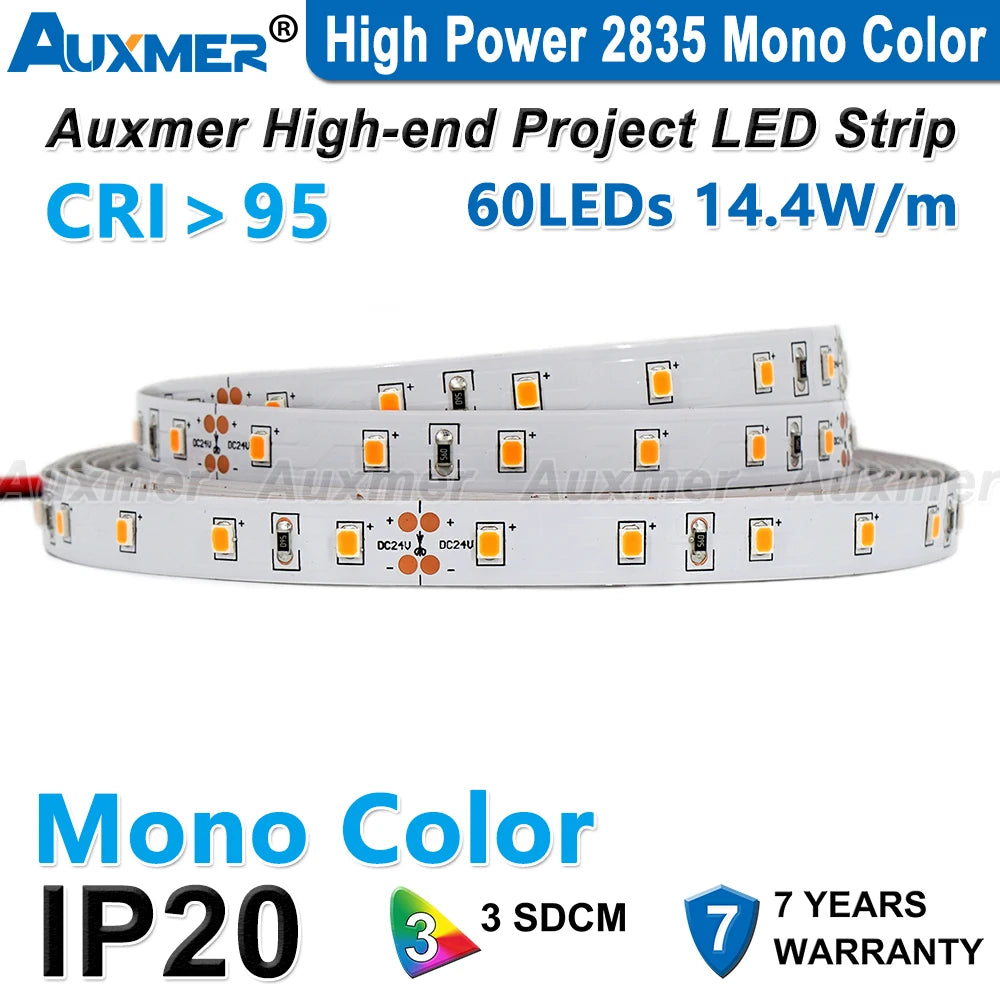

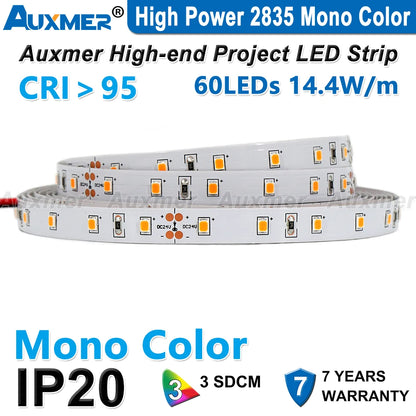

When LED Strip Lights with High power 14.4w/m or more, working temperature is high after lighting. Please make sure the LED strips work with aluminum profile, heat sink and other auxiliary heat dissipation.

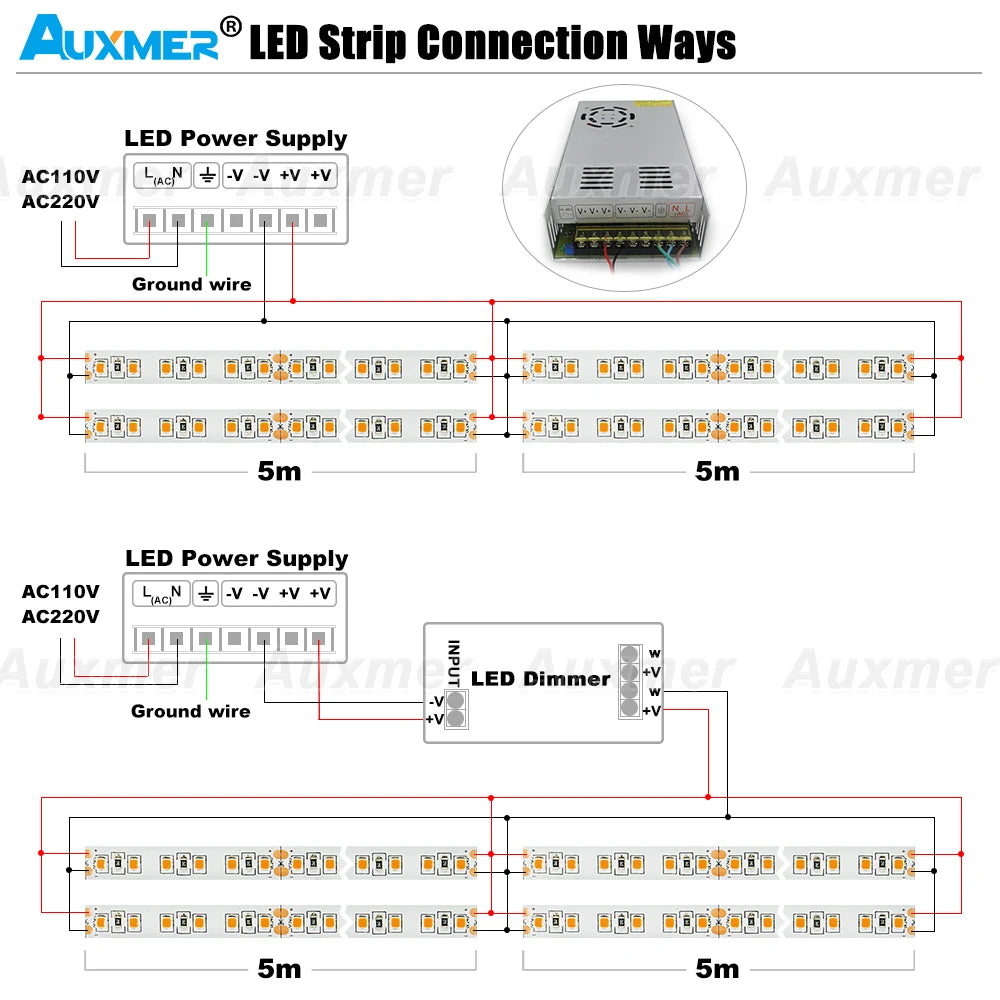

Under normal circumstances: We recommend Auxmer LED Strip DC24V, because DC12V has more obviously voltage drop than DC24V Strip when the driver cable is too long, which may cause the LED Strip input voltage is insufficient, can not fully lighted up to reach the best effects. (LED application experts please ignore this information)

In special applications, Auxmer LED Strip DC12V can be selected:

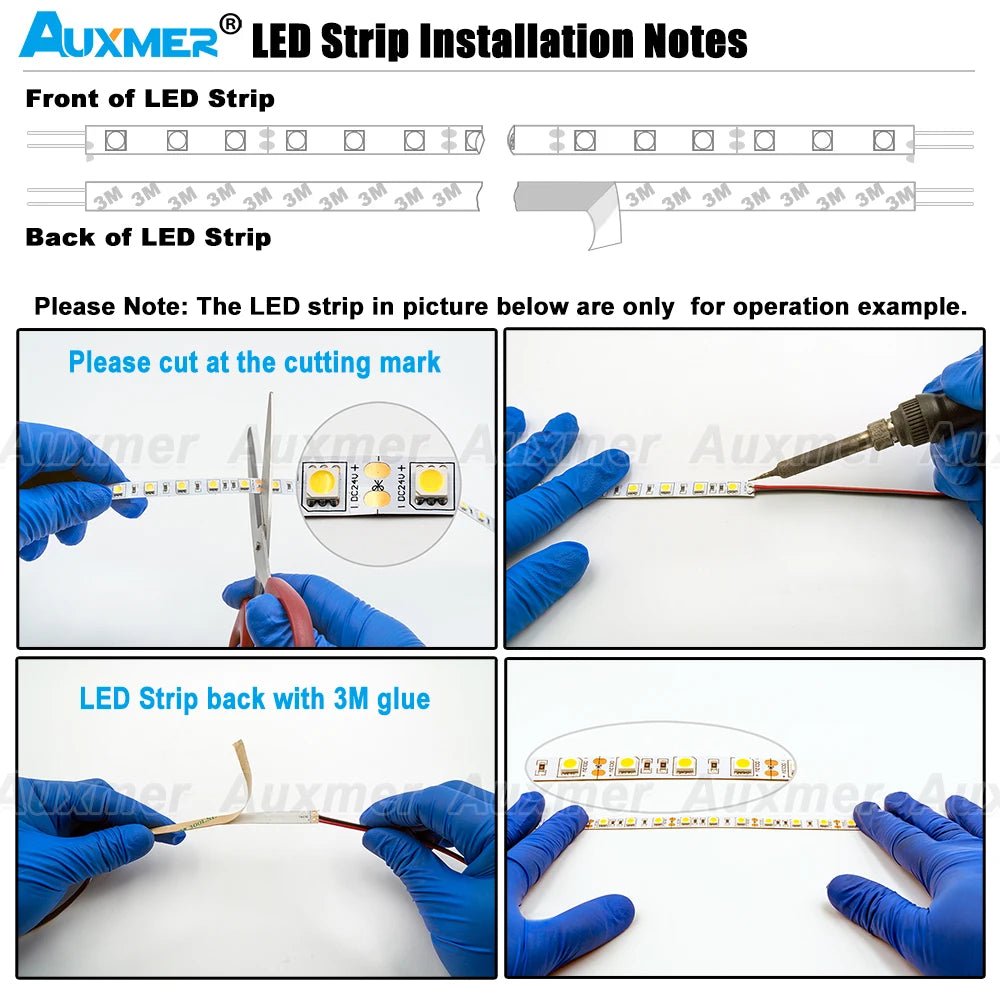

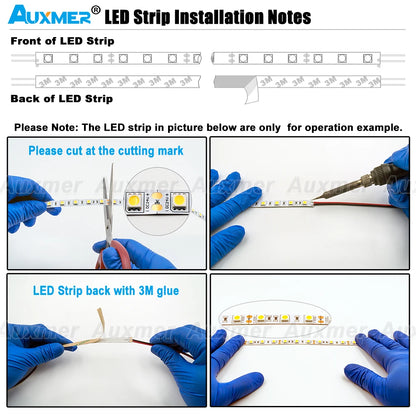

1, Need cut the Auxmer LED Strip to smaller size, the minimum cut length of LED Strip DC12V is 25/50mm, the minimum cut length of LED Strip DC24V is 50/100mm;

2, Need Auxmer LED Strip for cars, ships and other solutions where only work with DC12V power supply.

Low Power 2835 and 3528 LEDs are same power, light efficiency, color temperature (color) and warranty, and two LED Strips are shipped randomly.

If you need LED Strips 1800K / 3500K / 4500K / 5500K / 6500K or Ultraviolet (UV) / Infrared (IR) color, please contact us.

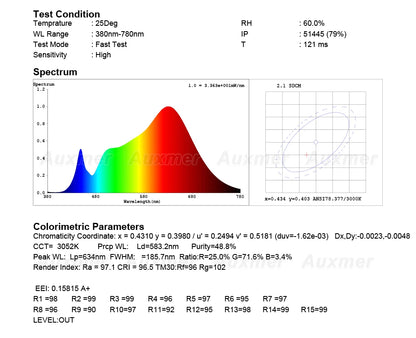

CRI95:   7 Years warranty

CRI90:   5 Years warranty

Colors:   3 Years warranty

When you use other brands LED Strip, but can't get the accurate color temperature you need, or the LED Strip has inconsistent colors and

uneven brightness. After a period of time, the light decay or color

changed is obviously, and a large range of dead lights appeared. Please try with Auxmer High-end Project LED Strip.

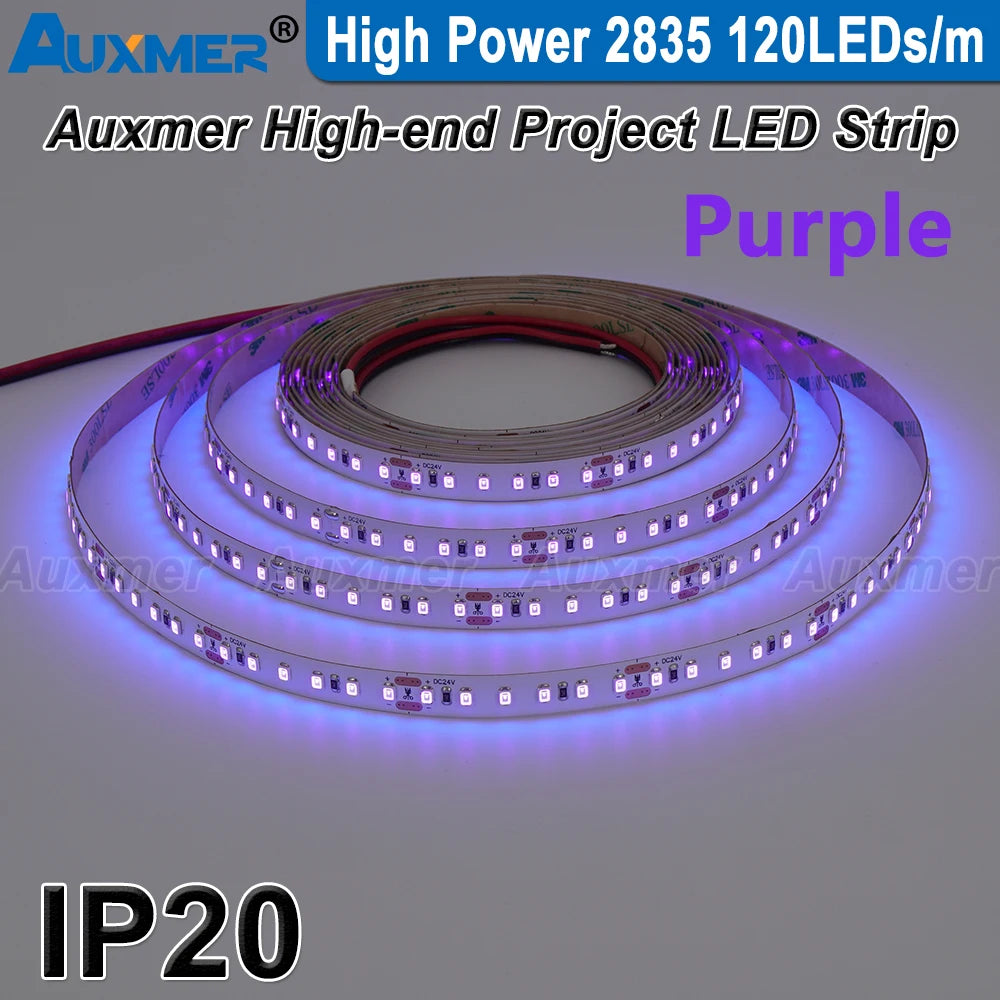

When you demand for LED Strip with special wavelength, such as pink,

purple, ultraviolet, infrared, etc, please contact with us, Auxmer High-end Project LED Strip can be customized for you.

No matter what brand of LED Strip you are using, if you have any

problems or difficults in application, please feel free to contact with us,

we will provide the best solutions and suggestions for you. Auxmer will

help you to solve problems together.
