NOTE:The first M.2 slot of the Z590 series chip has a speed of 4.0 and is only designed for 11th generation CPUs. If you insert a 10th generation INTEL CPU, the first M.2 slot will not be usable.

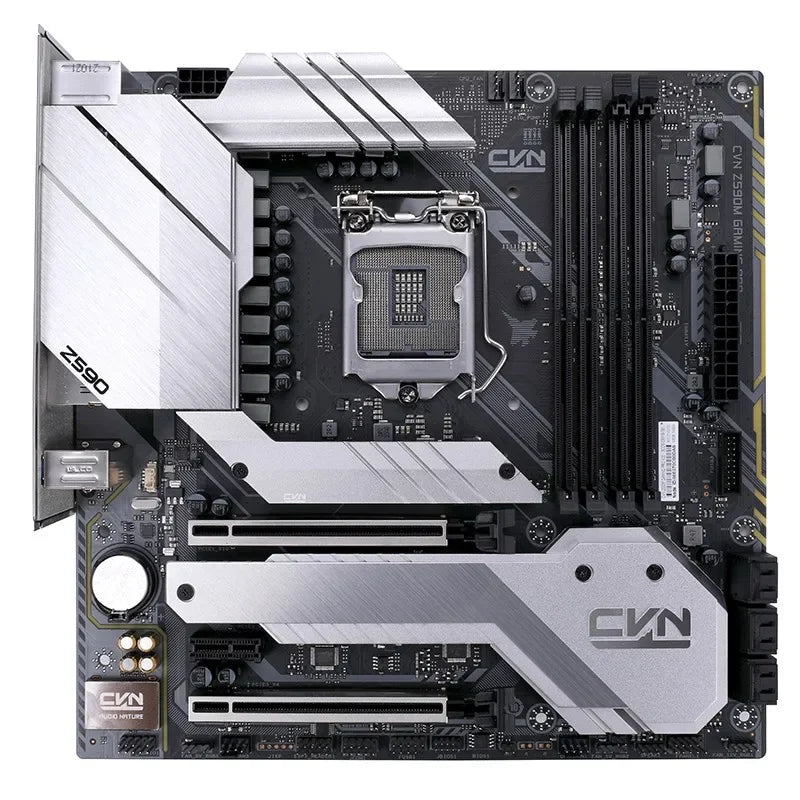

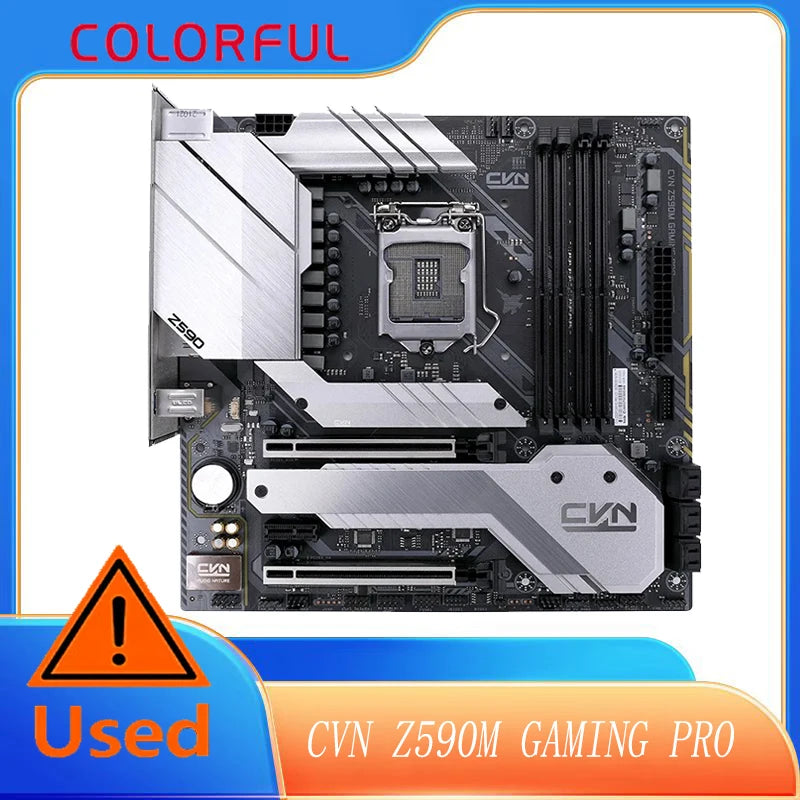

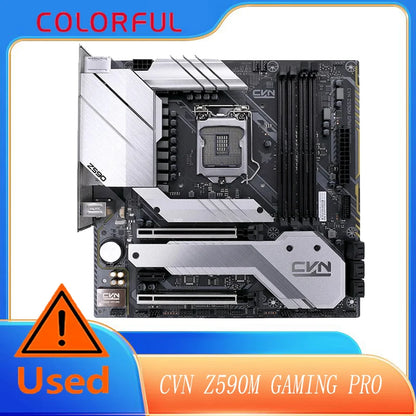

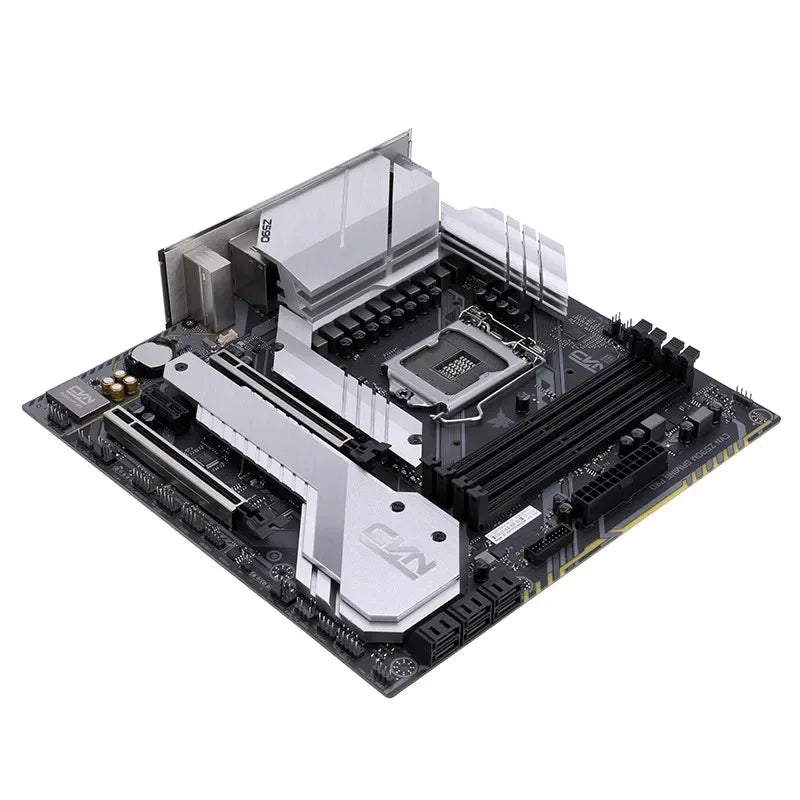

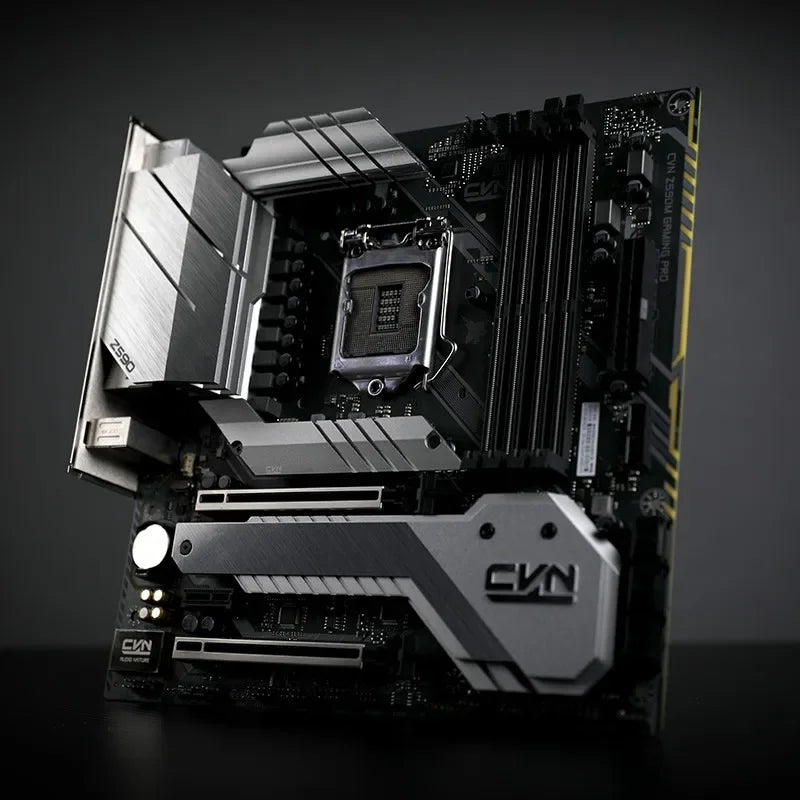

Product Model: CVN Z590M GAMING PRO V20

Product Series: CVN Series

Chipset: Intel Z590

CPU Support: Supports Intel 10th and 11th generation processors

Memory Support: Provides 4 memory slot, single memory maximum support 32GB capacity, total memory capacity maximum support 128G, supports dual-channel DDR4 - 11th generation Intel Core i9/i7/i5 processors: support DDR4 3200/3000/2933/2666/2400/2133 MHz; 10th generation Intel Core i9/i7 processors: support DDR4 2933/2666/2400/2133 MHz; 10th generation Intel Core i5/i3/Pentium processors: support DDR4 2666/2400/2133 MHz; supports Extreme Memory Profile (XMP) memory; supports dual-channel memory and memory overclocking technology! Caution: Memory overclocking frequency also depends on the CPU and memory overclocking performance!

Graphics Card Support: 1 PCI Express 4.0/3.0x16 slot, 1 PCI Express 3.0 x4 slot

Storage Interfaces: The motherboard provides 6 SATA3.0 6Gb/s hard drive interfaces, supports RAID0, 1, 5, 10

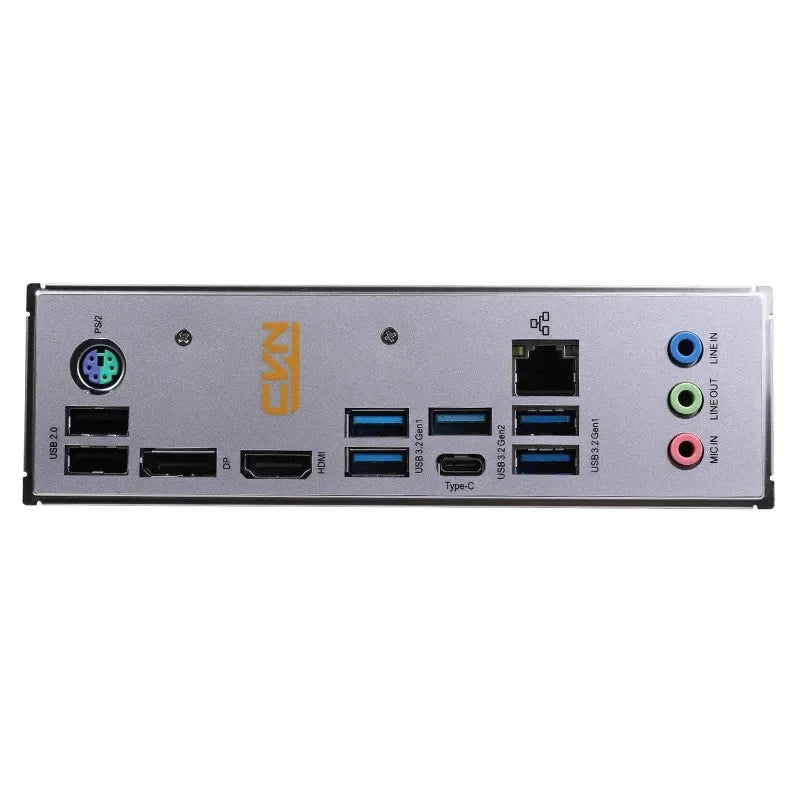

Expansion Interfaces: IO: 1 PS2 mouse/key universal port, 2 USB 2.0 interfaces, 2 USB 3.2 Gen2 x1 interfaces (1*Type-A + 1*Type-C), 4 USB 3.2 Gen1 Type-A interfaces, 1 HDMI interface, 1 DP interface, 1 network interface, 1 six-channel audio interface. Board-mounted: 1 USB2.0 expansion pin, 1 USB3.2 Gen1 Type-A expansion pin, 1 COM pin, 1 CPU fan socket, 2 system fan sockets, 2 5V 3-pin RGB pins, 2 12V 4-pin RGB pins

Expansion Slots: 1 PCI Express 3.0x1 slot, 1 PCI Express 4.0/3.0x16 slot, 1 PCI Express 3.0 x4 slot, 2 M.2 SSD slots (the M.2 slot with the print "M2_KEYM2" supports PCIE GEN4 x4 SSD; the M.2 slot with the print "PCIE_SATA" supports PCIE GEN3 x4/SATA/OPTANE SSD, supporting Intel OPTANE technology. Both M.2 SSD slots support SSDs of 2242/2260/2280 specifications, with the data transfer rate up to 32Gb/s.) Caution: Only with 11th generation I5 or above CPU can achieve 4.0 speed, 10th generation CPU cannot use the 4.0 M.2 slot.

System BIOS: 128M UEFI, supports multiple languages

Power Management: Supports S3, S4, supports PS2 mouse/key wake-up, network S5 wake-up, supports timed startup, power-on startup

Hardware Monitoring: CPU fan speed adjustable, system fan speed adjustable, CPU temperature monitoring, System temperature monitoring, and each group of voltage monitoring

Built-in Network Card: Gigabit network card

Built-in Sound Card: Six-channel sound card

Motherboard Specifications: 245mm * 245mm
