SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,USB Type-C,2x USB 3.2/3.1 Gen 1,2x USB 3.2/3.1 Gen 2,4 x USB 2.0,HDMI 2.0

Battery Included: no

Brand Name: Asus

Chipset: Intel B560

Chipset Manufacturer: Intel

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Number of PCI: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5

RAID Supported: no

Socket Type: LGA1200

Special Features: RGB,Intel Optane Ready,Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Model

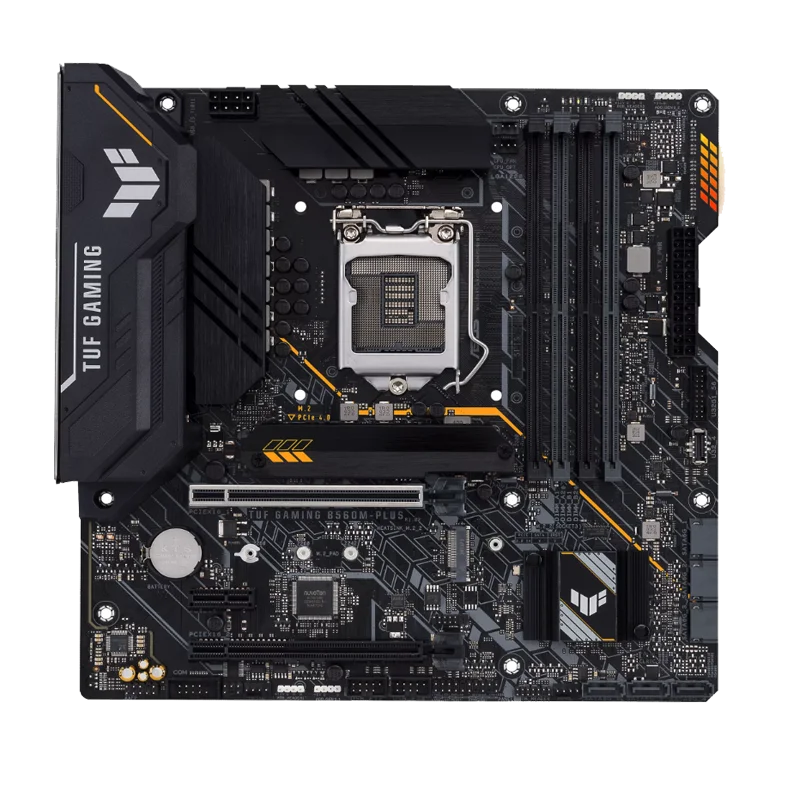

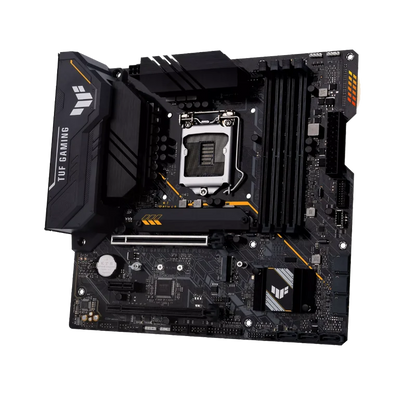

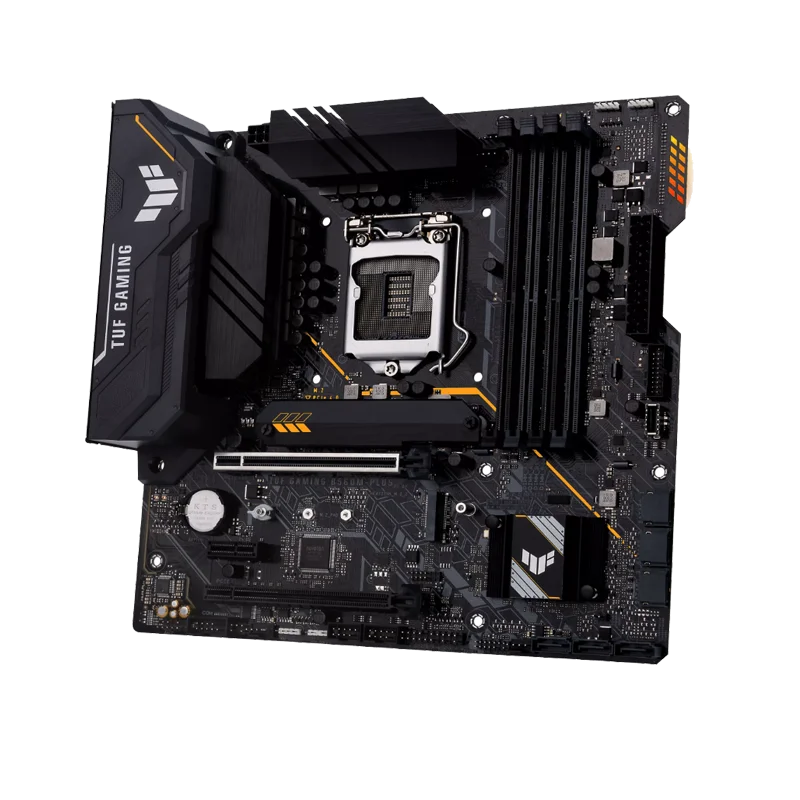

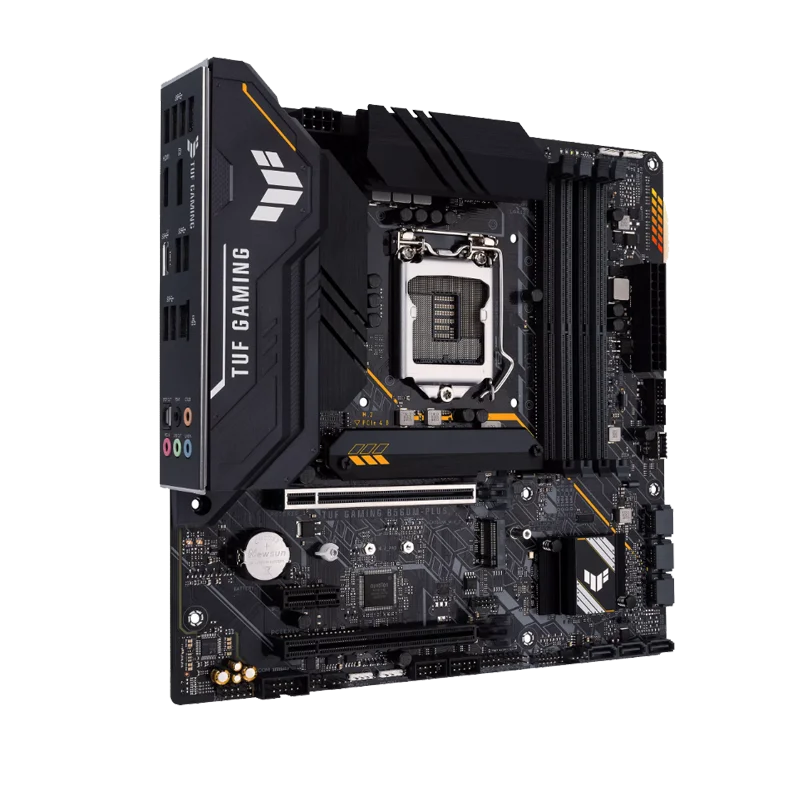

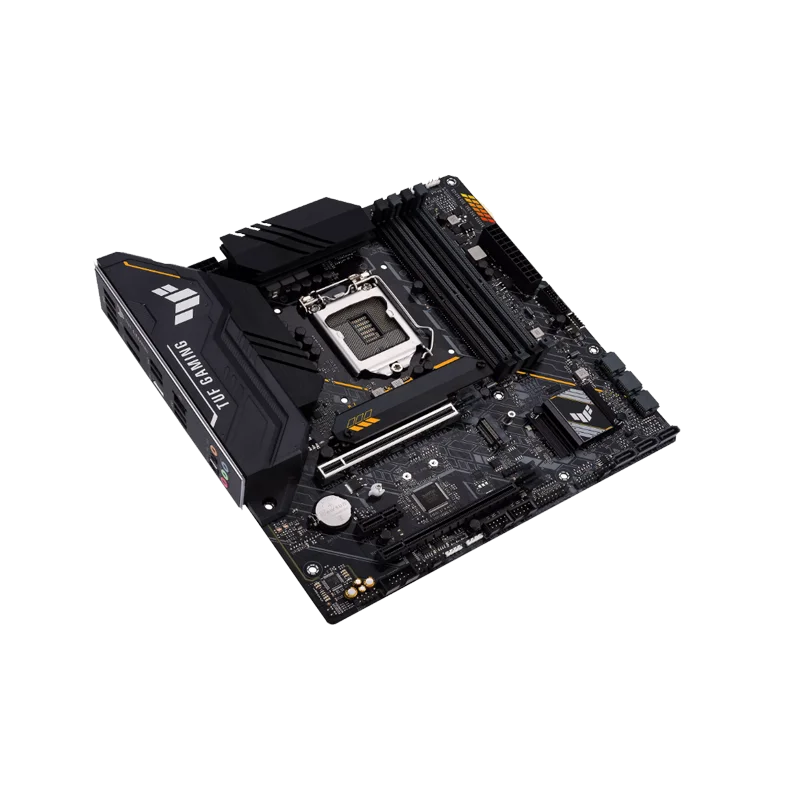

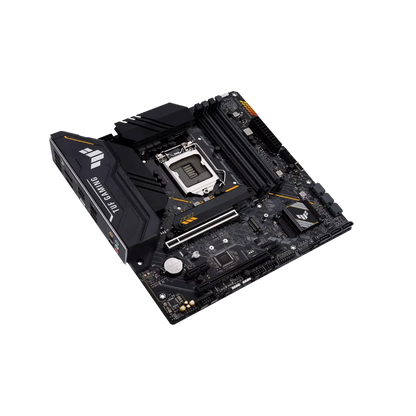

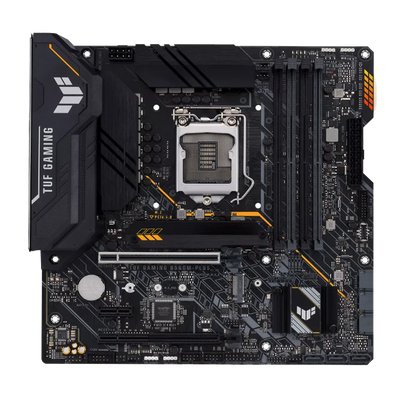

TUF GAMING B560M-PLUS

Central Processing unit

Supports 11th generation Intel ® Core ™/ 10th generation Intel ® Core ™, Pentium ® and Celeron ® processors with Intel ® LGA1200 specification slots

Supports Intel ® 14nm processors

Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0

Please visit the ASUS official website w3.asus.com.cn to obtain the list of Intel processor support.

Support for Intel ® Turbo Boost Max 3.0 technology varies depending on the type of processor.

Chipset

Intel ® B560 high-speed chipset

Memory

DDR4 5000 (overclocking) / 4800 (overclocking) / 4600 (overclocking) / 4400 (overclocking) / 4266 (overclocking) / 4000 (overclocking) / 3733 (overclocking) / 3600 (overclocking) / 3466 (overclocking) / 3333 (overclocking) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory *

Support dual-channel memory architecture

Support Intel ® Extreme Memory Profile (XMP)

OptiMem II memory optimization technology

The 10th generation Intel ® Core ™ i7/i9 processors natively support 2933/2800/2666/2400/2133, and the others will operate at the maximum transfer rate of DDR4 2666MHz.

* the eleventh generation of Intel ® processor native support for 3200/2933/2800/2666/2400/2133

* See https://w3.asus.com.cn for memory QVL(Qualified Vendor Support List), memory frequency support depending on CPU type.

Graphics card

The specifications of graphics cards vary according to the type of processor.

11th generation / 10th generation Intel ® processors, supporting DisplayPort 1.4, with a maximum resolution of up to 4096 x 2304@60Hz. Please visit www.intel.com for updates.

*** Only the 11th Gen Intel ® Core ™ processors support HDMI™ 2.0 with a maximum resolution of 4K@60Hz, while the others only support HDMI™ 1.4 with a maximum resolution of 4K@30Hz. Please visit www.intel.com for updates.

Expansion slot

The 11th generation and 10th generation Intel ® processors

1 x PCIe 4.0/3.0 x16 slot *

The 11th generation Intel ® processors support PCIe 4.0 x16

The 10th generation Intel ® processors support PCIe 3.0 x16

Intel ® B560 chip

1 x PCIe 3.0 x16 slot (supporting x4 mode)

1 x PCIe 3.0 x1 slot

Storage device interface

Supports 2 x M.2 slots and 6 x SATA 6Gb/s interfaces

The 11th generation Intel ® processors

M.2_1 slot (Key M), storage devices of type 2242/2260/2280

Only the 11th generation Intel ® Core ™ processors support the PCle 4.0 x4 mode. If other processors are used, this slot will be closed.

Intel ® B560 chip

M.2_2 slot (Key M), storage devices of type 2242/2260/2280 (supporting PCIe 3.0 x4 & SATA mode)*

6 x SATA 6Gb/s interface

To enable Intel ® Optane ™ memory (hybrid Storage device), it must be installed in the PCH-attached slot in conjunction with Intel ® Rapid Storage technology.

The M.2_2 slot shares bandwidth with SATA_2. When the M.2_2 slot operates in SATA mode, SATA_2 will be turned off.

USB interface

Rear side panel USB: A total of 9 interfaces

2 x USB 3.2 Gen 2 interface (2 x Type-A)

3 x USB 3.2 Gen 1 interface (2 x Type-A+ 1 x USB Type-C®)

4 x USB 2.0 interface (4 x Type-A)

1 x USB 3.2 Gen 1 connection port supports USB Type-C®

The 1 x USB 3.2 Gen 1 port can be expanded with 2 USB 3.2 Gen 1 interfaces

The 2 x USB 2.0 port can be expanded with 4 USB 2.0 interfaces

Sound effect

-Supports: Audio interface detection (JACK-detection), Multi-Streaming, front panel audio Jack switching function (JACK-retasking)

Supports playback up to 24-Bit/192kHz

Audio function

- Audio divider

The rear side is equipped with an S/PDIF optical fiber digital output interface

High-quality Japanese audio capacitors

The left and right channels are designed in layers

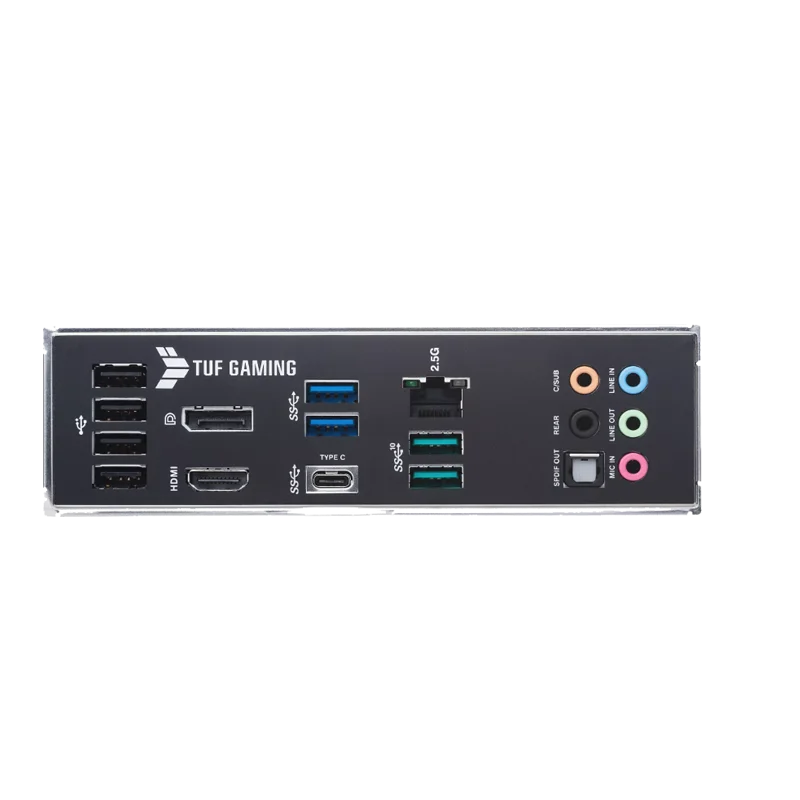

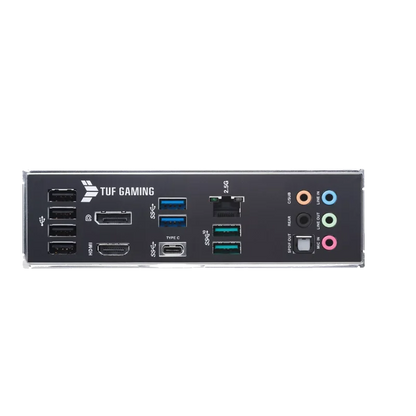

Rear side panel I/O device interface

2 x USB 3.2 Gen 2 interface (2 x Type-A)

3 x USB 3.2 Gen 1 interface (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 interface (4 x Type-A)

1 x DisplayPort

1 x HDMI™ interface

1 x Realtek 2.5Gb Ethernet port

5x audio jack

1 x optical fiber S/PDIF output interface

Built-in I/O device interface

Fans and heat dissipation related

1 x 4-pin CPU fan pin connection

1 x 4-pin CPU OPT fan pin connection

2 x 4-pin chassis fan pin connection

Related to power supply

1 x 24-pin main power socket

1 x 8-pin +12V power socket

Storage-related

2 x M.2 slot (Key M)

6 x SATA 6Gb/s interface

USB

1 x USB 3.2 Gen 1 connection port (supports USB Type-C®)

The 1 x USB 3.2 Gen 1 port can be expanded with 2 USB 3.2 Gen 1 interfaces

The 2 x USB 2.0 port can be expanded with 4 USB 2.0 interfaces

Other classes

2 x AURA second-generation programmable pins

2 x AURA RGB pins

1 x Clear the CMOS pins

1 x COM port pin connection

1 x Front Panel Audio Pin Connector (AAFP)

The 1 x 20-3 pin system panel pin connection supports the case opening warning function

1 x Lightning ™ pin connection

Special function

Asus TUF protection

Digital power supply design in combination with DrMOS

Enhanced DRAM overcurrent protection

ESD protection

- TUF LANGuard

Overvoltage protection

- SafeSlot Core+

Stainless steel moisture-proof I/O interface

Asus Q-Design

- M.2 Q-Latch

- Q-DIMM

-Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])

- Q-Slot

Asus cooling solutions

Humanized M.2 heat sink

- VRM heat sink design

Asus EZ DIY

- ProCool

Pre-installed I/O baffles

AURA Sync

- AURA RGB connector

- Second-generation programmable ARGB pins

Software function

Asus exclusive software:

Armoury Crate

- AURA Creator

- AURA Sync

Bidirectional AI noise reduction

AI Suite 3

Performance and energy-saving application software

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

Customized sound effects for DTS games

Norton Antivirus Software (Trial Version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS UEFI BIOS EZ mode

BIOS function

128 Mb Flash ROM, UEFI AMI BIOS

Management function

WOL by PME, PXE

\
