SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,USB Type-C,2x USB 3.2/3.1 Gen 2,4 x USB 2.0,PS/2,HDMI 2.0

Battery Included: no

Brand Name: Asus

Chipset: Intel B560

Chipset Manufacturer: AMD

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 128 GB

Number of PCI: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5

RAID Supported: no

Socket Type: LGA1200

Special Features: RGB,Intel Optane Ready,Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Model

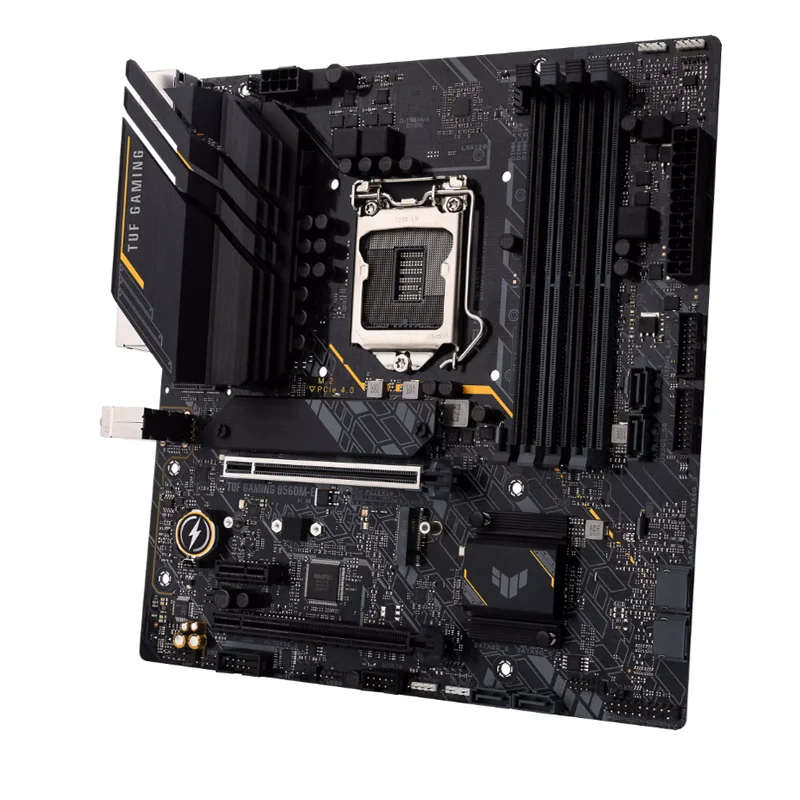

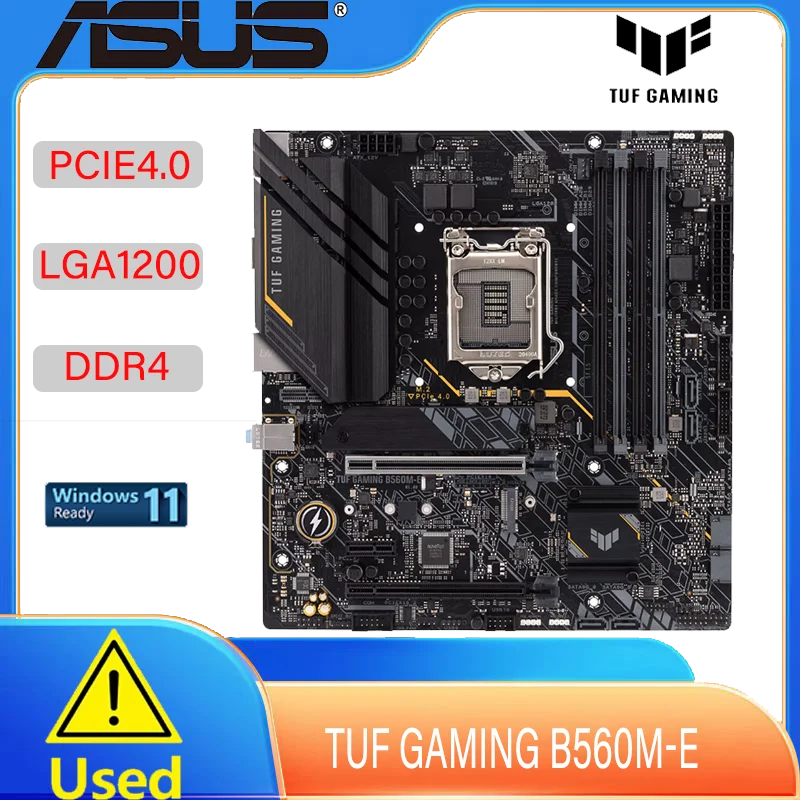

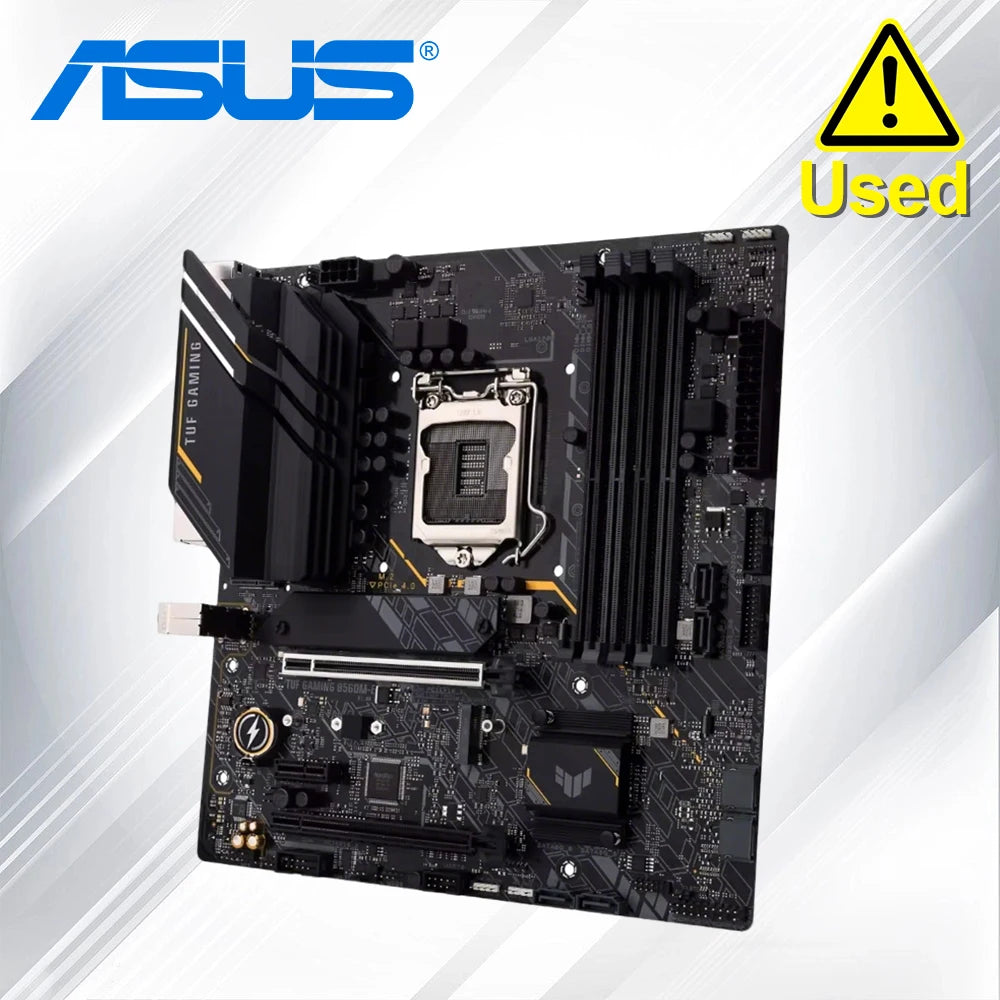

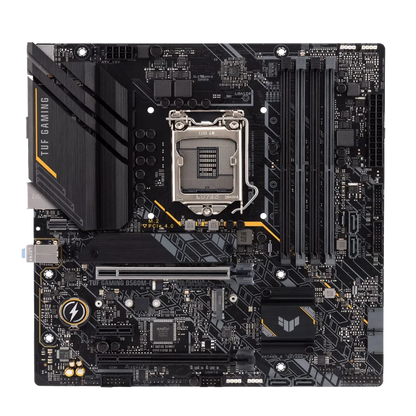

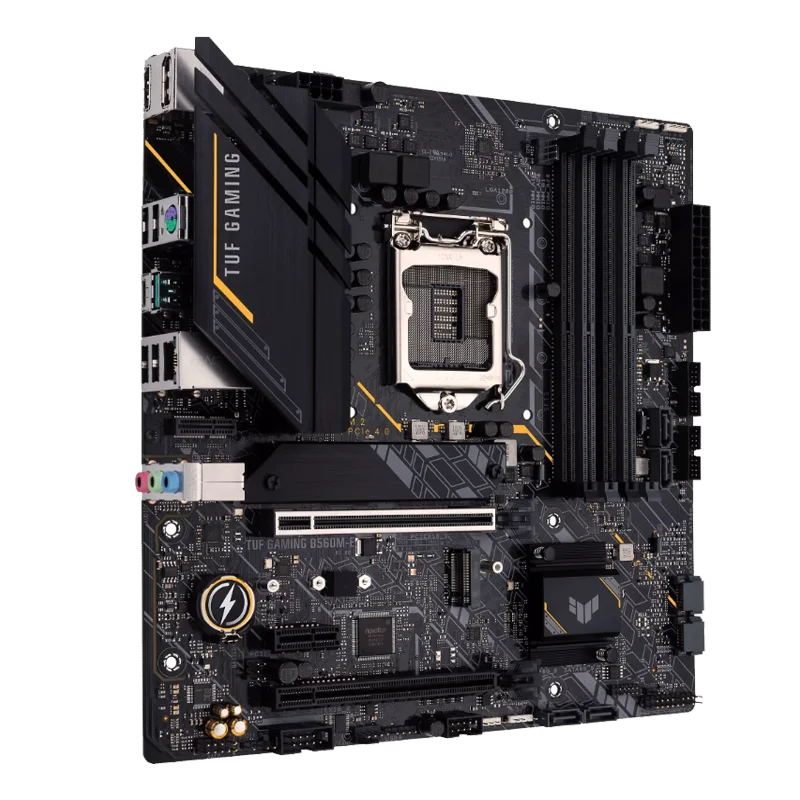

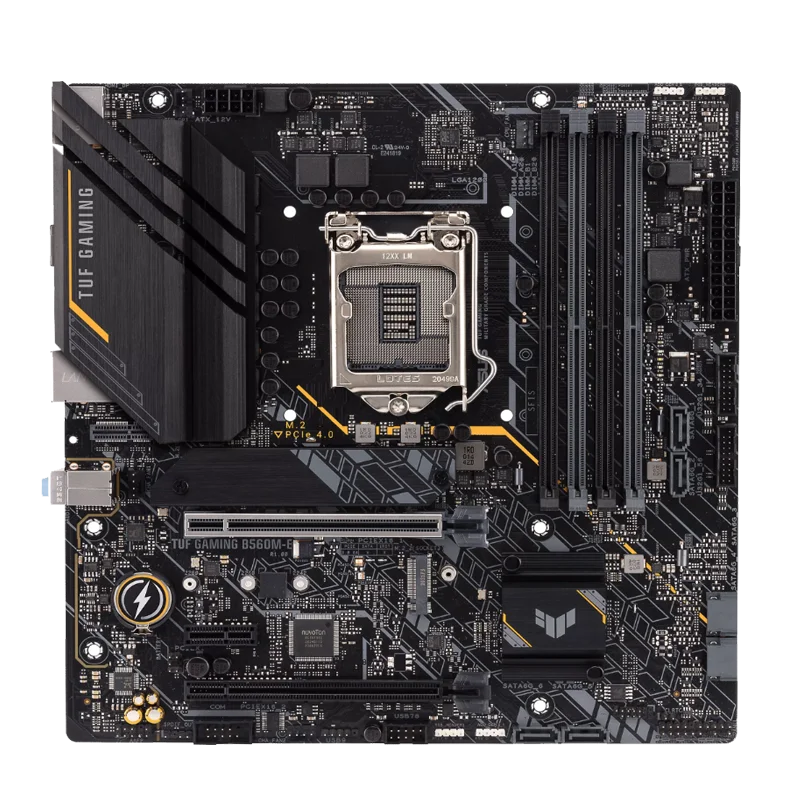

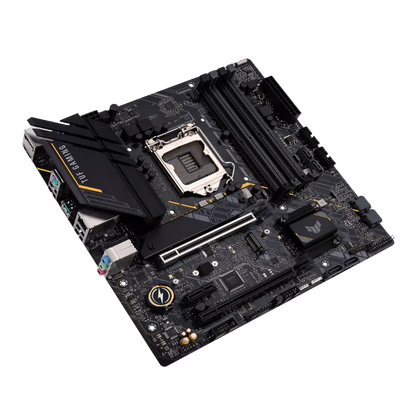

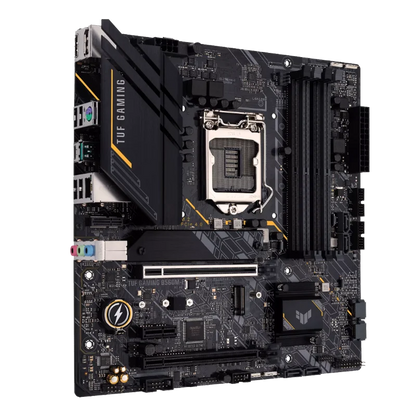

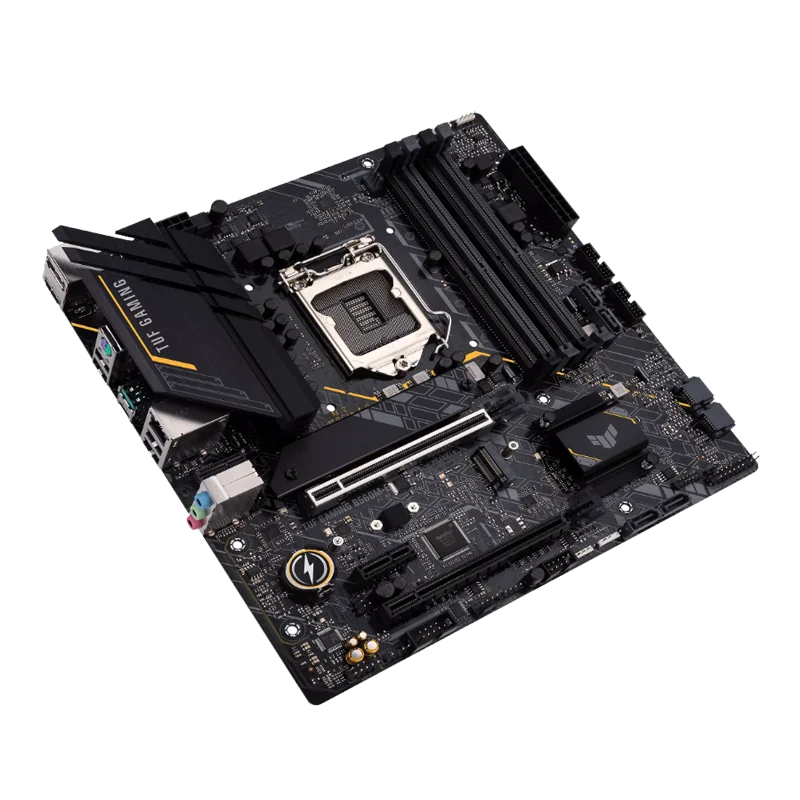

TUF GAMING B560M-E

Central Processing unit

Supports 11th generation Intel ® Core ™/ 10th generation Intel ® Core ™, Pentium ® and Celeron ® processors with Intel ® LGA1200 specification slots

Supports Intel ® 14nm processors

Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0

Please visit the ASUS official website w3.asus.com.cn to obtain the list of Intel processor support.

Support for Intel ® Turbo Boost Max 3.0 technology varies depending on the type of processor.

Chipset

Intel ® B560 high-speed chipset

Memory

4 x DIMM, Max. 128GB, DDR4 5000 (overclocking) / 4800 (overclocking) / 4600 (overclocking) / 4400 (overclocking) / 4266 (overclocking) / 4000 (overclocking) / 3733 (overclocking) / 3600 (overclocking) / 3466 (overclocking) / 3333 (overclocking) / 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory *

Support dual-channel memory architecture

Support Intel ® Extreme Memory Profile (XMP)

OptiMem II memory optimization technology

* the eleventh generation of Intel ® processor native support for 3200/2933/2800/2666/2400/2133

The 10th generation Intel ® Core ™ i7/i9 processors natively support 2933/2800/2666/2400/2133, and the others will operate at the maximum transfer rate of DDR4 2666MHz.

* See https://w3.asus.com.cn for memory QVL(Qualified Vendor Support List), memory frequency support depending on CPU type.

Graphics card

The specifications of graphics cards vary according to the type of processor.

11th generation / 10th generation Intel ® processors, supporting DisplayPort 1.4, with a maximum resolution of up to 4096 x 2304@60Hz. Please visit www.intel.com for updates.

*** Only the 11th Gen Intel ® Core ™ processors support HDMI™ 2.0 with a maximum resolution of 4K@60Hz, while the others only support HDMI™ 1.4 with a maximum resolution of 4K@30Hz. Please visit www.intel.com for updates.

Expansion slot

The 11th generation and 10th generation Intel ® processors

1 x PCIe 4.0/3.0 x16 slot

The 11th generation Intel ® processors support PCIe 4.0 x16

The 10th generation Intel ® processors support PCIe 3.0 x16

Intel ® B560 chip

1 x PCIe 3.0 x16 slot (supporting x4 mode)*

1 x PCIe 3.0 x1 slot

Enable RST PCle storage remapping for PCH connected PCle slots to enable Intel ® Optane memory

Storage device interface

Supports 2 x M.2 slots and 6 x SATA 6Gb/s interfaces

The 11th generation Intel ® processors

M.2_1 slot (Key M), storage devices of type 2242/2260/2280

Only the 11th generation Intel ® Core ™ processors support the PCle 4.0 x4 mode. If other processors are used, this slot will be closed.

Intel ® B560 chip

M.2_2 slot (Key M), storage devices of type 2242/2260/2280 (supporting PCIe 3.0 x4 & SATA mode)*

6 x SATA 6Gb/s interface

To enable Intel ® Optane ™ memory (hybrid Storage device), it must be installed in the PCH-attached slot in conjunction with Intel ® Rapid Storage technology.

The M.2_2 slot shares bandwidth with SATA_2. When the M.2_2 slot operates in SATA mode, SATA_2 will be turned off.

USB interface

2 x USB 3.2 Gen 2 interface (1 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 interface (4 x Type-A)

2 x USB 3.2 Gen 1 ports can be expanded with 4 USB 3.2 Gen 1 interfaces

1 x USB 2.0 port can be expanded with 2 USB 2.0 interfaces

1 x USB 2.0 port can be expanded with 1 USB 2.0 interface

Sound effect

Realtek ALC897 7.1 Surround Sound high-fidelity Audio Chip *

-Supports: Audio interface detection (JACK-detection), Multi-Streaming, front panel audio Jack switching function (JACK-retasking)

Supports playback up to 24-Bit/192kHz

Audio function

- Audio divider

High-quality Japanese audio capacitors

The left and right channels are designed in layers

It needs to be used in conjunction with the HD Audio module on the front panel of the chassis to support 7.1-channel surround sound frequency output.

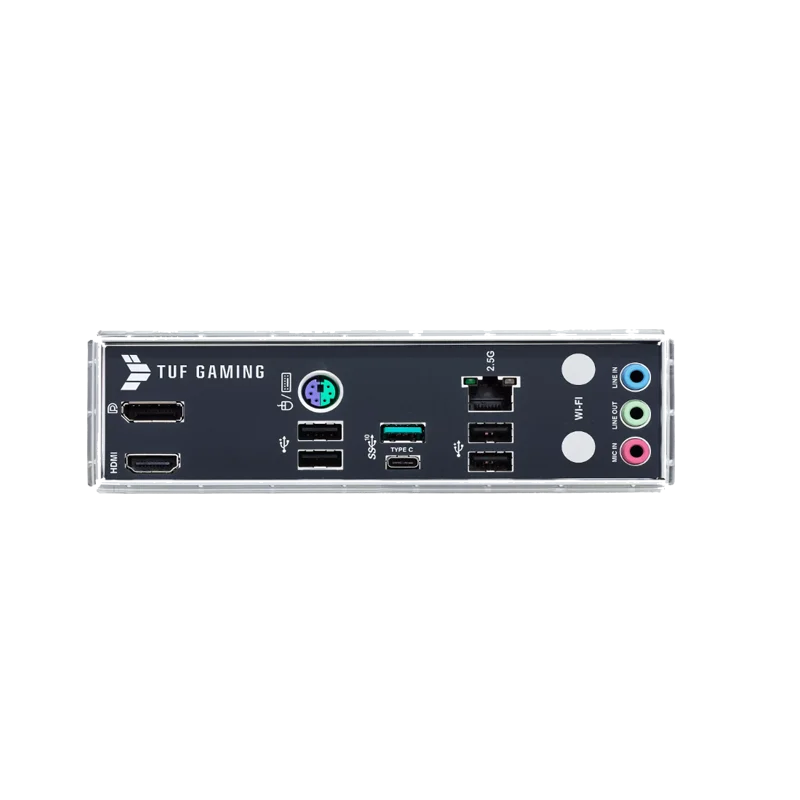

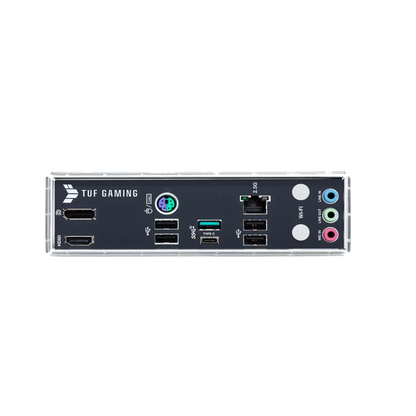

Rear side panel I/O device interface

2 x USB 3.2 Gen 2 interface (1 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 interface (4 x Type-A)

1 x DisplayPort

1 x HDMI™ interface

1 x Realtek 2.5Gb network interface

1 x V-M.2 slot (Key E)

3 x audio interface

1 x PS/2 keyboard/mouse dual-purpose interface

Built-in I/O device interface

Fans and heat dissipation related

1 x 4-pin CPU fan pin connection

1 x 4-pin CPU OPT fan pin connection

2 x 4-pin chassis fan pin connection

Storage-related

1 x 24-pin main power socket

1 x 8-pin +12V power socket

Storage related

2 x M.2 slot (Key M)

6 x SATA 6Gb/s interface

USB

The 2 x USB 3.2 Gen1 port can be expanded with 4 USB 3.2 Gen1 interfaces

1 x USB 2.0 port can be expanded with 2 USB 2.0 interfaces

1 x USB 2.0 port can be expanded with 1 USB 2.0 interface

Other classes

2 x AURA second-generation programmable pins

2 x AURA RGB pins

1 x Clear the CMOS pins

1 x COM port pin connection

1 x Front Panel Audio Pin Connector (AAFP)

1 x S/PDIF Out pin connection

The 1 x 20-3 pin system panel pin connection supports the case opening warning function

Special function

Asus TUF protection

- DIGI+ VRM

Enhanced DRAM overcurrent protection

ESD protection

- TUF LANGuard

Overvoltage protection

- SafeSlot Core+

Stainless steel moisture-proof I/O interface

Asus Q-Design

- M.2 Q-Latch

- Q-DIMM

-Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])

- Q-Slot

Asus cooling solutions

Humanized M.2 heat sink

- VRM heat sink design

AURA Sync

- AURA RGB connector

- Second-generation programmable ARGB pins

Software function

Asus exclusive software

Armoury Crate

- AURA Creator

- AURA Sync

Bidirectional AI noise reduction

AI Suite 3

Performance and energy-saving application software

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

System information

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

Customized sound effects for DTS games

DAEMON Tools

Norton Antivirus Software (Trial Version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS UEFI BIOS EZ mode

BIOS function

128 Mb Flash ROM, UEFI AMI BIOS
