SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,WiFi,6 x USB 2.0,HDMI 2.0,Displayport

Battery Included: no

Brand Name: Asus

Chipset: Intel Z790

Chipset Manufacturer: Intel

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 128 GB

Number of PCI: 2

Onboard LAN: 1x RJ45,WIFI (AC)

Origin: Mainland China

PCI - E standards: PCI-E 5.0

Package: No

Processor compatibility: 12th Intel Core i5,12th Intel Core i7,12th Intel Core i3,12th Intel Core i9,13th Intel Core i7,13th Intel Core i3,13th Intel Core i9,13th Intel Core i5

RAID Supported: no

Socket Type: LGA 1700

Special Features: Cooling Armor,NONE

Storage Interface Type: M.2 (NVMe),SATA 3

Support Memory Type: DDR5

Usage Scenario: Gaming,Office,Audio & Video

With CPU: No

Motherboard Chipset

Integrated Chips: Sound Card / Network Card

Main Chipset: Intel Z790

Chipset Description: Using Intel Z790 chipset

Audio Chip: Built-in Realtek S1220A audio chip

Network Chip: Onboard 2.5GbE network card

Processor Specs

CPU Type: 14th / 13th / 12th Gen Core

CPU Socket: LGA 1700

Memory Specs

Memory Type: 4×DDR5 DIMM

Maximum Memory: 128GB

Memory Description: Supports dual-channel DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz RAM

Storage Expansion

PCI-E Standard: PCI-E 5.0, PCI-E 4.0, PCI-E 3.0

PCI-E X16 Slots: 2

PCI-E X4 Slots: 1

PCI-E X1 Slots: 2

Storage Interfaces: 4×M.2 interfaces, 4×SATA III interfaces

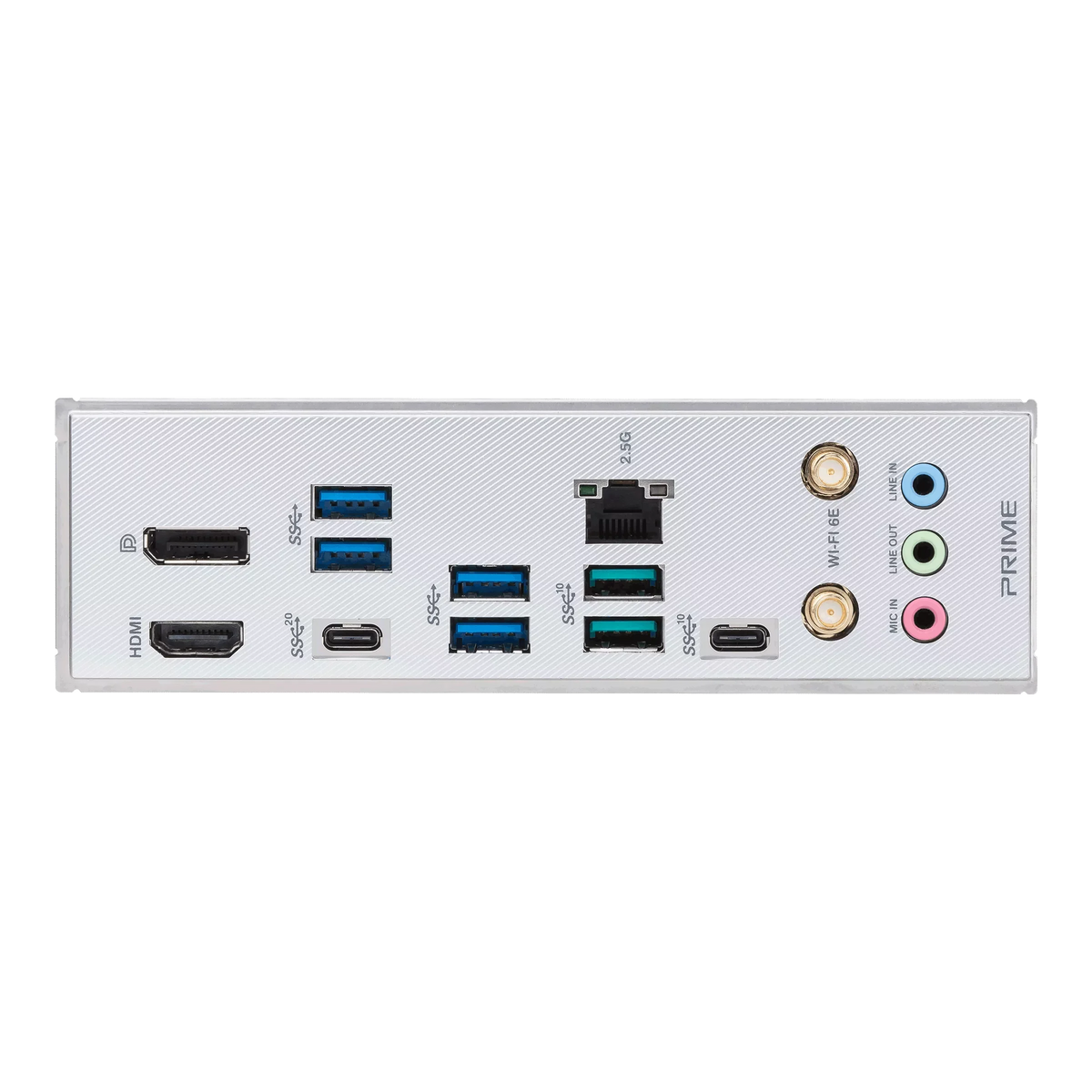

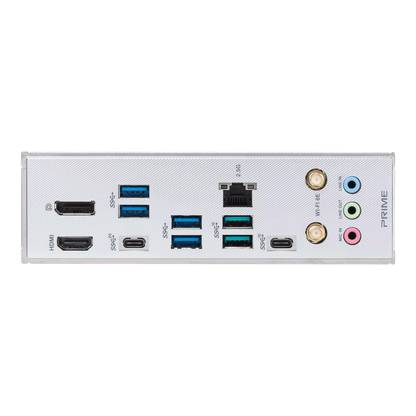

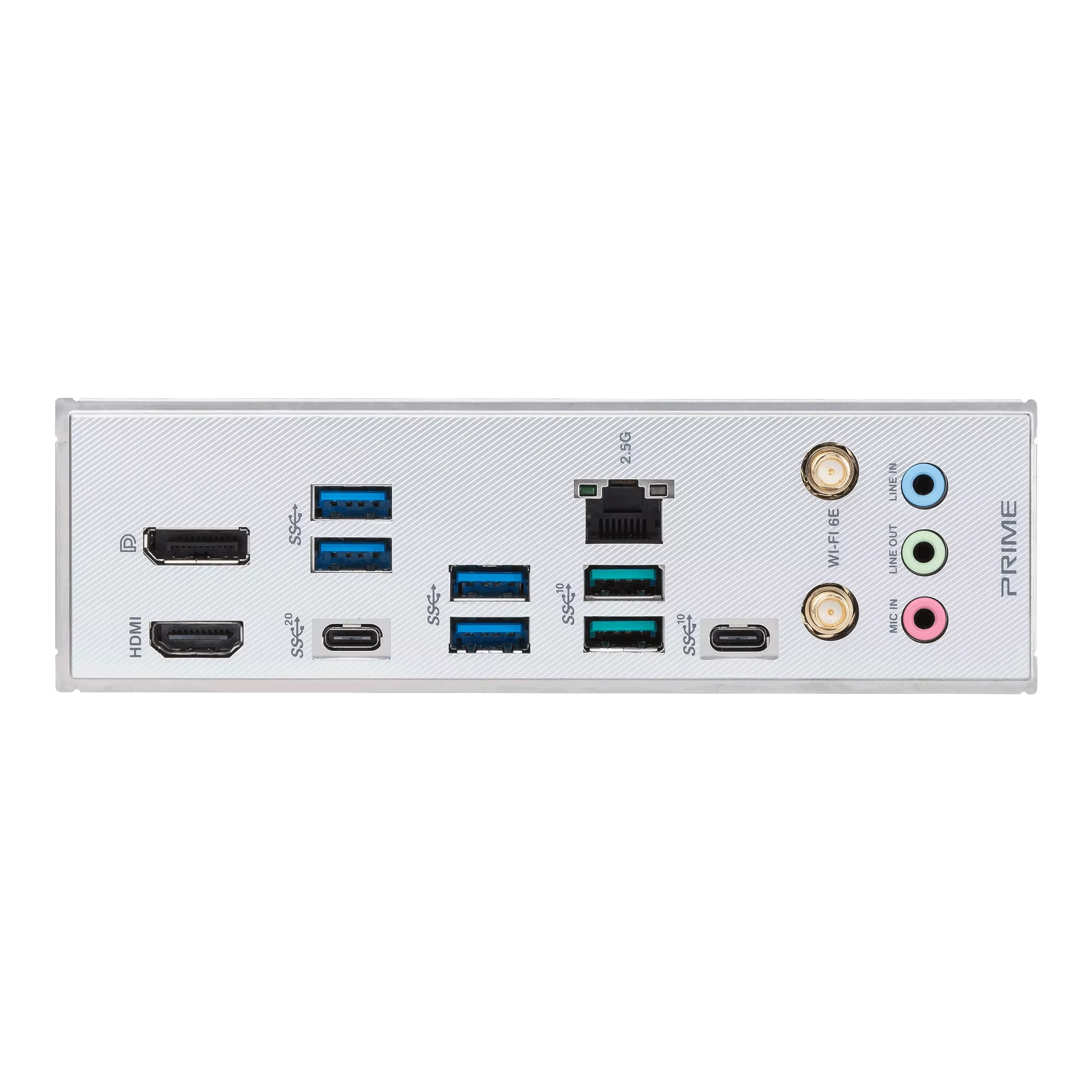

I/O Interfaces

USB (Back Panel): 1×USB3.2 Gen2x2 Type-C

3×USB3.2 Gen2

4×USB3.2 Gen1

USB (Internal): 1×USB3.2 Gen2 Type-C

1×USB3.2 Gen1

2×USB2.0

Video Ports: 1×HDMI, 1×DisplayPort

Power Ports: 1×8-pin, 1×24-pin

Other Ports: 1×RJ45 network port, 1×WiFi port, 3×audio ports

Form Factor

Motherboard Form Factor: ATX

Dimensions: 30.5×24.4cm
