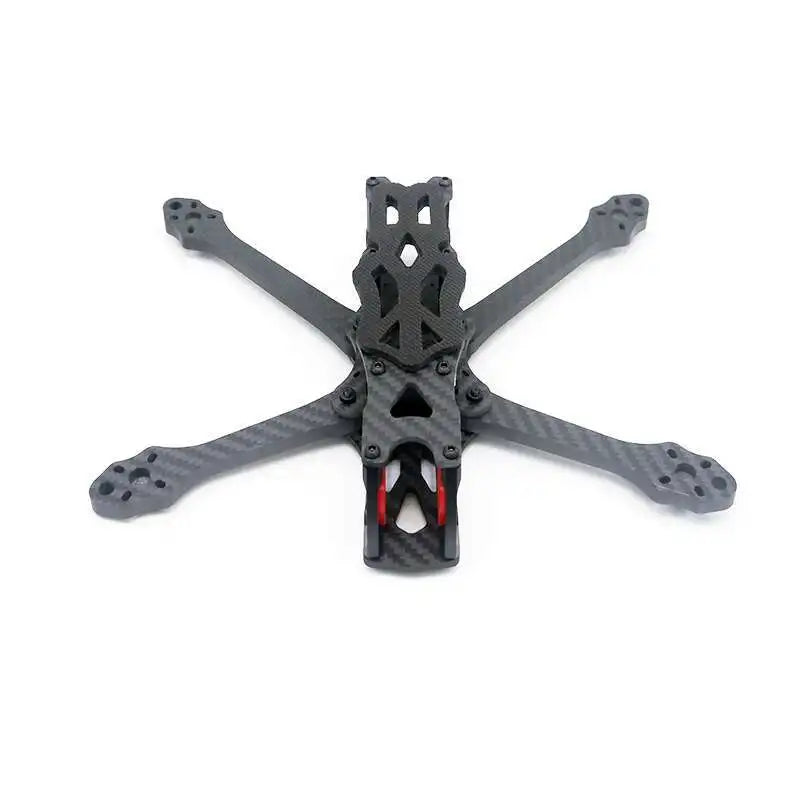

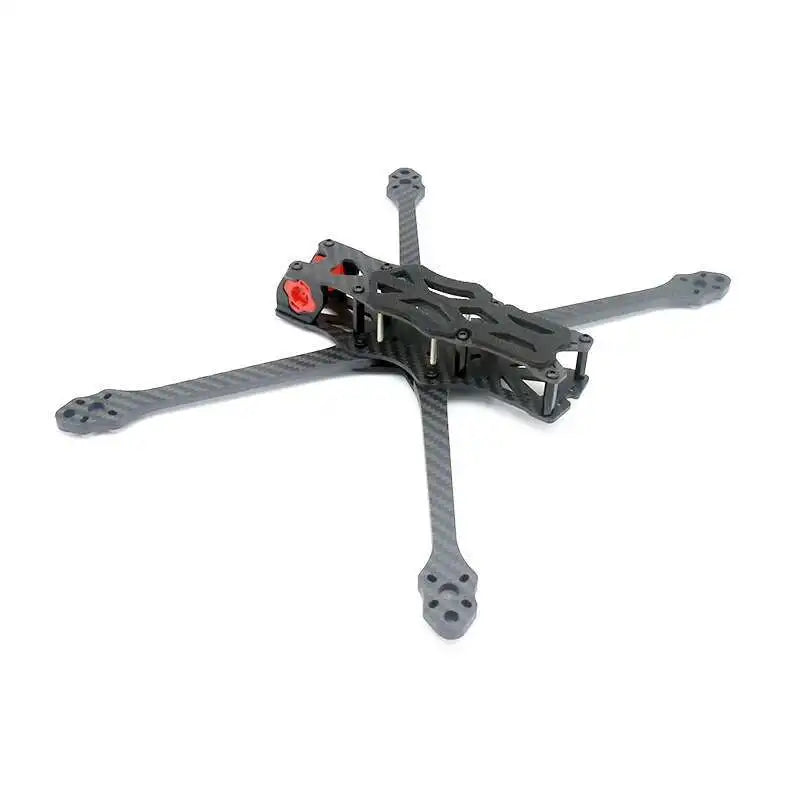

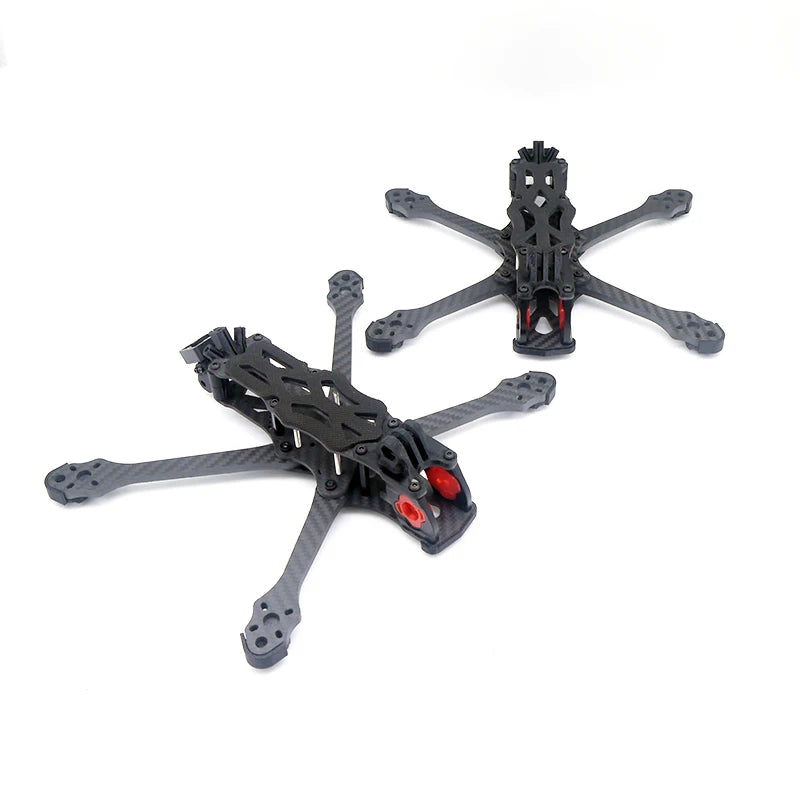

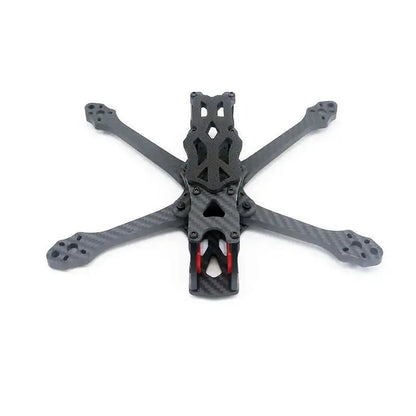

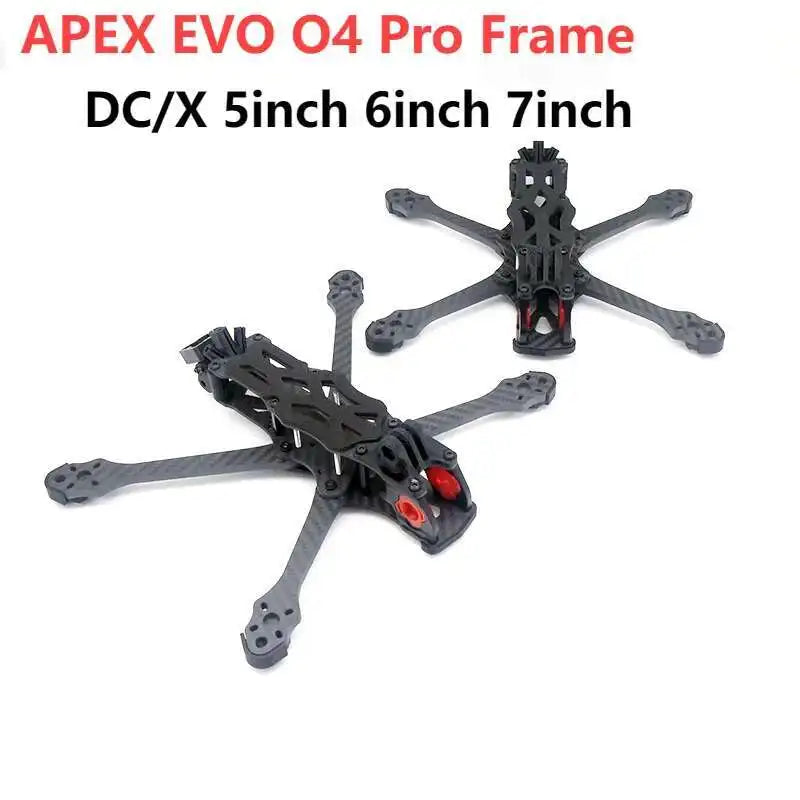

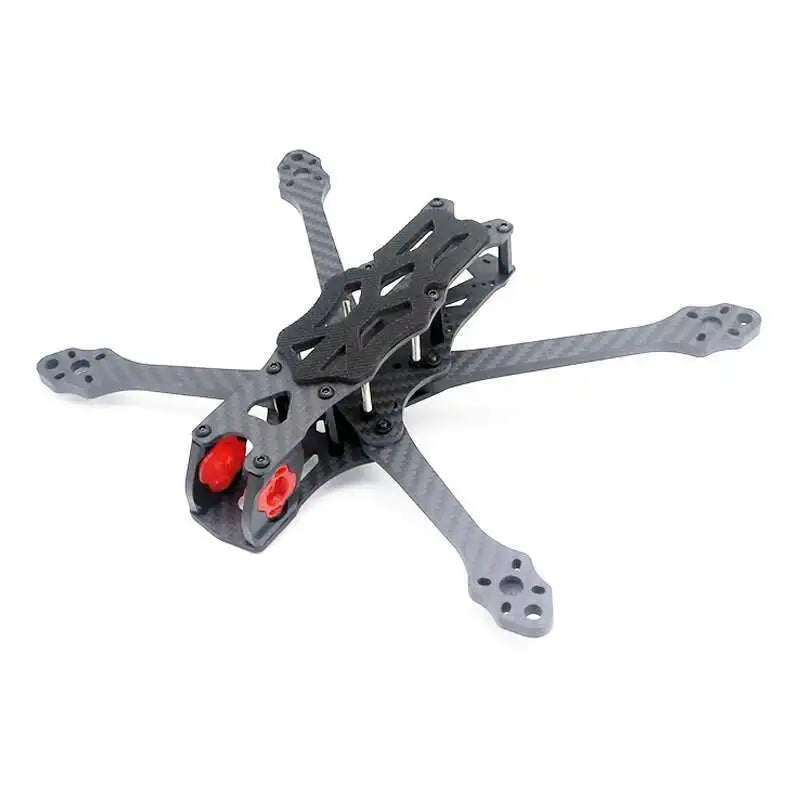

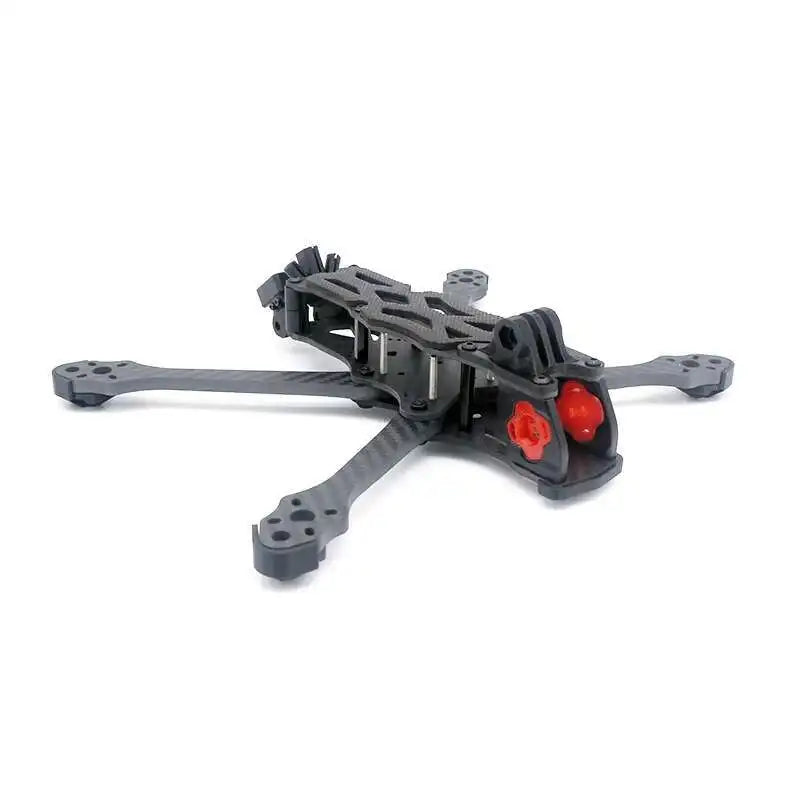

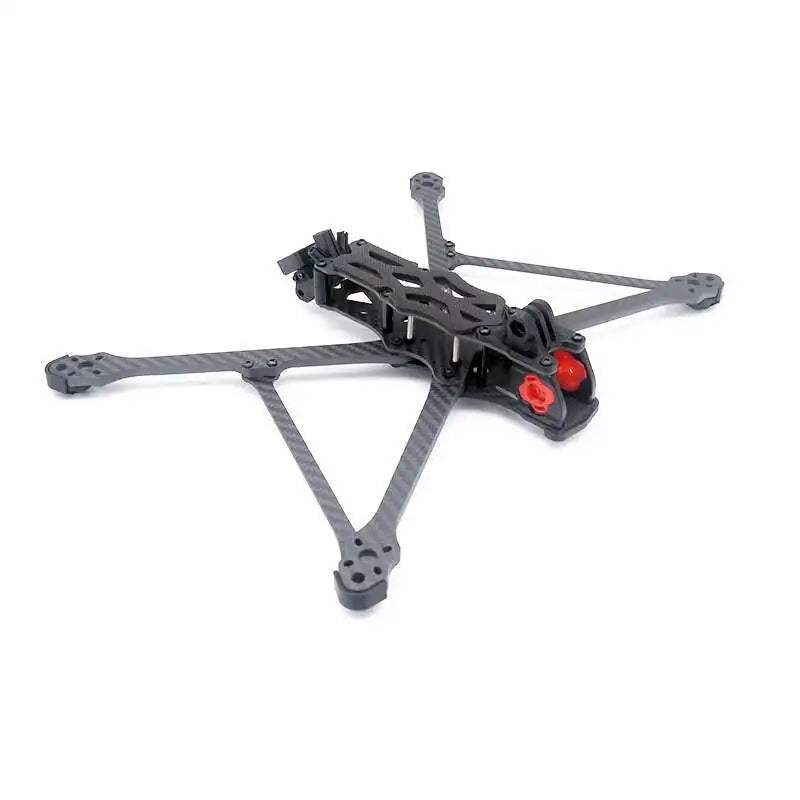

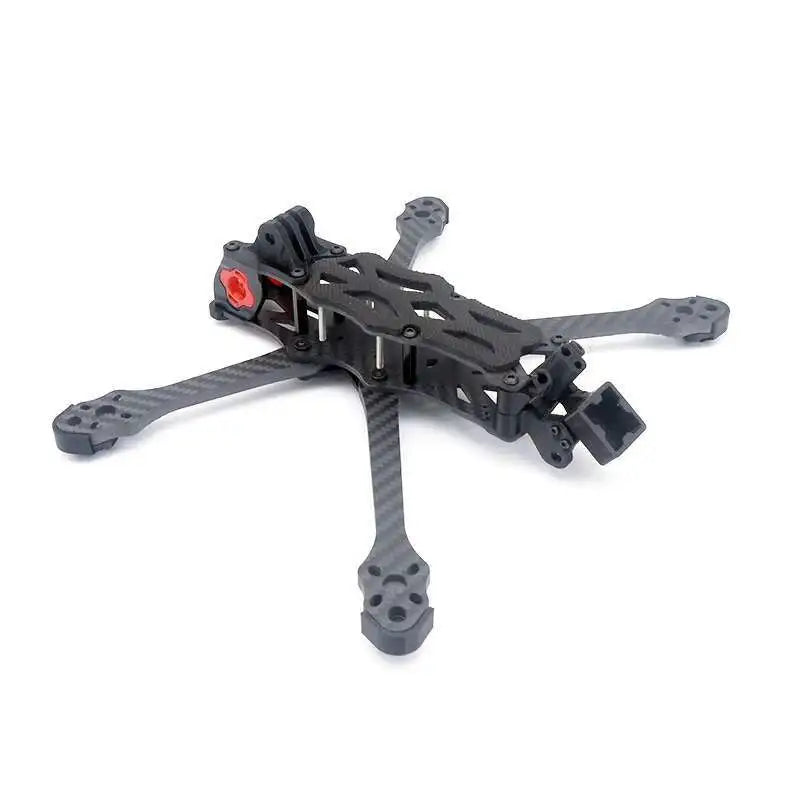

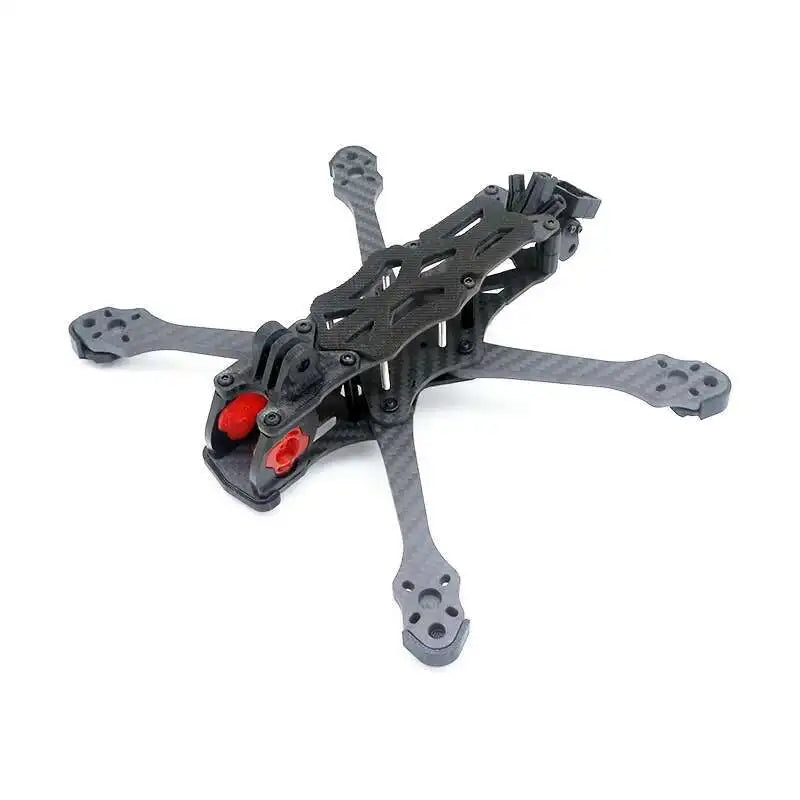

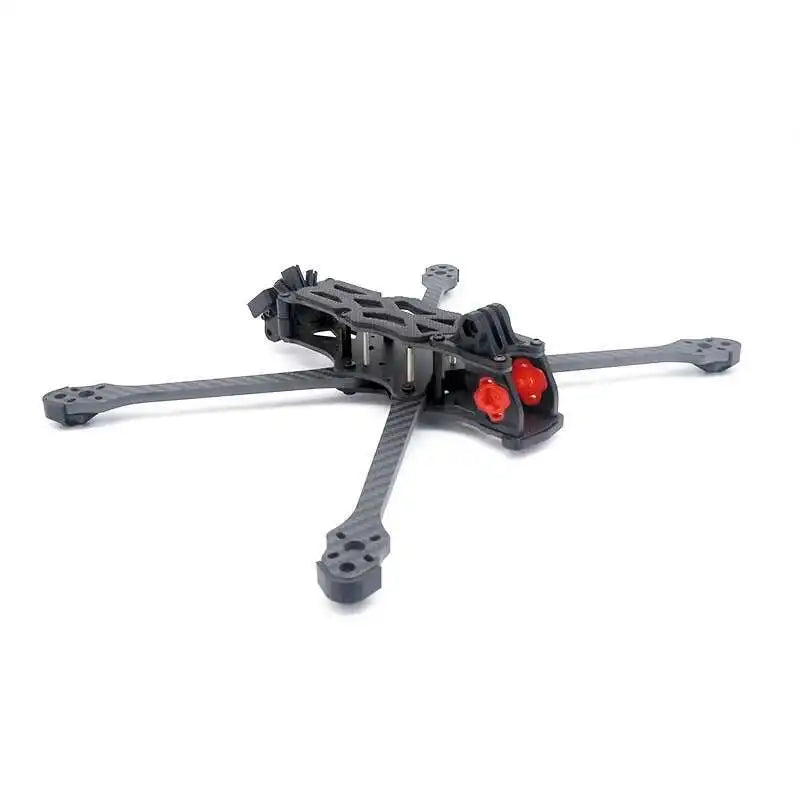

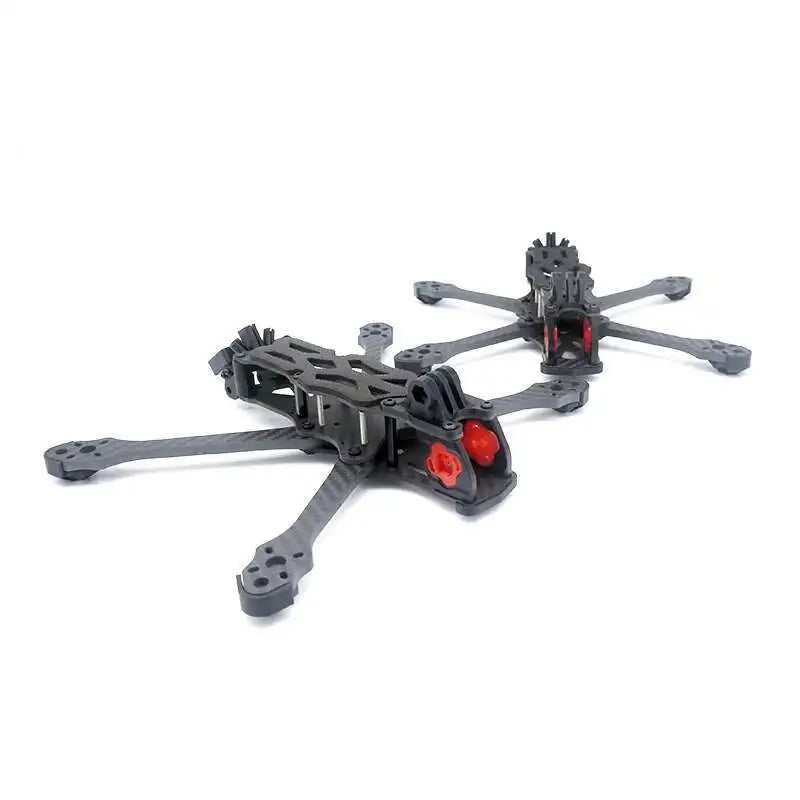

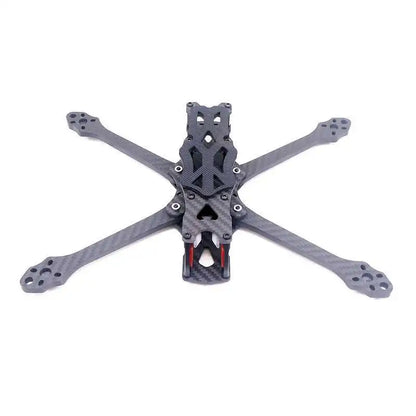

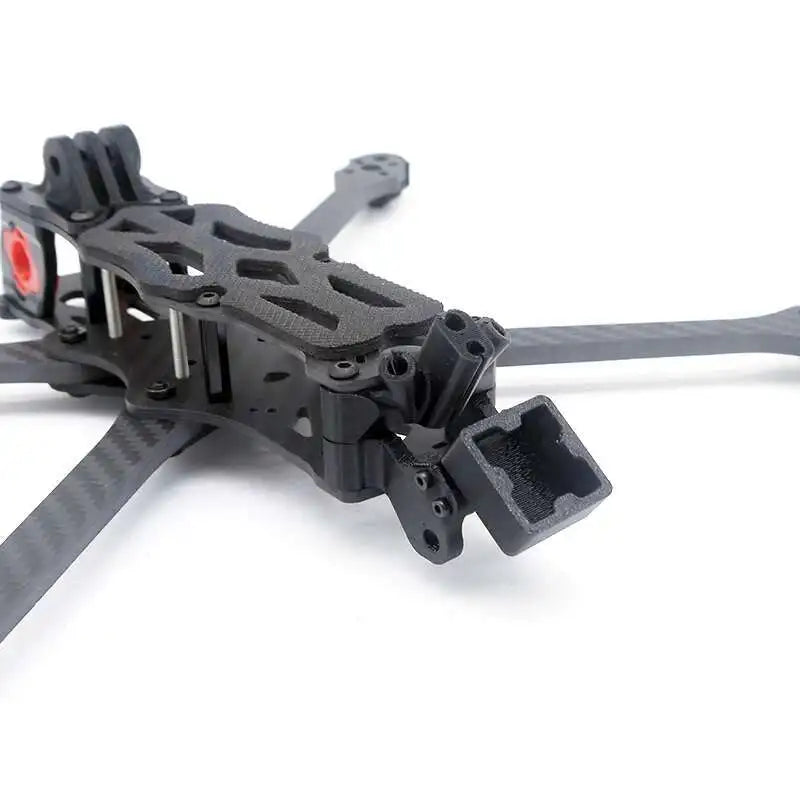

APEX EVO Frame DC/X 5inch 6inch 7inch Frame For DJI O4 Pro RC Racing Drone Quadcopter CADDX Vista Polar Nebula Pro RunCam Link

845,54 SEK

~~1 268,31 SEK~~ 845,54 SEK

Rea Slutsåld

Skatter ingår.

Color APEX EVO X 7 APEX EVO DC 5 APEX EVO DC 7 APEX EVO X 6 APEX EVO X 5 APEX EVO 3D TPU APEX EVO Lens Parts

SPECIFICATIONS

Brand Name: KINGMODEL

Certification: NONE

For Vehicle Type: TANK

Four-wheel Drive Attributes: tires

High-concerned chemical: none

Material: Vinyl

Model Number: APEX DC/X Frame

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: AXLE

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Size: 5inch 6inch 7inch

Technical parameters: Value 7

Tool Supplies: Painted

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

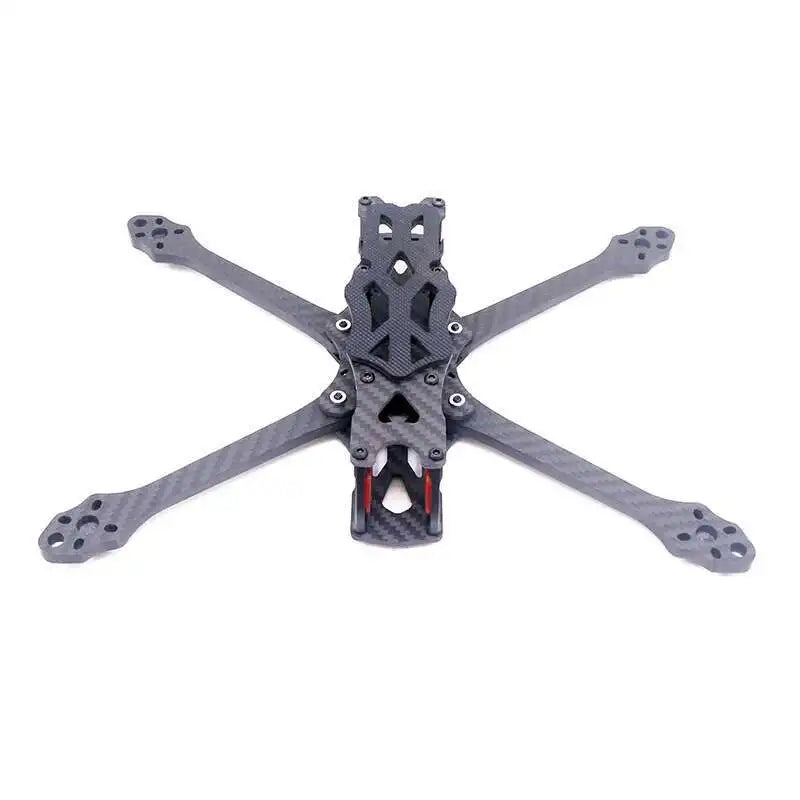

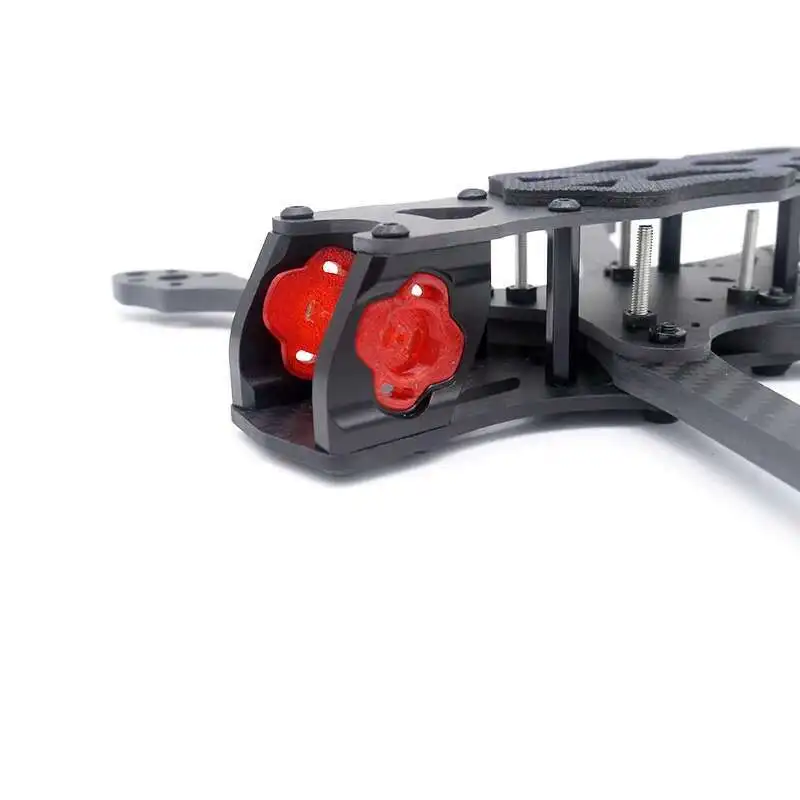

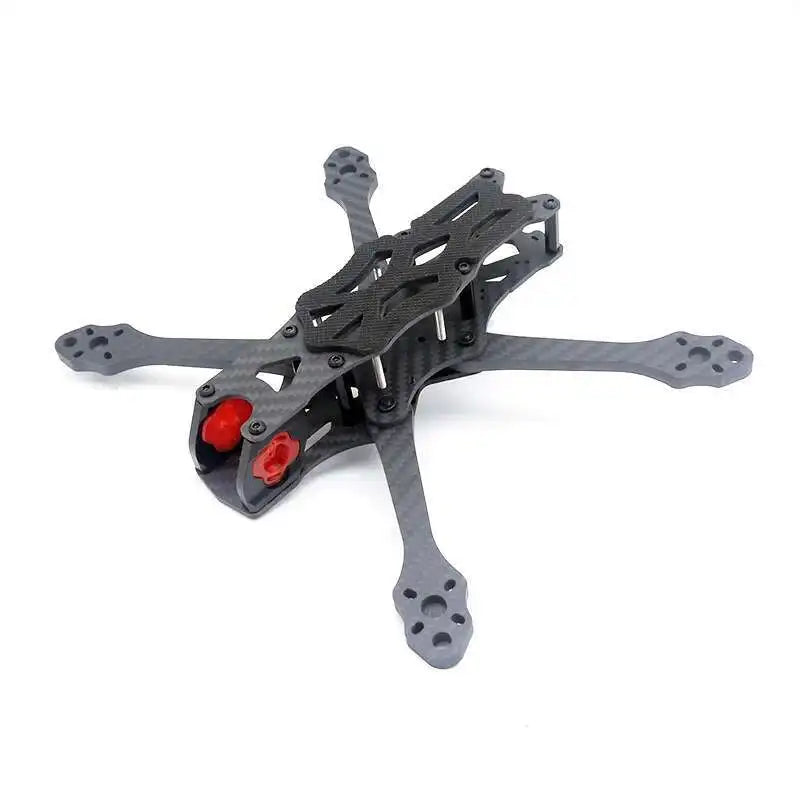

APEX EVO DC 5/DC 5 MAX Frame(Supports O4 Pro)

Wheelbase:245mm(5inch).

Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height：20-28mm.

FC Hole distance: (front: 30.5X30.5 / 20X20MM) / (Rear VTX: 30.5X30.5 / 25.5x25.5 / 20X20MM).

Motor Hole distance :16*16/19*19MM.

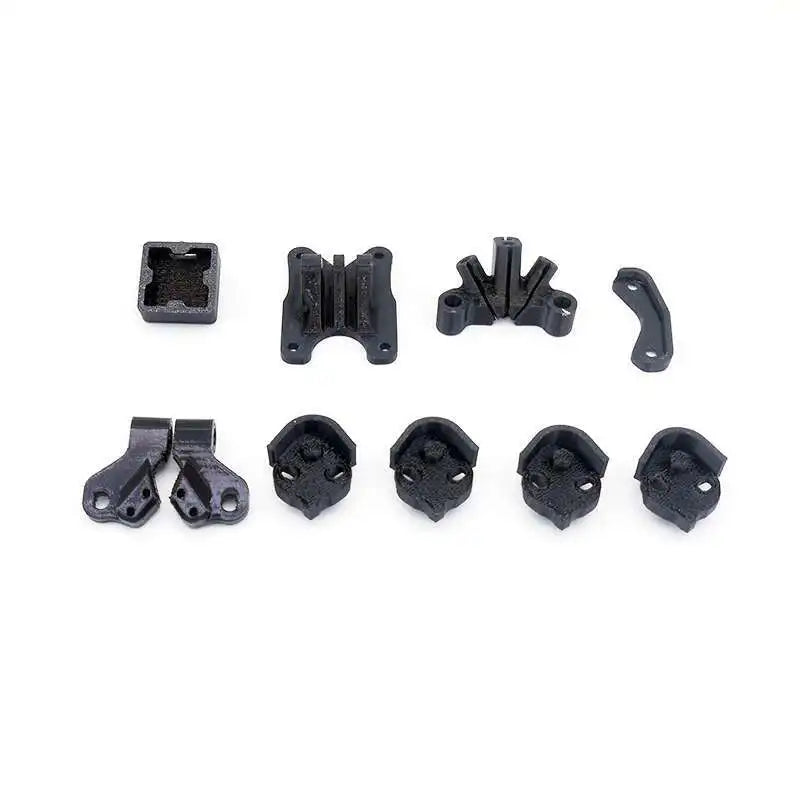

Weight: 151g/Including 3D printed parts（MAX） 174g

Material: 3K Carbon Fiber（T700）.

Compatible VTX：DJI O4 Air Unit Pro/DJI O3 Air Unit/Caddx Vista/Analog VTX

Compatible GPS：BZ181

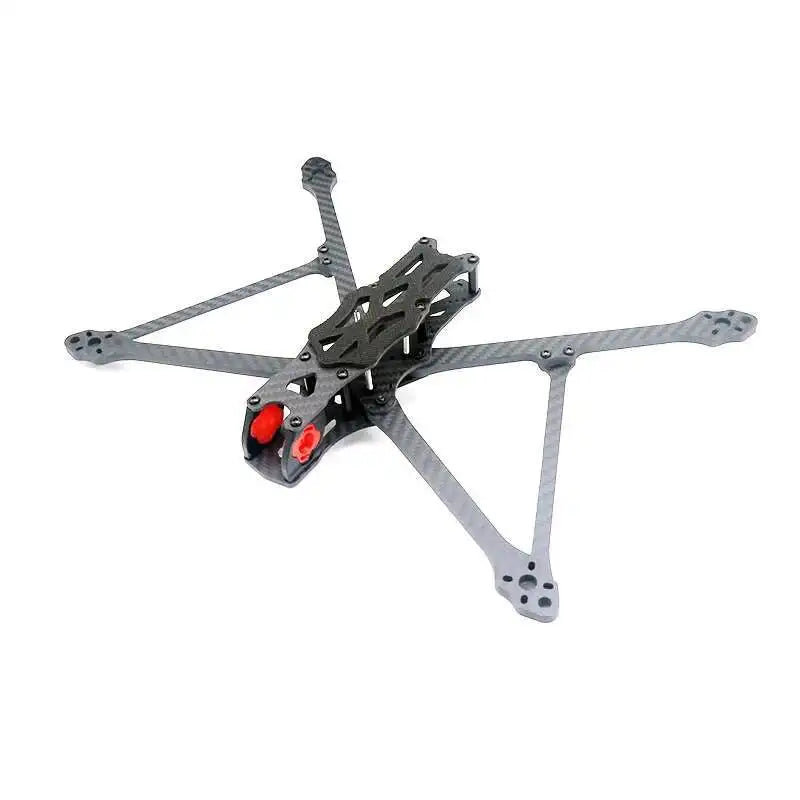

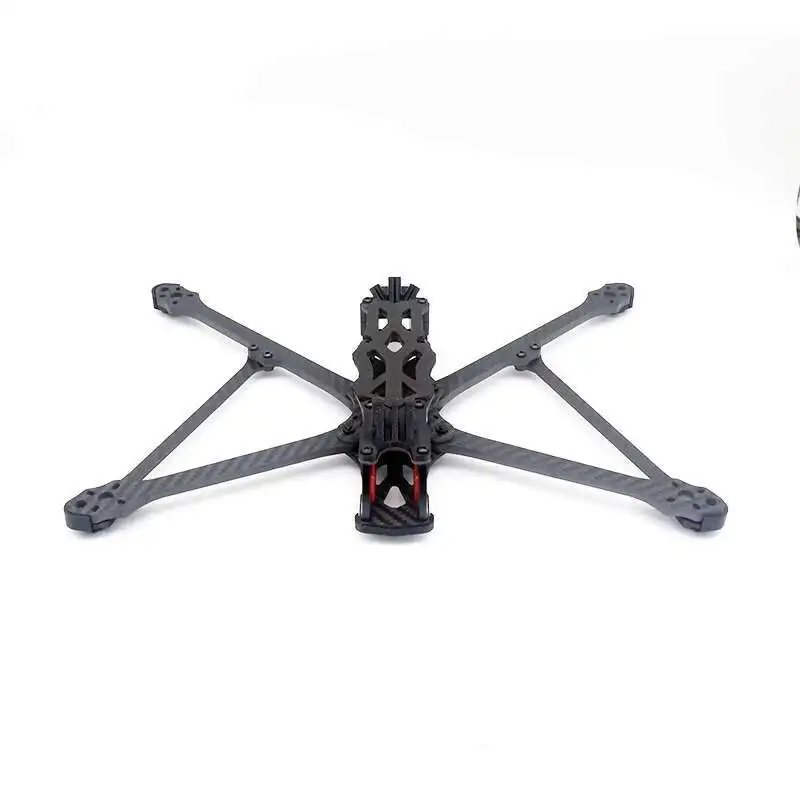

APEX EVO DC 7/DC 7 MAX Frame(Supports O4 Pro)

Wheelbase:340mm(7inch).

Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height：20-28mm.

FC Hole distance: (front: 30.5X30.5 / 20X20MM) / (Rear VTX: 30.5X30.5 / 25.5x25.5 / 20X20MM).

Motor Hole distance :16*16/19*19MM.

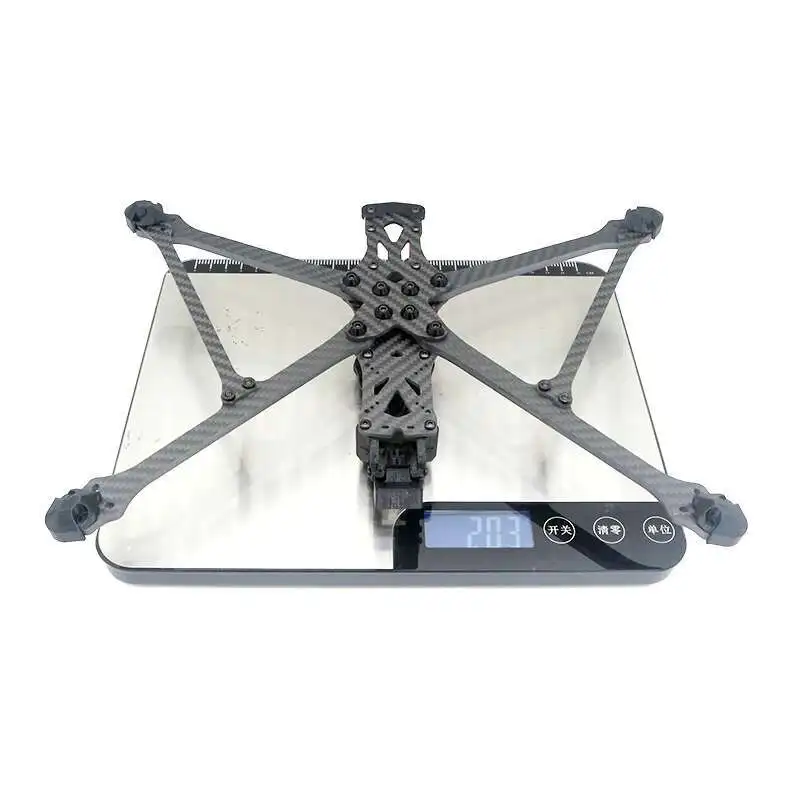

Weight: 179g/Including 3D printed parts（MAX） 203g

Material: 3K Carbon Fiber（T700）.

Compatible VTX：DJI O4 Air Unit Pro/DJI O3 Air Unit/Caddx Vista/Analog VTX

Compatible GPS：BZ181

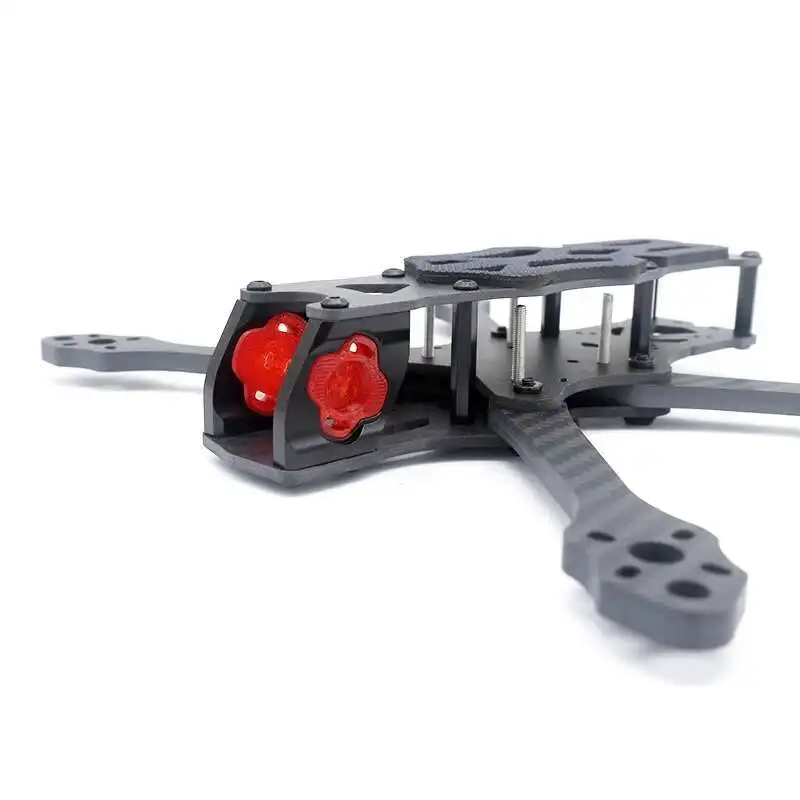

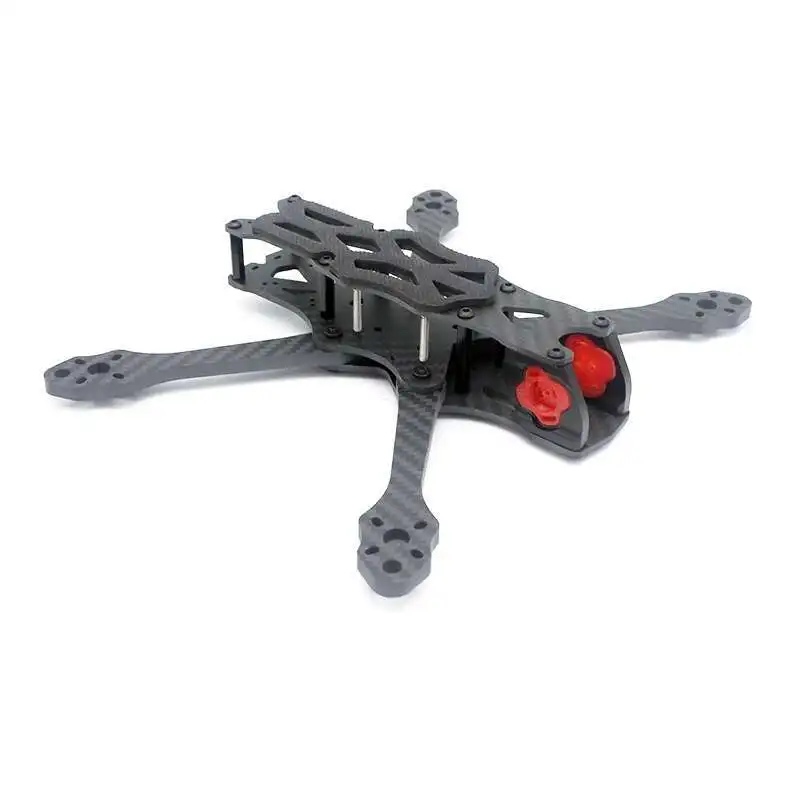

APEX EVO X 5/X 5 MAX Frame(Supports O4 Pro)

Wheelbase:225mm(5inch).

Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height：20-28mm.

FC Hole distance: (front: 30.5X30.5 / 20X20MM) / (Rear VTX: 30.5X30.5 / 25.5x25.5 / 20X20MM).

Motor Hole distance :16*16/19*19MM.

Weight: 152g/Including 3D printed parts（MAX） 175g

Material: 3K Carbon Fiber（T700）.

Compatible VTX：DJI O4 Air Unit Pro/DJI O3 Air Unit/Caddx Vista/Analog VTX

Compatible GPS：BZ181

APEX EVO X 6/X 6 MAX Frame(Supports O4 Pro)

Wheelbase:275mm(6inch).

Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height：20-28mm.

FC Hole distance: (front: 30.5X30.5 / 20X20MM) / (Rear VTX: 30.5X30.5 / 25.5x25.5 / 20X20MM).

Motor Hole distance :16*16/19*19MM.

Weight: 159g/Including 3D printed parts（MAX） 182g

Material: 3K Carbon Fiber（T700）.

Compatible VTX：DJI O4 Air Unit Pro/DJI O3 Air Unit/Caddx Vista/Analog VTX

Compatible GPS：BZ181

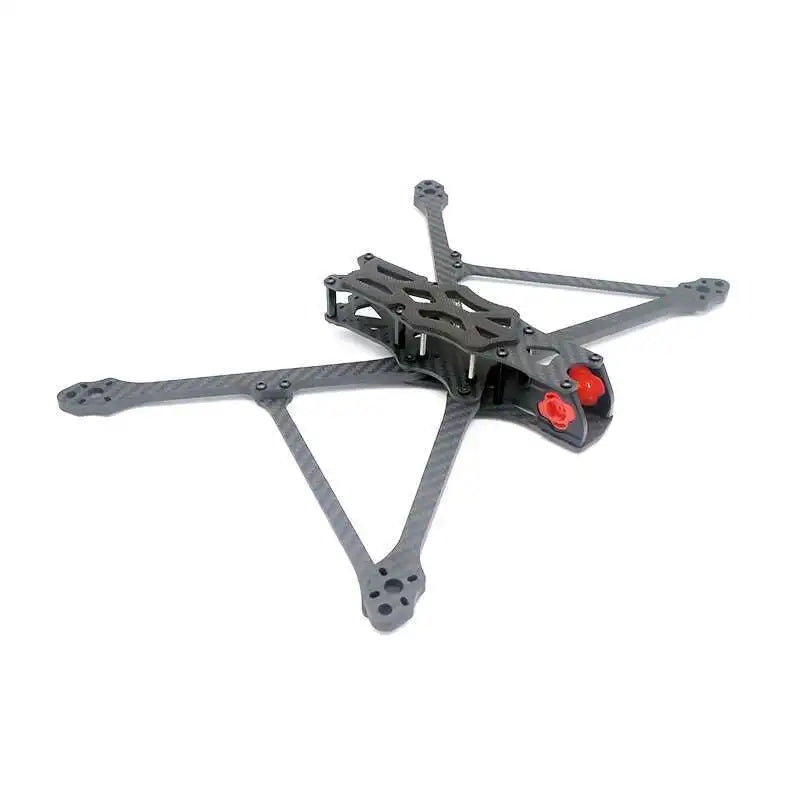

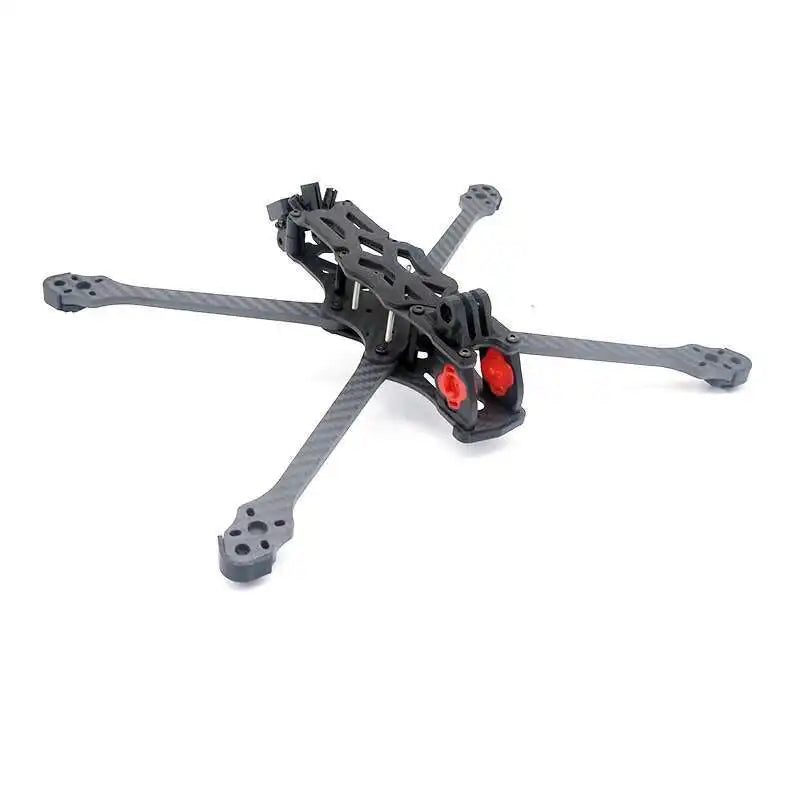

APEX EVO X 7/X 7 MAX Frame(Supports O4 Pro)

Wheelbase:315mm(7inch).

Arm Plate Thickness: 5.5MM. Bottom Plate Thickness: 2.5mm. Upper Plate Thickness: 2.5mm. Side plate thickness: 2mm. Aluminum column height：20-28mm.

FC Hole distance: (front: 30.5X30.5 / 20X20MM) / (Rear VTX: 30.5X30.5 / 25.5x25.5 / 20X20MM).

Motor Hole distance :16*16/19*19MM.

Weight: 166g/Including 3D printed parts（MAX） 189g

Material: 3K Carbon Fiber（T700）.

Compatible VTX：DJI O4 Air Unit Pro/DJI O3 Air Unit/Caddx Vista/Analog VTX

Compatible GPS：BZ181

APEX EVO DC 5inch Frame For DJI O4 Pro
