General Specifications

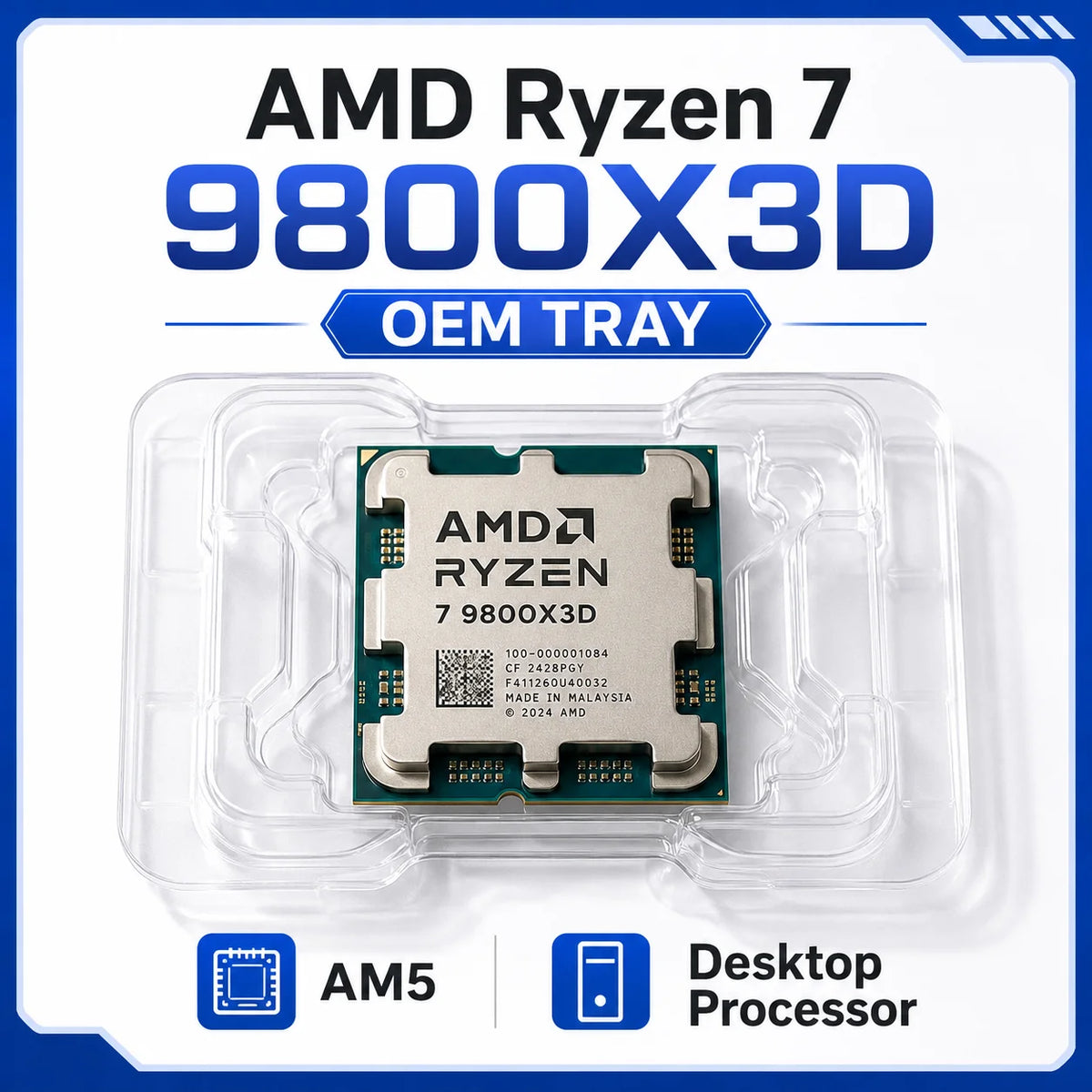

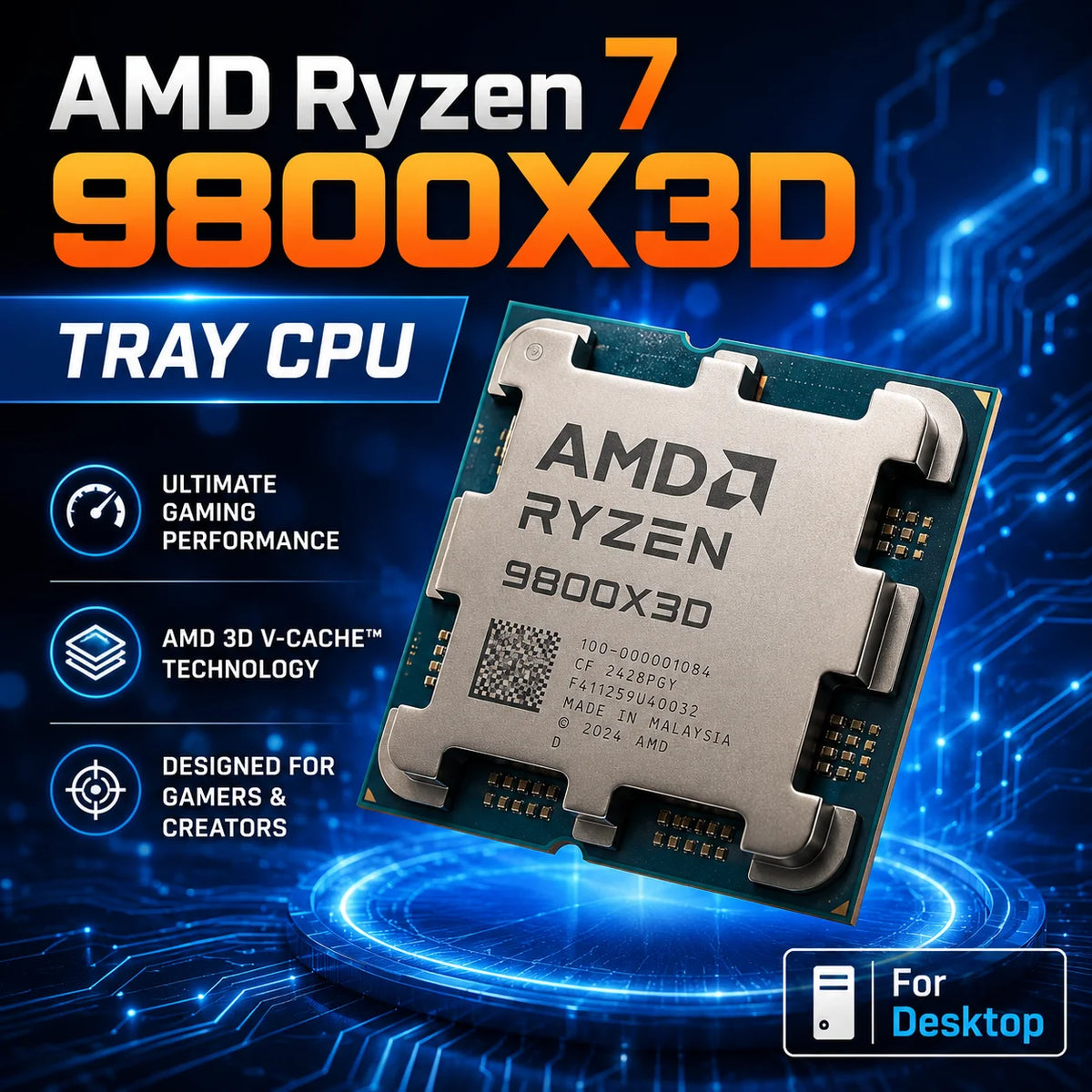

Name: AMD Ryzen™ 7 9800X3D
Family: Ryzen
Series: Ryzen 9000 Series
Former Codename: Granite Ridge AM5
Architecture: Zen 5
Market Segment: Enthusiast Desktop
Form Factor: Desktops, Boxed Processor
Consumer Use: Yes
Regional Availability: Global
Launch Date: 11/07/2024

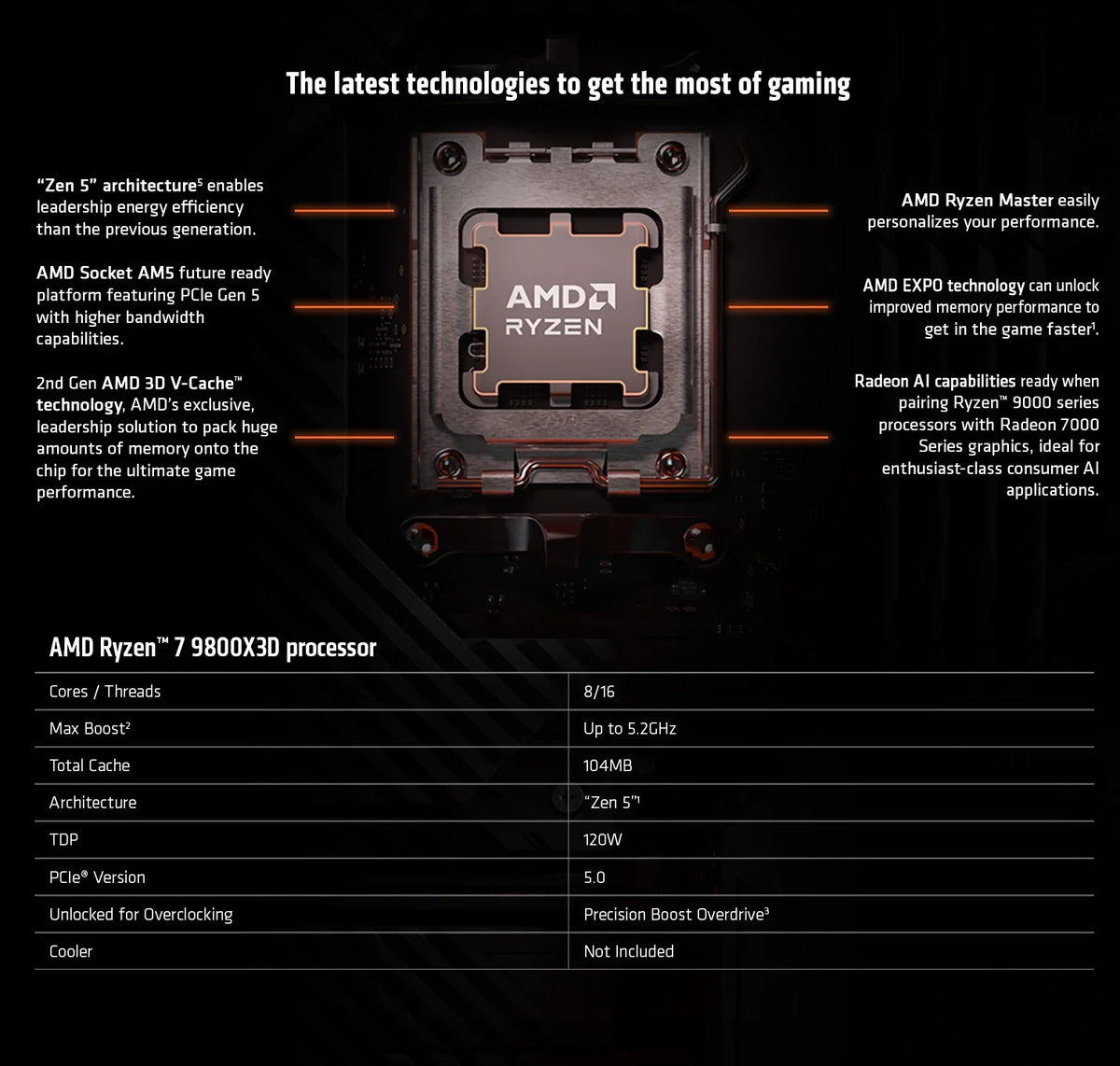

CPU Specifications

Number of CPU Cores: 8
Number of Threads: 16
Max. Boost Clock: Up to 5.2 GHz
Base Clock: 4.7 GHz
L1 Cache: 640 KB
L2 Cache: 8 MB
L3 Cache: 96 MB
Default TDP: 120W
Unlocked for Overclocking: Yes
Processor Technology (CPU Cores): TSMC 4nm FinFET
Processor Technology (I/O Die): TSMC 6nm FinFET
Package Die Count: 2
Precision Boost 2: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Curve Optimizer Voltage Offsets: Yes
Precision Boost Overdrive: Yes
AMD Ryzen™ Master Support: Yes

CPU Socket and Chipset Compatibility

CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

Memory Specifications

System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed:
2x1R: DDR5-5600
2x2R: DDR5-5600
4x1R: DDR5-3600
4x2R: DDR5-3600
ECC Support: Yes (Requires motherboard support)

Graphics Specifications

Graphics Model: AMD Radeon™ Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28, 24
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10

Thermal and Cooling

Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C

Operating System Support

Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit

Key Features

Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies

The Gaming Legend Continues - Introducing The Next-Generation AMD Ryzen 7 9800X3D Processor

With the AMD Ryzen 7 9800X3D processor, AMD has re-engineered its cutting-edge on-chip memory solution with 2nd Gen AMD 3D V-Cache technology. The 64MB cache memory has been relocated below the processor, which puts the core complex die (CCD) closer to the cooling solution to help keep the “Zen 5” cores cooler, delivering high clock rates and providing up to an average 8% gaming performance improvement compared to our last-gen generation and up to an average 20% faster than the competition. This revolutionary change in placement allows for extreme overclocking of the processor3. It's the first X3D processor to be fully unlocked, empowering enthusiasts and gamers to push its performance to new limits.

The Ryzen 7 9800X3D is the ultimate solution for the PC gaming market, with eight high-performance “Zen 5” processor cores and 16 processing threads ready to make quick work of gaming and productivity tasks. 4.7 GHz base clock speed is combined with a 5.2 GHz max boost clock6, and these represent the highest clock speeds ever on an X3D chiplet. A hearty 120W TDP and its huge 104MB of total cache provides the processor with the power it needs to perform.
