SPECIFICATIONS

Brand Name: konsenda

Certification: CE,RoHS

High-concerned chemical: none

Model Number: 2x3P3

Origin: Mainland China

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Product Introduction:

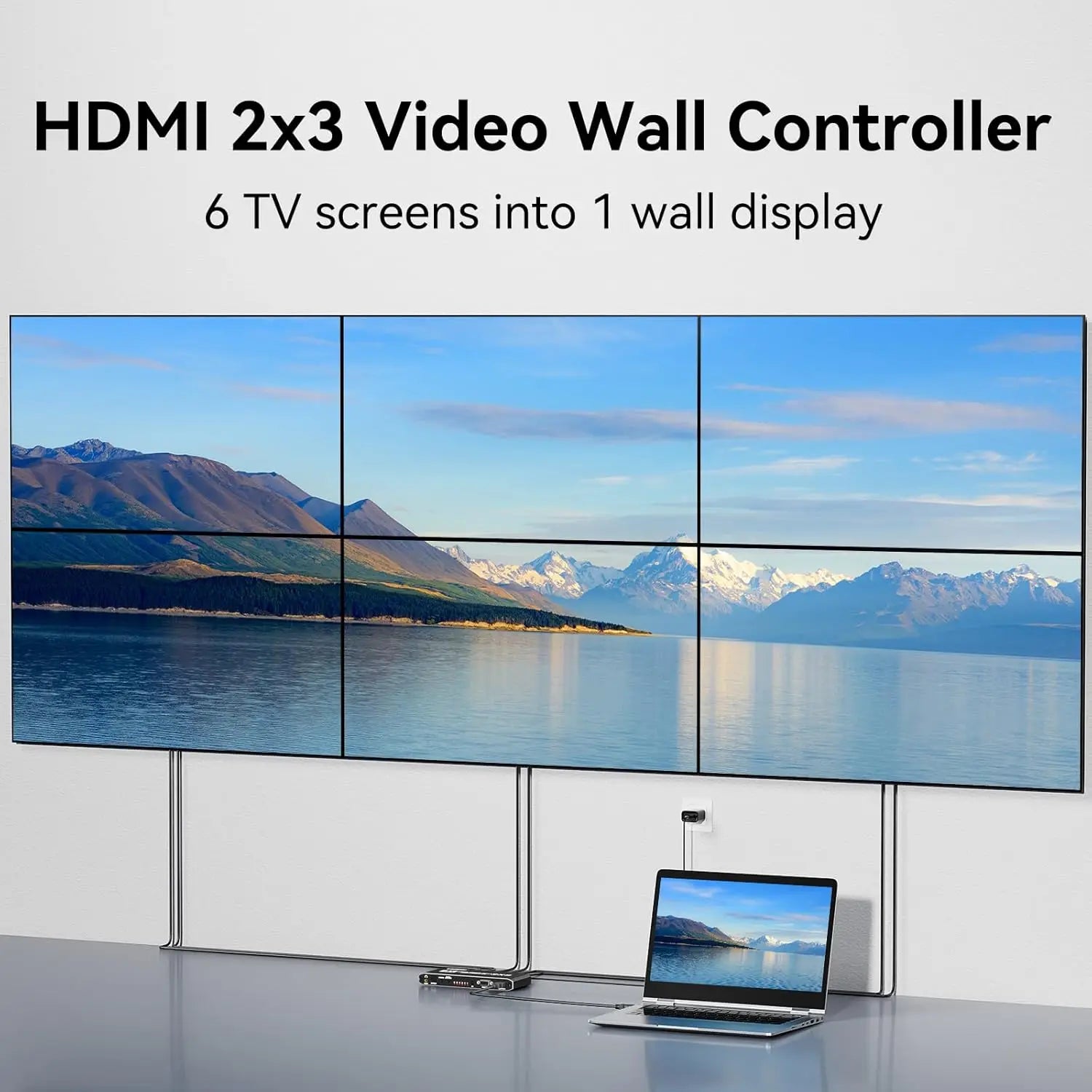

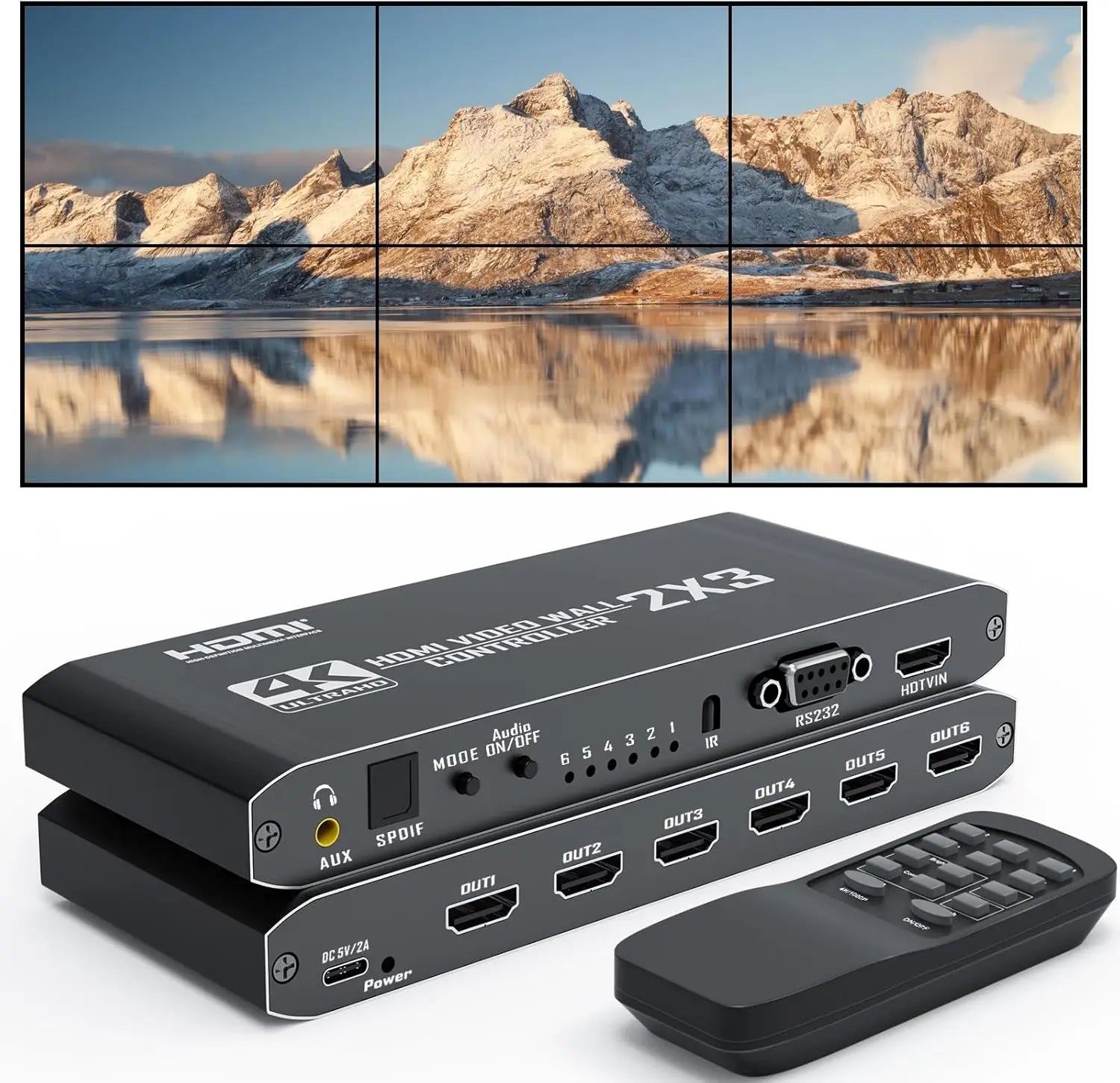

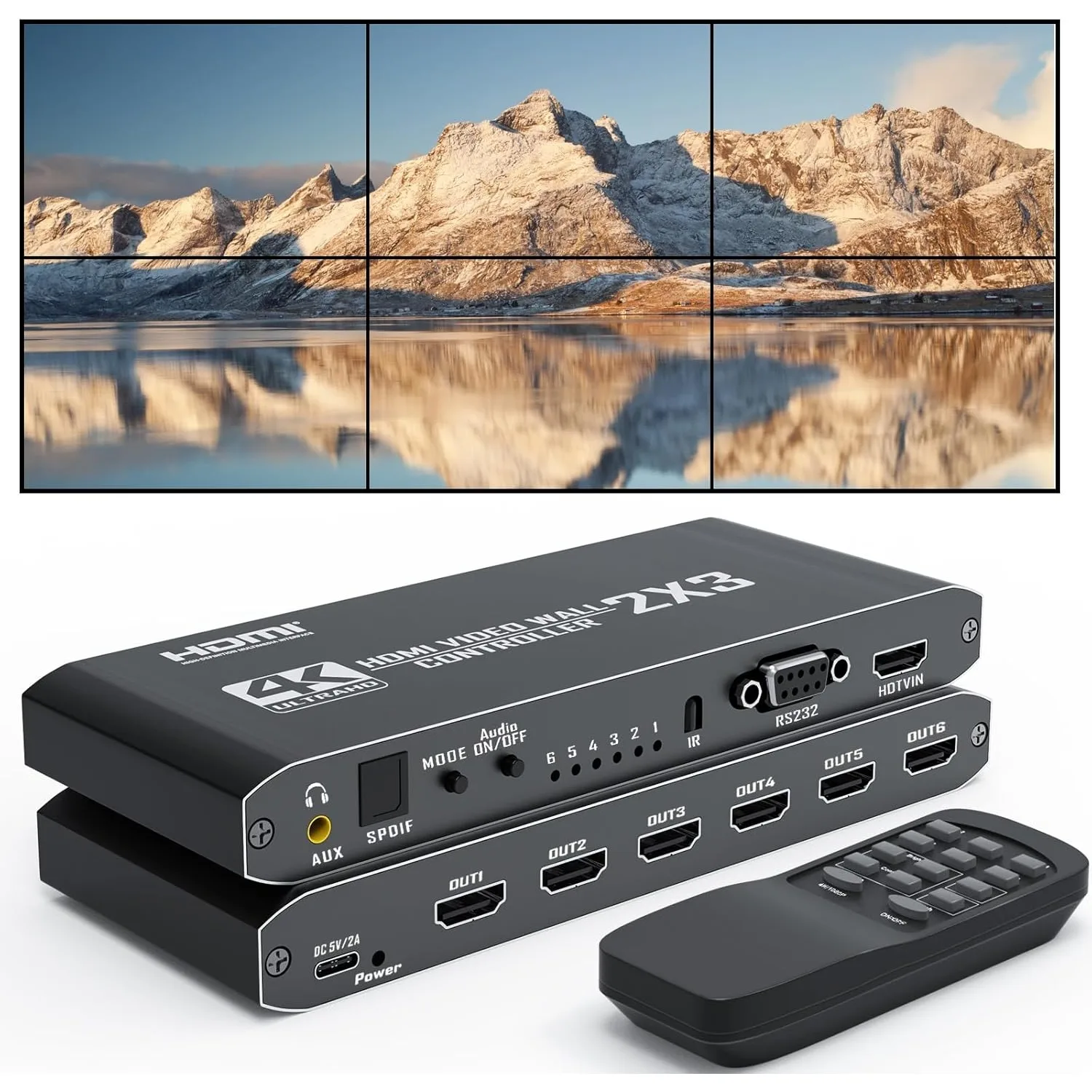

The 4K 2X3 video wall controller, support 1-way HDMI input and 6 HDMl output, the mainfunction is to divide a complete HDMI HD imagesingal into 6 blocks and assign to 6 video display unit(such as rear projection unit, LCD TV, etc.). Completewith 6 HDMI high-definition video display units toform a large dynamic image screen.

Features:
*Supports HDMI input.
*Input support HDMI1.4, HDCP1.4.
*Input format: RGB/YUV24bit;
*Output format: RGB444 24bit.
*Support 2X3 stitching, easy operation, plug and play;+
*intput support 4k 30HZ;
*output support 1920x1080P60Hz

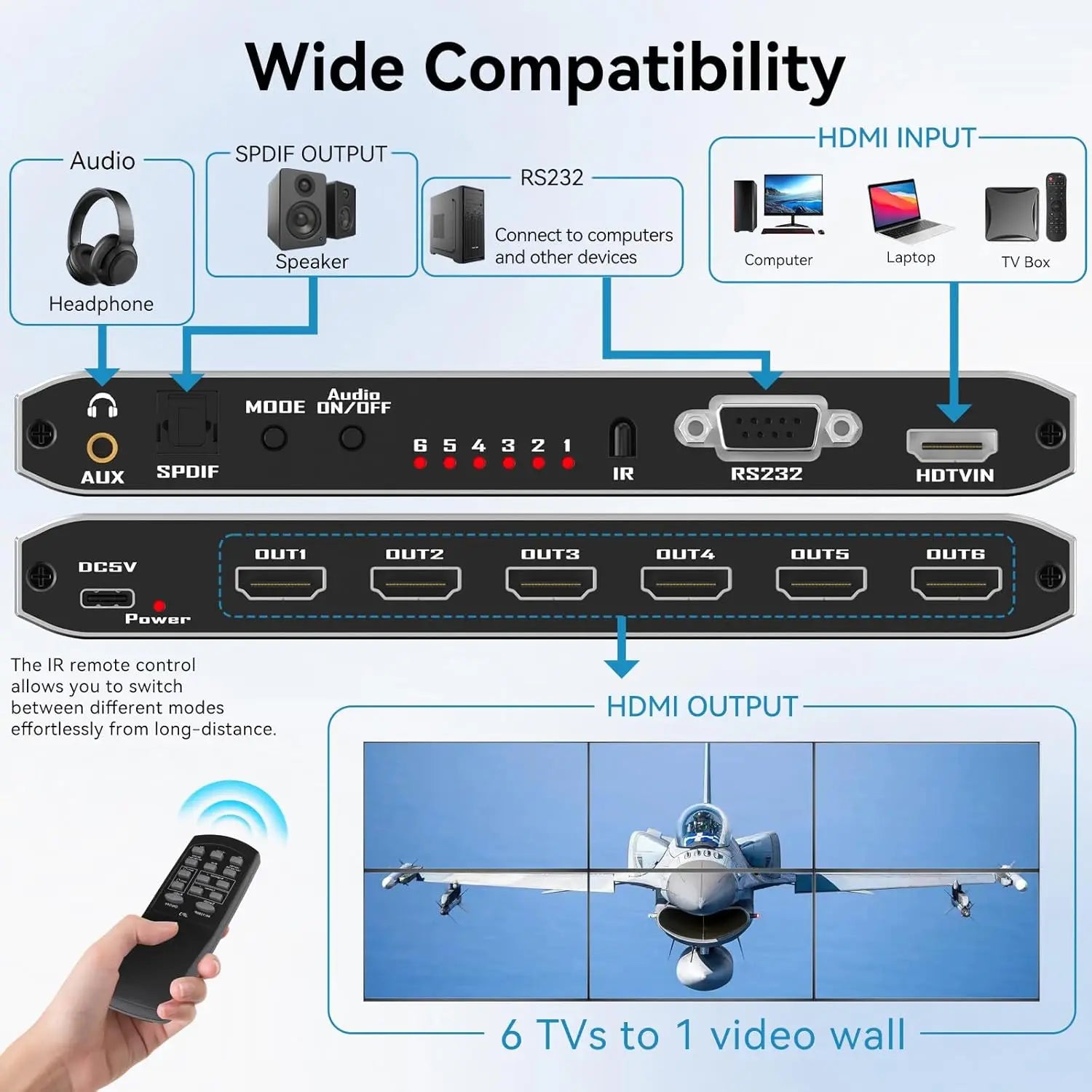

*Support Six HDM output, one 3.5mm stereooutput.
*Supports RS232
*Supports remote control
*DC5V / 2A power supply

Detail Description
This product is used for horizontal screen,If you use for vertical screen, pls contact us to buy other styles.

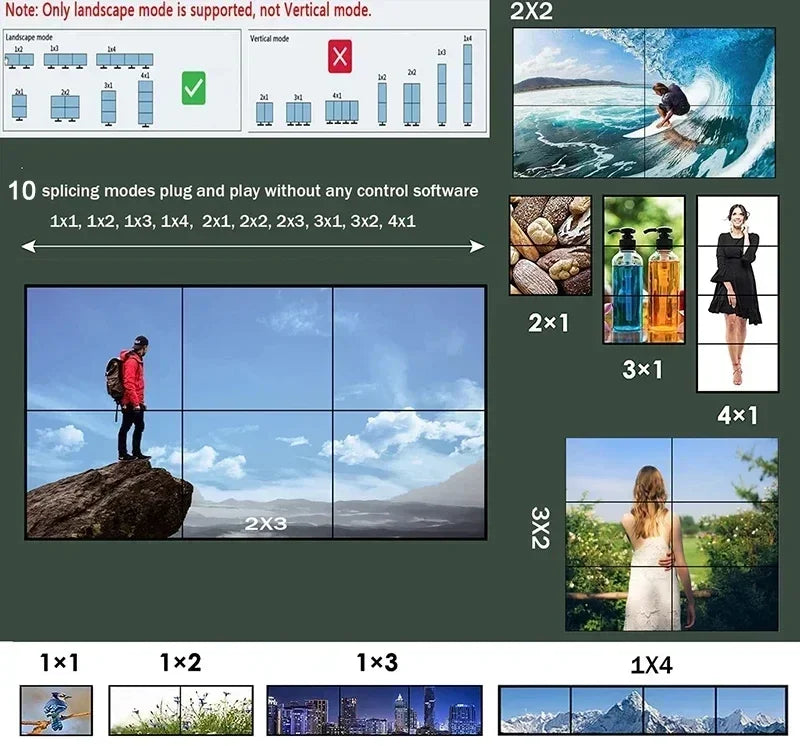

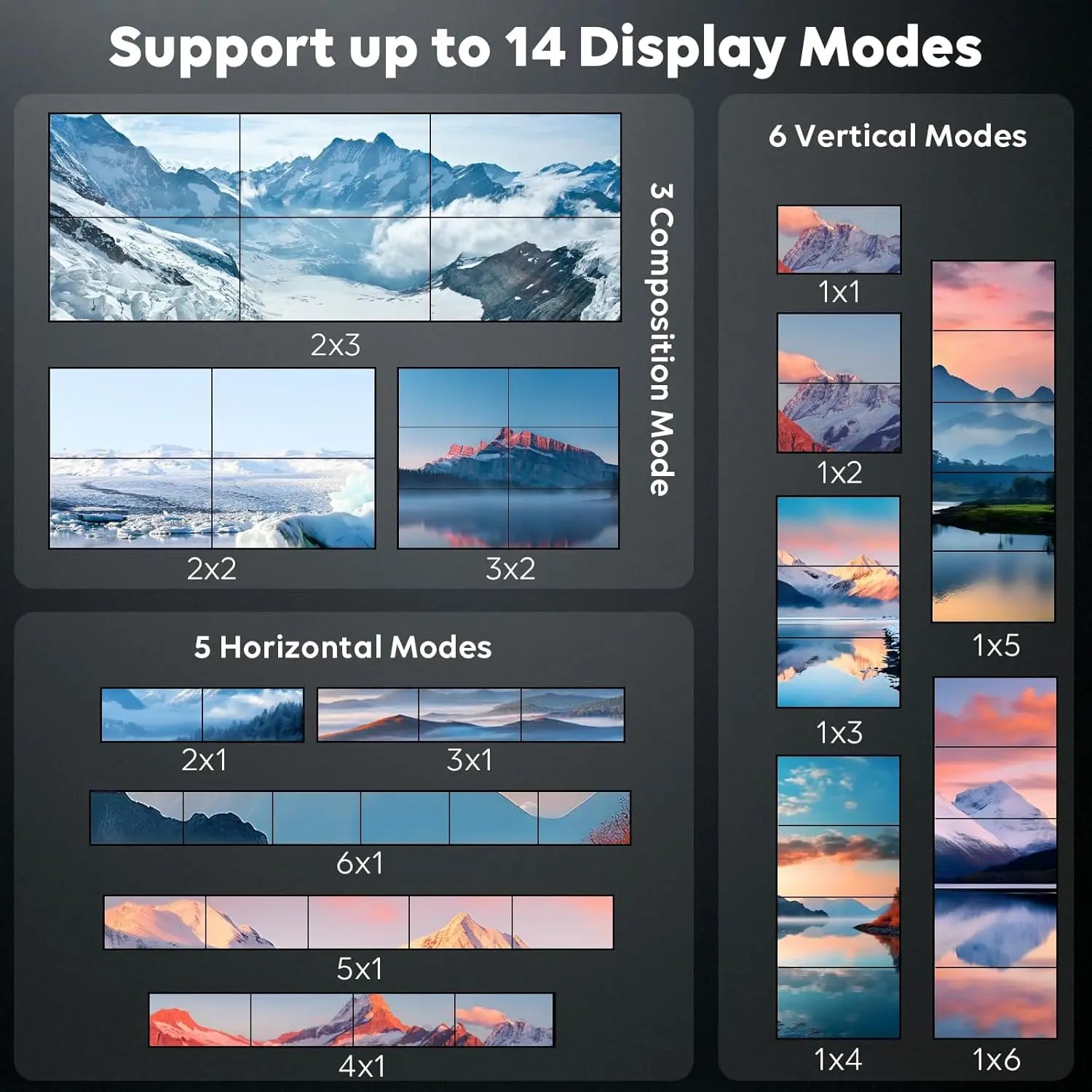

MODE selection key: The order of modes by MODE key is 1X1.1X2,1X3,2X1,2X2,1X5,1X6,2X3.


Package Includes:

1 x Video wall controller
1 x Remote control(Batteries not included)
1 x User Manual
1 x 5V/2A power adapter
