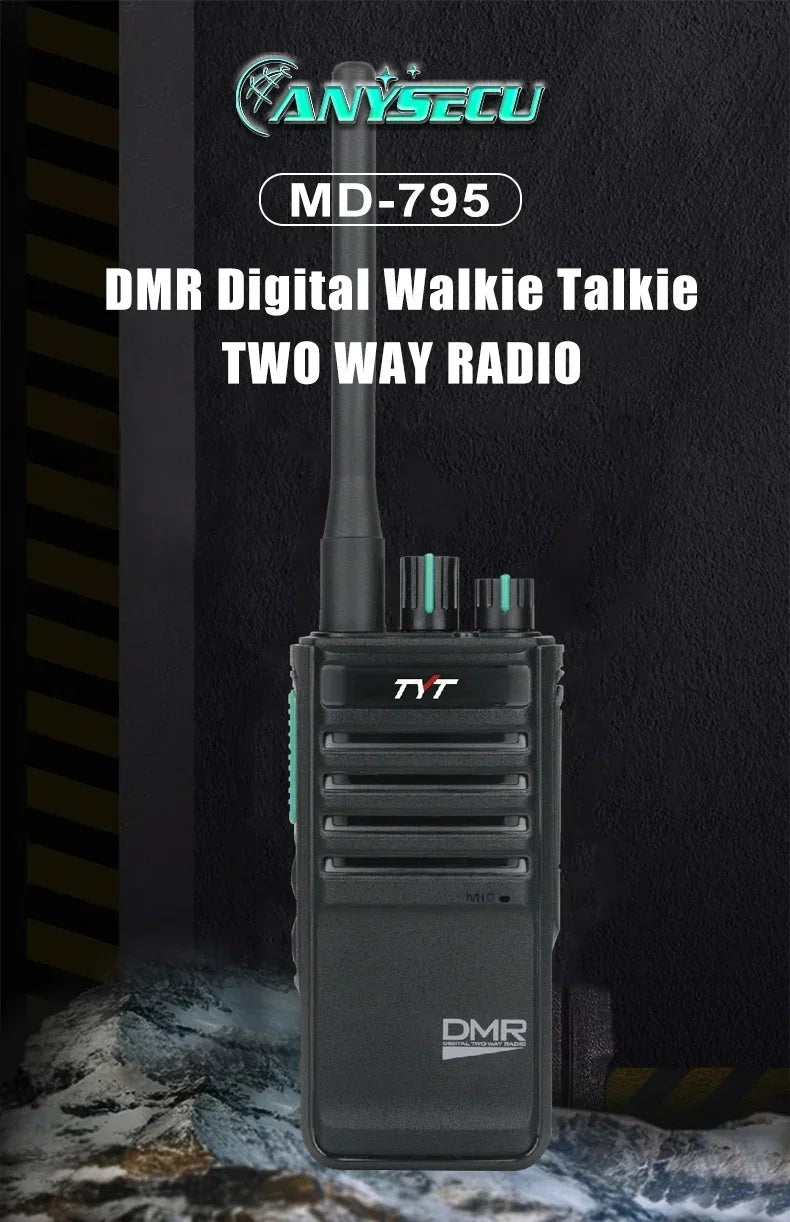

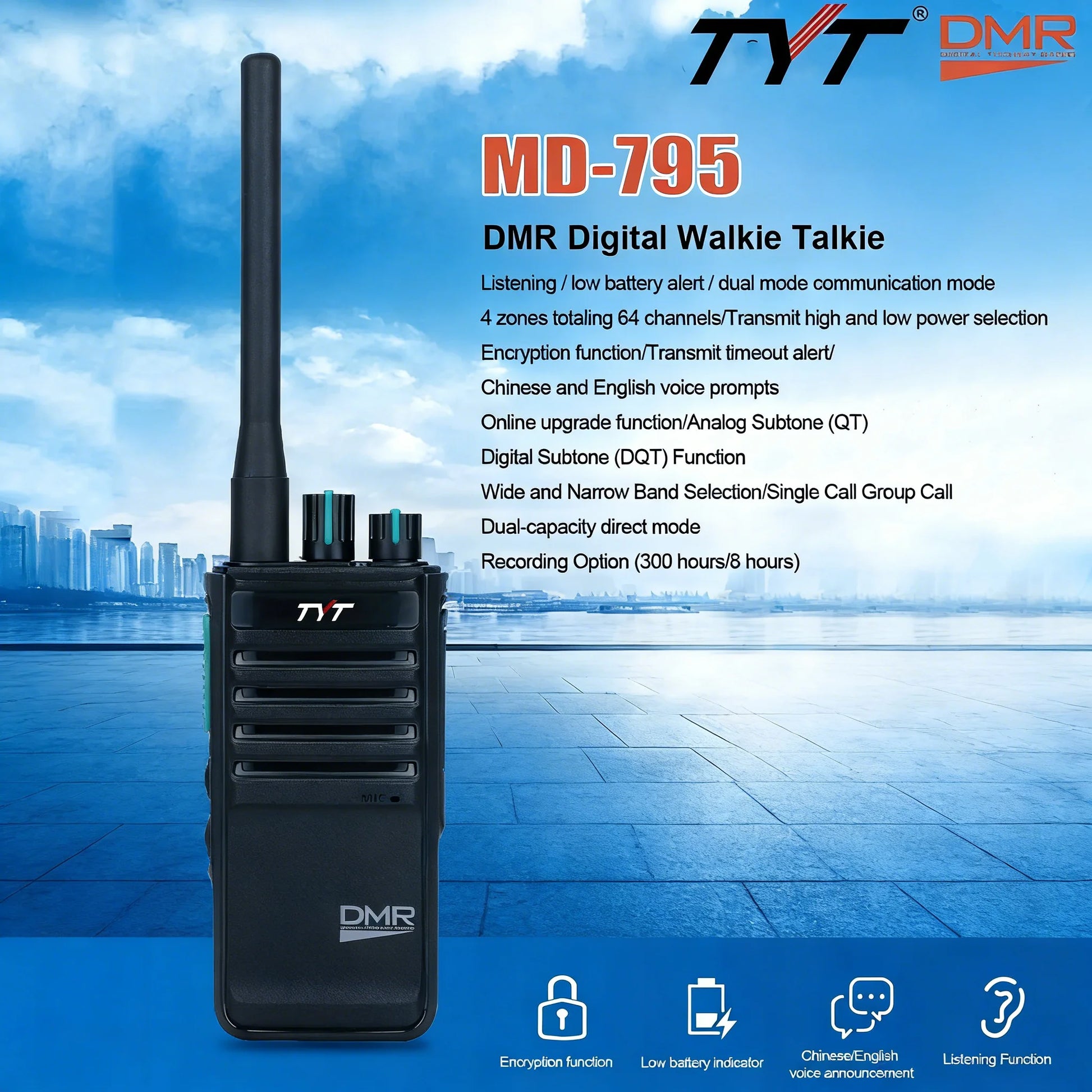

TYT MD-795 DMR Digital Walkie Talkie UHF 400-470MHz 4W/1W 64 Channels Voice Encryption Two Way Radio Long Range
TYT MD-795 DMR Digital Walkie Talkie UHF 400-470MHz 4W/1W 64 Channels Voice Encryption Two Way Radio Long Range
Det gick inte att ladda hämtningstillgänglighet
SPECIFICATIONS

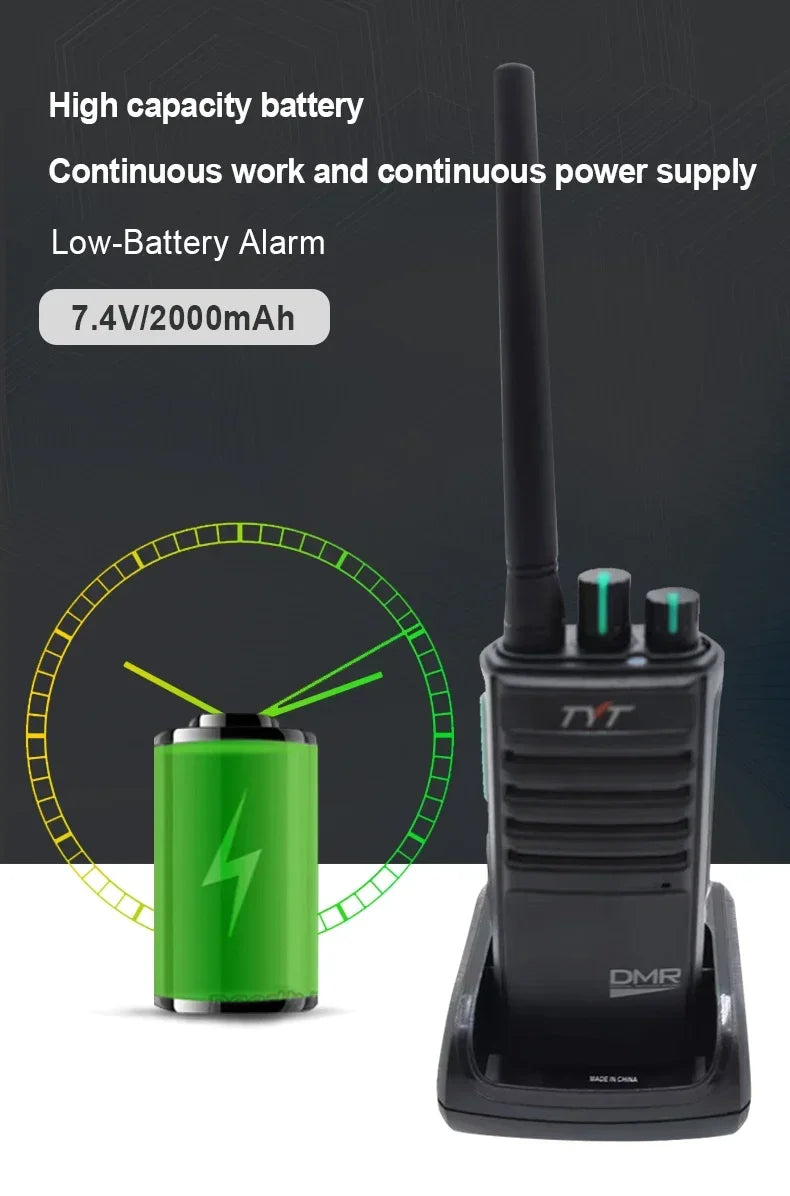

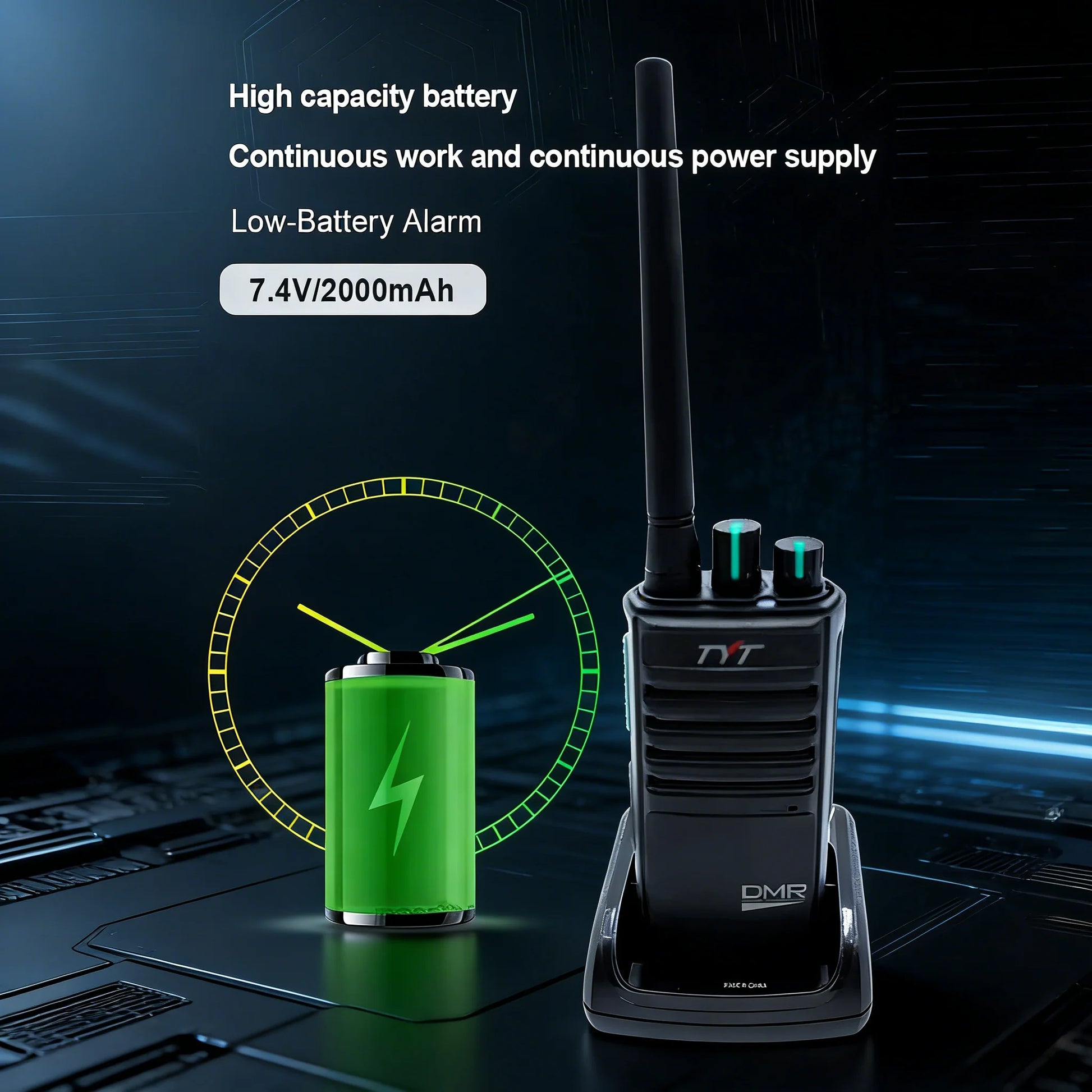

Battery Capacity(mAh): 2000mAh
Battery Included: Yes
Brand Name: TYT,TYT

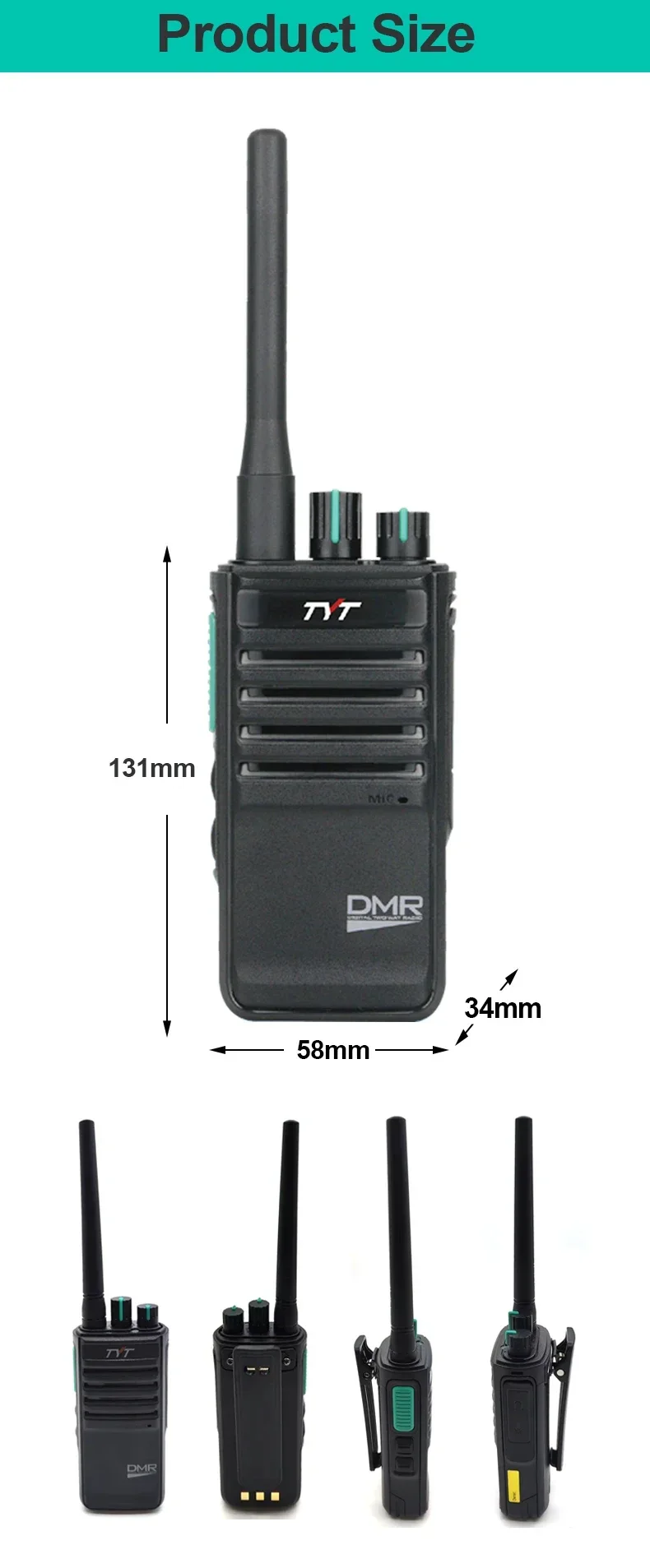

Dimensions: 133mm*61mm*34mm
Frequency Range: 400-470mhz
High-concerned chemical: none
Is_Display: No
Material: Plastic+Metal
Maximum Range: 1.5km-3km
Model Number: MD-795
Origin: Mainland China
Output Power(w): 3w-5w
Rechargeablebatteryincluded: Yes
Storage Channel: 64 / 4Zones (16Channels per zone)
Use: others
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: IP45
TYT MD-795 DMR Digital Walkie Talkie UHF 400-470MHz 4W/1W 64 Channels Voice Encryption Two Way Radio Long Range
Main Features

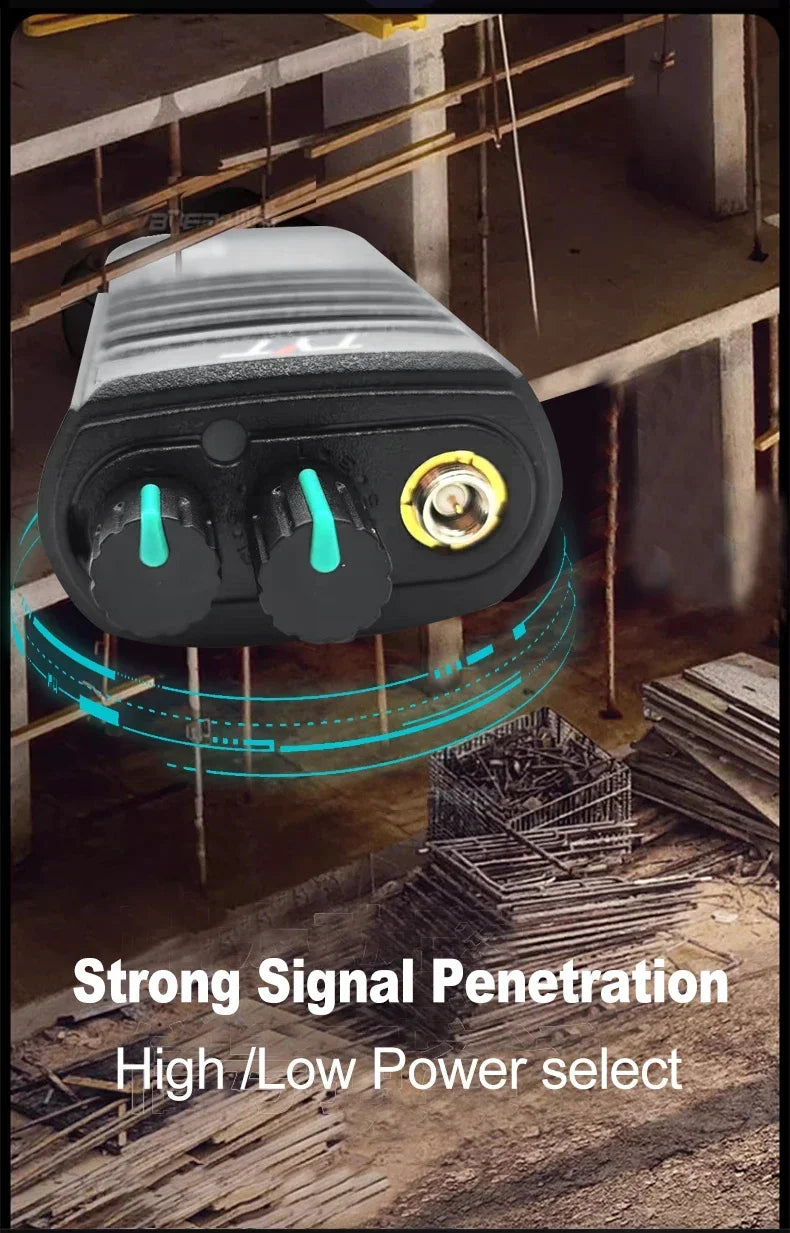

High /Low Power select
Channels Scan

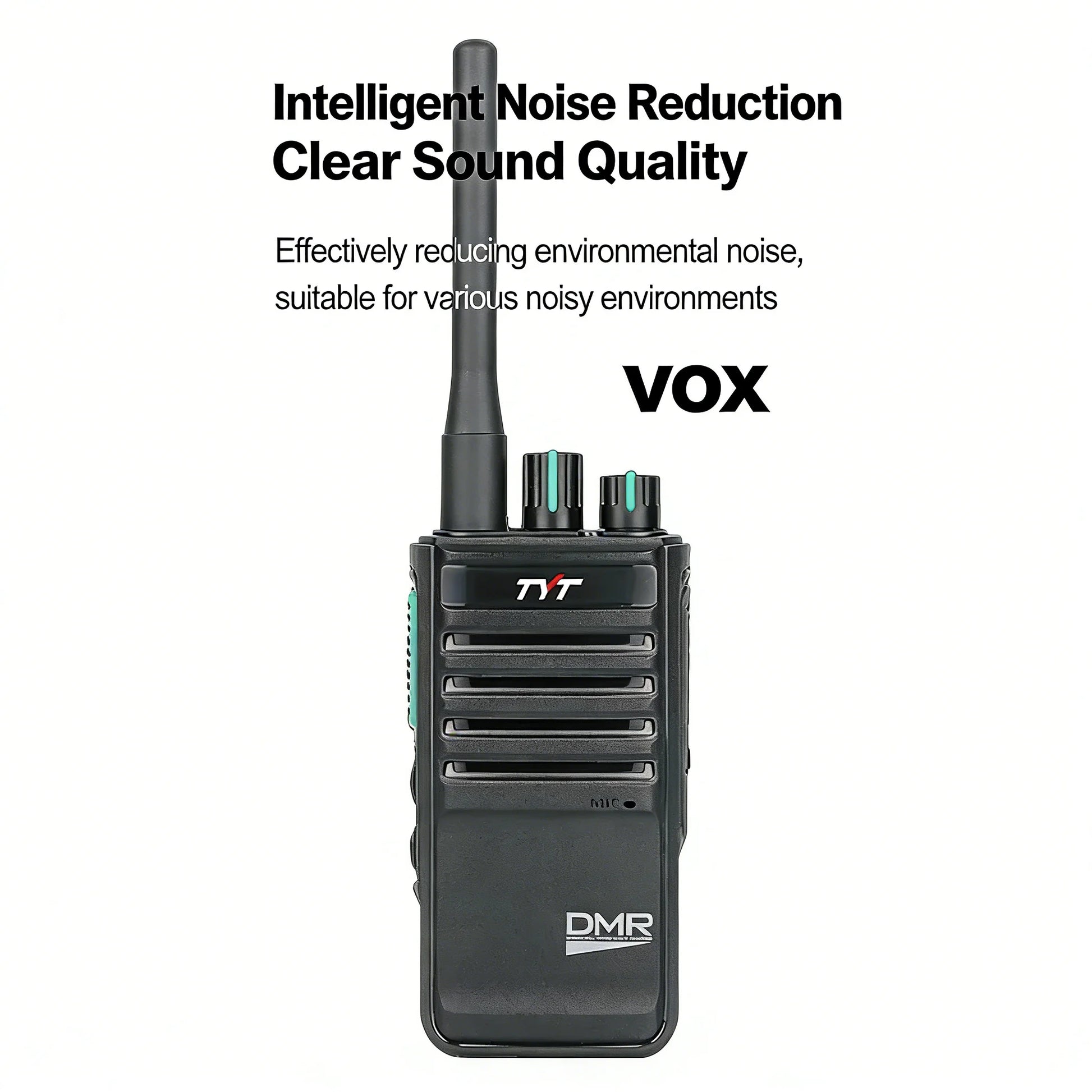

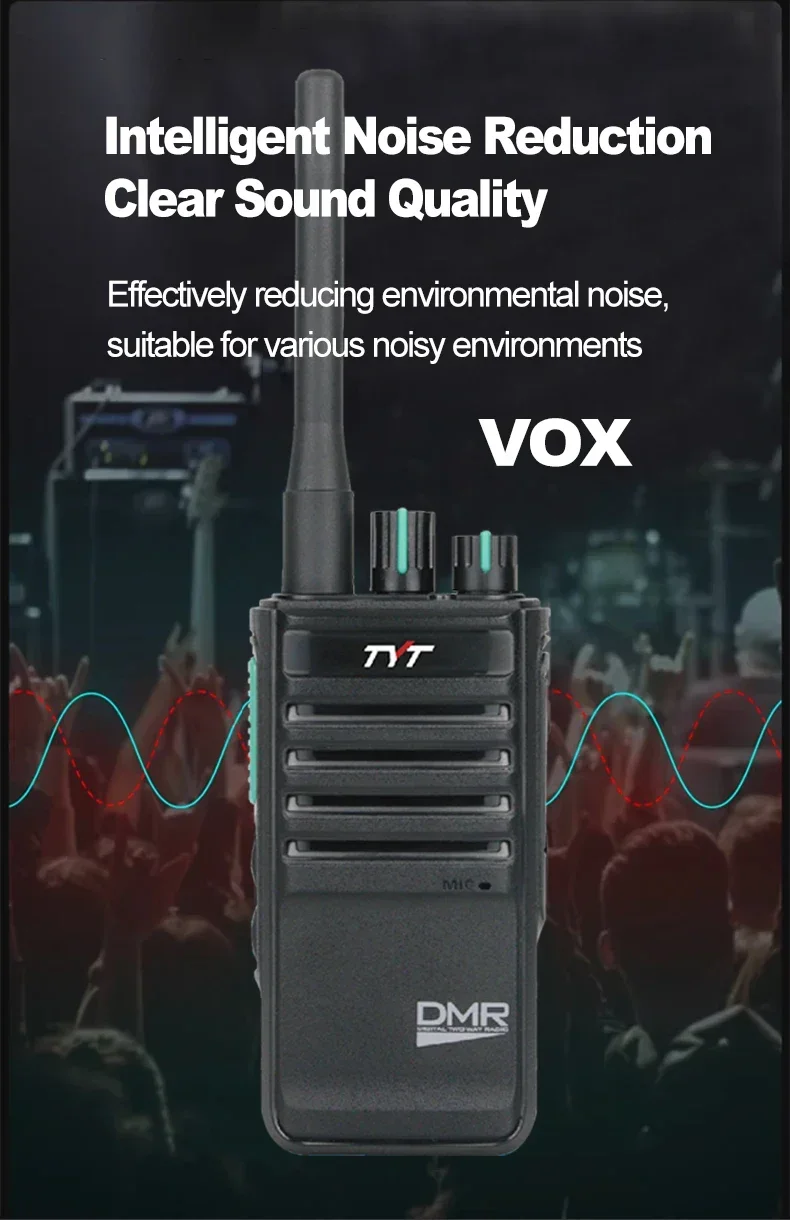

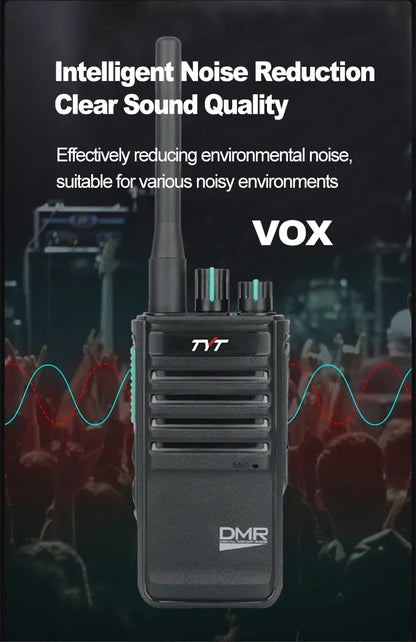

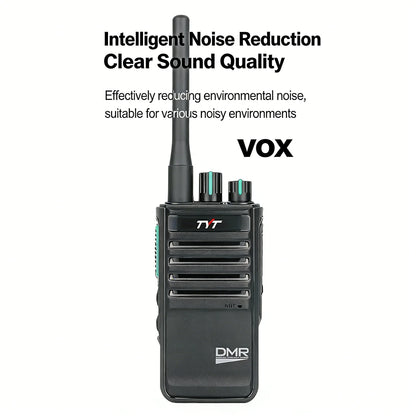

Vox
TOT
Talk around
DTMF
Lone Work
SQL

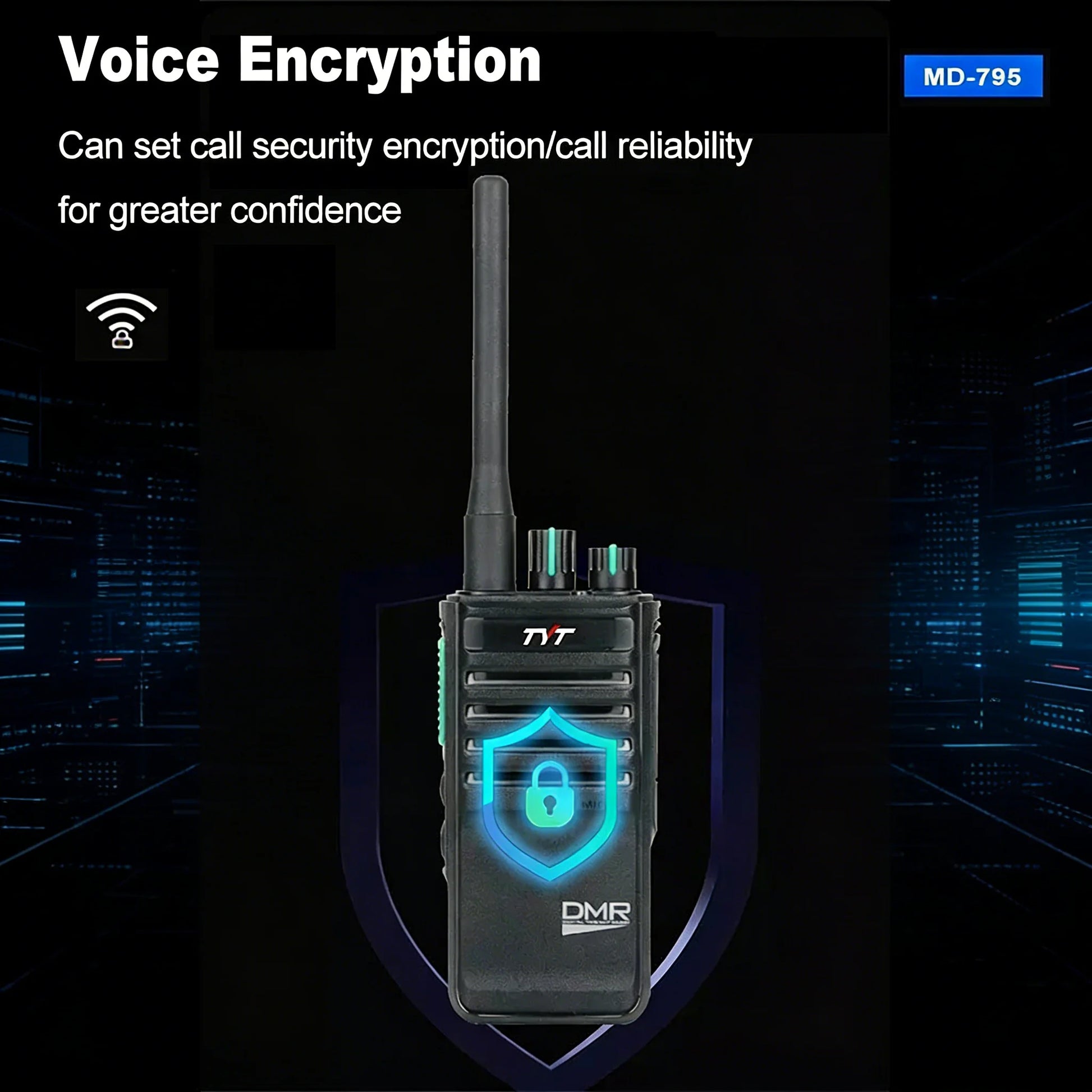

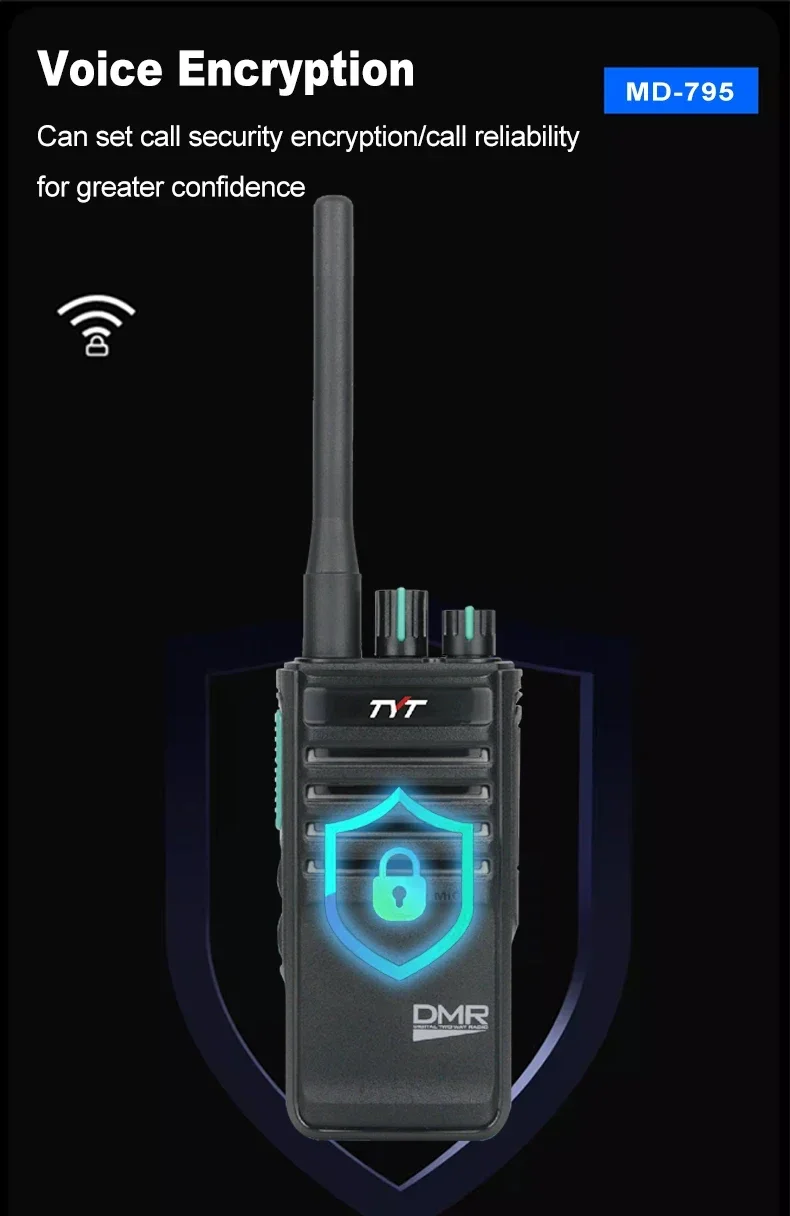

Voice encryption
Emergency Alarm
Monitor
Zones Switch
Low - battery Alarm
Programmable multi function key
64 Channels
specification |
|
Model Name |
MD-795 |
General | |
Frequency range |
400-470MHz |
Channels capacity |
64 / 4Zones ( 16Channels per zone ) |
Frequency Stability |
±1ppm |
Working Temperature |
-30℃~ + 60℃ |
Working Voltage |
7.4V DC |
Dimension (HxWxD) |
133mm*61mm*34mm |
Weight |
512g |
Receiver | |
Analog receive sensitivity |
0.2μV @ 12dB SINAD |
Digital receive sensitivity |
0.25uV(BER:5%) |
Adjacent channel selectivity |
≤-60dB@12.5KHz |
Intermodulation |
≥65dB |
Spurious Response |
≥70dB |
Audio Response |
+1～-3dB |
Audio Distortion |
<5% |
Audio Power |
1W |
FM noise |
≥45dB@25KHz /≥40dB @12.5KHz |
Transmitter | |
RF Power |
High:4WLow:1W |
TX current |
Analog≤1.6A Digital≤0.9A |
Standby current |
0.07A |
FM modulation mode |
11K0F3E @ 12.5KHz 14K0F3E @ 20KHz |
16K0F3E @ 25KHz | |
4FSK Digital modulation mode |
12.5KHz ( Data only ):7K60FXD |
12.5kHz ( Voice＆Data ):7K60FXW | |
Modulation Distortion |
<5% |
FM noise |
≥45dB@25KHz /≥40dB@12.5KHz |
Adjacent channel power |
≤-60dB@12.5KHz |
Audio Response |
+1～-3dB |
Spurious Radiation |
9KHz-1GHz: ≤-36dBm |
1GHz-12.75GHz: ≤-30dBm | |
Digital protocol |
ETSI-TS102 361-1,-2,-3 |
