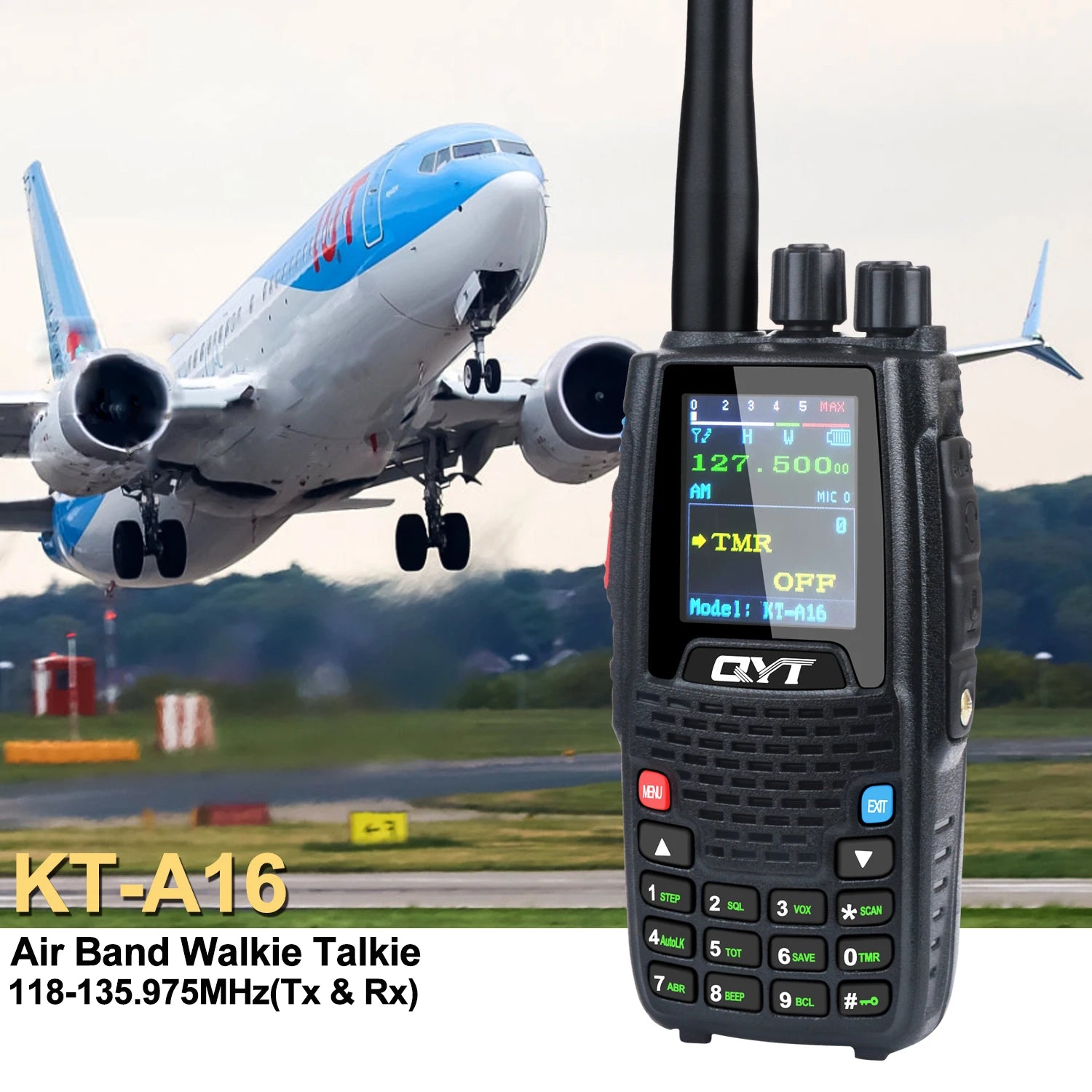

QYT KT-A16 Air Band Tx Handheld Walkie Talkie 118.000-136.999MHz TX Rx Aviation Portable Radio 6Watt 200Ch NoAA Weather Forecast
QYT KT-A16 Air Band Tx Handheld Walkie Talkie 118.000-136.999MHz TX Rx Aviation Portable Radio 6Watt 200Ch NoAA Weather Forecast
Det gick inte att ladda hämtningstillgänglighet
SPECIFICATIONS
Battery Capacity(mAh): 2000
Brand Name: QYT
Certification: CE,FCC
Choice: yes
Dimensions: 62(W)*128(H)*35(D)mm
Display Screen: Yes
Frequency Range: 108-136mhz
High-concerned chemical: none
Is Batteries Included: Yes
Item Type: Mobile Radio
Material: Plastic,Metal
Maximum Range: 3km-5km
Model Name: KT-A16
Origin: Mainland China
Output Power(w): 3w-5w
Storage Channel: 200
Tuner Technology: VHF
Type: Portable
Waterproof: NO
QYT KT-A16 Air Band Tx Handheld Walkie Talkie 118.000-136.999MHz TX Rx Aviation Portable Radio 6Watt 200Ch NoAA Weather Forecast

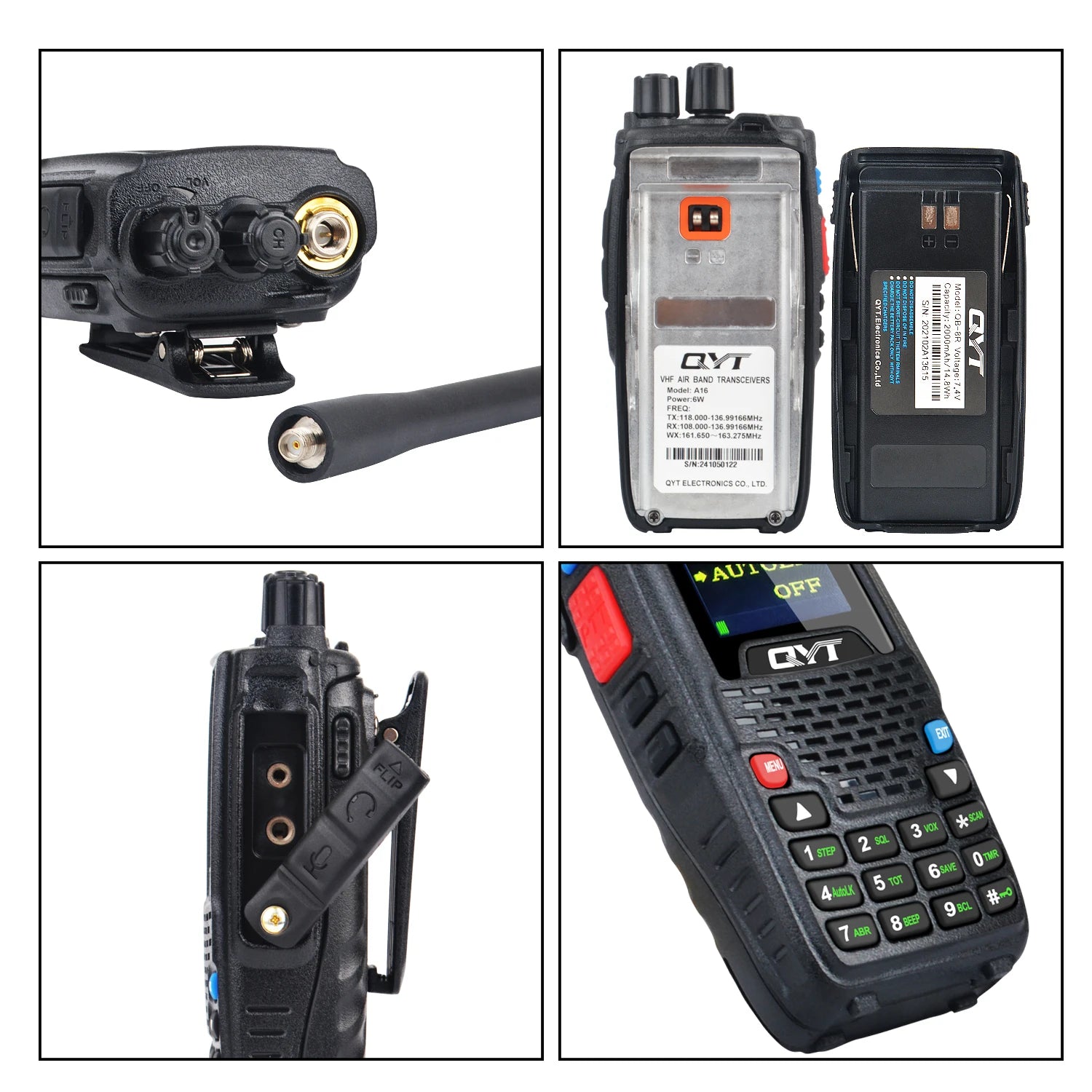

Photos:
Features:

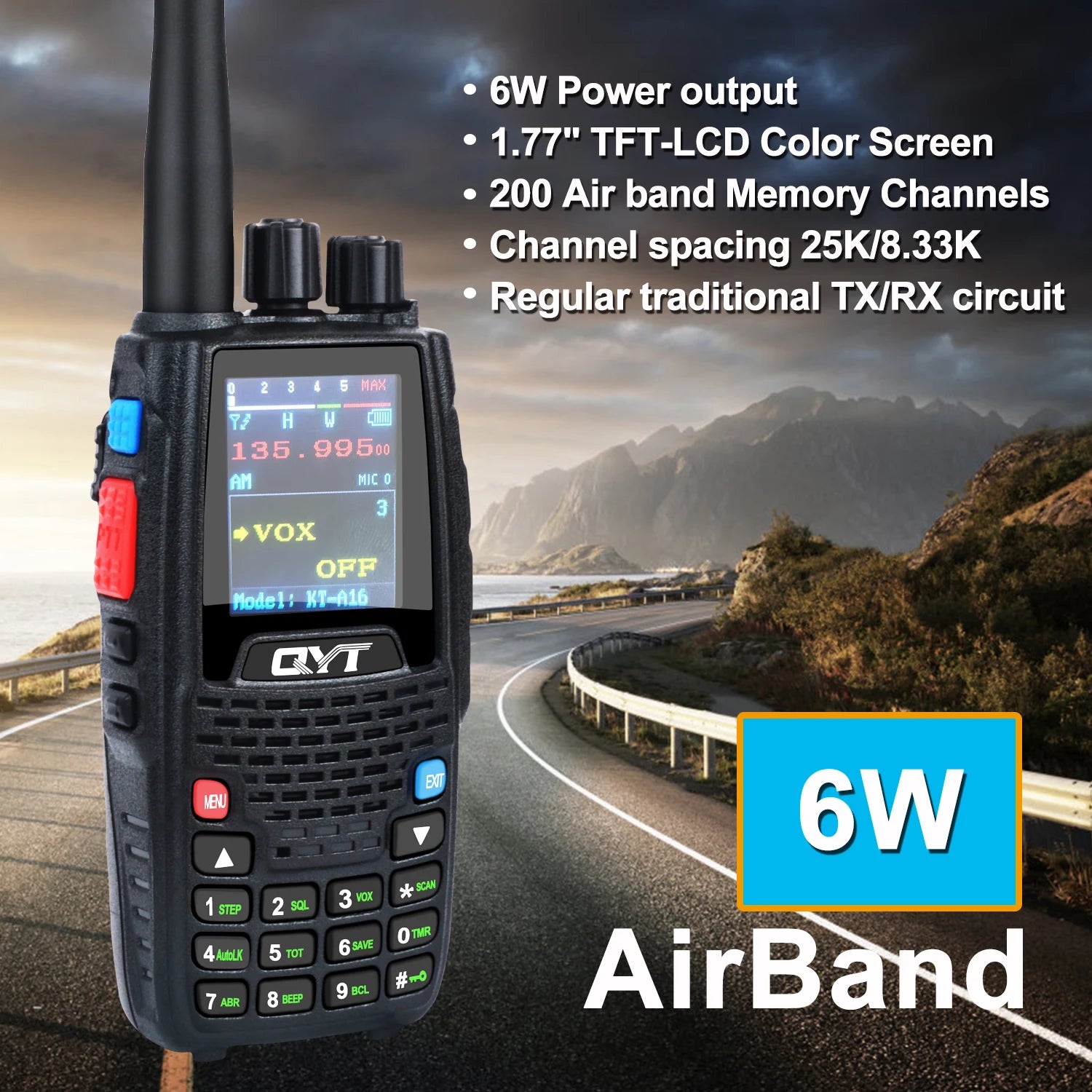

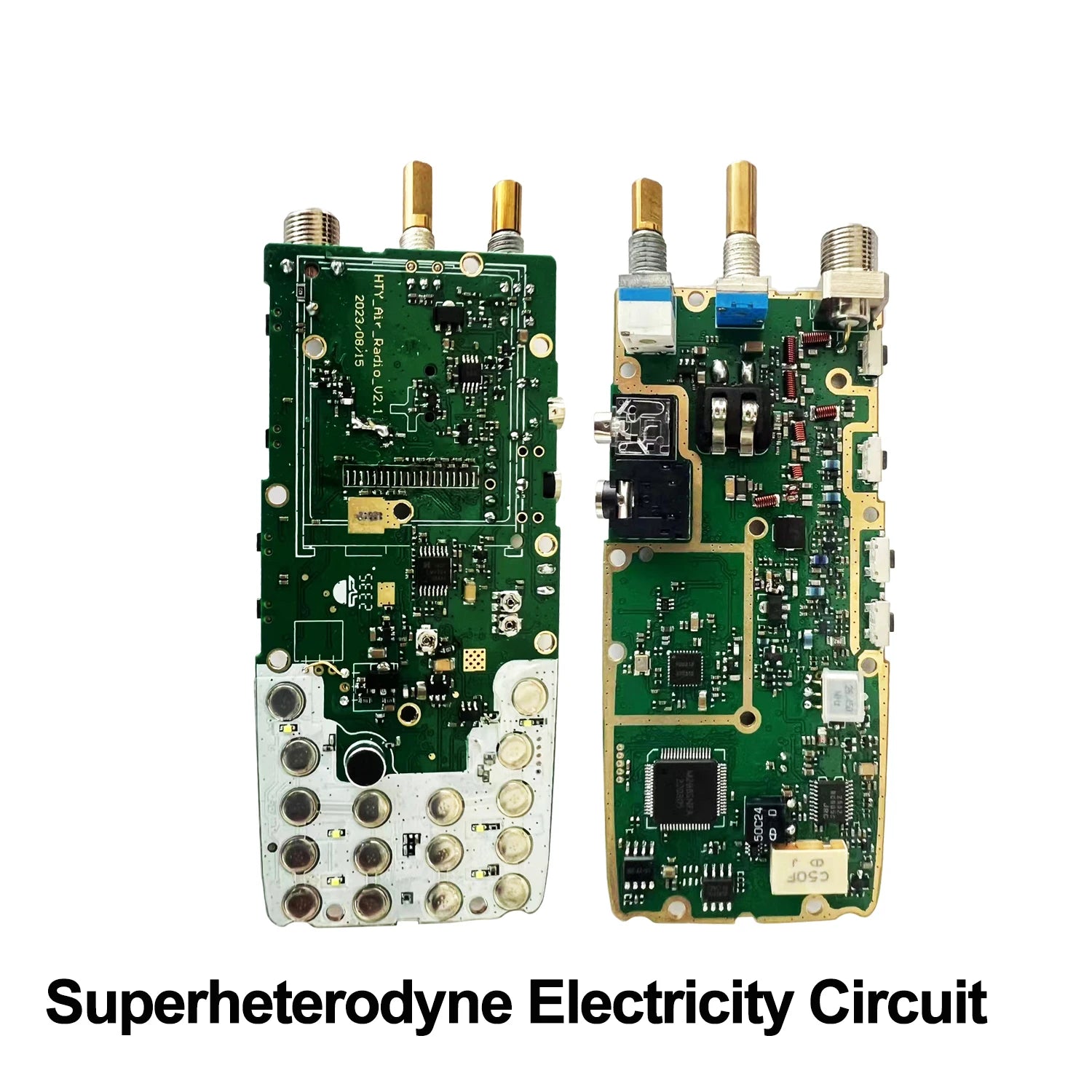

Superheterodyne Circuit
6W output Power

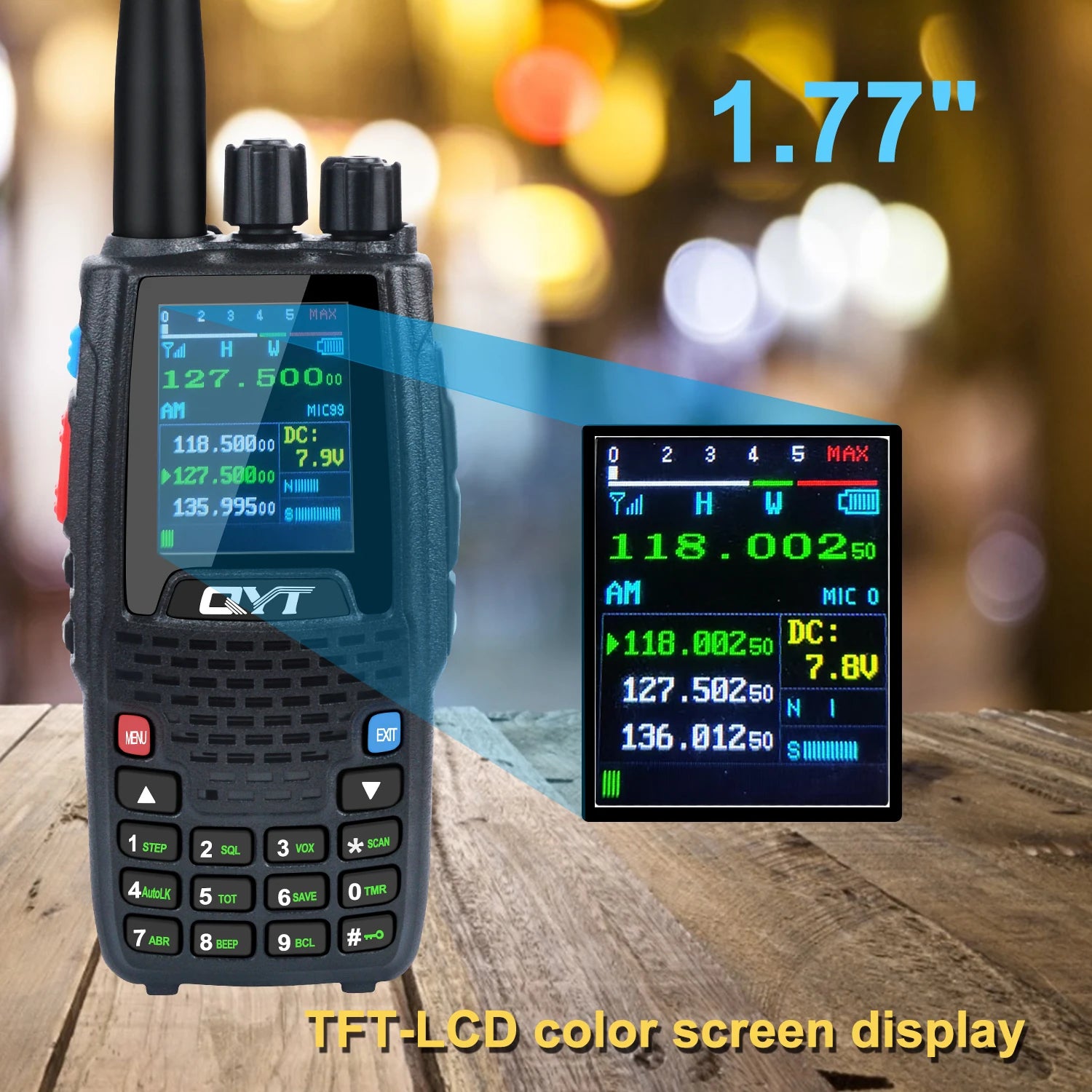

1.77”TFF-LCD color Screen

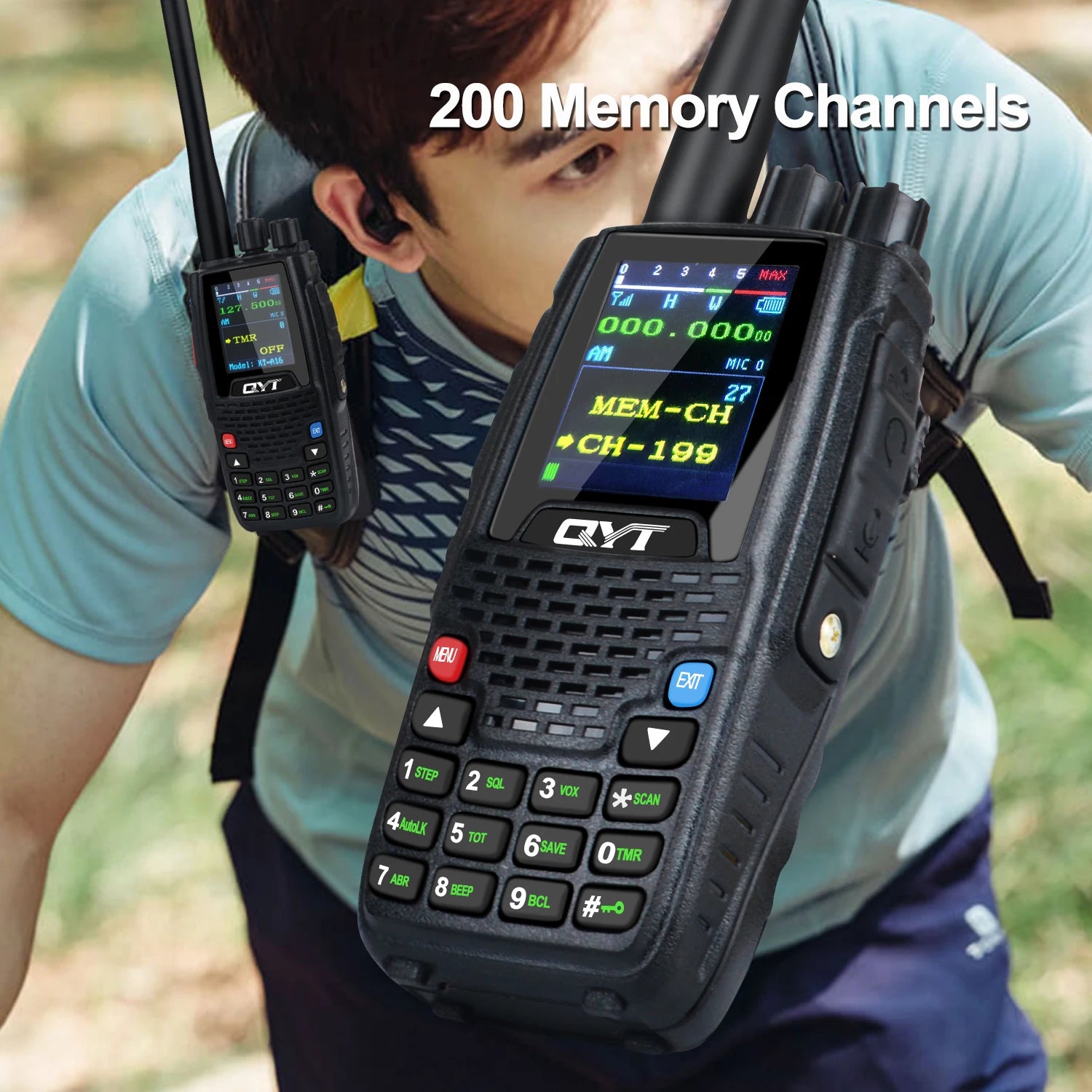

200 Memory Channels

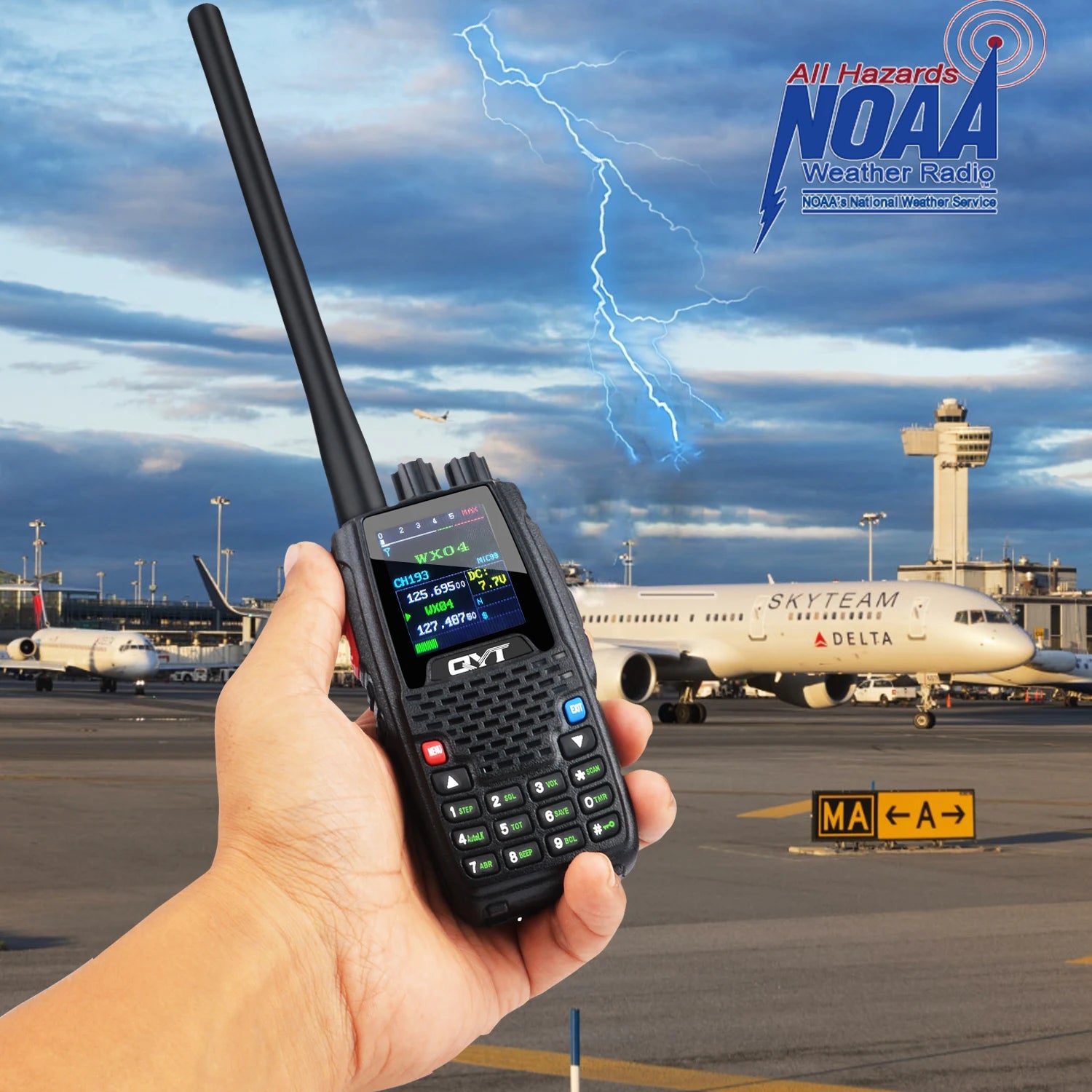

10 NOAA Weather forecast Channels
Channel Spacing 25K/8.33K

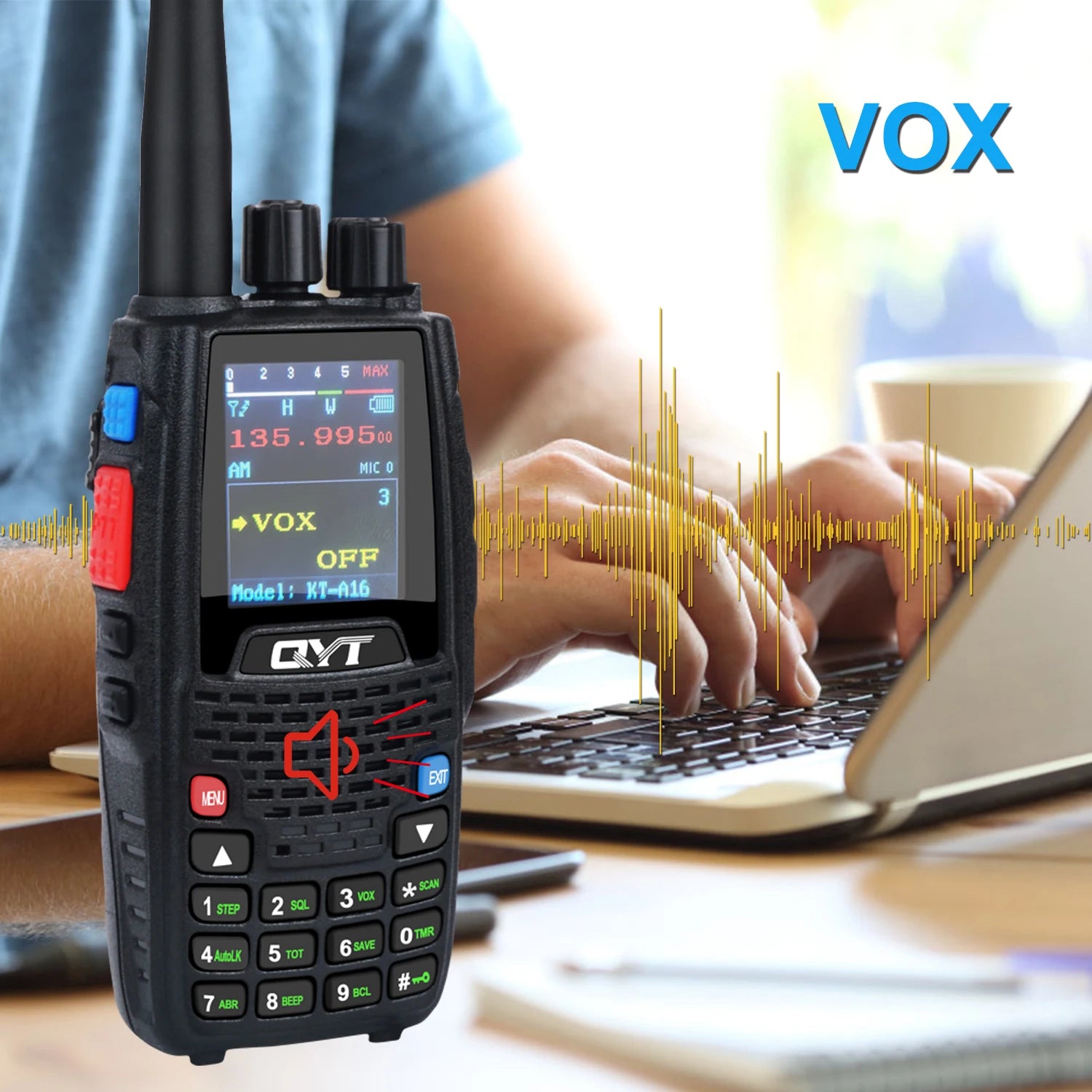

VOX
Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step

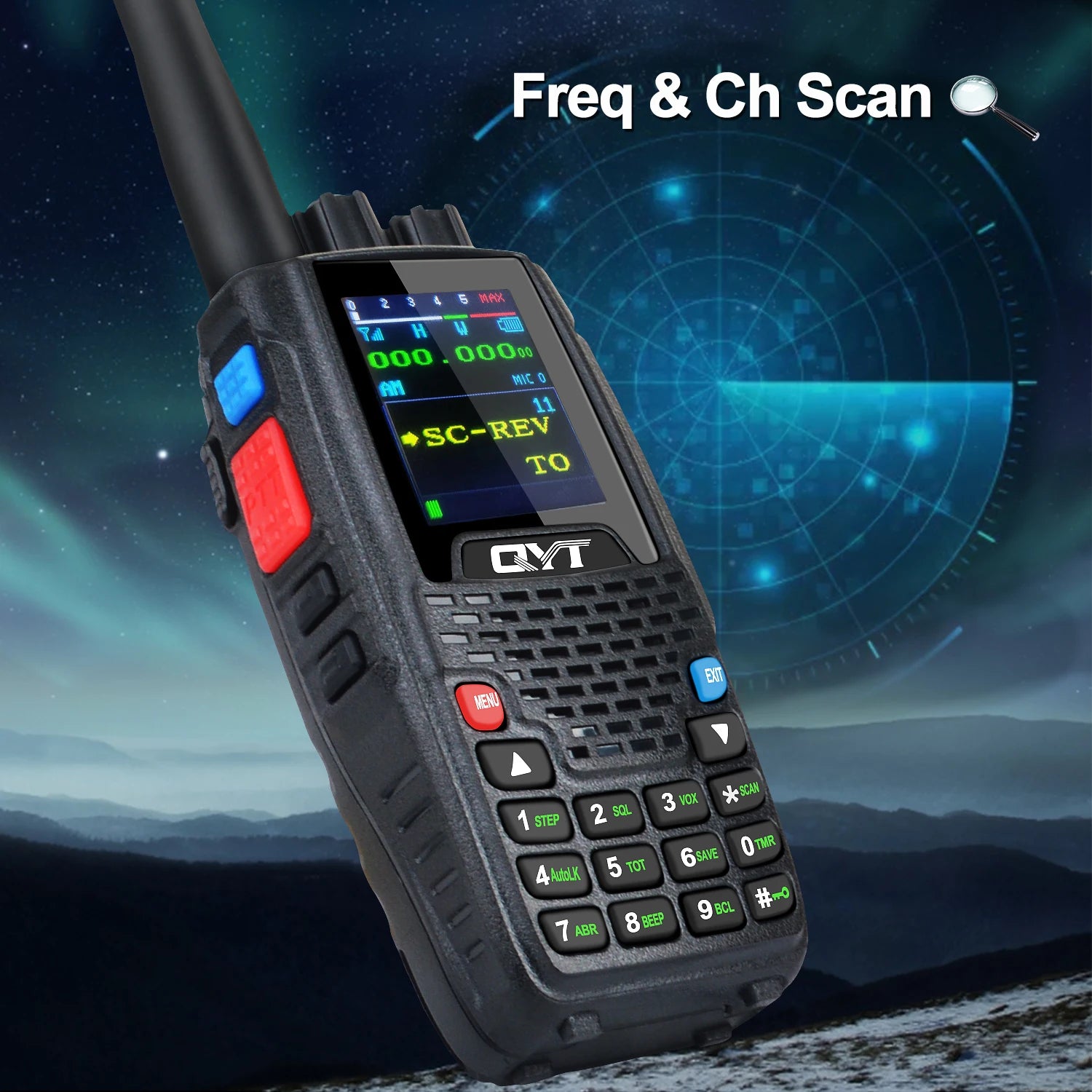

Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming

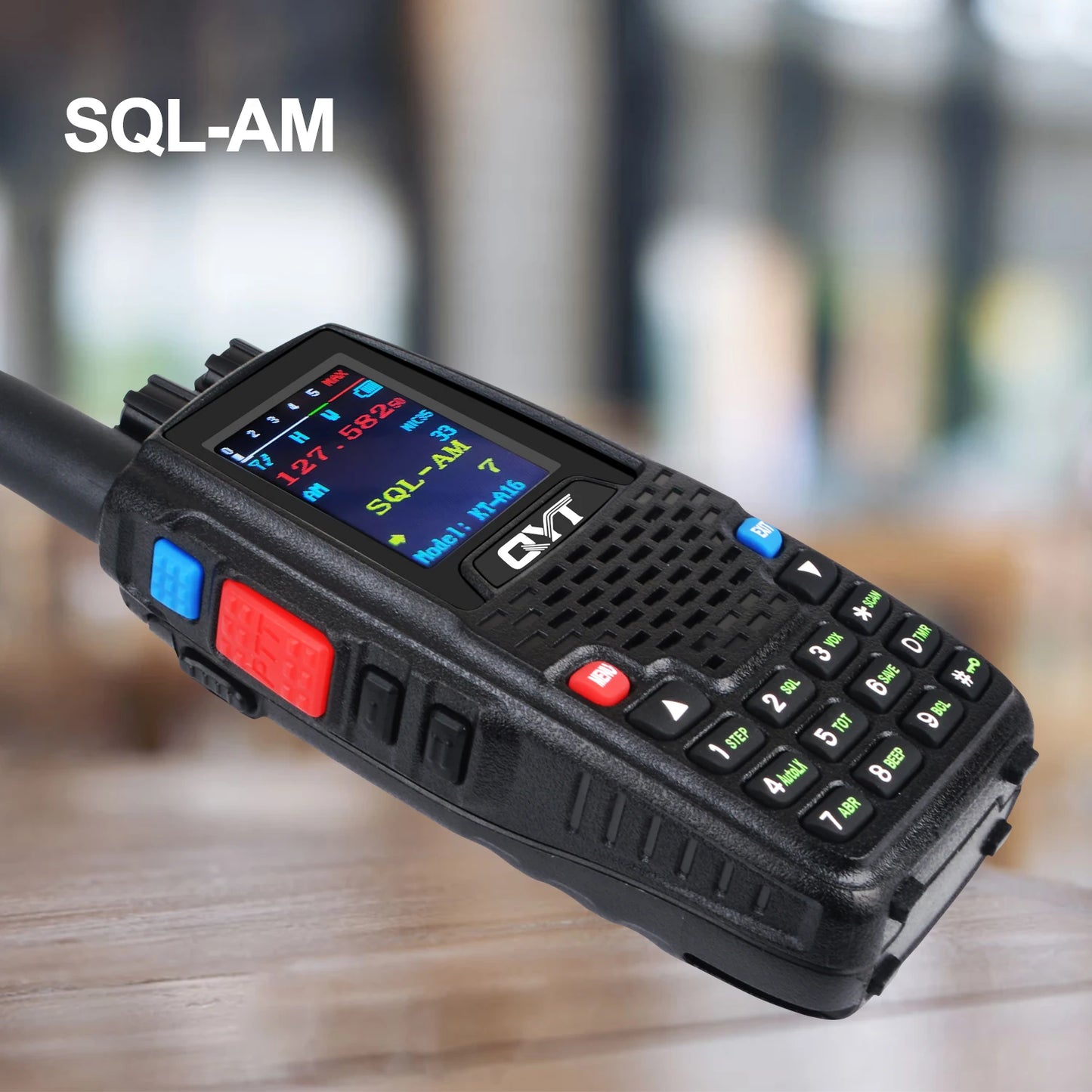

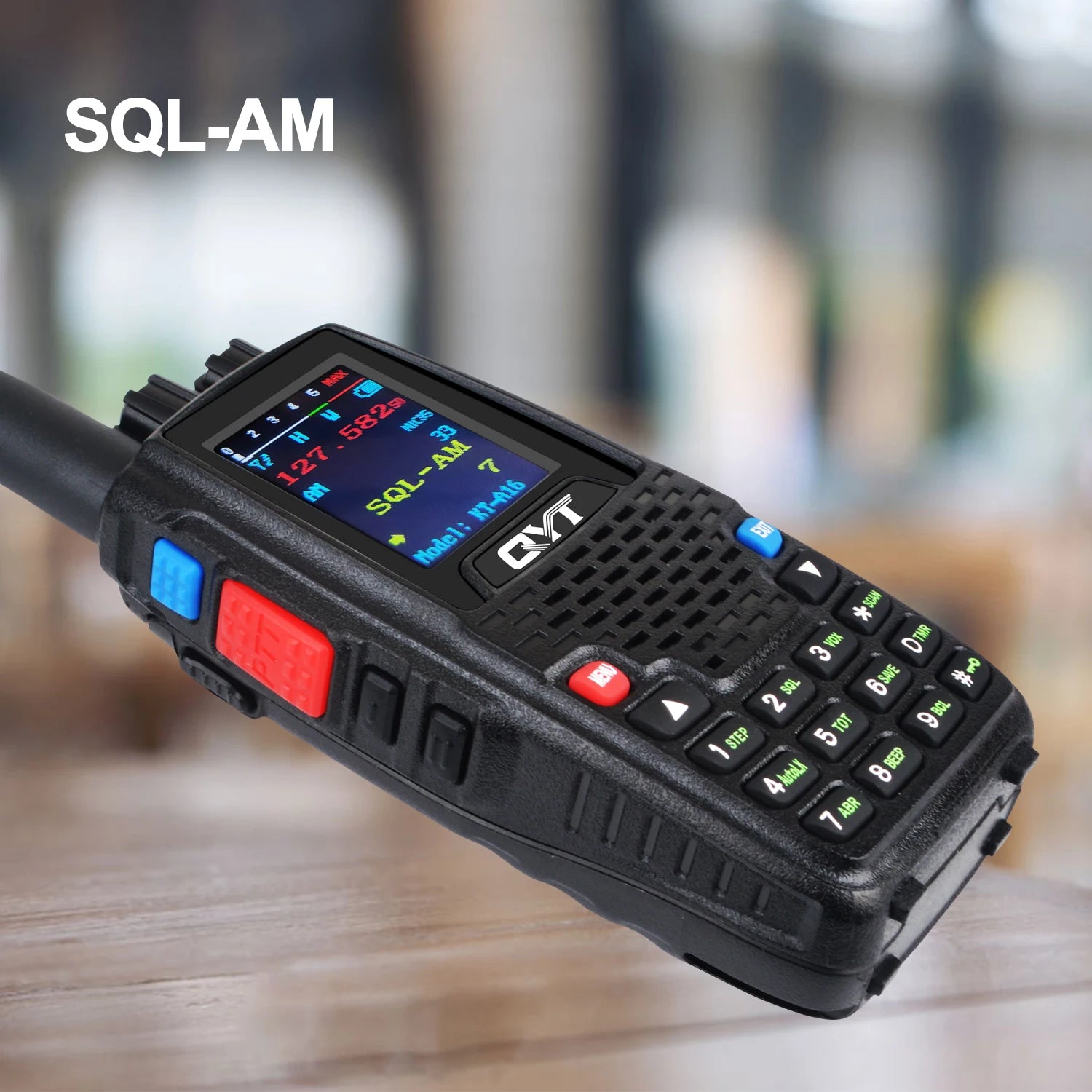

Squelch Level Adjustable
2000mAh Rechargeable Battery Pack
Specifications:
General | |
Frequency Range |
TX:118.00000-136.99975MHz RX:108.00000-136.99975MHz WX:161.650-163.275MHz |
Channel Spacing |
25kHz/8.33kHz |
Mode |
6k00A3E/5K60A3E |
16K0G3E(WX) | |
Number of Memory Channels |
200 |
Antenna Impedance |
50ohm |
Antenna Connector |
SMA-Female |
Power Supply Requirement |
7.2V DC |
Current Drain |
Less than 1.8A |
Operating Temperature range |
-10°c`+60°c |

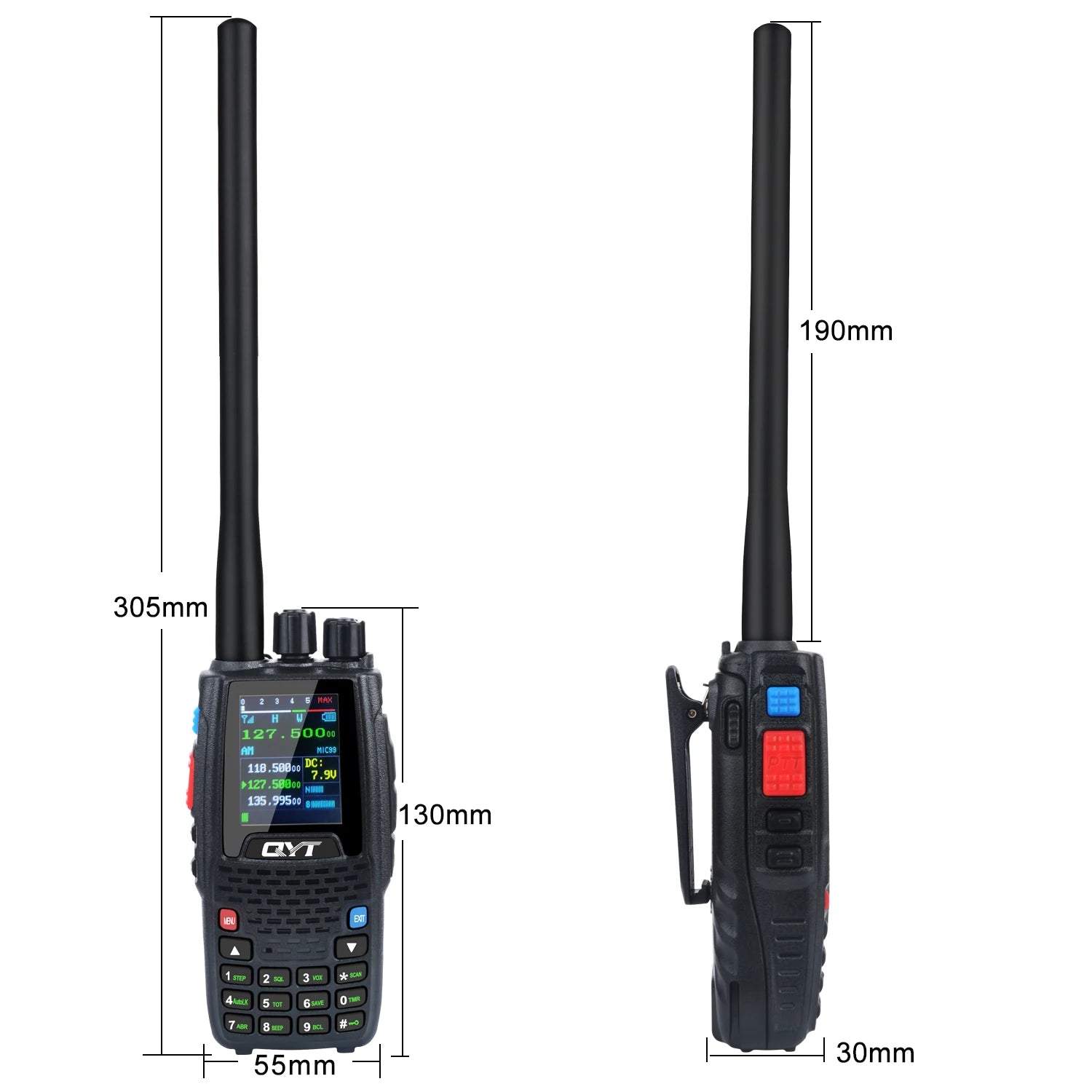

Dimensions |
62(W)*128(H)*35(D)mm |
Weight |
239g with 2000mah Battery |
Transmitter | |
Output Power |
6.0W(PEP),1.8W(CW) |
Modulation Limiting |
70-100% |
Audio harmonic distortion |
Less than 10%(at 60% modulation) |
Ham and Noise Ratio |
More than 35dB |
Spurious emissions |
More than 46dB |
Frequency Stability |
±0.4kHz |
Receiver | |
Receive system |
Double conversion superheterodyne |
Intermediate frequencies |
1st46.35MHz,2nd 450kHz |
Sensitivity |
COM: Less than 0dBu (at 6dB S/N) |
NAV: Less than 3dBu (at 6dB S/N) | |
WX: Less than -8dBu (at 12dB SINAD) | |
Squelch Sensitivity(Threshold) |
COM/NAV: Less than 0dBu |
WX: less than -5dBu | |
Spurious response rejection Ratio |
COM/NAV: More than 60dB |
WX:More than 30dB | |
Note: Specifications are subject to change without notice due to Technology improvements .

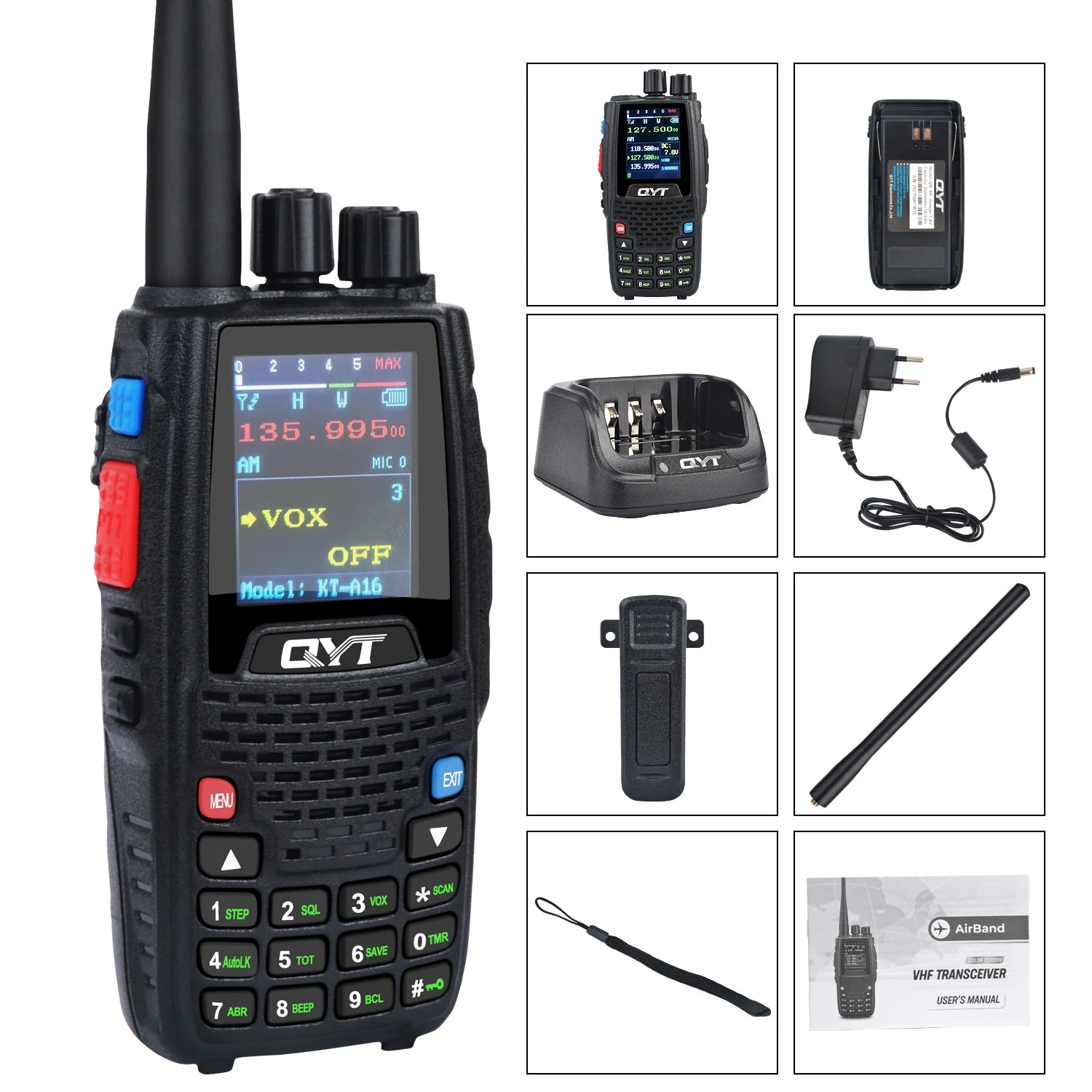

Package Contains:
1×QYT KT-8A Air Band Radio Body
1× 2000mAh Rechargeable Battery Pack
1× SMA-Female Air band Antenna
1× AC Adapter
1× Desktop Charger
1× Battery Clip
1×Hand Strap
1×ENG Manual
