SPECIFICATIONS

Battery Capacity(mAh): 0

Battery Included: Yes

Brand Name: QYT

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee

Choice: yes

Dimensions: 95(W) x 43(H) x 155(D)mm

Feature 1: Separable Panel

Feature 2: 200 Memory Channels

Feature 3: Scrambler

Frequency: VHF136-174MHz & UHF 400-480MHz

Frequency Range: VHF136-174MHz & UHF 400-480MHz

High-concerned chemical: none

Is_Display: Yes

Material: Plastic

Maximum Range: 10km-50km

Model Number: QYT KT-5000 Car Radio

Origin: Mainland China

Output Power: 25W/20W(VHF/UHF)

Output Power(w): 10w-25w

Rechargeablebatteryincluded: No

Storage Channel: 200

Use: others

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

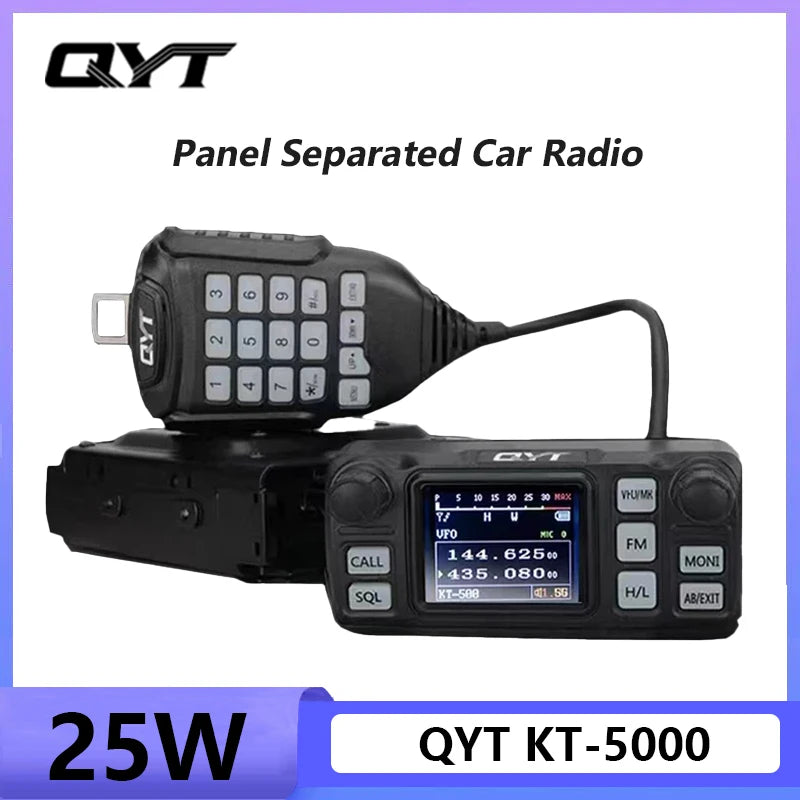

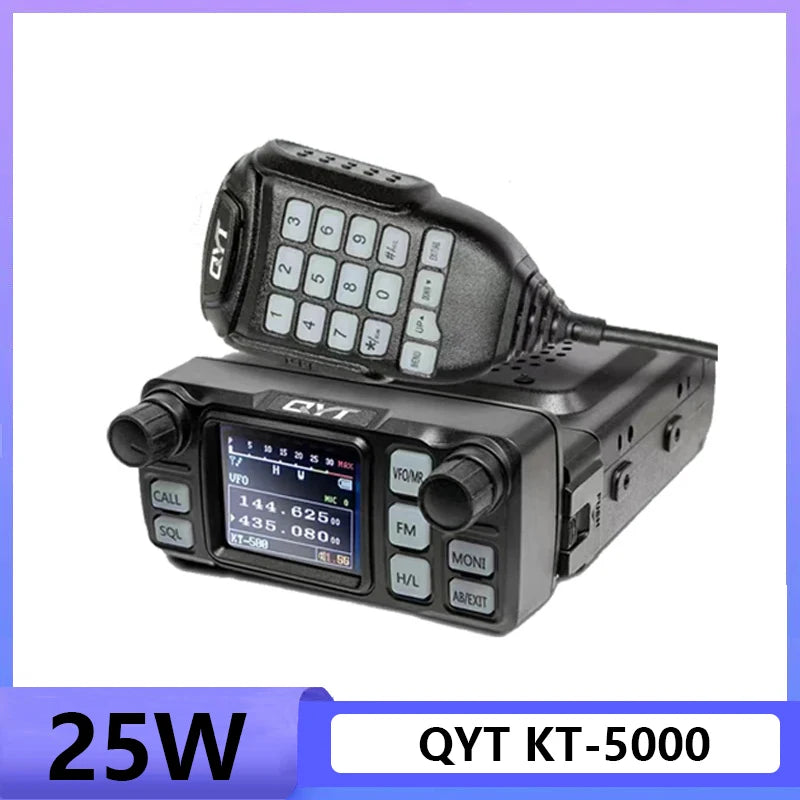

QYT KT-5000 Car Radio Separable Panel 25W 10KM VHF UHF Dual Band VOX Mini Color FM Mobile Walkie Talkie

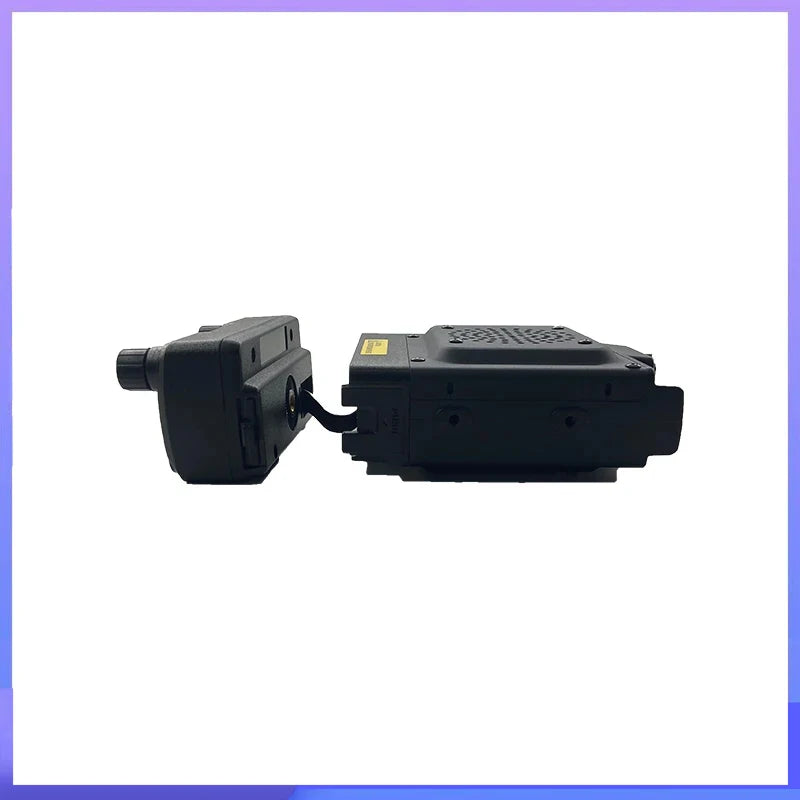

1. Separable Panel：Can be mounted at the most desirable operating position by a supplied 5 meter extendable connect cable

2. VOX function

3. Scrambler

4. Dual Band Standby Working Mode (TMR)

5. Carrier/CTCSS/DCS/DTMF/2TONE/5TONE

6. 200 Memory Channels

7. VHF: 136-174MHz & UHF: 400-480MHz

8. 76-108.9MHz FM Commercial Radio (Receiving only)

9. Mini Size Design，Color Screen

10. Output Power：25W/20W(VHF/UHF)

11. Operating Voltage: 13.8VDC (±15%)

12. Frequency Space：2.50/5.00/6.25/10.00/12.50/25.00KHz

General

Frequency RangeDUAL Band: VHF:136-174MHz, UHF: 400-480MHz
Number of Channel:200
Channel Spacing:25KHz(Wide Band) 20KHz(Mid-Band) 12.5KHz(Narrow Band)
Phase lock step:5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 25 KHz
Working Voltage:13.8V DC±10%
Squelch way:Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability :±2.5ppm
Operating Temperature:-20℃~+60℃
Dimension(W x H x D):95(W) x 43(H) x 155(D)mm
Weight:500g

Receiver

Sensitivity:≤ 0.25μV ,≤ 0.35μV
Channel choice:≥70dB ,≥60dB
Intermodulation:≥65dB ,≥60dB
Spurious Rejection:≥70dB ,≥70dB
Audio response:+1~ -3dB(0.3~3KHz) ,+1~ -3dB(0.3~2.55KHz)
Signal to noise ratio:≥45dB ,≥40dB
Audio distortion:≤5%
Audio output power:≥2W±10%

Transmitter

Output power:25W/20W(VHF/UHF)
Modulation Mode:16KΦF3E,11KΦF3E
Channel Power:≥70dB,≥60B
Signal to noise ratio:≥40dB,≥36dB
Parasitic harmonic:≥60dB
Audio response:+1~ -3dB(0.3~3KHz),+1~ -3dB(0.3~2.55KHz)
Audio distortion:≤5%

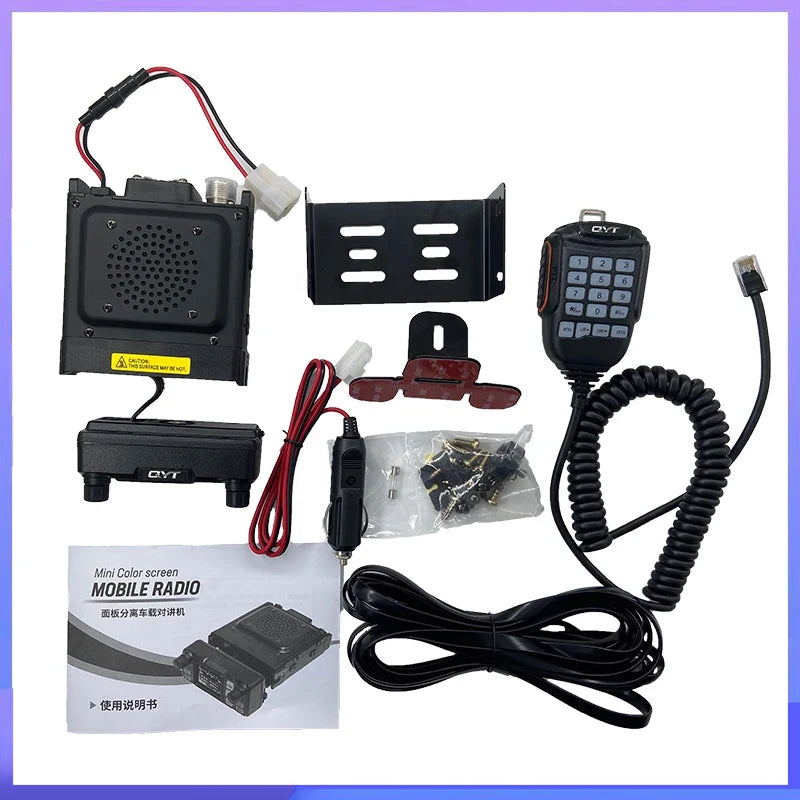

1*KT-5000 Car Radio
other accessories depend on your choice
