SPECIFICATIONS

Applicable Product: Bodypack, Audio Mixer

Applicable instrument 3: Piano Microphone

Applicable instruments: Wind instrument microphone

Applicable instruments 1: Saxophone microphone

Applicable instruments 2: Violin Microphone

Applicable instruments 4: French Horn Microphone

Applicable instruments 5: Trombone Microphone

Applicable instruments 6: Clarinet Microphone

Battery Type: Others

Brand Name: FREEBOSS

Built-in Battery: No

Cable Length: 1.1m

Certification: CE

Communication: Wired

Diaphragm: S-Mall

Enclosure material: Others

Frequency reponse range: 50Hz-18KHz

High-concerned chemical: none

Optional Plug: 3.5mm/3 Pin/4 Pin

Origin: Mainland China

Package: Yes

Polar Patterns: Hypercardioid

Set Type: Single Microphone

Style: Hanging Microphones

Transducer: Condenser Microphone

Use: Pro Studio,Music Recording/small stage/Performance

Working voltage: 1-10V

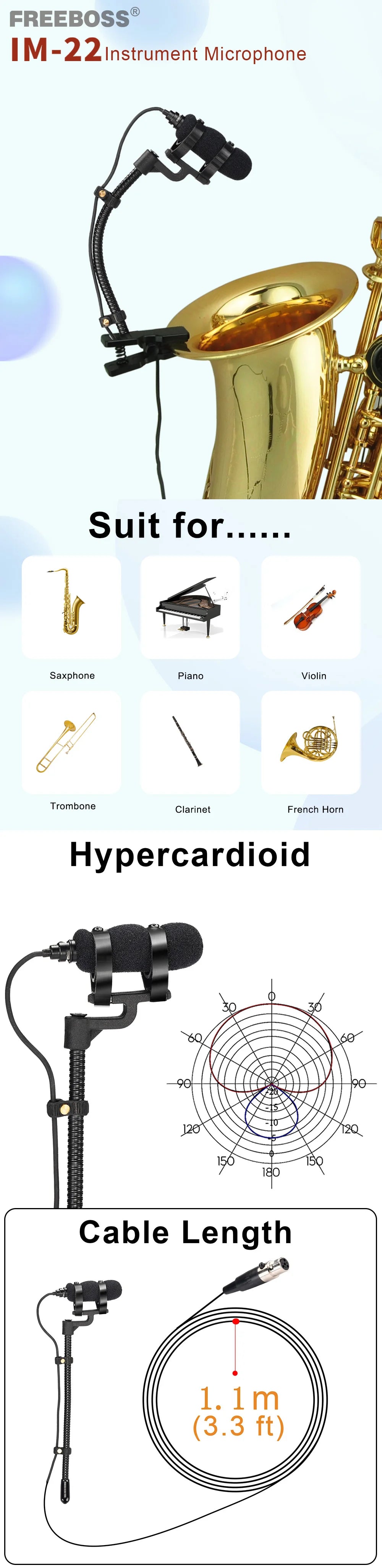

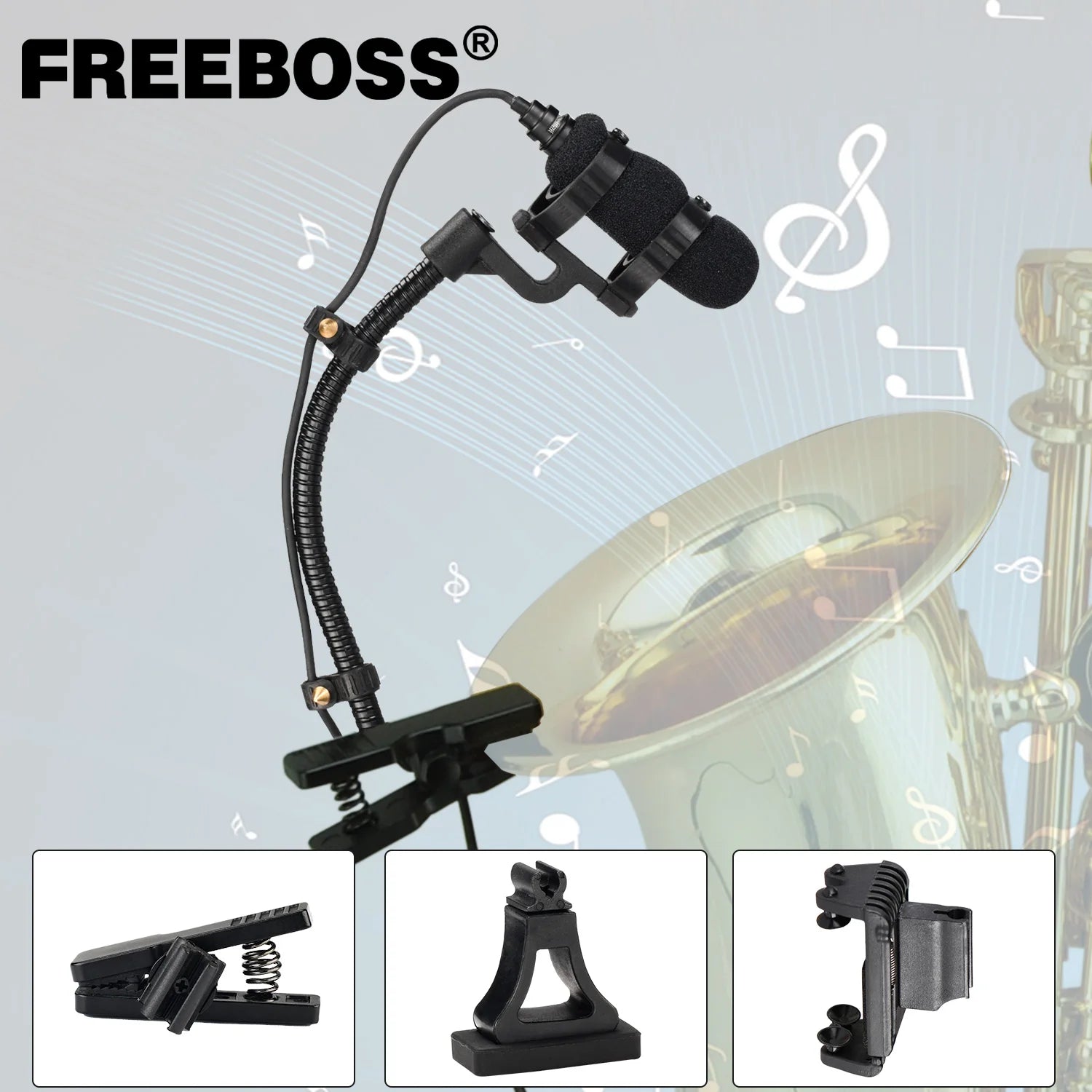

FREEBOSS IM-22

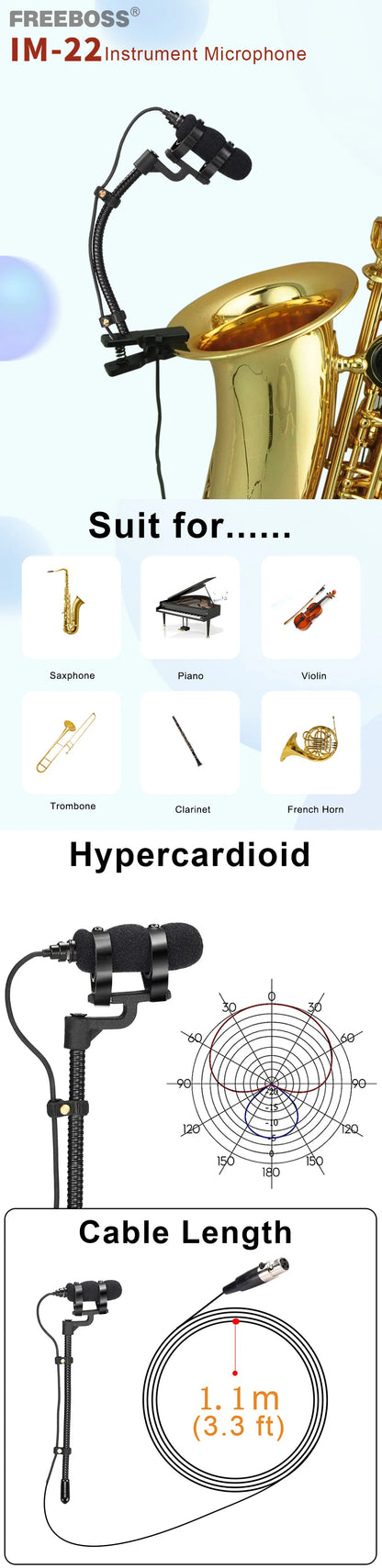

    3.5mm 3 Pin 4 PIN Wired Wind Instrument Microphone for Saxophone, Piano, Violin, Trombone, Clarinet, French Horn, Trumpet, ect.

Product Features:

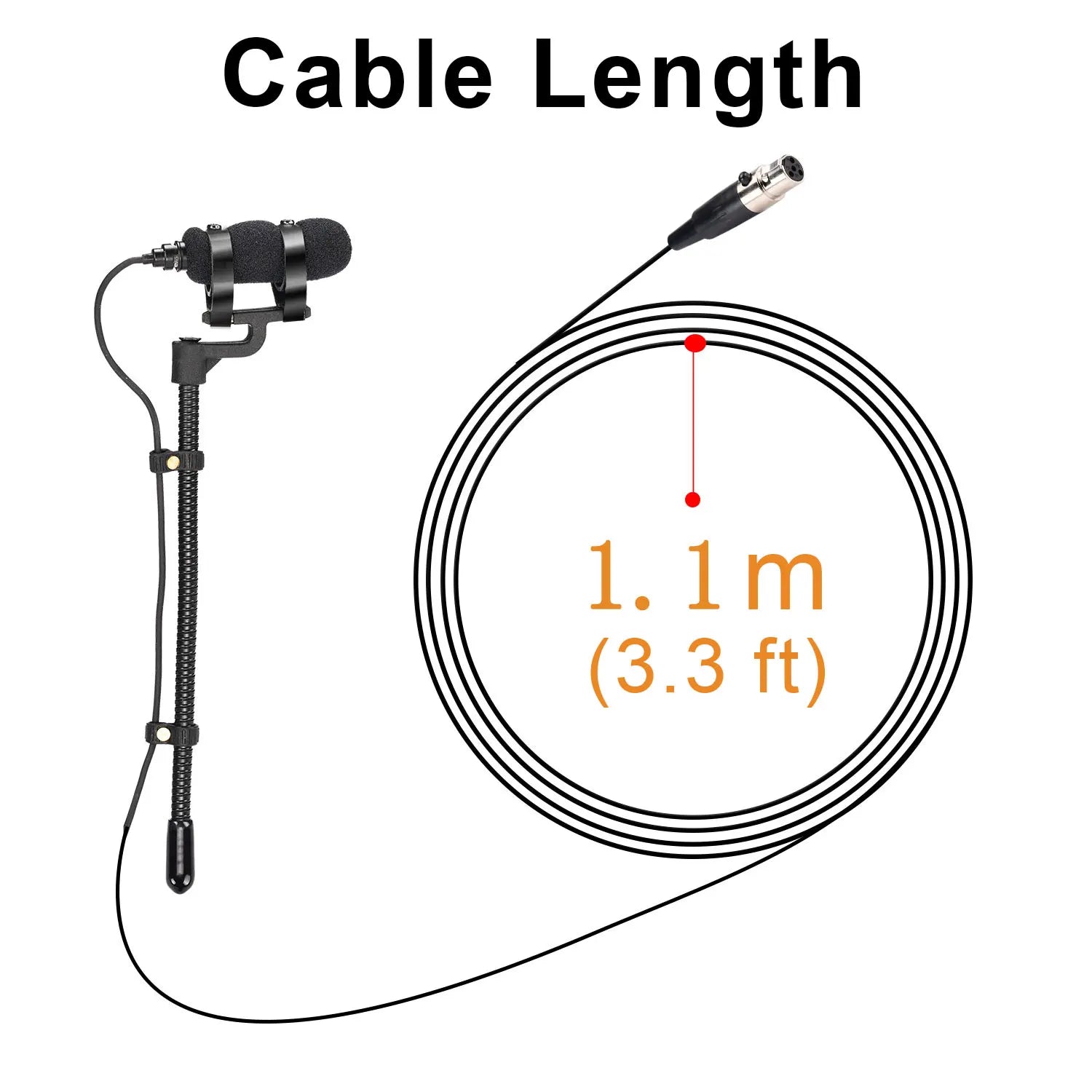

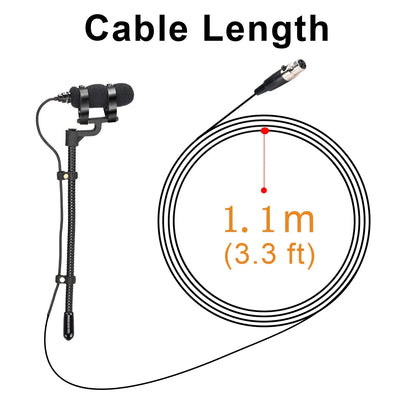

    Cable length------ 1.1 meters (3.3 ft)

    Frequency------50Hz-18KHz

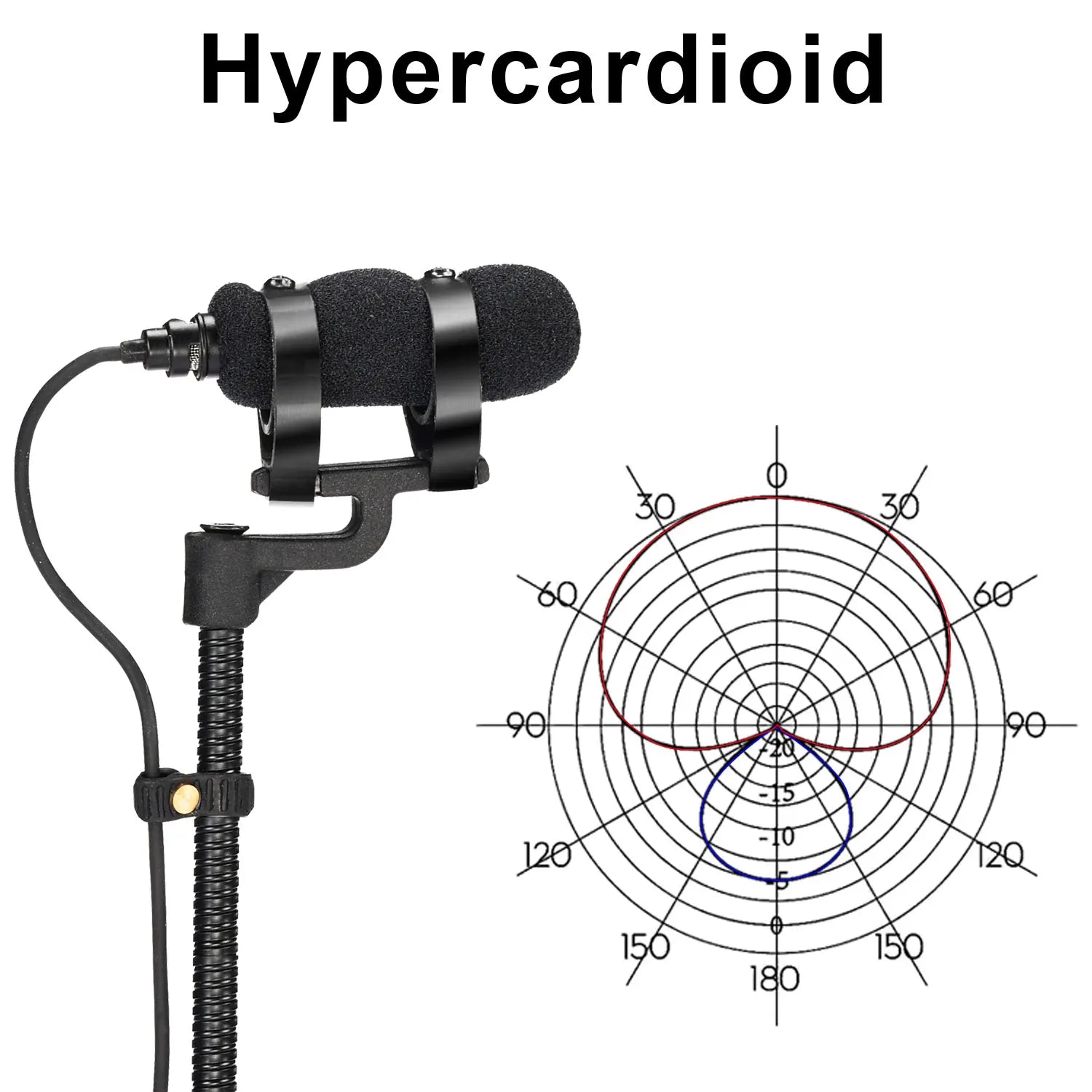

    Polar Patterns------hyper-cardioid

    Impedance------1400Ω±30%

    Sensitivity-------47±3dB

    Sound Pressure------128dB

    S/N------58dB

    Working Voltage: 1V-10V

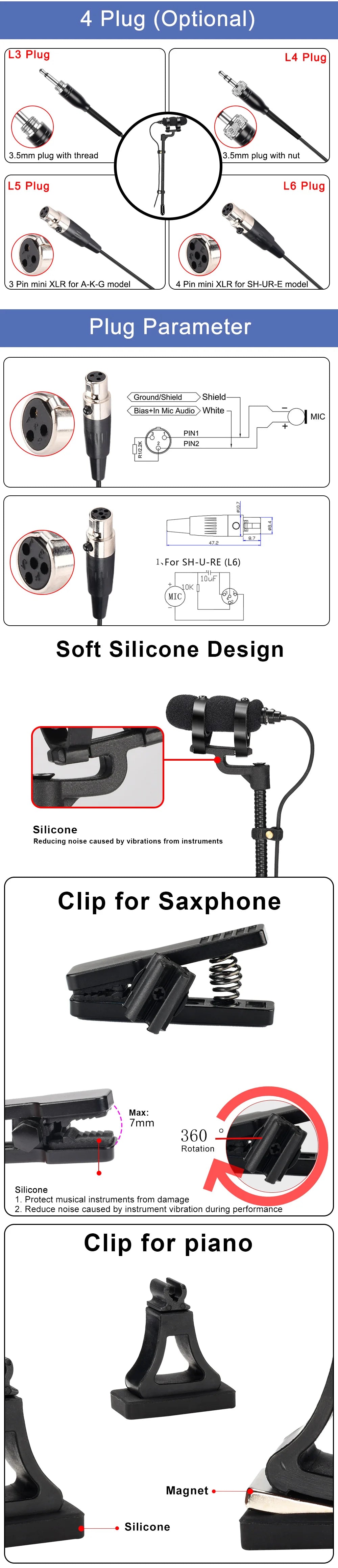

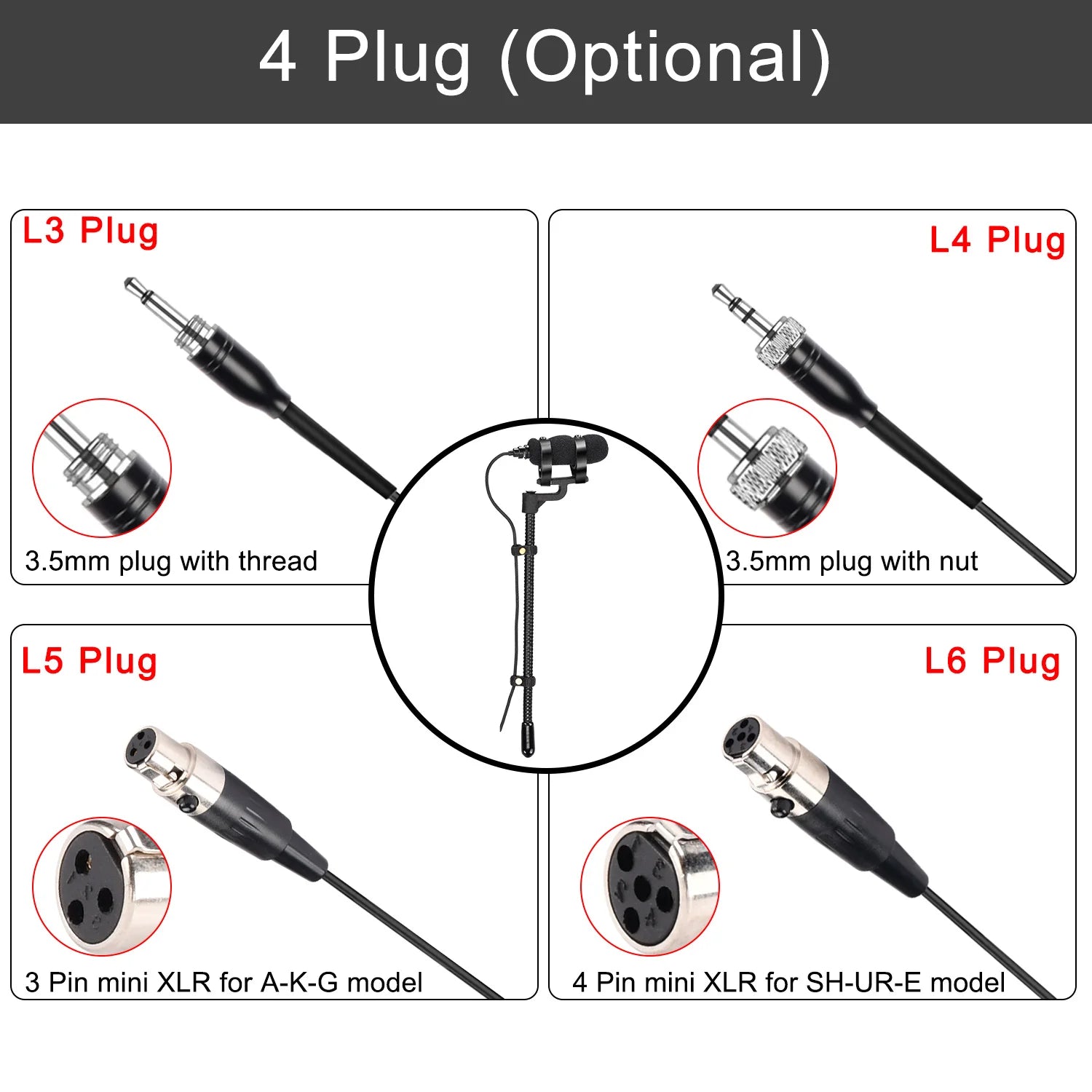

4 Kinds of Plug:

    1. L3 plug------3.5mm with thread.

    2. L4 plug------3.5mm with nut.

    3. L5 plug------3 pin mini XLR plug, for A-K-G model.

    4. L5 plug------4 pin mini XLR plug, for S-H-U-R-E model.

Packing List:

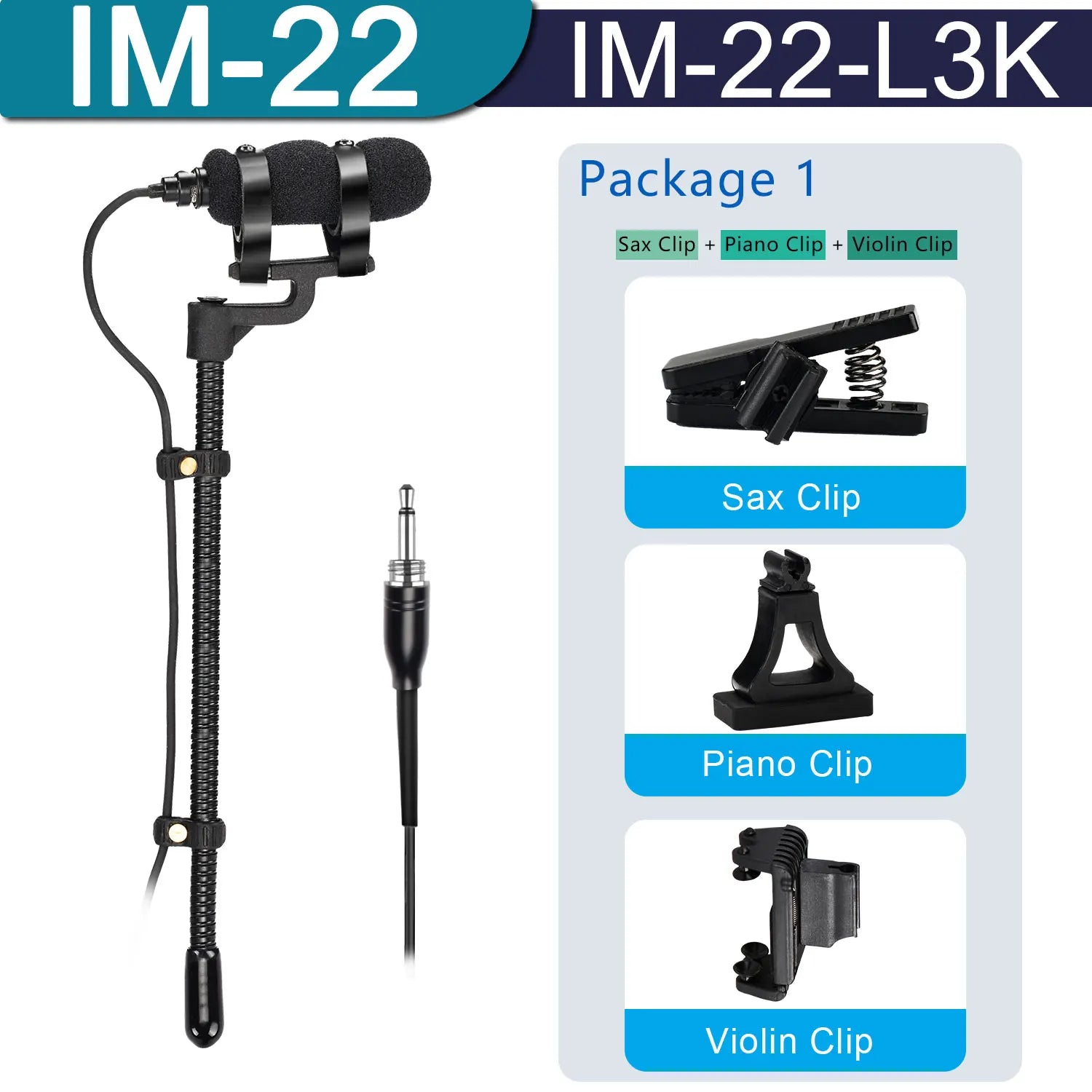

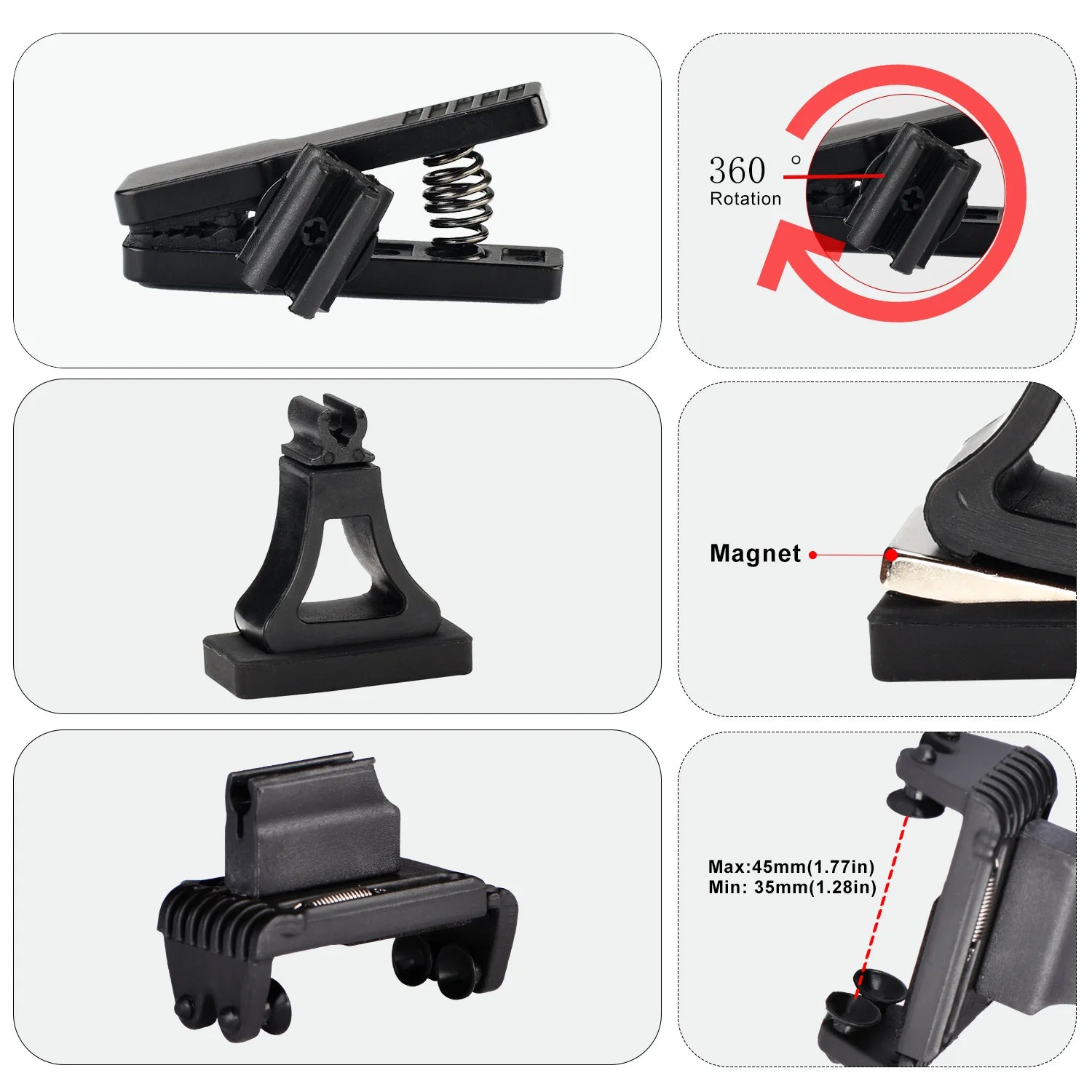

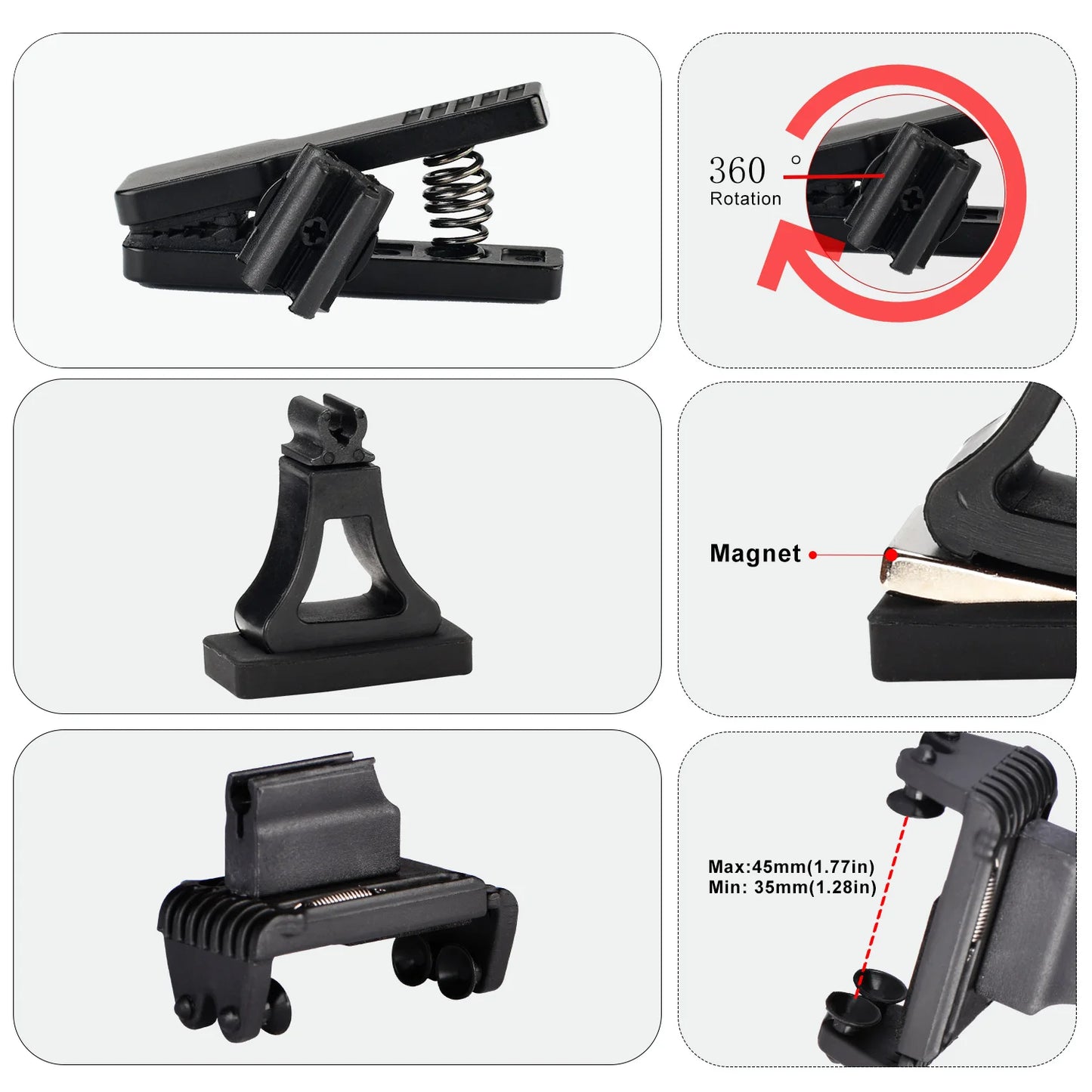

    Package 1------IM-22-L3K ----(1 3.5mm with thread mic + 3 clip)

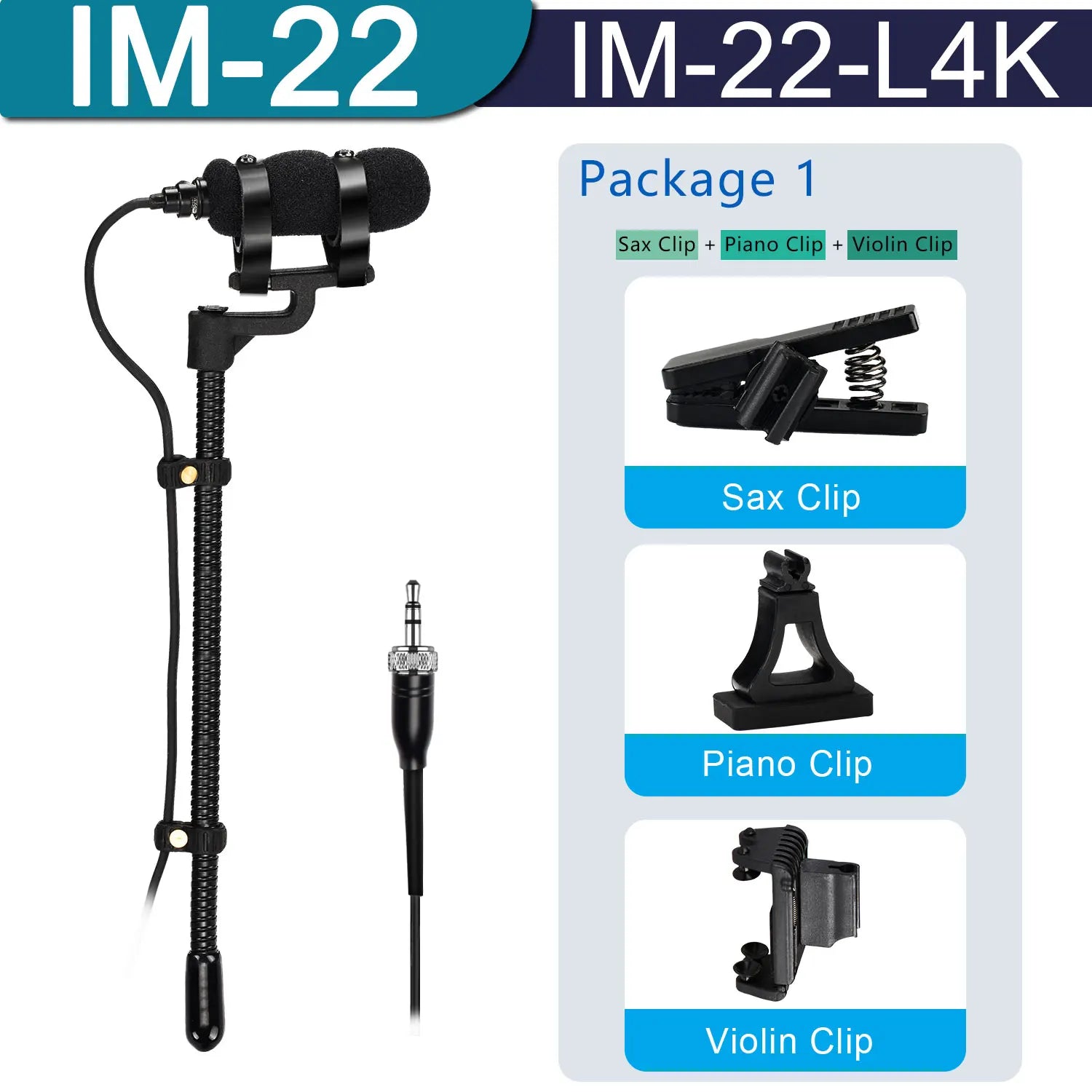

    Package 2------IM-22-L4K ----(1 3.5mm with nut mic + 3 clip)

    Package 3------IM-22-L5K ----(1 3pin mic + 3 clip)

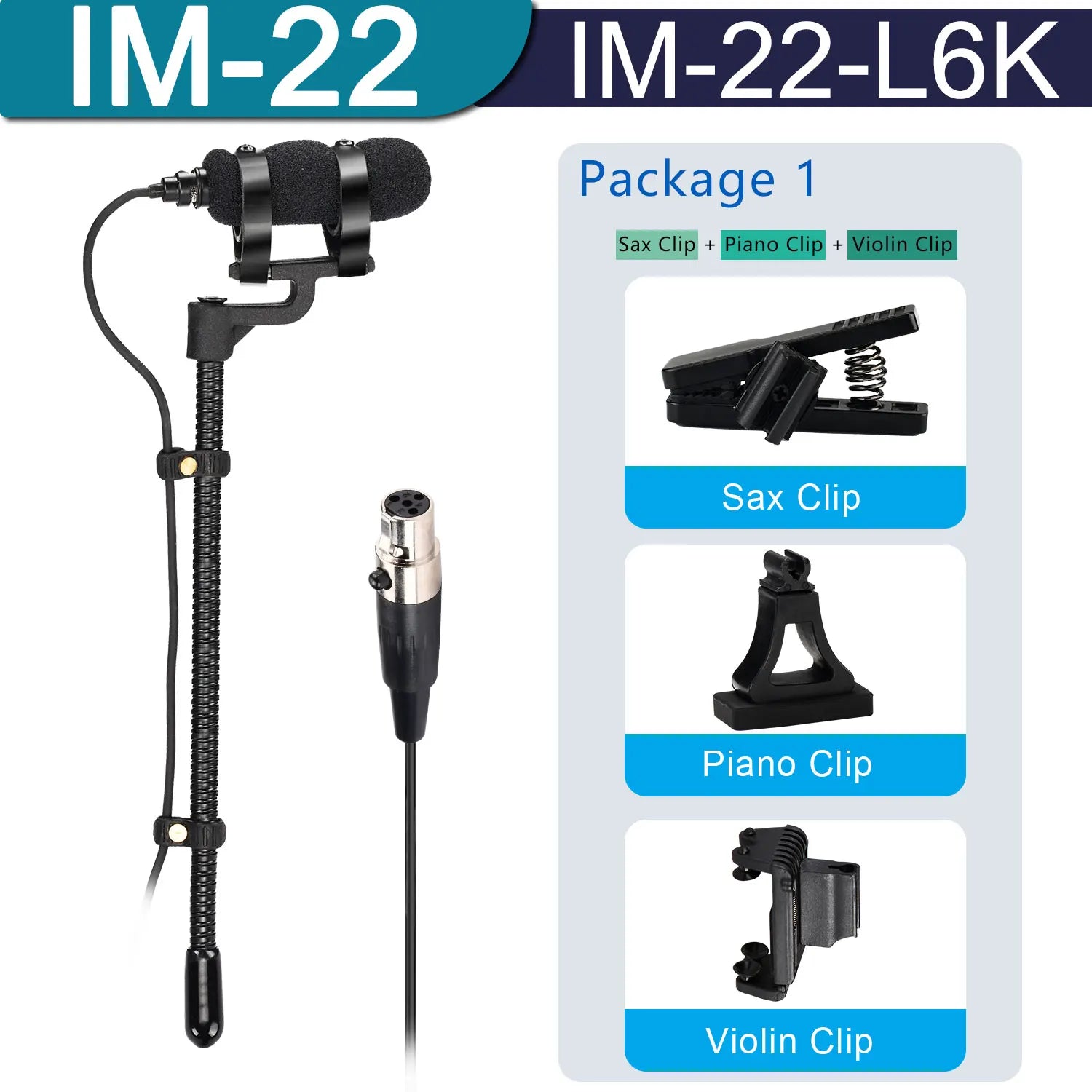

    Package 4------IM-22-L6K ----(1 4pin mic + 3 clip)

    Package 5------IM-22-L3K-K----(1 3.5mm with thread mic + 3 clip + 1 plastic box)

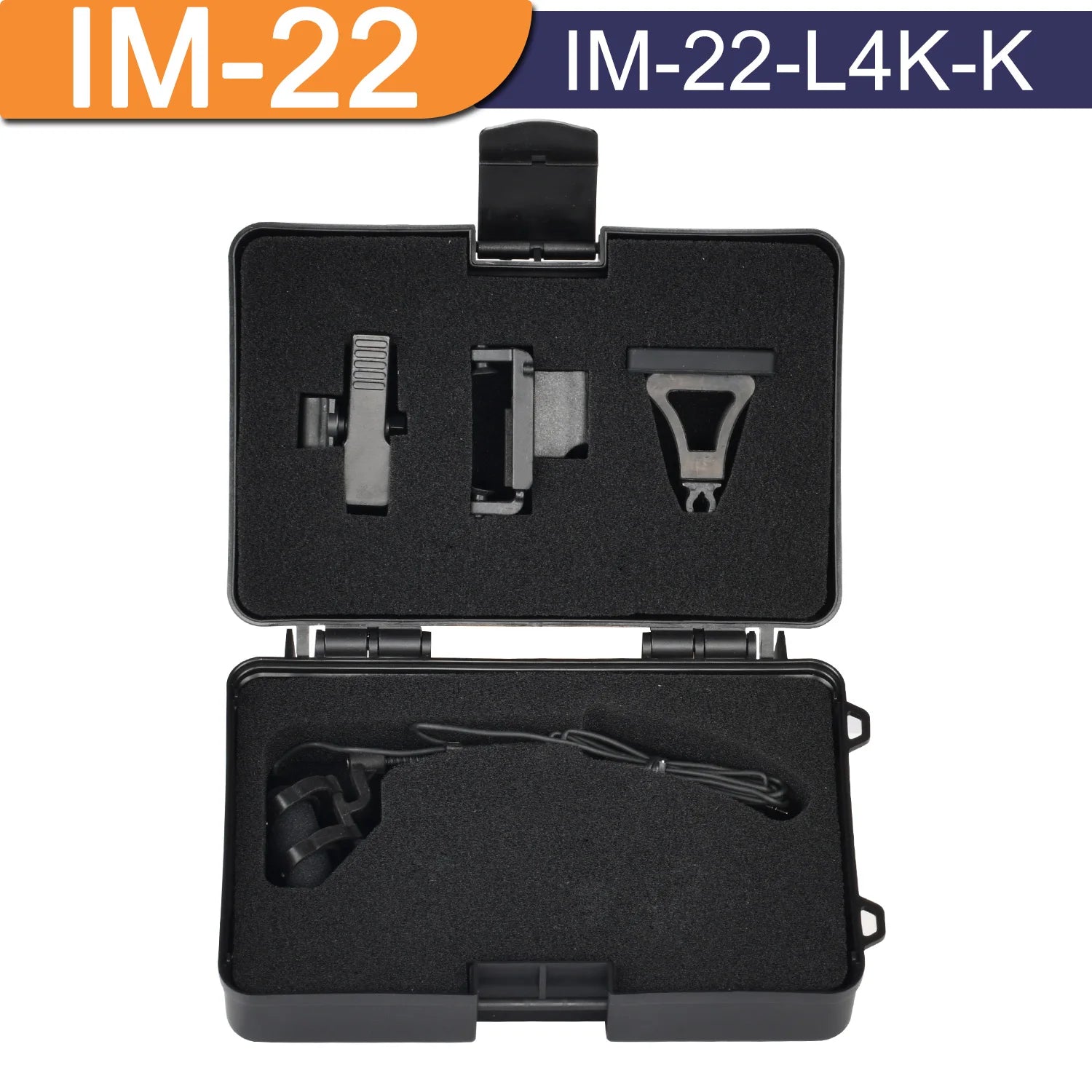

    Package 6------IM-22-L4K-K----(1 3.5mm with nut mic + 3 clip + 1 plastic box)

    Package 7------IM-22-L5K-K----(1 3pin mic + 3 clip + 1 plastic box)

    Package 8------IM-22-L6K-K----(1 4pin mic + 3 clip + 1 plastic box)
